Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

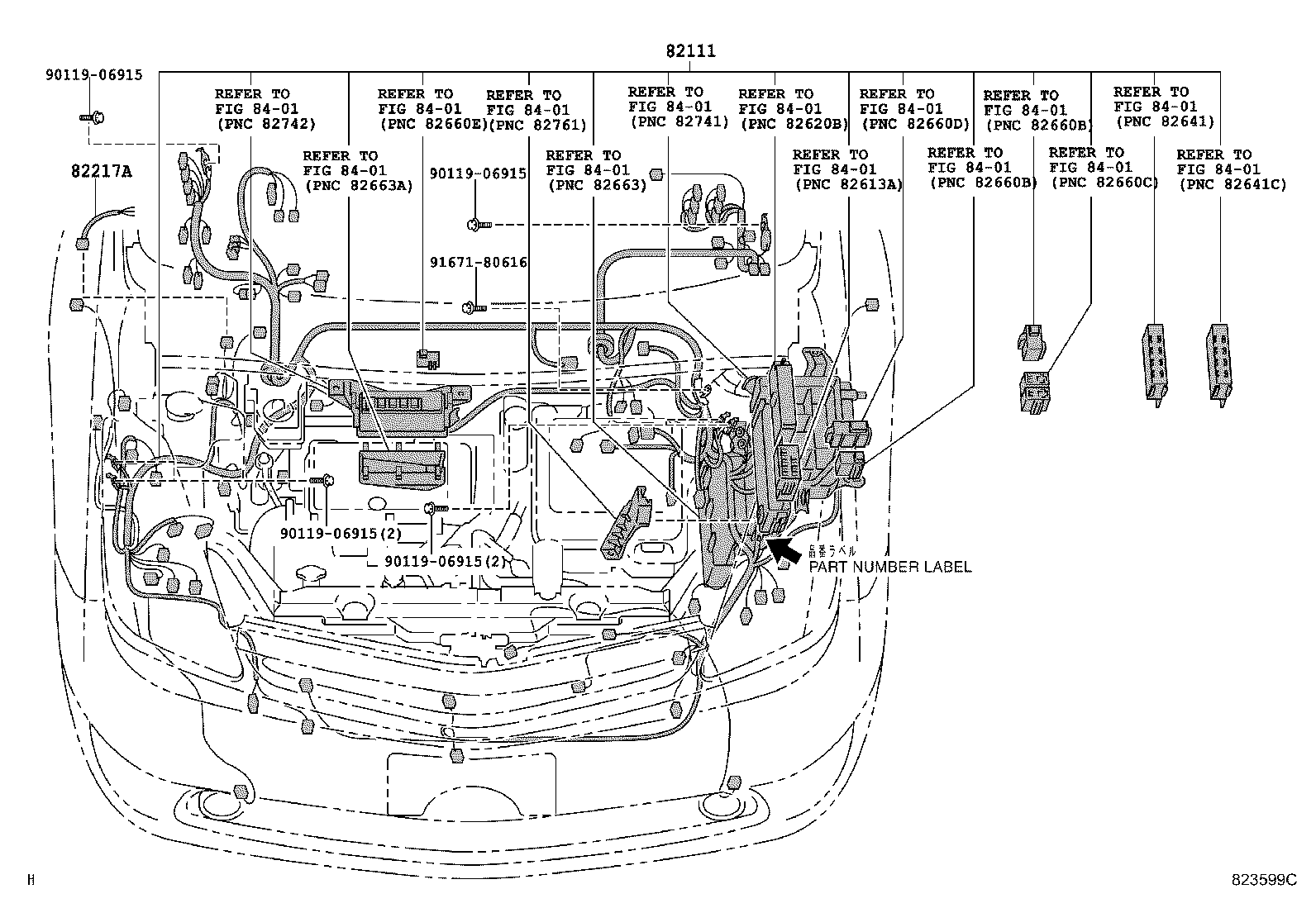

Exploded illustration 823599C 82217A — WIRE, FRONT WINDOW DEFOGGER (2 parts) 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 82111 — WIRE, ENGINE ROOM MAIN (86 parts) 9167180616 — not listed in this catalogue 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
823599C · 2 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
88 parts on this figure
Part number Description Fitment Price
82111 — Wire, Engine Room Main
82111-47120 Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥186,000
82111-47121 Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥186,000
82111-47130 Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 G ¥223,000
82111-47130 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥223,000
82111-47130 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥223,000
82111-47130 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥223,000
82111-47131 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 G ¥203,000
82111-47131 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥203,000
82111-47140 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥223,000
82111-47140 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 ¥223,000
82111-47141 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 ¥223,000
82111-47141 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 ¥223,000
82111-47230 Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥186,000
82111-47231 Wire, Engine Room Main
2008-08 → 2009-06 ended
NHW20 S ¥186,000
82111-47232 Wire, Engine Room Main
2009-06 → 2011-12 ended
NHW20 ¥203,000
82111-47240 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥186,000
82111-47240 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥186,000
82111-47240 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥186,000
82111-47240 Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 G ¥186,000
82111-47241 note Wire, Engine Room Main
2008-08 → 2009-06 ended
NHW20 S ¥186,000
82111-47241 note Wire, Engine Room Main
2008-08 → 2009-06 ended
NHW20 S ¥186,000
82111-47241 note Wire, Engine Room Main
2008-08 → 2009-06 ended
NHW20 S ¥186,000
82111-47241 Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 G ¥186,000
82111-47242 note Wire, Engine Room Main
2010-11 → 2011-12 ended
NHW20 ¥186,000
82111-47242 note Wire, Engine Room Main
2010-11 → 2011-12 ended
NHW20 ¥186,000
82111-47242 note Wire, Engine Room Main
2009-06 → 2011-12 ended
NHW20 ¥186,000
82111-47242 note Wire, Engine Room Main
2009-06 → 2010-11 ended
NHW20 ¥186,000
82111-47242 note Wire, Engine Room Main
2009-06 → 2010-11 ended
NHW20 ¥186,000
82111-47250 note Wire, Engine Room Main
2007-04 → 2008-08 ended
NHW20 S ¥203,000
82111-47250 note Wire, Engine Room Main
2007-04 → 2008-08 ended
NHW20 S ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 G ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 G ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 S ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 G ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 G ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 S ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 S ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 S ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 S ¥203,000
82111-47120 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥186,000
82111-47121 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥186,000
82111-47130 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 G ¥223,000
82111-47130 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥223,000
82111-47131 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥203,000
82111-47131 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 G ¥203,000
82111-47131 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥203,000
82111-47140 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 ¥223,000
82111-47140 note Wire, Engine Room Main
2003-08 → 2004-05 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 S ¥223,000
82111-47141 note Wire, Engine Room Main
2004-08 → 2005-11 ended
NHW20 ¥223,000
82111-47141 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 ¥223,000
82111-47141 note Wire, Engine Room Main
2004-05 → 2005-11 ended
NHW20 S ¥223,000
82111-47230 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥186,000
82111-47231 note Wire, Engine Room Main
2008-08 → 2009-06 ended
NHW20 S ¥186,000
82111-47232 note Wire, Engine Room Main
2009-06 → 2011-12 ended
NHW20 ¥203,000
82111-47240 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 G ¥186,000
82111-47240 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥186,000
82111-47241 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 G ¥186,000
82111-47241 note Wire, Engine Room Main
2008-08 → 2009-06 ended
NHW20 S ¥186,000
82111-47242 note Wire, Engine Room Main
2010-11 → 2011-12 ended
NHW20 ¥186,000
82111-47242 note Wire, Engine Room Main
2009-06 → 2011-12 ended
NHW20 ¥186,000
82111-47242 note Wire, Engine Room Main
2009-06 → 2010-11 ended
NHW20 ¥186,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 S ¥203,000
82111-47250 note Wire, Engine Room Main
2005-11 → 2008-08 ended
NHW20 G ¥203,000
82111-47250 note Wire, Engine Room Main
2007-04 → 2008-08 ended
NHW20 S ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 G ¥203,000
82111-47251 note Wire, Engine Room Main
2008-08 → 2009-03 ended
NHW20 S ¥203,000
82217A — Wire, Front Window Defogger
82217-47010 note Wire, Front Window Defogger
2003-08 → 2005-11 ended
NHW20 ¥590
82217-47010 note Wire, Front Window Defogger
2005-11 → 2011-12 ended
NHW20 ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
