Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

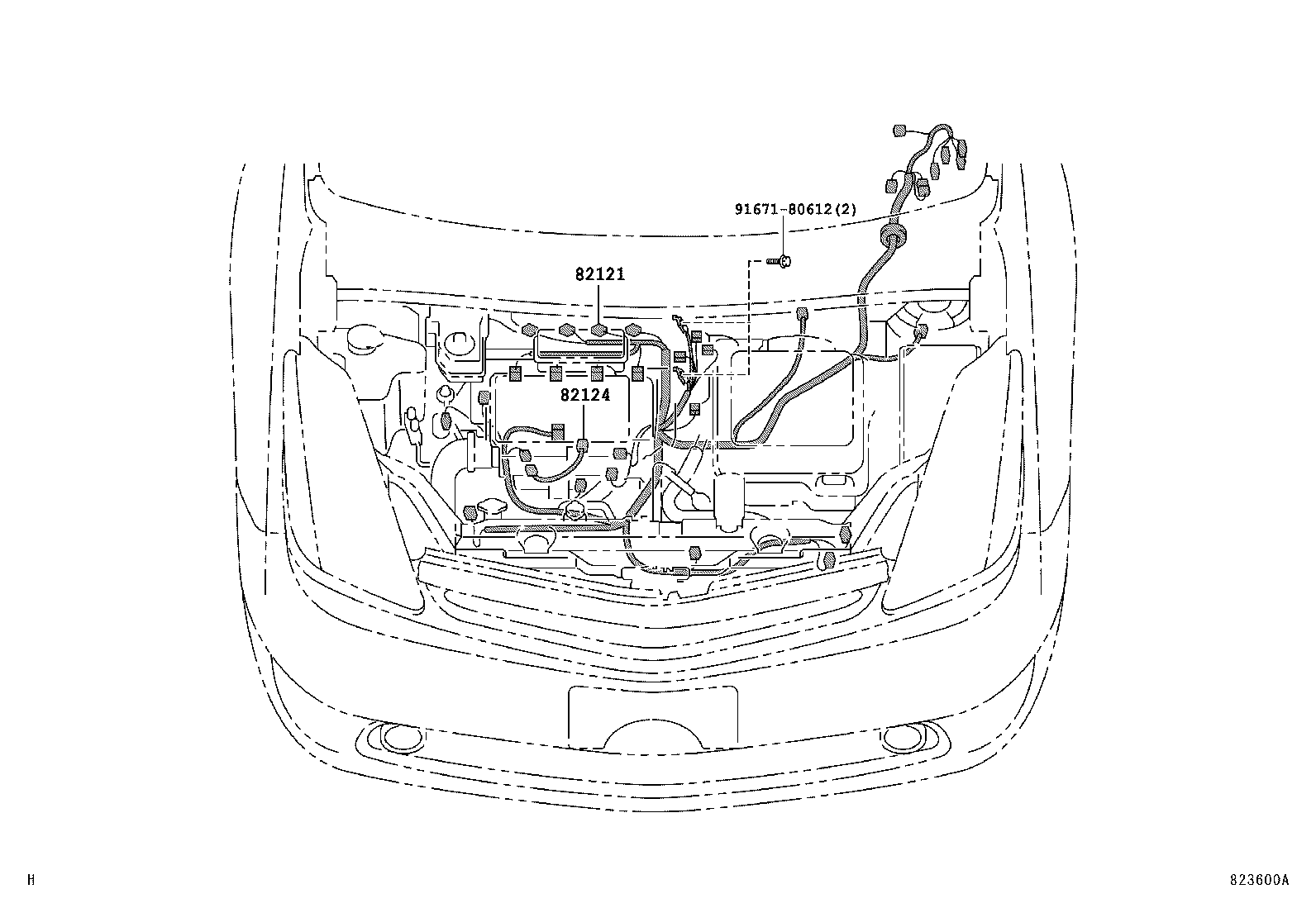

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-47050 |
Wire, Engine
2003-08 → 2005-11
ended
|
NHW20 | ¥68,900 | |
| 82121-47050 |
Wire, Engine
2005-11 → —
|
NHW20 | ¥68,900 | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-47020 |
Wire, Engine, NO.4
2003-08 → 2005-11
ended
|
NHW20 | ¥590 | |
| 82124-47020 |
Wire, Engine, NO.4
2005-11 → —
|
NHW20 | ¥590 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
