Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

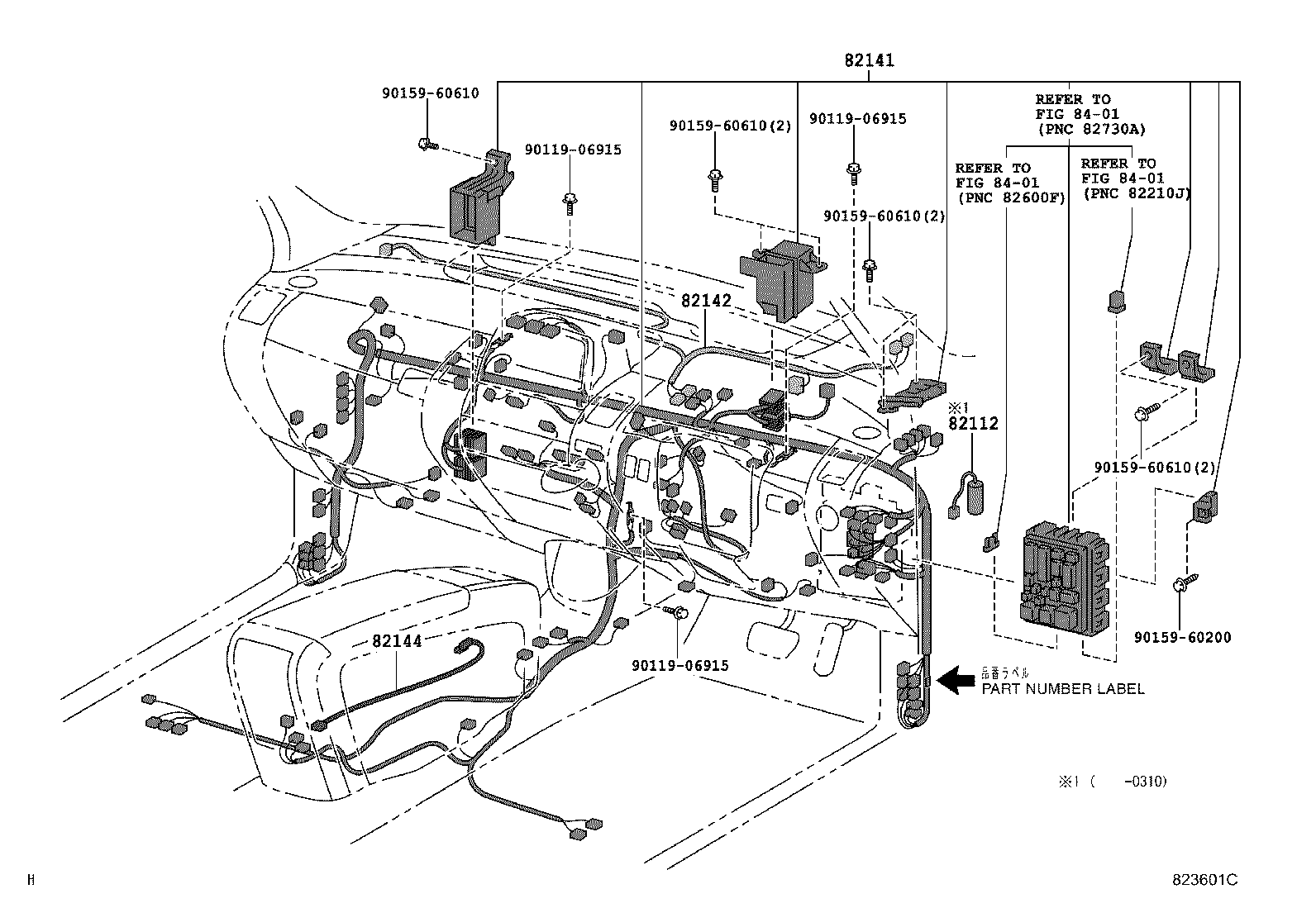

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82112 — Wire, Engine Room, NO.2 | ||||
| 82112-47010 |
Wire, Engine Room, NO.2
2003-08 → 2003-10
ended
|
NHW20 | ¥14,400 | |
| 82141 — Wire, Instrument Panel | ||||
| 82141-47820 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥186,000 | |
| 82141-47821 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥186,000 | |
| 82141-47830 |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥168,000 | |
| 82141-47831 |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥168,000 | |
| 82141-47840 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47840 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47841 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥203,000 | |
| 82141-47841 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥203,000 | |
| 82141-47850 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47850 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47851 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥203,000 | |
| 82141-47851 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥203,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47880 |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47881 |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W20 |
Wire, Instrument Panel
2005-11 → 2009-08
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W21 |
Wire, Instrument Panel
2009-08 → 2011-12
ended
|
NHW20 | ¥168,000 | |
| 82141-47W30 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W30 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W30 note |
Wire, Instrument Panel
2005-11 → 2009-08
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W31 note |
Wire, Instrument Panel
2009-08 → 2011-12
ended
|
NHW20 | ¥168,000 | |
| 82141-47W40 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W40 note |
Wire, Instrument Panel
2005-11 → 2009-06
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W40 note |
Wire, Instrument Panel
2005-11 → 2009-06
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W40 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W41 note |
Wire, Instrument Panel
2009-06 → 2009-08
ended
|
NHW20 | ¥186,000 | |
| 82141-47W41 note |
Wire, Instrument Panel
2009-06 → 2009-08
ended
|
NHW20 | ¥186,000 | |
| 82141-47W42 note |
Wire, Instrument Panel
2009-08 → 2010-11
ended
|
NHW20 | ¥186,000 | |
| 82141-47W42 note |
Wire, Instrument Panel
2009-08 → 2010-11
ended
|
NHW20 | ¥186,000 | |
| 82141-47W42 note |
Wire, Instrument Panel
2010-11 → 2011-12
ended
|
NHW20 | ¥186,000 | |
| 82141-47W42 note |
Wire, Instrument Panel
2010-11 → 2011-12
ended
|
NHW20 | ¥186,000 | |
| 82141-47W50 |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 G | ¥168,000 | |
| 82141-47W60 note |
Wire, Instrument Panel
2007-04 → 2009-03
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W60 note |
Wire, Instrument Panel
2007-04 → 2009-03
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W60 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 G | ¥186,000 | |
| 82141-47W70 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 G | ¥203,000 | |
| 82141-47820 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥186,000 | |
| 82141-47821 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥186,000 | |
| 82141-47830 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥168,000 | |
| 82141-47831 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥168,000 | |
| 82141-47840 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47840 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47841 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥203,000 | |
| 82141-47850 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47850 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 G | ¥203,000 | |
| 82141-47851 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 G | ¥203,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47860 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥186,000 | |
| 82141-47861 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥186,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2004-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47870 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47871 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47880 note |
Wire, Instrument Panel
2003-08 → 2005-01
ended
|
NHW20 S | ¥168,000 | |
| 82141-47881 note |
Wire, Instrument Panel
2005-02 → 2005-11
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W20 note |
Wire, Instrument Panel
2005-11 → 2009-08
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W21 note |
Wire, Instrument Panel
2009-08 → 2011-12
ended
|
NHW20 | ¥168,000 | |
| 82141-47W30 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W30 note |
Wire, Instrument Panel
2005-11 → 2009-08
ended
|
NHW20 S | ¥168,000 | |
| 82141-47W31 note |
Wire, Instrument Panel
2009-08 → 2011-12
ended
|
NHW20 | ¥168,000 | |
| 82141-47W40 note |
Wire, Instrument Panel
2005-11 → 2009-06
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W40 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W41 note |
Wire, Instrument Panel
2009-06 → 2009-08
ended
|
NHW20 | ¥186,000 | |
| 82141-47W42 note |
Wire, Instrument Panel
2009-08 → 2010-11
ended
|
NHW20 | ¥186,000 | |
| 82141-47W42 note |
Wire, Instrument Panel
2010-11 → 2011-12
ended
|
NHW20 | ¥186,000 | |
| 82141-47W50 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 G | ¥168,000 | |
| 82141-47W60 note |
Wire, Instrument Panel
2007-04 → 2009-03
ended
|
NHW20 S | ¥186,000 | |
| 82141-47W60 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 G | ¥186,000 | |
| 82141-47W70 note |
Wire, Instrument Panel
2005-11 → 2009-03
ended
|
NHW20 G | ¥203,000 | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-47010 |
Wire, Instrument Panel, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥4,260 | |
| 82142-47010 |
Wire, Instrument Panel, NO.2
2005-11 → 2011-12
ended
|
NHW20 | ¥4,260 | |
| 82144 — Wire, Instrument Panel, NO.4 | ||||
| 82144-47030 |
Wire, Instrument Panel, NO.4
2003-08 → 2005-11
ended
|
NHW20 | ¥2,290 | |
| 82144-47030 |
Wire, Instrument Panel, NO.4
2005-11 → 2011-12
ended
|
NHW20 | ¥2,290 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
