Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

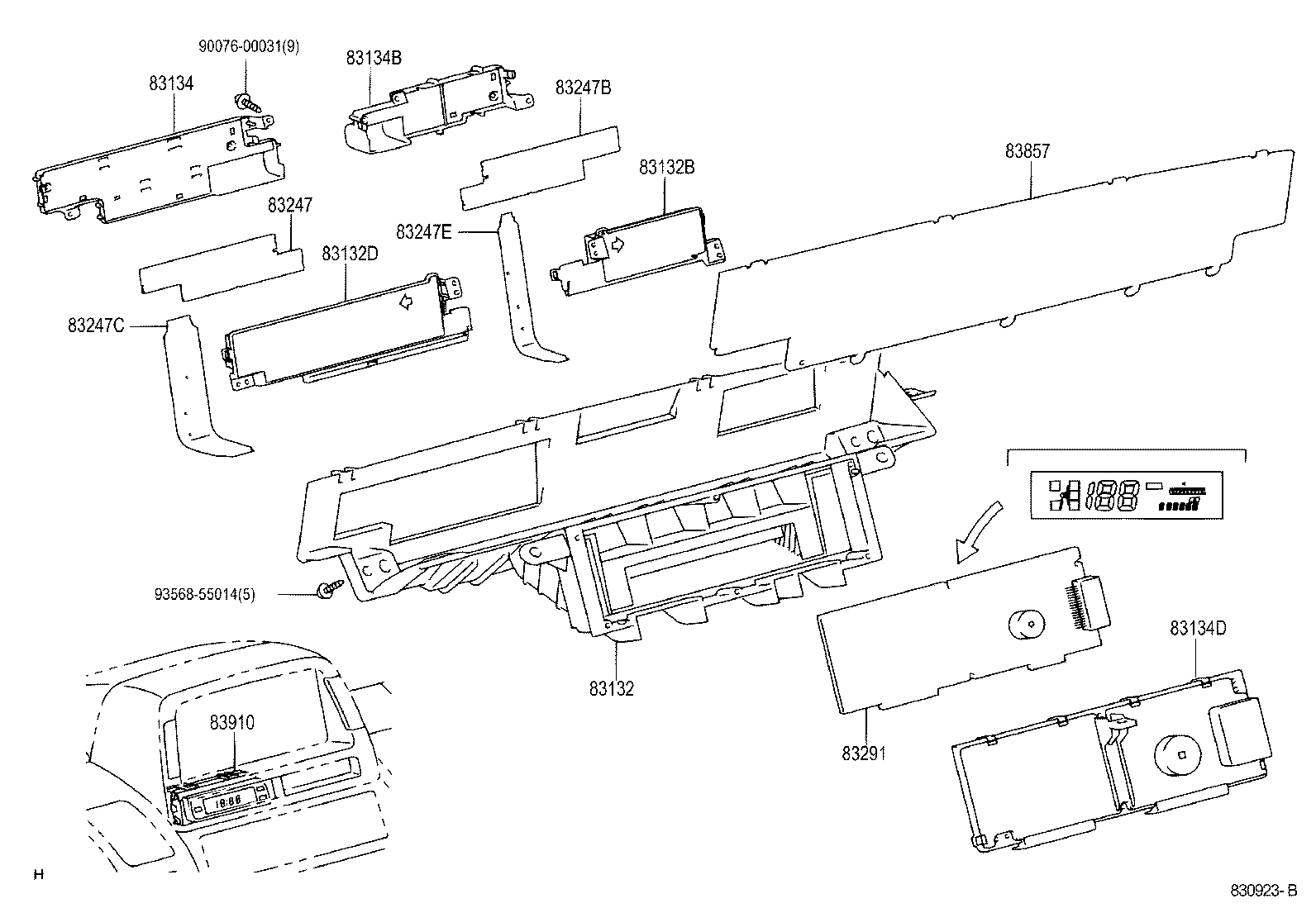

Exploded illustration 830923B 83910 — CLOCK ASSY (5 parts) 9356855014 — not listed in this catalogue 9007600031 — not listed in this catalogue 83291 — COMPUTER, COMBINATION METER (5 parts) 83134 — COVER, COMBINATION METER, NO.1 (3 parts) 83134B — COVER, COMBINATION METER, NO.2 (3 parts) 83134D — COVER, COMBINATION METER, NO.3 (3 parts) 83132 — CASE, COMBINATION METER (4 parts) 83132D — CASE, COMBINATION METER, NO.2 (3 parts) 83132B — CASE, COMBINATION METER NO.3 (2 parts) 83857 — REFLECTOR, COMBINATION METER, NO.1 (3 parts) 83247 — PLATE, METER CIRCUIT (13 parts) 83247B — PLATE, METER CIRCUIT, NO.2 (3 parts) 83247C — PLATE, MATER CIRCUIT, NO.3 (3 parts) 83247E — PLATE, MATER CIRCUIT, NO.4 (3 parts)
830923B · 13 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
83132 — Case, Combination Meter
83841-47080 Case, Combination Meter
2003-08 → 2003-12 ended
NHW20 ¥7,300
83841-47081 Case, Combination Meter
2004-01 → 2004-08 ended
NHW20 ¥7,400
83841-47081 Case, Combination Meter
2004-08 → 2005-11 ended
NHW20 ¥7,400
83841-47081 Case, Combination Meter
2005-11 → —
NHW20 ¥7,400
83132B — Case, Combination Meter NO.3
83843-47080 Case, Combination Meter NO.3
2003-08 → 2005-11 ended
NHW20 ¥1,410
83843-47080 Case, Combination Meter NO.3
2005-11 → —
NHW20 ¥1,410
83132D — Case, Combination Meter, NO.2
83842-47080 Case, Combination Meter, NO.2
2003-08 → 2004-08 ended
NHW20 ¥2,160
83842-47080 Case, Combination Meter, NO.2
2004-08 → 2005-11 ended
NHW20 ¥2,160
83841-47260 Case, Combination Meter, NO.2
2005-11 → —
NHW20 ¥2,160
83134 — Cover, Combination Meter, NO.1
83821-47080 Cover, Combination Meter, NO.1
2003-08 → 2004-08 ended
NHW20 ¥1,240
83821-47080 Cover, Combination Meter, NO.1
2004-08 → 2005-11 ended
NHW20 ¥1,240
83821-47080 Cover, Combination Meter, NO.1
2005-11 → —
NHW20 ¥1,240
83134B — Cover, Combination Meter, NO.2
83822-47080 Cover, Combination Meter, NO.2
2003-08 → 2004-08 ended
NHW20 ¥620
83822-47080 Cover, Combination Meter, NO.2
2004-08 → 2005-11 ended
NHW20 ¥620
83822-47080 Cover, Combination Meter, NO.2
2005-11 → —
NHW20 ¥620
83134D — Cover, Combination Meter, NO.3
83823-47080 Cover, Combination Meter, NO.3
2003-08 → 2004-08 ended
NHW20 ¥2,730
83823-47080 Cover, Combination Meter, NO.3
2004-08 → 2005-11 ended
NHW20 ¥2,730
83823-47080 Cover, Combination Meter, NO.3
2005-11 → —
NHW20 ¥2,730
83247 — Plate, Meter Circuit
83861-47080 Plate, Meter Circuit
2003-08 → 2004-08 ended
NHW20 G ¥4,130
83861-47080 note Plate, Meter Circuit
2003-08 → 2004-08 ended
NHW20 S ¥4,130
83861-47080 Plate, Meter Circuit
2004-08 → 2005-11 ended
NHW20 G ¥4,130
83861-47080 note Plate, Meter Circuit
2004-08 → 2005-11 ended
NHW20 S ¥4,130
83861-47080 note Plate, Meter Circuit
2004-08 → 2005-11 ended
NHW20 S ¥4,130
83861-47080 note Plate, Meter Circuit
2004-08 → 2005-11 ended
NHW20 S ¥4,130
83861-47090 Plate, Meter Circuit
2003-08 → 2004-08 ended
NHW20 S ¥4,130
83861-47090 Plate, Meter Circuit
2004-08 → 2005-11 ended
NHW20 S ¥4,130
83861-47260 Plate, Meter Circuit
2005-11 → 2009-03 ended
NHW20 G ¥4,110
83861-47260 note Plate, Meter Circuit
2005-11 → —
NHW20 S ¥4,110
83861-47260 note Plate, Meter Circuit
2007-04 → 2009-03 ended
NHW20 S ¥4,110
83861-47260 note Plate, Meter Circuit
2007-04 → 2009-03 ended
NHW20 S ¥4,110
83861-47270 Plate, Meter Circuit
2005-11 → —
NHW20 S ¥4,110
83247B — Plate, Meter Circuit, NO.2
83862-47080 Plate, Meter Circuit, NO.2
2003-08 → 2004-08 ended
NHW20 ¥4,130
83862-47080 Plate, Meter Circuit, NO.2
2004-08 → 2005-11 ended
NHW20 ¥4,130
83862-47260 Plate, Meter Circuit, NO.2
2005-11 → —
NHW20 ¥4,110
83247C — Plate, Mater Circuit, NO.3
83863-47080 Plate, Mater Circuit, NO.3
2003-08 → 2004-08 ended
NHW20 ¥480
83863-47080 Plate, Mater Circuit, NO.3
2004-08 → 2005-11 ended
NHW20 ¥480
83863-47080 Plate, Mater Circuit, NO.3
2005-11 → —
NHW20 ¥480
83247E — Plate, Mater Circuit, NO.4
83864-47080 Plate, Mater Circuit, NO.4
2003-08 → 2004-08 ended
NHW20 ¥430
83864-47080 Plate, Mater Circuit, NO.4
2004-08 → 2005-11 ended
NHW20 ¥430
83864-47080 Plate, Mater Circuit, NO.4
2005-11 → —
NHW20 ¥430
83291 — Computer, Combination Meter
83291-47080 note Computer, Combination Meter
2003-08 → 2004-08 ended
NHW20 ¥73,200
83291-47090 note Computer, Combination Meter
2004-08 → 2005-11 ended
NHW20 ¥73,200
83291-47220 note Computer, Combination Meter
2005-11 → 2007-01 ended
NHW20 ¥73,200
83291-47221 note Computer, Combination Meter
2007-02 → 2009-02 ended
NHW20 ¥73,200
83291-47222 note Computer, Combination Meter
2009-03 → —
NHW20 ¥73,200
83857 — Reflector, Combination Meter, NO.1
83857-47080 Reflector, Combination Meter, NO.1
2003-08 → 2004-08 ended
NHW20 ¥5,200
83857-47080 Reflector, Combination Meter, NO.1
2004-08 → 2005-11 ended
NHW20 ¥5,200
83857-47080 Reflector, Combination Meter, NO.1
2005-11 → —
NHW20 ¥5,200
83910 — Clock Assy
83910-47020 Clock Assy
2003-08 → 2003-11 ended
NHW20 ¥31,500
83910-47050 Clock Assy
2003-11 → 2004-04 ended
NHW20 ¥31,400
83910-47051 Clock Assy
2004-04 → 2005-10 ended
NHW20 ¥31,600
83910-47070 Clock Assy
2005-11 → 2009-03 ended
NHW20 G ¥31,500
83910-47070 Clock Assy
2005-11 → —
NHW20 S ¥31,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
