Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

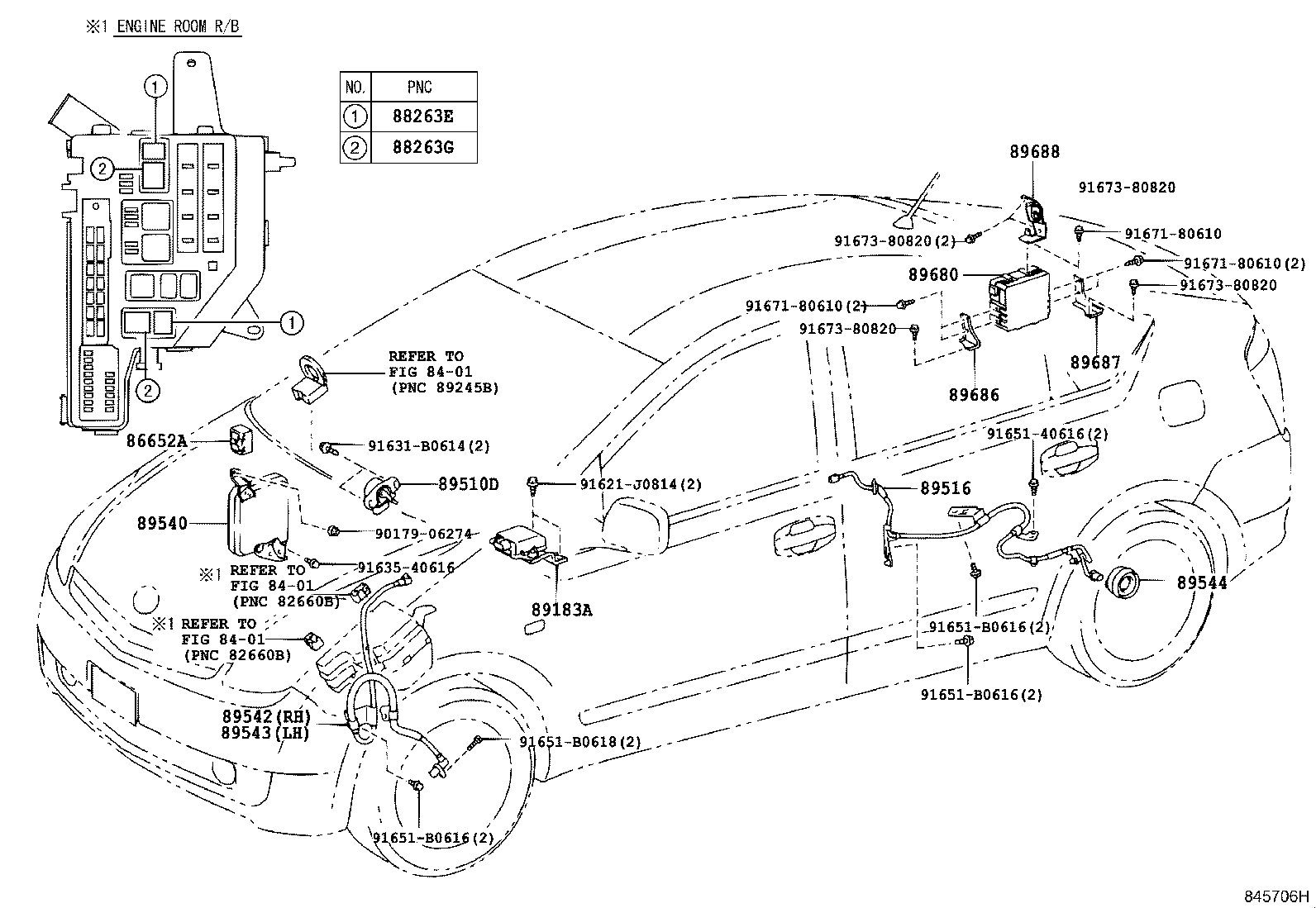

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86652A — Buzzer Assy, Skid Control | ||||
| 86652-20010 |
Buzzer Assy, Skid Control
2003-08 → 2005-11
ended
|
NHW20 | ¥4,190 | |
| 86652-20010 |
Buzzer Assy, Skid Control
2005-11 → —
|
NHW20 | ¥4,190 | |
| 88263E — Relay, Skid Control NO.2 | ||||
| 88263-32070 |
Relay, Skid Control NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥2,810 | |
| 88263-32070 |
Relay, Skid Control NO.2
2005-11 → 2011-12
ended
|
NHW20 | ¥2,810 | |
| 88263G — Relay, Skid Control | ||||
| 88263-21010 |
Relay, Skid Control
2003-08 → 2005-11
ended
|
NHW20 | ¥2,740 | |
| 88263-21010 |
Relay, Skid Control
2005-11 → 2011-12
ended
|
NHW20 | ¥2,740 | |
| 89183A — Sensor, Yawrate | ||||
| 89180-47010 |
Sensor, Yawrate
2003-08 → 2005-11
ended
|
NHW20 G | ¥120,000 | |
| 89180-47010 |
Sensor, Yawrate
2005-11 → 2009-03
ended
|
NHW20 G | ¥120,000 | |
| 89180-47010 note |
Sensor, Yawrate
2007-04 → 2009-03
ended
|
NHW20 S | ¥120,000 | |
| 89510D — Sensor Assy, Brake Pedal Stroke | ||||
| 89510-47020 |
Sensor Assy, Brake Pedal Stroke
2003-08 → 2005-11
ended
|
NHW20 | ¥9,800 | |
| 89510-47020 |
Sensor Assy, Brake Pedal Stroke
2005-11 → 2011-12
ended
|
NHW20 | ¥9,800 | |
| 89516 — Wire, Skid Control Sensor | ||||
| 89516-47050 note |
Wire, Skid Control Sensor
2003-08 → 2005-11
ended
|
NHW20 | ¥2,840 | |
| 89516-47060 note |
Wire, Skid Control Sensor
2003-08 → 2005-11
ended
|
NHW20 | ¥2,840 | |
| 89516-47050 note |
Wire, Skid Control Sensor
2005-11 → —
|
NHW20 | ¥2,840 | |
| 89516-47060 note |
Wire, Skid Control Sensor
2005-11 → —
|
NHW20 | ¥2,840 | |
| 89540 — Computer Assy, Skid Control | ||||
| 89540-47050 |
Computer Assy, Skid Control
2003-08 → 2004-08
ended
|
NHW20 | ¥262,000 | |
| 89540-47070 |
Computer Assy, Skid Control
2004-08 → 2005-11
ended
|
NHW20 | ¥262,000 | |
| 89540-47090 |
Computer Assy, Skid Control
2005-11 → 2008-06
ended
|
NHW20 | ¥262,000 | |
| 89540-47120 |
Computer Assy, Skid Control
2008-07 → 2011-12
ended
|
NHW20 | ¥262,000 | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-47020 |
Sensor, Speed, Front RH
2003-08 → 2005-11
ended
|
NHW20 | ¥21,700 | |
| 89542-47020 |
Sensor, Speed, Front RH
2005-11 → 2011-12
ended
|
NHW20 | ¥21,700 | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-47020 |
Sensor, Speed, Front LH
2003-08 → 2005-11
ended
|
NHW20 | ¥21,700 | |
| 89543-47020 |
Sensor, Speed, Front LH
2005-11 → —
|
NHW20 | ¥21,700 | |
| 89544 — Sensor, Skid Control | ||||
| 89544-20010 |
Sensor, Skid Control
2003-08 → 2005-11
ended
|
NHW20 | ¥13,300 | |
| 89544-20010 |
Sensor, Skid Control
2005-11 → 2011-12
ended
|
NHW20 | ¥13,300 | |
| 89680 — Supply Assy, Brake Control Power | ||||
| 89680-47010 |
Supply Assy, Brake Control Power
2003-08 → 2005-01
ended
|
NHW20 | ¥74,600 | |
| 89680-47020 |
Supply Assy, Brake Control Power
2005-02 → 2005-11
ended
|
NHW20 | ¥74,600 | |
| 89680-33010 |
Supply Assy, Brake Control Power
2006-07 → —
|
NHW20 | ¥62,100 | |
| 89680-47020 |
Supply Assy, Brake Control Power
2005-11 → 2006-06
ended
|
NHW20 | ¥74,600 | |
| 89686 — Bracket, Brake Control Power Supply, NO.1 | ||||
| 89686-47010 |
Bracket, Brake Control Power Supply, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥900 | |
| 89686-47010 |
Bracket, Brake Control Power Supply, NO.1
2005-11 → —
|
NHW20 | ¥900 | |
| 89687 — Bracket, Brake Control Power Supply, NO.2 | ||||
| 89687-47010 |
Bracket, Brake Control Power Supply, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥1,080 | |
| 89687-47010 |
Bracket, Brake Control Power Supply, NO.2
2005-11 → —
|
NHW20 | ¥1,080 | |
| 89688 — Bracket, Brake Control Power Supply, NO.3 | ||||
| 89688-47010 |
Bracket, Brake Control Power Supply, NO.3
2003-08 → 2005-11
ended
|
NHW20 | ¥1,470 | |
| 89688-47010 |
Bracket, Brake Control Power Supply, NO.3
2005-11 → 2011-12
ended
|
NHW20 | ¥1,470 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
