Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

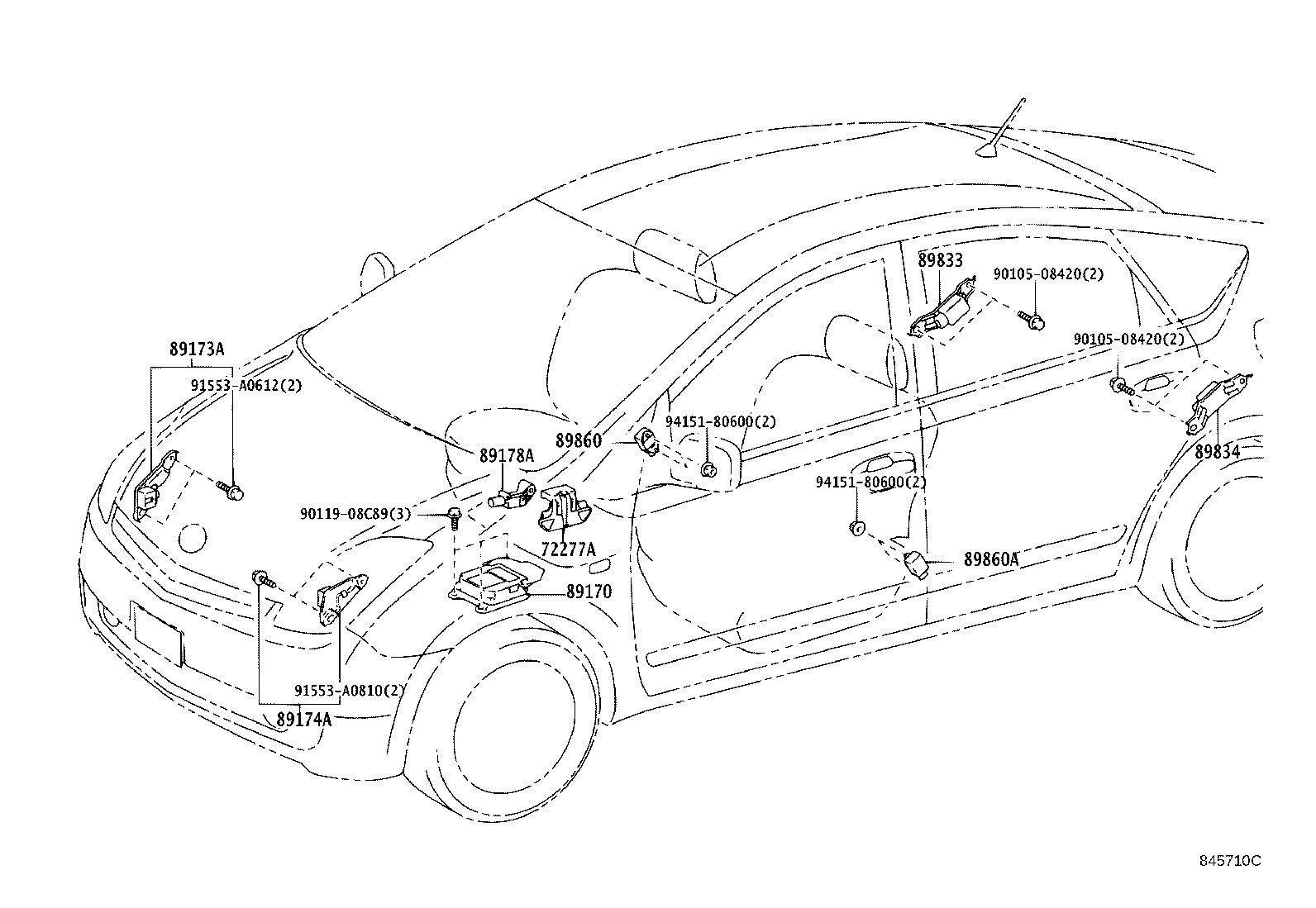

Exploded illustration 845710C 89173A — SENSOR, AIRBAG, FRONT RH (3 parts) 91553A0612 — not listed in this catalogue 9011908C89 — not listed in this catalogue 91553A0810 — not listed in this catalogue 89174A — SENSOR, AIRBAG, FRONT LH (3 parts) 89170 — SENSOR ASSY, AIRBAG (4 parts) 89860A — SENSOR ASSY, SIDE AIRBAG, LH (3 parts) 89178A — SENSOR, SEAT POSITION AIRBAG (11 parts) 89860 — SENSOR ASSY, SIDE AIRBAG, RH (3 parts) 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue 89833 — SENSOR, AIRBAG, REAR RH (3 parts) 9010508420 — not listed in this catalogue 9010508420 — not listed in this catalogue 89834 — SENSOR, AIRBAG, REAR LH (3 parts) 72277A — PROTECTOR, SEAT SLIDE POSITION SENSOR (11 parts)
845710C · 9 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
72277A — Protector, Seat Slide Position Sensor
72277-33010 note Protector, Seat Slide Position Sensor
2003-08 → 2005-11 ended
NHW20 ¥460
72277-33010 note Protector, Seat Slide Position Sensor
2003-08 → 2005-11 ended
NHW20 ¥460
72277-33010 note Protector, Seat Slide Position Sensor
2004-08 → 2005-11 ended
NHW20 ¥460
72277-33010 note Protector, Seat Slide Position Sensor
2004-08 → 2005-11 ended
NHW20 ¥460
72277-33010 note Protector, Seat Slide Position Sensor
2004-08 → 2005-11 ended
NHW20 ¥460
72277-33010 note Protector, Seat Slide Position Sensor
2004-08 → 2005-11 ended
NHW20 ¥460
72277-33010 note Protector, Seat Slide Position Sensor
2004-08 → 2005-11 ended
NHW20 ¥460
72277-33010 Protector, Seat Slide Position Sensor
2003-08 → 2005-11 ended
NHW20 ¥460
72277-33010 Protector, Seat Slide Position Sensor
2005-11 → 2009-03 ended
NHW20 S ¥460
72277-33010 Protector, Seat Slide Position Sensor
2005-11 → 2011-12 ended
NHW20 G ¥460
72277-33010 Protector, Seat Slide Position Sensor
2009-06 → 2011-12 ended
NHW20 ¥460
89170 — Sensor Assy, Airbag
89170-47370 Sensor Assy, Airbag
2003-08 → 2005-11 ended
NHW20 ¥65,700
89170-47390 note Sensor Assy, Airbag
2003-08 → 2005-11 ended
NHW20 ¥65,700
89170-47370 Sensor Assy, Airbag
2005-11 → 2011-12 ended
NHW20 ¥65,700
89170-47390 note Sensor Assy, Airbag
2005-11 → 2011-12 ended
NHW20 ¥65,700
89173A — Sensor, Airbag, Front RH
89173-49315 Sensor, Airbag, Front RH
2003-08 → 2005-11 ended
NHW20 ¥13,200
89173-49315 Sensor, Airbag, Front RH
2005-11 → 2009-03 ended
NHW20 G ¥13,200
89173-49315 Sensor, Airbag, Front RH
2005-11 → —
NHW20 S ¥13,200
89174A — Sensor, Airbag, Front LH
89174-49125 Sensor, Airbag, Front LH
2003-08 → 2005-11 ended
NHW20 ¥13,200
89174-49125 Sensor, Airbag, Front LH
2005-11 → 2009-03 ended
NHW20 G ¥13,200
89174-49125 Sensor, Airbag, Front LH
2005-11 → —
NHW20 S ¥13,200
89178A — Sensor, Seat Position Airbag
89178-33020 note Sensor, Seat Position Airbag
2004-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 note Sensor, Seat Position Airbag
2003-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 note Sensor, Seat Position Airbag
2004-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 note Sensor, Seat Position Airbag
2004-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 note Sensor, Seat Position Airbag
2004-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 note Sensor, Seat Position Airbag
2003-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 Sensor, Seat Position Airbag
2003-08 → 2005-11 ended
NHW20 ¥4,500
89178-33020 note Sensor, Seat Position Airbag
2004-08 → 2005-11 ended
NHW20 ¥4,500
89178-33040 Sensor, Seat Position Airbag
2005-11 → 2009-03 ended
NHW20 S ¥3,110
89178-33040 Sensor, Seat Position Airbag
2005-11 → 2011-12 ended
NHW20 G ¥3,110
89178-33040 Sensor, Seat Position Airbag
2009-06 → 2011-12 ended
NHW20 ¥3,110
89833 — Sensor, Airbag, Rear RH
89833-47030 note Sensor, Airbag, Rear RH
2003-08 → 2005-11 ended
NHW20 ¥24,900
89833-47030 note Sensor, Airbag, Rear RH
2005-11 → —
NHW20 S ¥24,900
89833-47030 note Sensor, Airbag, Rear RH
2005-11 → 2009-03 ended
NHW20 G ¥24,900
89834 — Sensor, Airbag, Rear LH
89834-47020 note Sensor, Airbag, Rear LH
2003-08 → 2005-11 ended
NHW20 ¥24,900
89834-47020 note Sensor, Airbag, Rear LH
2005-11 → 2009-03 ended
NHW20 G ¥24,900
89834-47020 note Sensor, Airbag, Rear LH
2005-11 → —
NHW20 S ¥24,900
89860 — Sensor Assy, Side Airbag, RH
89860-47040 note Sensor Assy, Side Airbag, RH
2003-08 → 2005-11 ended
NHW20 ¥24,900
89860-47040 note Sensor Assy, Side Airbag, RH
2005-11 → 2009-03 ended
NHW20 G ¥24,900
89860-47040 note Sensor Assy, Side Airbag, RH
2005-11 → —
NHW20 S ¥24,900
89860A — Sensor Assy, Side Airbag, LH
89860-47040 note Sensor Assy, Side Airbag, LH
2003-08 → 2005-11 ended
NHW20 ¥24,900
89860-47040 note Sensor Assy, Side Airbag, LH
2005-11 → 2009-03 ended
NHW20 G ¥24,900
89860-47040 note Sensor Assy, Side Airbag, LH
2005-11 → —
NHW20 S ¥24,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
