Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

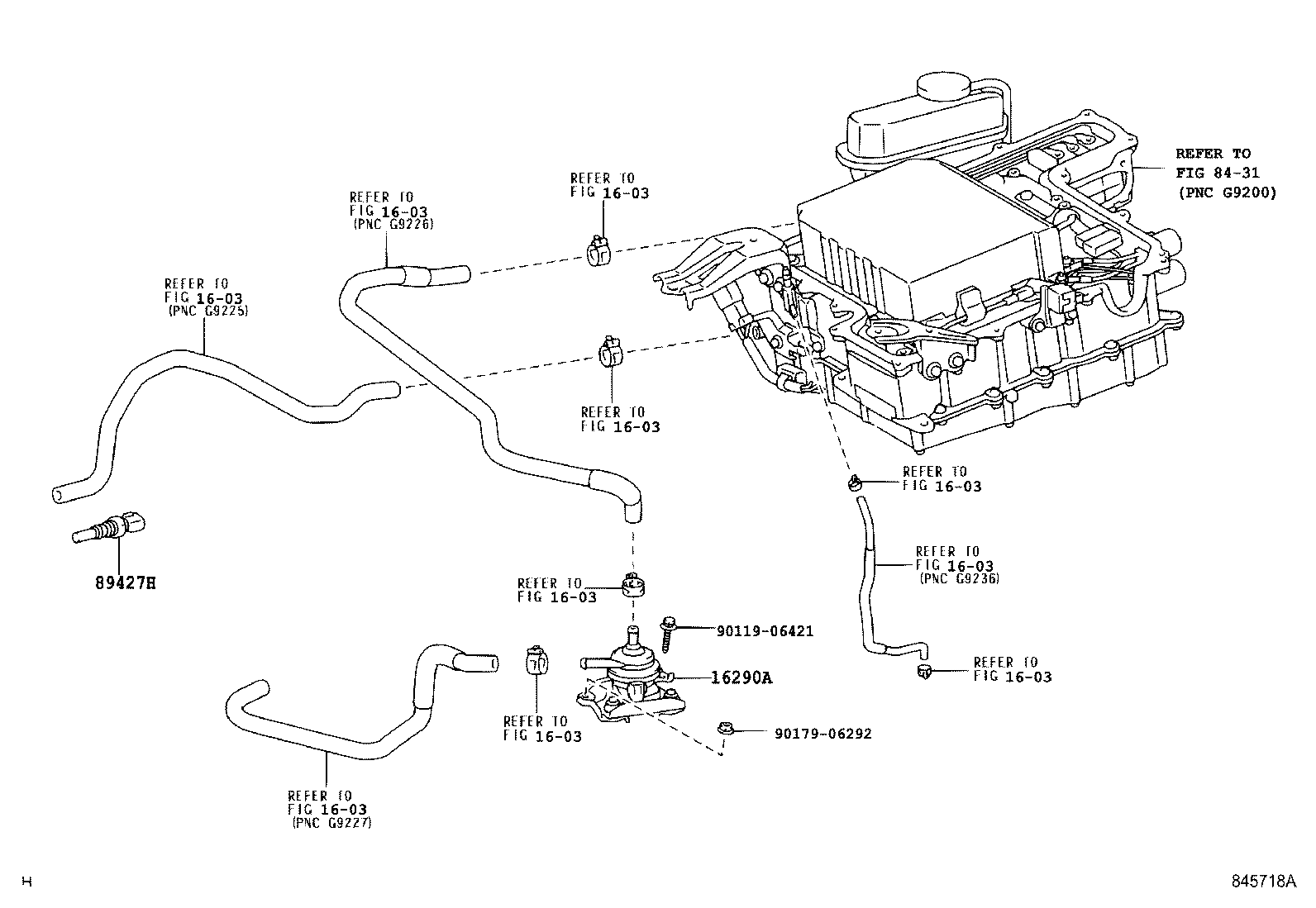

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16290A — Pump Assy, Water W/Motor & Bracket | ||||
| G9020-47030 |
Pump Assy, Water W/Motor & Bracket
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥37,000 | |
| G9020-47030 |
Pump Assy, Water W/Motor & Bracket
2005-11 → 2007-05
ended
|
1NZFXE NHW20 | ¥37,000 | |
| G9020-47031 |
Pump Assy, Water W/Motor & Bracket
2007-05 → 2009-03
ended
|
1NZFXE NHW20 G | ¥37,000 | |
| G9020-47031 |
Pump Assy, Water W/Motor & Bracket
2007-05 → —
|
1NZFXE NHW20 S | ¥37,000 | |
| 89427H — Switch, Temperature (FOR RADIATOR FAN) | ||||
| 89427-47010 |
Switch, Temperature (FOR RADIATOR FAN)
2003-08 → 2005-11
ended
|
NHW20 | ¥6,000 | |
| 89427-47010 |
Switch, Temperature (FOR RADIATOR FAN)
2005-11 → 2011-12
ended
|
NHW20 | ¥6,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
