Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

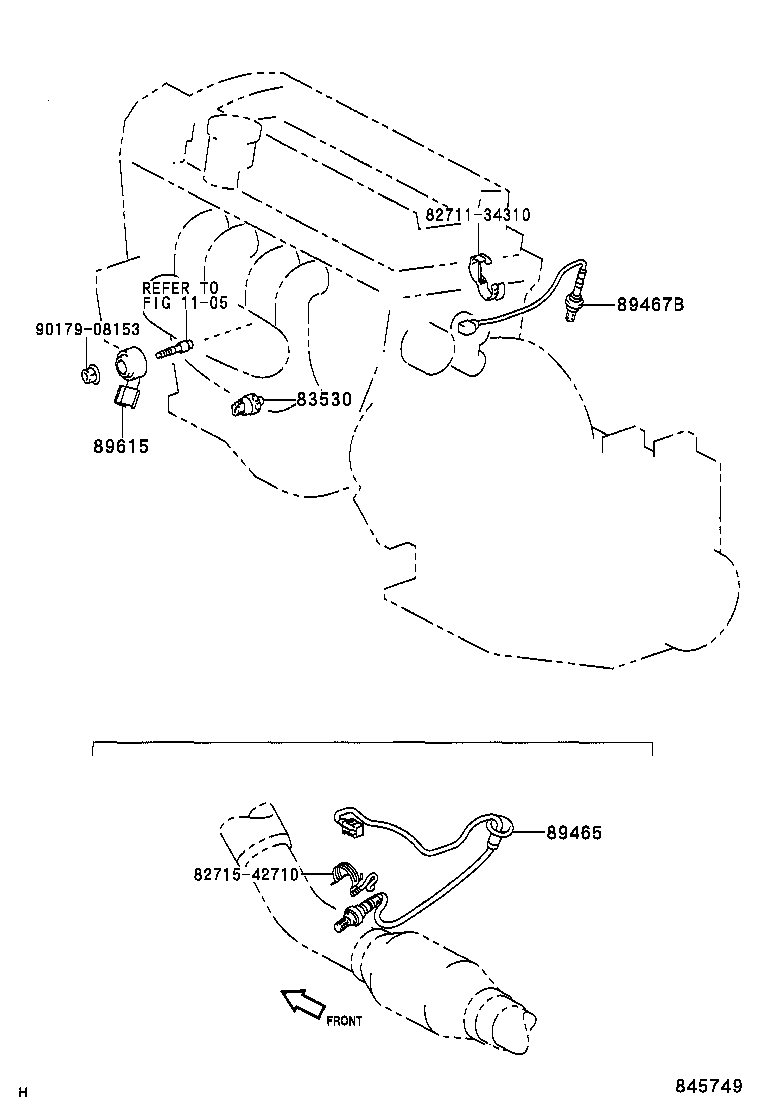

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,970 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,970 | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,970 | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2005-11 → —
|
NHW20 S | ¥1,970 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,970 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2005-11 → —
|
NHW20 S | ¥1,970 | |
| 89465 — Sensor, Oxygen | ||||
| 89465-47070 |
Sensor, Oxygen
2003-08 → 2005-11
ended
|
NHW20 | ¥11,400 | |
| 89465-47070 |
Sensor, Oxygen
2005-11 → 2009-03
ended
|
NHW20 G | ¥11,400 | |
| 89465-47070 |
Sensor, Oxygen
2005-11 → —
|
NHW20 S | ¥11,400 | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-47010 |
Sensor, Air Fuel Ratio
2003-08 → 2005-11
ended
|
NHW20 | ¥15,600 | |
| 89467-47010 |
Sensor, Air Fuel Ratio
2005-11 → 2009-03
ended
|
NHW20 G | ¥15,600 | |
| 89467-47010 |
Sensor, Air Fuel Ratio
2005-11 → —
|
NHW20 S | ¥15,600 | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2003-08 → 2005-11
ended
|
NHW20 | ¥2,370 | |
| 89615-20090 |
Sensor, Knock Control
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,370 | |
| 89615-20090 |
Sensor, Knock Control
2005-11 → —
|
NHW20 S | ¥2,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
