Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

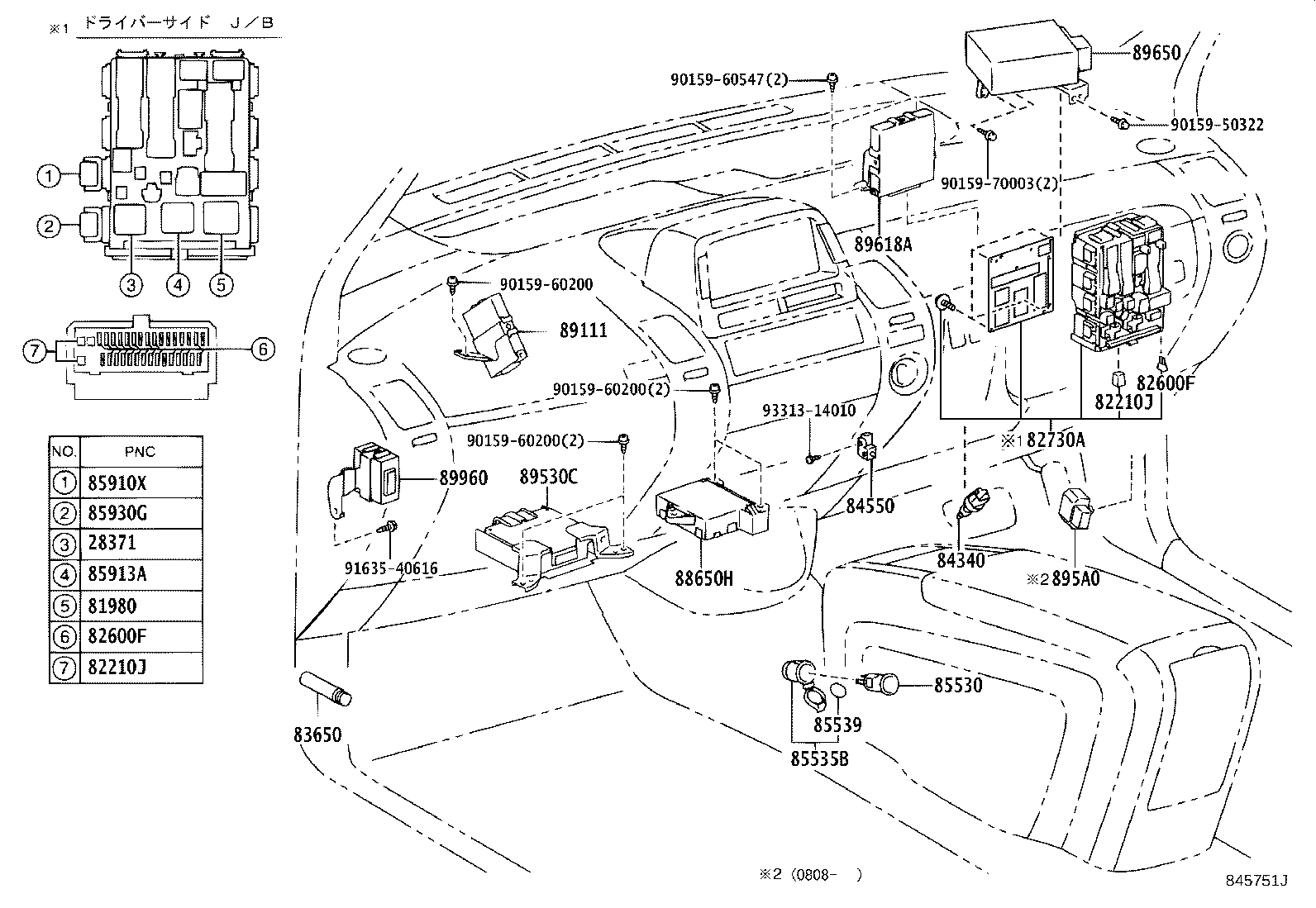

Exploded illustration 845751J 85910X — RELAY, HEATER MIRROR (3 parts) 85930G — RELAY, ACC (2 parts) 28371 — RELAY, IGNITION, NO.1 (3 parts) 85913A — RELAY, HEATER CONTROL (3 parts) 81980 — FLASHER ASSY, TURN SIGNAL (3 parts) 82600F — FUSE, FUSE BLOCK (14 parts) 89960 — COMPUTER ASSY, HEADLAMP LEVELING (3 parts) 9163540616 — not listed in this catalogue 85530 — SOCKET ASSY, POWER OUTLET, NO.1 (2 parts) 85535B — COVER, POWER OUTLET SOCKET, NO.1 (2 parts) 85539 — LABEL, POWER OUTLET NOTICE (3 parts) 88650H — AMPLIFIER ASSY, AIR CONDITIONER (3 parts) 9015960200 — not listed in this catalogue 9331314010 — not listed in this catalogue 84550 — SWITCH ASSY, PARKING BRAKE (2 parts) 84340 — SWITCH ASSY, STOP LAMP (9 parts) 82730A — BLOCK ASSY, DRIVER SIDE JUNCTION (3 parts) 83650 — FUSEE (3 parts) 9015960200 — not listed in this catalogue 89530C — COMPUTER ASSY, TRANSMISSION CONTROL (3 parts) 89111 — COMPUTER, NETWORK GATEWAY (2 parts) 9015960200 — not listed in this catalogue 89618A — COMPUTER, POWER SOURCE CONTROL (4 parts) 9015960547 — not listed in this catalogue 82210J — FUSIBLE LINK (7 parts) 895A0 — RELAY ASSY, STOP LAMP CONTROL (2 parts) 9015970003 — not listed in this catalogue 89650 — COMPUTER ASSY, POWER STEERING (17 parts) 9015950322 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (14 parts) 82210J — FUSIBLE LINK (7 parts)
845751J · 23 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
28371 — Relay, Ignition, NO.1
90987-02025 Relay, Ignition, NO.1
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥2,930
90987-02025 note Relay, Ignition, NO.1
2005-11 → 2007-03 ended
1NZFXE NHW20 ¥2,930
90987-02030 note Relay, Ignition, NO.1
2007-03 → 2011-12 ended
1NZFXE NHW20 ¥2,930
81980 — Flasher Assy, Turn Signal
81980-46010 Flasher Assy, Turn Signal
2003-08 → 2005-11 ended
NHW20 ¥6,300
81980-46010 Flasher Assy, Turn Signal
2005-11 → —
NHW20 S ¥6,300
81980-46010 Flasher Assy, Turn Signal
2005-11 → 2009-03 ended
NHW20 G ¥6,300
82210J — Fusible Link
90982-08254 note Fusible Link
2003-08 → 2005-11 ended
NHW20 ¥440
90982-08274 note Fusible Link
2003-08 → 2005-11 ended
NHW20 ¥480
90982-08295 note Fusible Link
2003-08 → 2005-01 ended
NHW20 ¥390
90982-08295 note Fusible Link
2005-02 → 2005-11 ended
NHW20 ¥390
90982-08254 note Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥440
90982-08274 note Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥480
90982-08295 note Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥390
82600F — Fuse, Fuse Block
90982-09007 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥60
90982-09020 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09021 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09022 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09023 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09024 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09025 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥80
90982-09007 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥60
90982-09020 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09021 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09022 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09023 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09024 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09025 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥80
82730A — Block Assy, Driver Side Junction
82730-47160 Block Assy, Driver Side Junction
2003-08 → 2005-01 ended
NHW20 ¥63,800
82730-47161 Block Assy, Driver Side Junction
2005-02 → 2005-11 ended
NHW20 ¥63,800
82730-47310 Block Assy, Driver Side Junction
2005-11 → 2011-12 ended
NHW20 ¥63,400
83650 — Fusee
90986-01005 Fusee
2003-08 → 2005-11 ended
NHW20 —
90986-01005 Fusee
2005-11 → 2009-03 ended
NHW20 G —
90986-01005 Fusee
2005-11 → —
NHW20 S —
84340 — Switch Assy, Stop Lamp
84340-47010 Switch Assy, Stop Lamp
2003-08 → 2005-11 ended
NHW20 S ¥2,230
84340-47020 Switch Assy, Stop Lamp
2003-08 → 2005-11 ended
NHW20 G ¥4,400
84340-47020 note Switch Assy, Stop Lamp
2004-08 → 2005-11 ended
NHW20 S ¥4,400
84340-30100 Switch Assy, Stop Lamp
2008-08 → 2011-12 ended
NHW20 S ¥2,460
84340-30110 note Switch Assy, Stop Lamp
2008-08 → 2009-03 ended
NHW20 S ¥1,850
84340-30110 Switch Assy, Stop Lamp
2008-08 → 2009-03 ended
NHW20 G ¥1,850
84340-47010 Switch Assy, Stop Lamp
2005-11 → 2008-08 ended
NHW20 S ¥2,230
84340-47020 note Switch Assy, Stop Lamp
2007-04 → 2008-08 ended
NHW20 S ¥4,400
84340-47020 Switch Assy, Stop Lamp
2005-11 → 2008-08 ended
NHW20 G ¥4,400
84550 — Switch Assy, Parking Brake
84550-16060 Switch Assy, Parking Brake
2003-08 → 2005-11 ended
NHW20 ¥1,150
84550-16060 Switch Assy, Parking Brake
2005-11 → 2011-12 ended
NHW20 ¥1,150
85530 — Socket Assy, Power Outlet, NO.1
85530-33020 Socket Assy, Power Outlet, NO.1
2003-08 → 2005-11 ended
NHW20 ¥1,940
85530-33020 Socket Assy, Power Outlet, NO.1
2005-11 → 2011-12 ended
NHW20 ¥1,940
85535B — Cover, Power Outlet Socket, NO.1
85535-60100-C0 note Cover, Power Outlet Socket, NO.1
2003-08 → 2005-11 ended
NHW20 ¥430
85535-60100-C0 note Cover, Power Outlet Socket, NO.1
2005-11 → 2011-12 ended
NHW20 ¥430
85539 — Label, Power Outlet Notice
85539-60020 Label, Power Outlet Notice
2003-08 → 2005-11 ended
NHW20 ¥100
85539-60020 Label, Power Outlet Notice
2005-11 → —
NHW20 S ¥100
85539-60020 Label, Power Outlet Notice
2005-11 → 2009-03 ended
NHW20 G ¥100
85910X — Relay, Heater Mirror
90987-02027 note Relay, Heater Mirror
2003-08 → 2005-11 ended
NHW20 ¥2,930
90987-02027 note Relay, Heater Mirror
2005-11 → 2009-03 ended
NHW20 G ¥2,930
90987-02027 note Relay, Heater Mirror
2005-11 → —
NHW20 S ¥2,930
85913A — Relay, Heater Control
90987-04010 Relay, Heater Control
2003-08 → 2005-11 ended
NHW20 ¥2,810
90987-04010 Relay, Heater Control
2005-11 → 2009-03 ended
NHW20 G ¥2,810
90987-04010 Relay, Heater Control
2005-11 → —
NHW20 S ¥2,810
85930G — Relay, Acc
90987-02027 Relay, Acc
2003-08 → 2005-11 ended
NHW20 ¥2,930
90987-02027 Relay, Acc
2005-11 → —
NHW20 ¥2,930
88650H — Amplifier Assy, Air Conditioner
88650-47050 Amplifier Assy, Air Conditioner
2003-08 → 2005-11 ended
NHW20 —
88650-47051 Amplifier Assy, Air Conditioner
2005-11 → 2009-03 ended
NHW20 G —
88650-47051 Amplifier Assy, Air Conditioner
2005-11 → —
NHW20 S —
89111 — Computer, Network Gateway
89111-47020 Computer, Network Gateway
2003-08 → 2005-11 ended
NHW20 ¥40,200
89111-47040 Computer, Network Gateway
2005-11 → —
NHW20 ¥40,200
89530C — Computer Assy, Transmission Control
89535-47010 Computer Assy, Transmission Control
2003-08 → 2005-11 ended
NHW20 ¥57,000
89535-47020 Computer Assy, Transmission Control
2005-11 → 2009-03 ended
NHW20 G ¥56,800
89535-47020 Computer Assy, Transmission Control
2005-11 → —
NHW20 S ¥56,800
895A0 — Relay Assy, Stop Lamp Control
895A0-46010 Relay Assy, Stop Lamp Control
2008-08 → 2008-11 ended
NHW20 ¥6,000
895A0-46020 Relay Assy, Stop Lamp Control
2008-12 → —
NHW20 ¥4,920
89618A — Computer, Power Source Control
89618-47020 Computer, Power Source Control
2003-08 → 2004-08 ended
NHW20 ¥29,000
89618-47021 Computer, Power Source Control
2004-08 → 2005-11 ended
NHW20 ¥29,100
89670-47020 Computer, Power Source Control
2005-11 → —
NHW20 S ¥42,700
89670-47020 Computer, Power Source Control
2005-11 → 2009-03 ended
NHW20 G ¥42,700
89650 — Computer Assy, Power Steering
89650-47110 note Computer Assy, Power Steering
2003-08 → 2005-02 ended
NHW20 ¥49,300
89650-47111 note Computer Assy, Power Steering
2005-03 → 2005-11 ended
NHW20 ¥49,300
89650-47120 note Computer Assy, Power Steering
2003-08 → 2005-02 ended
NHW20 ¥49,300
89650-47120 note Computer Assy, Power Steering
2004-08 → 2005-02 ended
NHW20 ¥49,300
89650-47121 note Computer Assy, Power Steering
2005-03 → 2005-11 ended
NHW20 ¥49,300
89650-47121 note Computer Assy, Power Steering
2005-03 → 2005-11 ended
NHW20 ¥49,300
89650-47130 note Computer Assy, Power Steering
2003-08 → 2005-02 ended
NHW20 ¥68,400
89650-47131 note Computer Assy, Power Steering
2005-03 → 2005-11 ended
NHW20 ¥68,400
89650-47140 note Computer Assy, Power Steering
2004-08 → 2005-02 ended
NHW20 ¥68,400
89650-47140 note Computer Assy, Power Steering
2003-08 → 2005-02 ended
NHW20 ¥68,400
89650-47141 note Computer Assy, Power Steering
2005-03 → 2005-11 ended
NHW20 ¥68,400
89650-47141 note Computer Assy, Power Steering
2005-03 → 2005-11 ended
NHW20 ¥68,400
89650-47112 note Computer Assy, Power Steering
2005-11 → —
NHW20 ¥49,300
89650-47122 note Computer Assy, Power Steering
2005-11 → 2009-03 ended
NHW20 ¥49,300
89650-47132 note Computer Assy, Power Steering
2005-11 → 2009-03 ended
NHW20 ¥68,400
89650-47142 note Computer Assy, Power Steering
2005-11 → 2009-03 ended
NHW20 ¥68,400
89650-47142 note Computer Assy, Power Steering
2005-11 → 2009-03 ended
NHW20 G ¥68,400
89960 — Computer Assy, Headlamp Leveling
89960-47010 note Computer Assy, Headlamp Leveling
2003-08 → 2005-11 ended
NHW20 ¥32,100
89960-47030 note Computer Assy, Headlamp Leveling
2005-11 → 2009-03 ended
NHW20 G ¥32,000
89960-47030 note Computer Assy, Headlamp Leveling
2005-11 → 2009-04 ended
NHW20 S ¥32,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
