Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

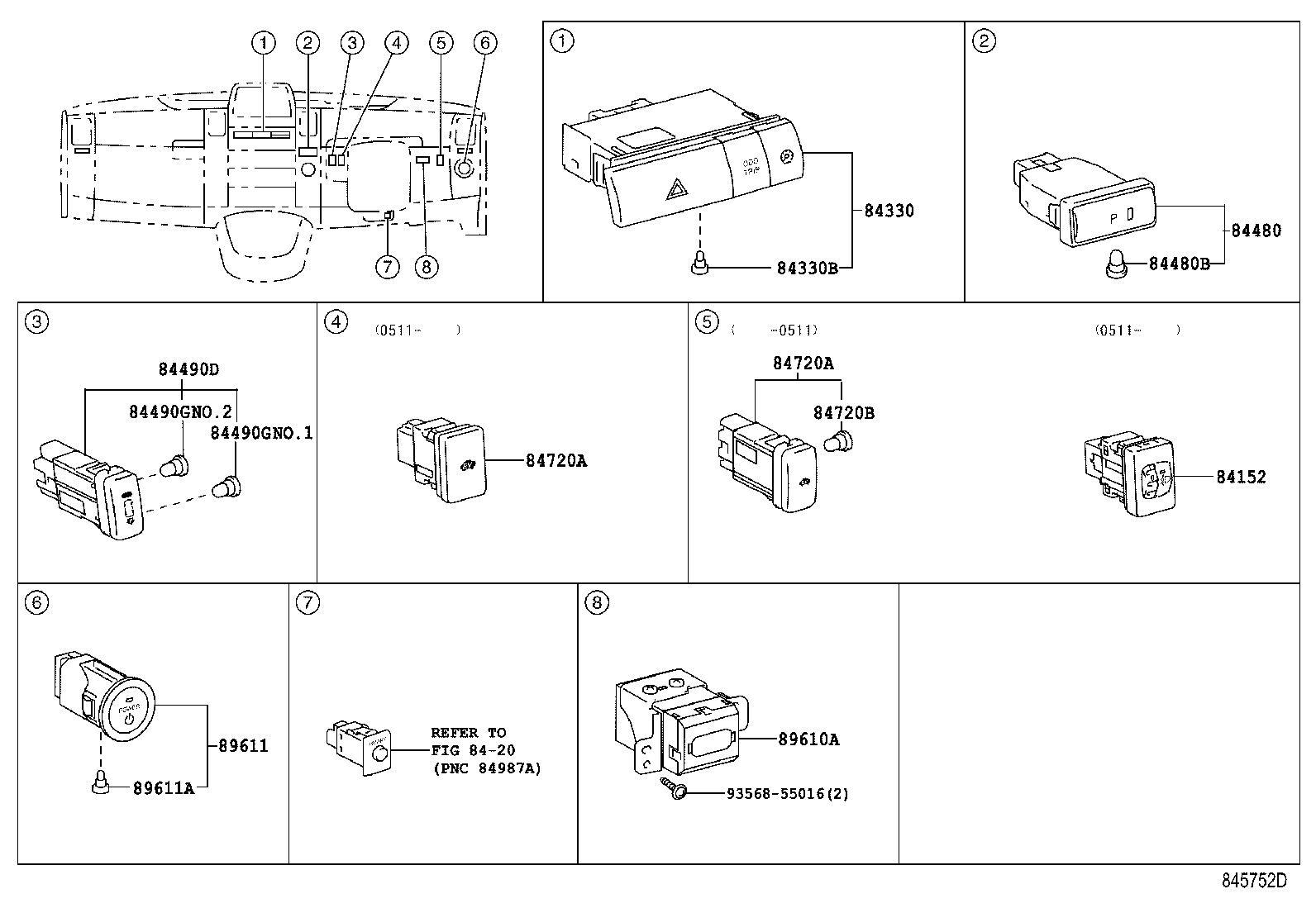

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-52070 note |
Switch, Headlamp Leveling
2005-11 → 2009-03
ended
|
NHW20 G | ¥5,100 | |
| 84152-52070 |
Switch, Headlamp Leveling
2005-11 → 2009-03
ended
|
NHW20 G | ¥5,100 | |
| 84152-52070 note |
Switch, Headlamp Leveling
2005-11 → —
|
NHW20 S | ¥5,100 | |
| 84152-52070 |
Switch, Headlamp Leveling
2005-11 → —
|
NHW20 S | ¥5,100 | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84330-47010 |
Switch Assy, Hazard Warning Signal
2003-08 → 2005-11
ended
|
NHW20 | ¥6,500 | |
| 84330-47010 |
Switch Assy, Hazard Warning Signal
2005-11 → 2009-03
ended
|
NHW20 G | ¥6,500 | |
| 84330-47010 |
Switch Assy, Hazard Warning Signal
2005-11 → —
|
NHW20 S | ¥6,500 | |
| 84330B — Bulb, Hazard Warning Signal Switch | ||||
| 84999-10310 note |
Bulb, Hazard Warning Signal Switch
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 84999-10310 note |
Bulb, Hazard Warning Signal Switch
2005-11 → 2009-03
ended
|
NHW20 G | ¥310 | |
| 84999-10310 note |
Bulb, Hazard Warning Signal Switch
2005-11 → —
|
NHW20 S | ¥310 | |
| 84480 — Switch Assy, Main | ||||
| 84480-47010 |
Switch Assy, Main
2003-08 → 2005-11
ended
|
NHW20 | ¥4,270 | |
| 84480-47020 |
Switch Assy, Main
2005-11 → 2009-03
ended
|
NHW20 G | ¥4,260 | |
| 84480-47020 |
Switch Assy, Main
2005-11 → —
|
NHW20 S | ¥4,260 | |
| 84480B — Bulb, Main Switch Assy | ||||
| 90010-01061 note |
Bulb, Main Switch Assy
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 90010-01061 note |
Bulb, Main Switch Assy
2005-11 → 2009-03
ended
|
NHW20 G | ¥360 | |
| 90010-01061 note |
Bulb, Main Switch Assy
2005-11 → —
|
NHW20 S | ¥360 | |
| 84490D — Switch Assy, Ipa Main | ||||
| 84490-47010 note |
Switch Assy, Ipa Main
2003-08 → 2005-11
ended
|
NHW20 | ¥4,800 | |
| 84490-28020 note |
Switch Assy, Ipa Main
2005-11 → 2009-03
ended
|
NHW20 | ¥3,690 | |
| 84490G — Bulb(FOR IPA MAIN SWITCH ASSY) | ||||
| 90010-01080 note |
Bulb(FOR IPA MAIN SWITCH ASSY)
2003-08 → 2005-11
ended
|
NHW20 | ¥520 | |
| 90010-01089 note |
Bulb(FOR IPA MAIN SWITCH ASSY)
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 84720A — Switch Assy, Pattern Select, NO.1 | ||||
| 84720-47010 |
Switch Assy, Pattern Select, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥4,270 | |
| 84720-47020 |
Switch Assy, Pattern Select, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥3,690 | |
| 84720-47020 |
Switch Assy, Pattern Select, NO.1
2005-11 → —
|
NHW20 S | ¥3,690 | |
| 84720B — Bulb (FOR PATTERN SELECT SWITCH) | ||||
| 90010-01062 note |
Bulb (FOR PATTERN SELECT SWITCH)
2003-08 → 2005-11
ended
|
NHW20 | ¥330 | |
| 89610A — Holder Assy, Electrical Key | ||||
| 89610-47010 |
Holder Assy, Electrical Key
2003-08 → 2005-11
ended
|
NHW20 | ¥16,500 | |
| 89610-47010 |
Holder Assy, Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥16,500 | |
| 89610-47010 |
Holder Assy, Electrical Key
2005-11 → —
|
NHW20 S | ¥16,500 | |
| 89611 — Switch, Push Start | ||||
| 89611-47010 |
Switch, Push Start
2003-08 → 2005-11
ended
|
NHW20 | ¥5,400 | |
| 89611-47010 |
Switch, Push Start
2005-11 → 2009-03
ended
|
NHW20 G | ¥5,400 | |
| 89611-47010 |
Switch, Push Start
2005-11 → —
|
NHW20 S | ¥5,400 | |
| 89611A — Bulb, Push Start Switch | ||||
| 90010-01039 |
Bulb, Push Start Switch
2003-08 → 2005-11
ended
|
NHW20 | ¥270 | |
| 90010-01039 |
Bulb, Push Start Switch
2005-11 → 2009-03
ended
|
NHW20 G | ¥270 | |
| 90010-01039 |
Bulb, Push Start Switch
2005-11 → —
|
NHW20 S | ¥270 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
