Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

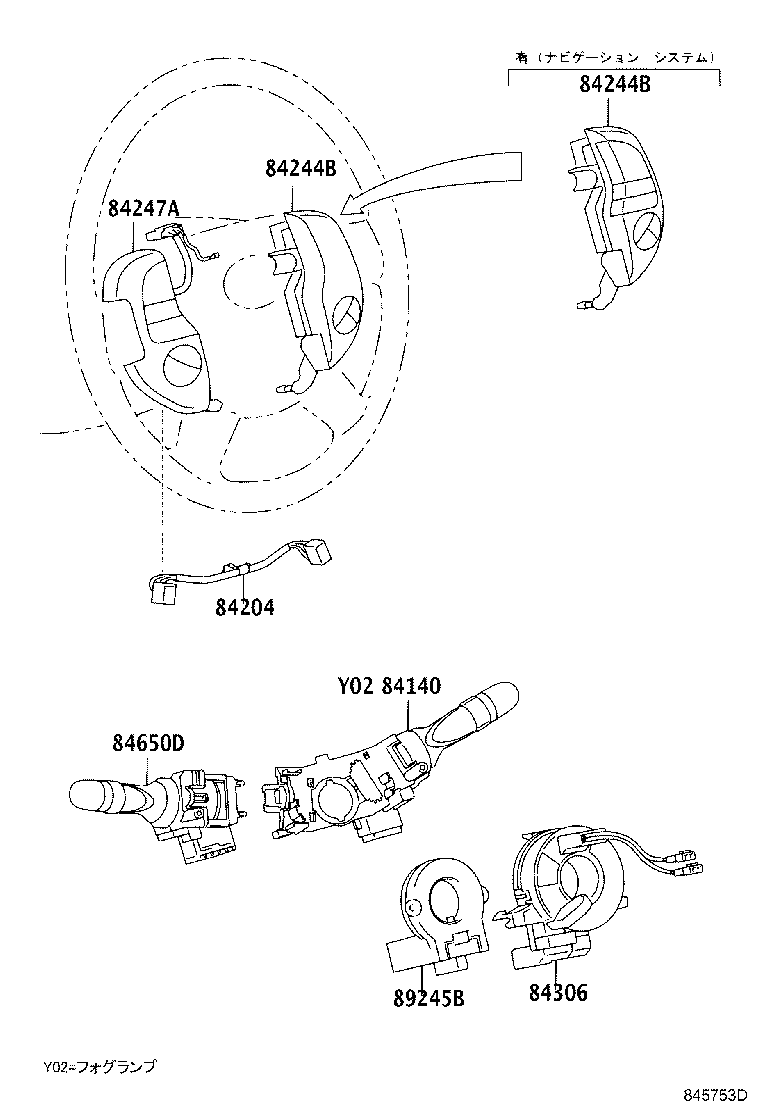

| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-47020 |
Switch Assy, Headlamp Dimmer
2003-08 → 2005-11
ended
|
NHW20 | ¥11,500 | |
| 84140-47030 note |
Switch Assy, Headlamp Dimmer
2003-08 → 2005-11
ended
|
NHW20 | ¥12,900 | |
| 84140-48030 note |
Switch Assy, Headlamp Dimmer
2003-08 → 2005-11
ended
|
NHW20 | ¥12,900 | |
| 84140-48060 note |
Switch Assy, Headlamp Dimmer
2003-08 → 2005-11
ended
|
NHW20 | ¥13,900 | |
| 84140-12570 |
Switch Assy, Headlamp Dimmer
2009-08 → —
|
NHW20 | ¥7,500 | |
| 84140-12580 note |
Switch Assy, Headlamp Dimmer
2009-08 → —
|
NHW20 | ¥7,000 | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2009-06 → 2009-08
ended
|
NHW20 | ¥12,800 | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-11 → 2009-03
ended
|
NHW20 | ¥12,800 | |
| 84140-30300 note |
Switch Assy, Headlamp Dimmer
2009-06 → 2009-08
ended
|
NHW20 | ¥11,400 | |
| 84140-30300 |
Switch Assy, Headlamp Dimmer
2005-11 → 2009-03
ended
|
NHW20 | ¥11,400 | |
| 84140-42070 note |
Switch Assy, Headlamp Dimmer
2009-08 → —
|
NHW20 | ¥7,000 | |
| 84140-42080 note |
Switch Assy, Headlamp Dimmer
2009-08 → —
|
NHW20 | ¥7,000 | |
| 84140-47021 |
Switch Assy, Headlamp Dimmer
2009-06 → 2009-08
ended
|
NHW20 | ¥12,200 | |
| 84140-53100 note |
Switch Assy, Headlamp Dimmer
2009-06 → 2009-08
ended
|
NHW20 | ¥12,200 | |
| 84204 — Cable Sub-assy, Steering Pad Switch | ||||
| 84204-47010 |
Cable Sub-assy, Steering Pad Switch
2003-08 → 2005-11
ended
|
NHW20 | ¥3,020 | |
| 84204-47010 |
Cable Sub-assy, Steering Pad Switch
2005-11 → —
|
NHW20 | ¥3,020 | |
| 84244B — Switch, Steering Pad, RH | ||||
| 84244-47010 note |
Switch, Steering Pad, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥9,700 | |
| 84244-47020 |
Switch, Steering Pad, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥7,200 | |
| 84244-47010 note |
Switch, Steering Pad, RH
2010-11 → 2011-12
ended
|
NHW20 | ¥9,700 | |
| 84244-47010 note |
Switch, Steering Pad, RH
2005-11 → 2010-11
ended
|
NHW20 S | ¥9,700 | |
| 84244-47010 note |
Switch, Steering Pad, RH
2007-04 → 2009-03
ended
|
NHW20 S | ¥9,700 | |
| 84244-47010 note |
Switch, Steering Pad, RH
2005-11 → 2009-03
ended
|
NHW20 G | ¥9,700 | |
| 84244-47010 note |
Switch, Steering Pad, RH
2005-11 → 2009-03
ended
|
NHW20 G | ¥9,700 | |
| 84244-47020 |
Switch, Steering Pad, RH
2005-11 → 2011-12
ended
|
NHW20 | ¥7,200 | |
| 84247A — Switch, Steering Pad, LH | ||||
| 84247-47010 |
Switch, Steering Pad, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥9,000 | |
| 84247-47010 |
Switch, Steering Pad, LH
2005-11 → 2011-12
ended
|
NHW20 | ¥9,000 | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-48030 |
Cable Sub-assy, Spiral
2003-08 → 2005-11
ended
|
NHW20 | ¥17,200 | |
| 84306-48030 |
Cable Sub-assy, Spiral
2005-11 → —
|
NHW20 | ¥17,200 | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-47020 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2003-08 → 2005-11
ended
|
NHW20 | ¥10,000 | |
| 84652-48010 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2003-08 → 2005-11
ended
|
NHW20 | ¥11,700 | |
| 84652-42130 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2005-11 → 2011-12
ended
|
NHW20 | ¥11,600 | |
| 84652-52260 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2005-11 → 2009-03
ended
|
NHW20 S | ¥9,400 | |
| 89245B — Sensor, Steering | ||||
| 89245-48020 |
Sensor, Steering
2003-08 → 2005-11
ended
|
NHW20 G | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2003-08 → 2005-11
ended
|
NHW20 S | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2003-08 → 2005-11
ended
|
NHW20 S | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2004-08 → 2005-11
ended
|
NHW20 S | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2005-11 → 2007-04
ended
|
NHW20 S | ¥23,300 | |
| 89245-48020 |
Sensor, Steering
2005-11 → 2009-03
ended
|
NHW20 G | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2005-11 → 2009-03
ended
|
NHW20 S | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2007-04 → 2009-03
ended
|
NHW20 S | ¥23,300 | |
| 89245-48020 note |
Sensor, Steering
2007-04 → 2009-03
ended
|
NHW20 S | ¥23,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
