Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

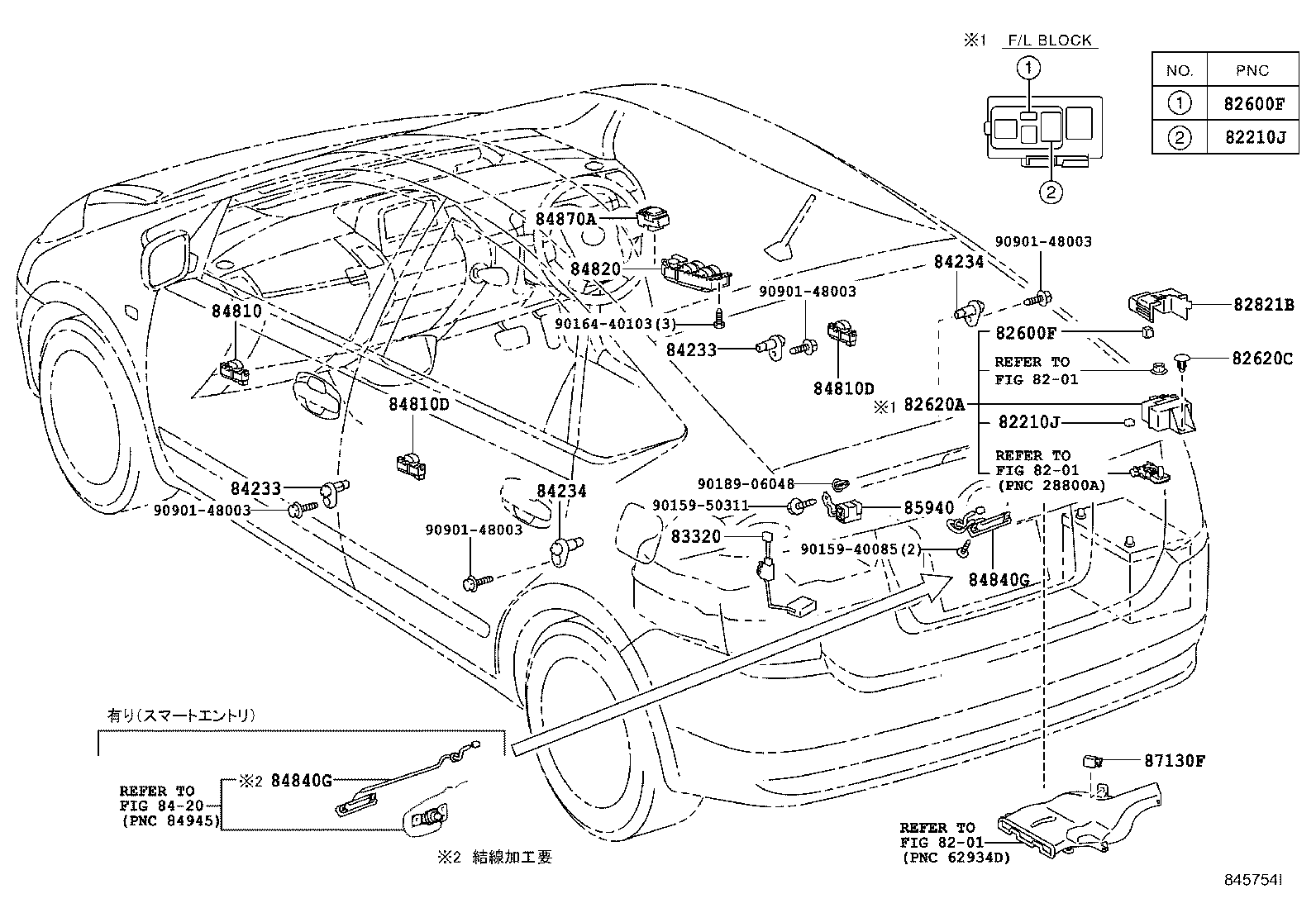

Exploded illustration 845754I 82821B — COVER, CONNECTOR (2 parts) 84820 — MASTER SWITCH ASSY, POWER WINDOW REGULATOR (3 parts) 84870A — SWITCH ASSY, OUTER MIRROR (2 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (3 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (3 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (3 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (3 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (3 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (3 parts) 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (3 parts) 9090148003 — not listed in this catalogue 9090148003 — not listed in this catalogue 9090148003 — not listed in this catalogue 9090148003 — not listed in this catalogue 9016440103 — not listed in this catalogue 84840G — SWITCH ASSY, BACK DOOR OPENER (5 parts) 82600F — FUSE, FUSE BLOCK (14 parts) 82210J — FUSIBLE LINK (7 parts) 87130F — RELAY, BATTERY BLOWER, NO.1 (4 parts) 82620A — BLOCK ASSY, FUSIBLE LINK (2 parts) 83320 — GAGE ASSY, FUEL SENDER (2 parts) 9015940085 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (14 parts) 82210J — FUSIBLE LINK (7 parts) 82620C — CLIP (2 parts) 9018906048 — not listed in this catalogue 85940 — RELAY ASSY, WINDSHIELD WIPER (4 parts) 9015950311 — not listed in this catalogue 8201 — not listed in this catalogue 84840G — SWITCH ASSY, BACK DOOR OPENER (5 parts) 8420 — not listed in this catalogue 8201 — not listed in this catalogue 8201 — not listed in this catalogue
845754I · 21 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
82210J — Fusible Link
90982-08254 note Fusible Link
2003-08 → 2005-11 ended
NHW20 ¥440
90982-08274 note Fusible Link
2003-08 → 2005-11 ended
NHW20 ¥480
90982-08295 note Fusible Link
2003-08 → 2005-01 ended
NHW20 ¥390
90982-08295 note Fusible Link
2005-02 → 2005-11 ended
NHW20 ¥390
90982-08254 note Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥440
90982-08274 note Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥480
90982-08295 note Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥390
82600F — Fuse, Fuse Block
90982-09007 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥60
90982-09020 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09021 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09022 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09023 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09024 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥70
90982-09025 note Fuse, Fuse Block
2003-08 → 2005-11 ended
NHW20 ¥80
90982-09007 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥60
90982-09020 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09021 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09022 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09023 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09024 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥70
90982-09025 note Fuse, Fuse Block
2005-11 → 2011-12 ended
NHW20 ¥80
82620A — Block Assy, Fusible Link
82620-47040 Block Assy, Fusible Link
2003-08 → 2005-11 ended
NHW20 ¥4,240
82620-47040 Block Assy, Fusible Link
2005-11 → 2011-12 ended
NHW20 ¥4,240
82620C — Clip
90467-05164-C0 note Clip
2003-08 → 2005-11 ended
NHW20 ¥90
90467-05164-C0 note Clip
2005-11 → 2011-12 ended
NHW20 ¥90
82821B — Cover, Connector
82821-47050 Cover, Connector
2003-08 → 2005-11 ended
NHW20 ¥1,300
82821-47050 Cover, Connector
2005-11 → 2011-12 ended
NHW20 ¥1,300
83320 — Gage Assy, Fuel Sender
83320-47030 Gage Assy, Fuel Sender
2003-08 → 2005-11 ended
NHW20 ¥4,330
83320-47030 Gage Assy, Fuel Sender
2005-11 → 2011-12 ended
NHW20 ¥4,330
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-60070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2003-08 → 2005-11 ended
NHW20 ¥660
84231-60070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2005-11 → —
NHW20 S ¥660
84231-60070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2005-11 → 2009-03 ended
NHW20 G ¥660
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-60070 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2003-08 → 2005-11 ended
NHW20 ¥660
84231-60070 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2005-11 → 2009-03 ended
NHW20 G ¥660
84231-60070 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2005-11 → —
NHW20 S ¥660
84810 — Switch Assy, Power Window Regulator
84030-47020 Switch Assy, Power Window Regulator
2003-08 → 2005-11 ended
NHW20 ¥13,200
84030-47020 Switch Assy, Power Window Regulator
2005-11 → 2011-07 ended
NHW20 ¥13,200
84030-47021 Switch Assy, Power Window Regulator
2011-08 → —
NHW20 ¥13,200
84810D — Switch Assy, Power Window Regulator, Rear
84030-47020 Switch Assy, Power Window Regulator, Rear
2003-08 → 2005-11 ended
NHW20 ¥13,200
84030-47020 Switch Assy, Power Window Regulator, Rear
2005-11 → 2011-07 ended
NHW20 ¥13,200
84030-47021 Switch Assy, Power Window Regulator, Rear
2011-08 → —
NHW20 ¥13,200
84820 — Master Switch Assy, Power Window Regulator
84040-47060 Master Switch Assy, Power Window Regulator
2003-08 → 2005-11 ended
NHW20 ¥27,300
84040-47061 Master Switch Assy, Power Window Regulator
2005-11 → 2011-07 ended
NHW20 ¥27,100
84040-47062 Master Switch Assy, Power Window Regulator
2011-08 → —
NHW20 ¥27,100
84840G — Switch Assy, Back Door Opener
84840-47010 Switch Assy, Back Door Opener
2003-08 → 2005-11 ended
NHW20 S ¥3,690
84840-47020 Switch Assy, Back Door Opener
2003-08 → 2005-11 ended
NHW20 G ¥3,690
84840-47010 Switch Assy, Back Door Opener
2005-11 → 2011-12 ended
NHW20 S ¥3,690
84840-47020 Switch Assy, Back Door Opener
2005-11 → 2009-03 ended
NHW20 G ¥3,690
84840-47020 note Switch Assy, Back Door Opener
2007-04 → 2009-03 ended
NHW20 S ¥3,690
84870A — Switch Assy, Outer Mirror
84872-52040 Switch Assy, Outer Mirror
2003-08 → 2005-11 ended
NHW20 ¥4,360
84872-52040 Switch Assy, Outer Mirror
2005-11 → —
NHW20 ¥4,360
85940 — Relay Assy, Windshield Wiper
85940-47010 note Relay Assy, Windshield Wiper
2003-08 → 2005-11 ended
NHW20 ¥11,300
85940-47010 Relay Assy, Windshield Wiper
2005-11 → 2009-03 ended
NHW20 G ¥11,300
85940-47010 Relay Assy, Windshield Wiper
2005-11 → —
NHW20 S ¥11,300
85940-47010 note Relay Assy, Windshield Wiper
2005-11 → —
NHW20 S ¥11,300
87130F — Relay, Battery Blower, NO.1
90987-02027 Relay, Battery Blower, NO.1
2003-08 → 2005-11 ended
NHW20 ¥2,930
90987-02027 Relay, Battery Blower, NO.1
2005-11 → 2006-10 ended
NHW20 ¥2,930
90987-02028 Relay, Battery Blower, NO.1
2006-11 → 2009-03 ended
NHW20 G ¥2,930
90987-02028 Relay, Battery Blower, NO.1
2006-11 → —
NHW20 S ¥2,930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
