Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

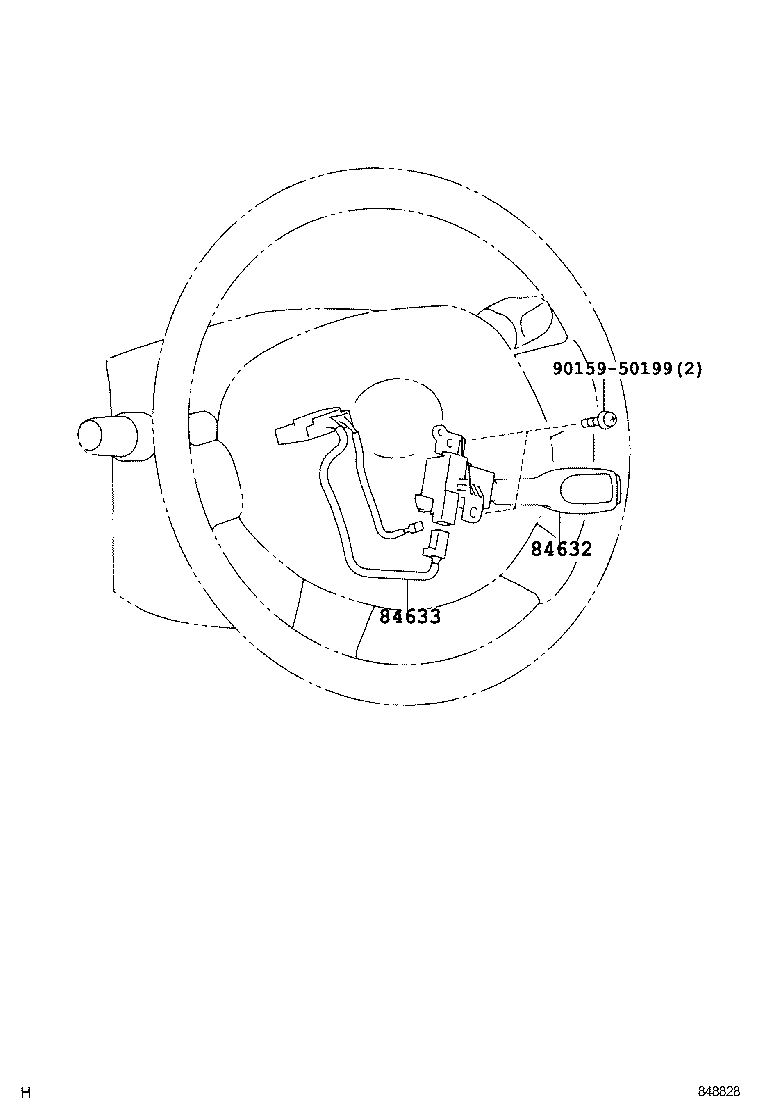

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84632 — Switch, Cruise Control Main | ||||
| 84632-34010 |
Switch, Cruise Control Main
2003-08 → 2004-08
ended
|
NHW20 G | ¥8,200 | |
| 84632-34011 |
Switch, Cruise Control Main
2004-08 → 2005-11
ended
|
NHW20 G | ¥4,960 | |
| 84632-34011 note |
Switch, Cruise Control Main
2004-08 → 2005-11
ended
|
NHW20 S | ¥4,960 | |
| 84632-34011 |
Switch, Cruise Control Main
2005-11 → 2009-03
ended
|
NHW20 G | ¥4,960 | |
| 84632-34011 note |
Switch, Cruise Control Main
2007-04 → 2009-03
ended
|
NHW20 S | ¥4,960 | |
| 84633 — Wire, Cruise Control Switch | ||||
| 84633-48020 |
Wire, Cruise Control Switch
2003-08 → 2005-11
ended
|
NHW20 G | ¥1,750 | |
| 84633-48020 note |
Wire, Cruise Control Switch
2004-08 → 2005-11
ended
|
NHW20 S | ¥1,750 | |
| 84633-48020 |
Wire, Cruise Control Switch
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,750 | |
| 84633-48020 note |
Wire, Cruise Control Switch
2007-04 → 2009-03
ended
|
NHW20 S | ¥1,750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
