Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

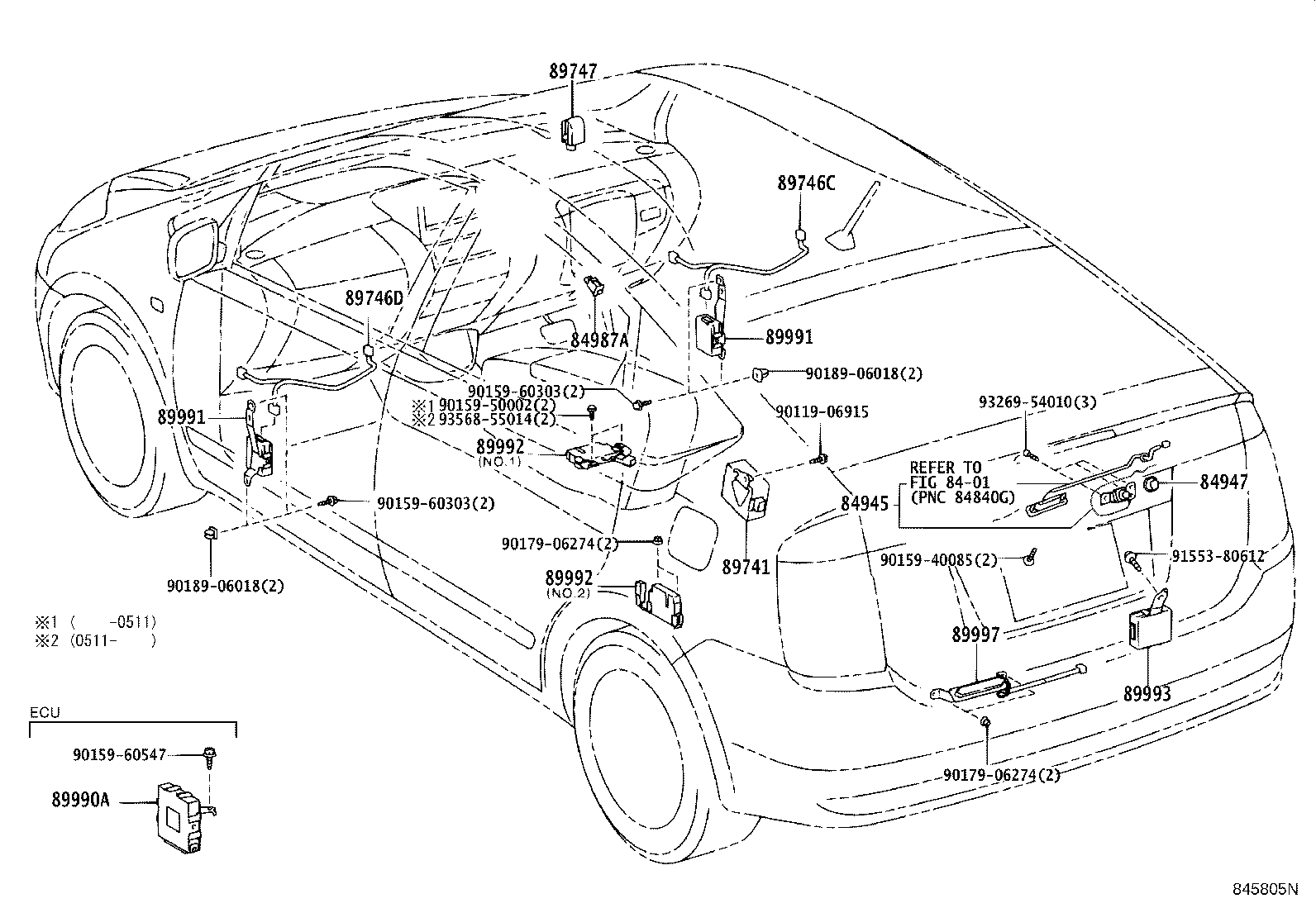

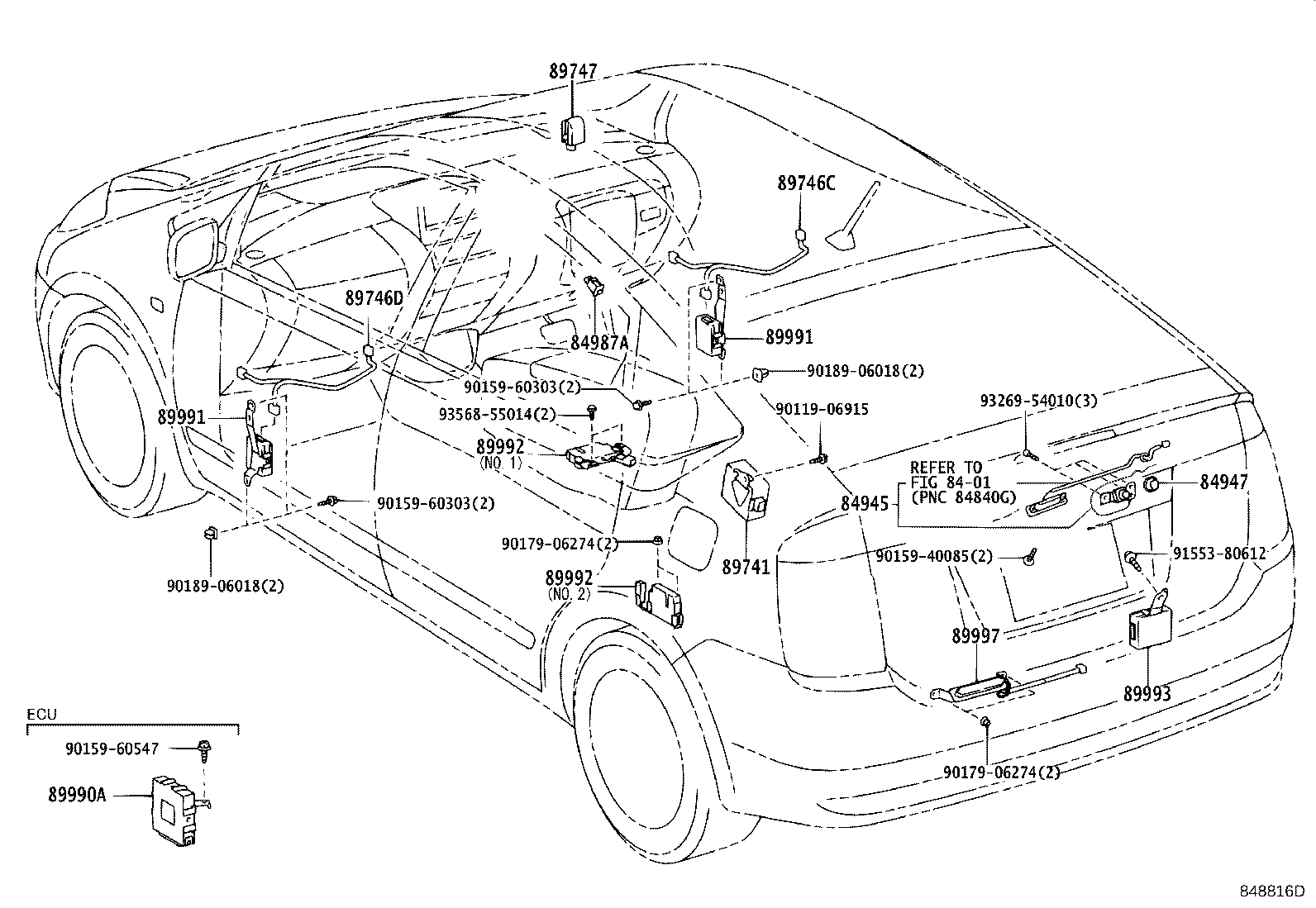

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84945 — Switch, Luggage Electrical Key | ||||
| 84905-47010 |
Switch, Luggage Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥7,400 | |
| 84905-47010 |
Switch, Luggage Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥7,400 | |
| 84905-47010 note |
Switch, Luggage Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥7,400 | |
| 84947 — Cover, Door Electrical Key Switch | ||||
| 84947-50010 |
Cover, Door Electrical Key Switch
2003-08 → 2005-11
ended
|
NHW20 G | ¥350 | |
| 84947-50010 |
Cover, Door Electrical Key Switch
2005-11 → 2009-03
ended
|
NHW20 G | ¥350 | |
| 84947-50010 note |
Cover, Door Electrical Key Switch
2007-04 → 2009-03
ended
|
NHW20 S | ¥350 | |
| 84987A — Switch, Keyless Entry Cancel | ||||
| 84987-47010 |
Switch, Keyless Entry Cancel
2003-08 → 2004-02
ended
|
NHW20 G | ¥3,690 | |
| 84987-47011 |
Switch, Keyless Entry Cancel
2004-03 → 2005-11
ended
|
NHW20 G | ¥3,690 | |
| 84987-47011 |
Switch, Keyless Entry Cancel
2005-11 → 2009-03
ended
|
NHW20 G | ¥3,690 | |
| 84987-47011 note |
Switch, Keyless Entry Cancel
2007-04 → 2009-03
ended
|
NHW20 S | ¥3,690 | |
| 89741 — Receiver, Door Control | ||||
| 89741-47080 |
Receiver, Door Control
2003-08 → 2005-11
ended
|
NHW20 S | ¥34,700 | |
| 89741-47130 |
Receiver, Door Control
2003-08 → 2005-11
ended
|
NHW20 G | ¥18,600 | |
| 89741-47080 |
Receiver, Door Control
2005-11 → —
|
NHW20 S | ¥34,700 | |
| 89741-47080 note |
Receiver, Door Control
2005-11 → —
|
NHW20 S | ¥34,700 | |
| 89741-47130 |
Receiver, Door Control
2005-11 → 2009-03
ended
|
NHW20 G | ¥18,600 | |
| 89741-47130 note |
Receiver, Door Control
2007-04 → 2009-03
ended
|
NHW20 S | ¥18,600 | |
| 89746C — Harness, Electrical Key Wire, NO.1 | ||||
| 89746-47010 |
Harness, Electrical Key Wire, NO.1
2003-08 → 2005-11
ended
|
NHW20 G | ¥4,510 | |
| 89746-47010 |
Harness, Electrical Key Wire, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥4,510 | |
| 89746-47010 note |
Harness, Electrical Key Wire, NO.1
2007-04 → 2009-03
ended
|
NHW20 S | ¥4,510 | |
| 89746D — Harness, Electrical Key Wire, NO.2 | ||||
| 89746-47020 |
Harness, Electrical Key Wire, NO.2
2003-08 → 2005-11
ended
|
NHW20 G | ¥4,510 | |
| 89746-47020 note |
Harness, Electrical Key Wire, NO.2
2007-04 → 2009-03
ended
|
NHW20 S | ¥4,510 | |
| 89746-47020 |
Harness, Electrical Key Wire, NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥4,510 | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-48020 |
Buzzer, Wireless Door Lock
2003-08 → 2005-11
ended
|
NHW20 G | ¥3,830 | |
| 89747-48020 |
Buzzer, Wireless Door Lock
2005-11 → 2009-03
ended
|
NHW20 G | ¥3,830 | |
| 89747-48020 note |
Buzzer, Wireless Door Lock
2007-04 → 2009-03
ended
|
NHW20 S | ¥3,830 | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-47010 |
Computer Assy, Smart Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥37,000 | |
| 89990-47012 |
Computer Assy, Smart Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥37,000 | |
| 89990-47012 note |
Computer Assy, Smart Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥37,000 | |
| 89991 — Oscillator, Door Electrical Key | ||||
| 89991-47010 |
Oscillator, Door Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥14,700 | |
| 89991-47030 |
Oscillator, Door Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥14,700 | |
| 89991-47030 note |
Oscillator, Door Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥14,700 | |
| 89992 — Oscillator, Indoor Electrical Key | ||||
| 89992-47010 note |
Oscillator, Indoor Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥19,400 | |
| 89992-47020 note |
Oscillator, Indoor Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥19,400 | |
| 89992-47010 note |
Oscillator, Indoor Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥19,400 | |
| 89992-47010 note |
Oscillator, Indoor Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥19,400 | |
| 89992-47020 note |
Oscillator, Indoor Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥19,400 | |
| 89992-47020 note |
Oscillator, Indoor Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥19,400 | |
| 89993 — Oscillator, Luggage Electrical Key | ||||
| 89993-47011 |
Oscillator, Luggage Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥14,700 | |
| 89993-47011 |
Oscillator, Luggage Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥14,700 | |
| 89993-47011 note |
Oscillator, Luggage Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥14,700 | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-47010 |
Antenna, Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥15,400 | |
| 89997-47010 |
Antenna, Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥15,400 | |
| 89997-47010 note |
Antenna, Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥15,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
