Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

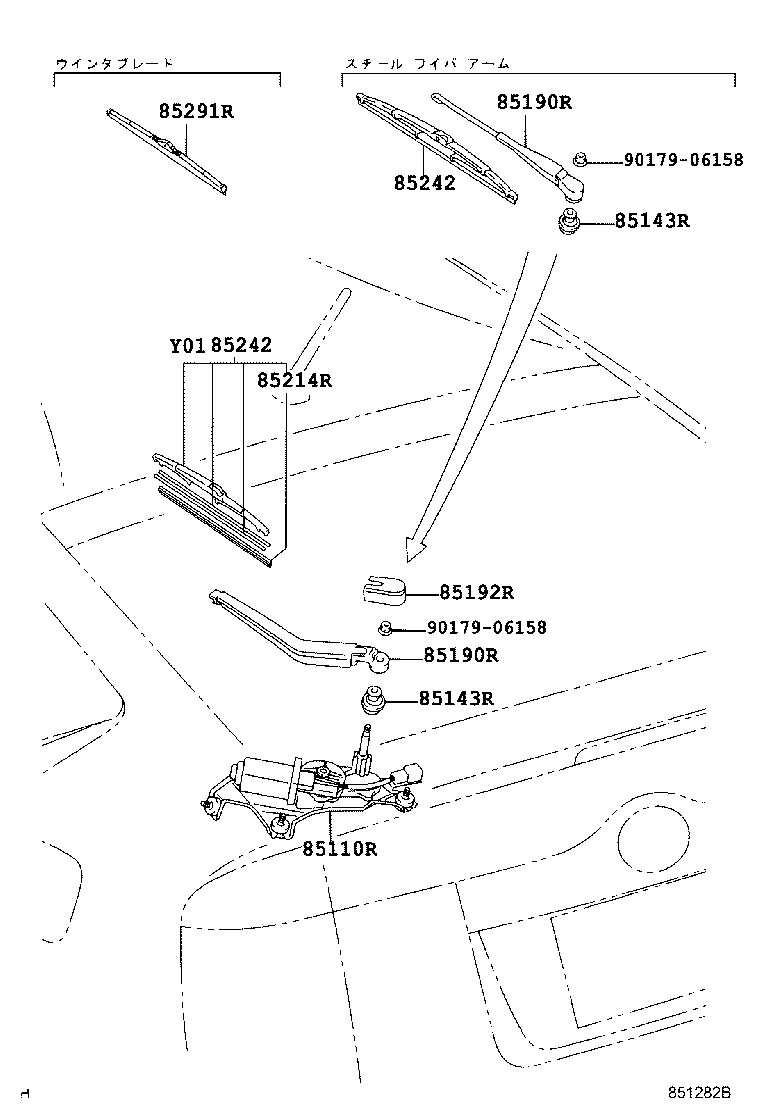

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110R — Motor Assy, Rear Wiper | ||||
| 85130-47010 note |
Motor Assy, Rear Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥22,900 | |
| 85130-47010 |
Motor Assy, Rear Wiper
2005-11 → —
|
NHW20 | ¥22,900 | |
| 85130-47010 note |
Motor Assy, Rear Wiper
2005-11 → —
|
NHW20 S | ¥22,900 | |
| 85143R — Grommet, Rear Wiper Motor | ||||
| 85143-42030 note |
Grommet, Rear Wiper Motor
2003-08 → 2005-11
ended
|
NHW20 | ¥0 | |
| 85143-42030 |
Grommet, Rear Wiper Motor
2005-11 → —
|
NHW20 | ¥0 | |
| 85143-42030 note |
Grommet, Rear Wiper Motor
2005-11 → —
|
NHW20 S | ¥0 | |
| 85190R — Arm Assy, Rear Wiper | ||||
| 85241-47010 note |
Arm Assy, Rear Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥2,950 | |
| 85241-47020 note |
Arm Assy, Rear Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥2,700 | |
| 85241-47010 |
Arm Assy, Rear Wiper
2005-11 → —
|
NHW20 | ¥2,950 | |
| 85241-47010 note |
Arm Assy, Rear Wiper
2005-11 → —
|
NHW20 S | ¥2,950 | |
| 85241-47020 note |
Arm Assy, Rear Wiper
2005-11 → —
|
NHW20 | ¥2,700 | |
| 85192R — Cover, Rear Wiper Arm | ||||
| 85292-28030 note |
Cover, Rear Wiper Arm
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 85292-28030 note |
Cover, Rear Wiper Arm
2005-11 → —
|
NHW20 S | ¥360 | |
| 85292-28030 |
Cover, Rear Wiper Arm
2005-11 → —
|
NHW20 | ¥360 | |
| 85214R — Rubber, Rear Wiper | ||||
| 85214-47010 note |
Rubber, Rear Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥750 | |
| 85214-47010 note |
Rubber, Rear Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥750 | |
| 85214-47010 |
Rubber, Rear Wiper
2005-11 → —
|
NHW20 | ¥750 | |
| 85214-47010 note |
Rubber, Rear Wiper
2005-11 → —
|
NHW20 S | ¥750 | |
| 85214-47010 note |
Rubber, Rear Wiper
2005-11 → —
|
NHW20 | ¥750 | |
| 85242 — Blade, RR Wiper | ||||
| 85242-47010 note |
Blade, RR Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥1,810 | |
| 85242-47020 note |
Blade, RR Wiper
2003-08 → 2005-11
ended
|
NHW20 | ¥1,810 | |
| 85242-47010 |
Blade, RR Wiper
2005-11 → —
|
NHW20 | ¥1,810 | |
| 85242-47010 note |
Blade, RR Wiper
2005-11 → —
|
NHW20 S | ¥1,810 | |
| 85242-47020 note |
Blade, RR Wiper
2005-11 → —
|
NHW20 | ¥1,810 | |
| 85291R — Blade,Rear Wiper, Winter | ||||
| 85291-44100 note |
Blade,Rear Wiper, Winter
2003-08 → 2005-11
ended
|
NHW20 | ¥3,600 | |
| 85291-44100 note |
Blade,Rear Wiper, Winter
2005-11 → —
|
NHW20 | ¥3,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
