Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

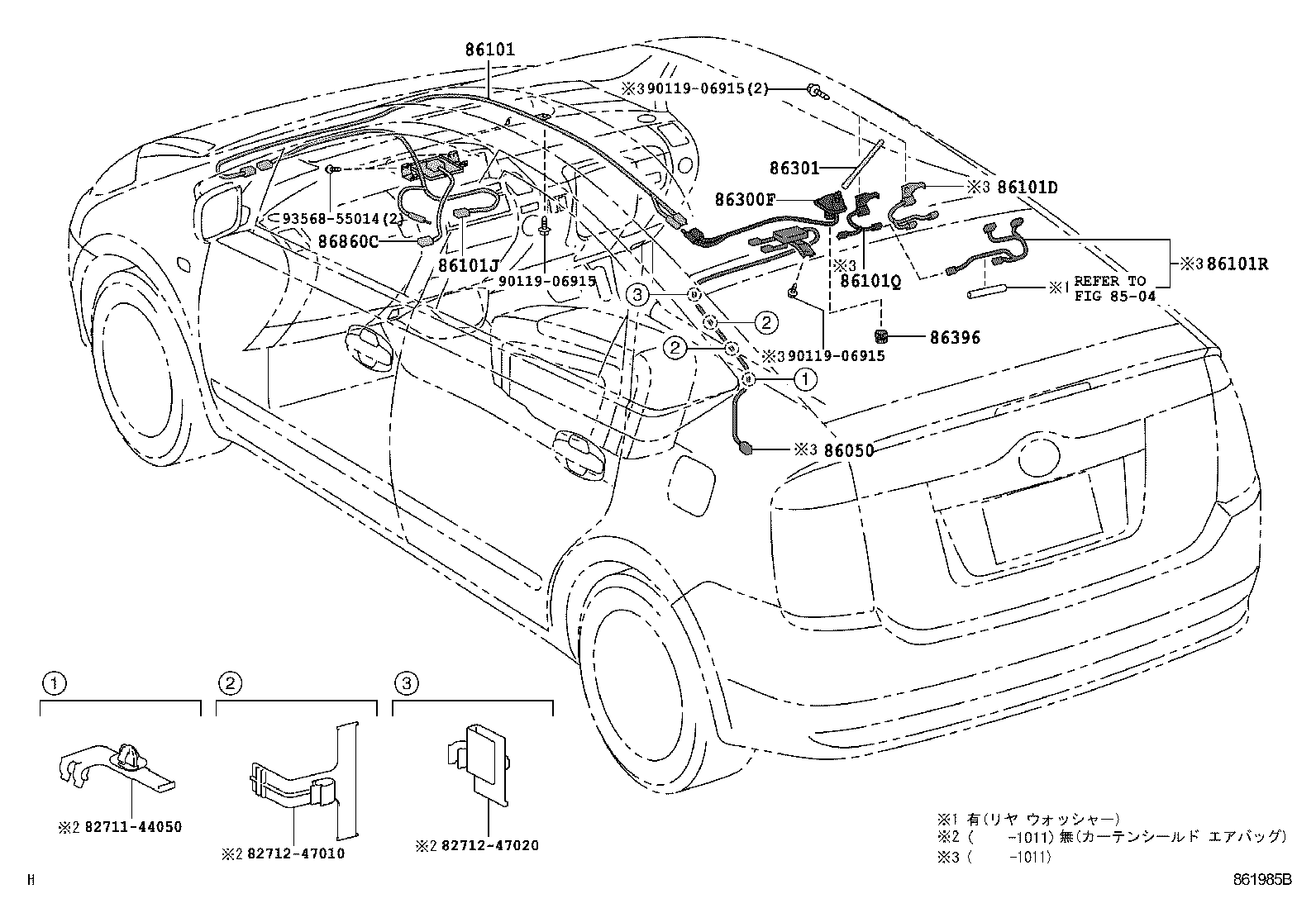

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86050 — Antenna Assy, Television | ||||
| 86050-47010 note |
Antenna Assy, Television
2003-08 → 2005-11
ended
|
NHW20 | ¥33,100 | |
| 86050-47010 note |
Antenna Assy, Television
2003-08 → 2005-11
ended
|
NHW20 | ¥33,100 | |
| 86050-47010 note |
Antenna Assy, Television
2003-08 → 2005-11
ended
|
NHW20 | ¥33,100 | |
| 86050-47010 note |
Antenna Assy, Television
2003-08 → 2005-11
ended
|
NHW20 | ¥33,100 | |
| 86050-47010 note |
Antenna Assy, Television
2005-11 → 2010-11
ended
|
NHW20 | ¥33,100 | |
| 86050-47010 note |
Antenna Assy, Television
2005-11 → 2010-11
ended
|
NHW20 | ¥33,100 | |
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-47090 |
Cord Sub-assy, Antenna
2003-08 → 2005-11
ended
|
NHW20 | ¥5,800 | |
| 86101-47090 |
Cord Sub-assy, Antenna
2005-11 → —
|
NHW20 | ¥5,800 | |
| 86101D — Cord Sub-assy, Antenna, NO.3 | ||||
| 86101-47040 note |
Cord Sub-assy, Antenna, NO.3
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47040 note |
Cord Sub-assy, Antenna, NO.3
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47040 note |
Cord Sub-assy, Antenna, NO.3
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47040 note |
Cord Sub-assy, Antenna, NO.3
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47040 note |
Cord Sub-assy, Antenna, NO.3
2005-11 → 2010-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47040 note |
Cord Sub-assy, Antenna, NO.3
2005-11 → 2010-11
ended
|
NHW20 | ¥3,480 | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-47100 |
Cord Sub-assy, Antenna, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥4,210 | |
| 86101-47110 |
Cord Sub-assy, Antenna, NO.2
2005-11 → —
|
NHW20 | ¥4,960 | |
| 86101Q — Cord Sub-assy, Antenna, NO.4 | ||||
| 86101-47050 note |
Cord Sub-assy, Antenna, NO.4
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47050 note |
Cord Sub-assy, Antenna, NO.4
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47050 note |
Cord Sub-assy, Antenna, NO.4
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47050 note |
Cord Sub-assy, Antenna, NO.4
2003-08 → 2005-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47050 note |
Cord Sub-assy, Antenna, NO.4
2005-11 → 2010-11
ended
|
NHW20 | ¥3,480 | |
| 86101-47050 note |
Cord Sub-assy, Antenna, NO.4
2005-11 → 2010-11
ended
|
NHW20 | ¥3,480 | |
| 86101R — Cord Sub-assy, Antenna, NO.5 | ||||
| 86101-47030 note |
Cord Sub-assy, Antenna, NO.5
2003-08 → 2005-11
ended
|
NHW20 | ¥6,500 | |
| 86101-47030 note |
Cord Sub-assy, Antenna, NO.5
2003-08 → 2005-11
ended
|
NHW20 | ¥6,500 | |
| 86101-47080 note |
Cord Sub-assy, Antenna, NO.5
2003-08 → 2005-11
ended
|
NHW20 | ¥7,400 | |
| 86101-47080 note |
Cord Sub-assy, Antenna, NO.5
2003-08 → 2005-11
ended
|
NHW20 | ¥7,400 | |
| 86101-47080 note |
Cord Sub-assy, Antenna, NO.5
2005-11 → 2010-11
ended
|
NHW20 | ¥7,400 | |
| 86101-47080 note |
Cord Sub-assy, Antenna, NO.5
2005-11 → 2010-11
ended
|
NHW20 | ¥7,400 | |
| 86300F — Holder Assy, Antenna (CORD/POLE SEPARATE TYPE) | ||||
| 86300-47020 |
Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
2003-08 → 2005-11
ended
|
NHW20 | ¥19,900 | |
| 86300-47020 |
Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
2005-11 → 2009-11
ended
|
NHW20 | ¥19,900 | |
| 86300-47100 |
Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
2009-11 → —
|
NHW20 | ¥19,900 | |
| 86301 — Pole Sub-assy, Antenna | ||||
| 86309-20310 |
Pole Sub-assy, Antenna
2003-08 → 2005-11
ended
|
NHW20 | ¥3,270 | |
| 86309-20310 |
Pole Sub-assy, Antenna
2005-11 → 2009-11
ended
|
NHW20 | ¥3,270 | |
| 86309-42070 |
Pole Sub-assy, Antenna
2009-11 → —
|
NHW20 | ¥2,710 | |
| 86396 — Nut, Antenna | ||||
| 86396-20040 |
Nut, Antenna
2003-08 → 2005-11
ended
|
NHW20 | ¥470 | |
| 86396-20040 |
Nut, Antenna
2005-11 → 2009-05
ended
|
NHW20 | ¥470 | |
| 86396-30050 |
Nut, Antenna
2009-06 → 2009-11
ended
|
NHW20 | ¥810 | |
| 86396-47010 |
Nut, Antenna
2009-11 → —
|
NHW20 | ¥430 | |
| 86860C — Antenna Assy, Navigation | ||||
| 86860-47060 note |
Antenna Assy, Navigation
2003-08 → 2005-11
ended
|
NHW20 | ¥37,300 | |
| 86860-47060 note |
Antenna Assy, Navigation
2005-11 → 2010-11
ended
|
NHW20 | ¥37,300 | |
| 86860-47060 note |
Antenna Assy, Navigation
2010-11 → —
|
NHW20 | ¥37,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
