Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

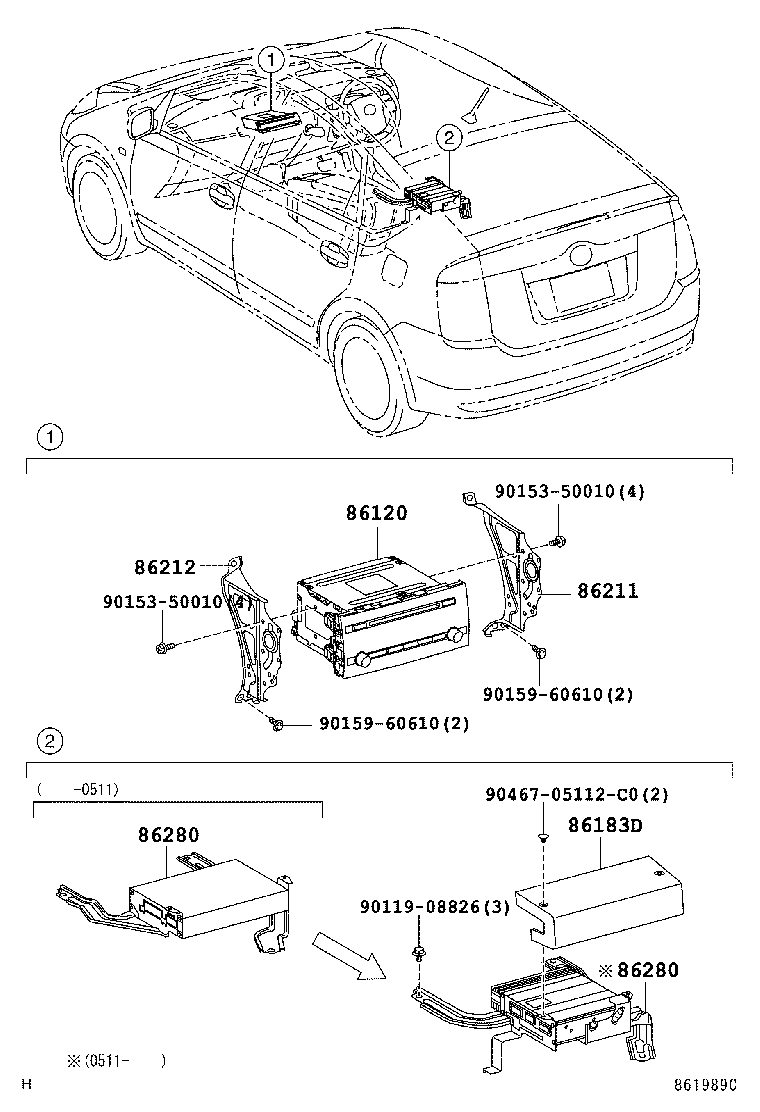

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86120-47060 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥92,400 | |
| 86120-47070 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥232,000 | |
| 86120-47080 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 G | ¥232,000 | |
| 86120-47130 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥92,400 | |
| 86120-47140 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥232,000 | |
| 86120-47150 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 G | ¥232,000 | |
| 86120-47180 note |
Receiver Assy, Radio
2005-11 → 2009-03
ended
|
NHW20 G | ¥179,000 | |
| 86120-47180 note |
Receiver Assy, Radio
2005-11 → 2010-11
ended
|
NHW20 S | ¥179,000 | |
| 86120-47180 note |
Receiver Assy, Radio
2010-11 → —
|
NHW20 | ¥179,000 | |
| 86120-47190 note |
Receiver Assy, Radio
2005-11 → 2009-03
ended
|
NHW20 G | ¥340,000 | |
| 86120-47250 note |
Receiver Assy, Radio
2005-11 → —
|
NHW20 S | ¥92,300 | |
| 86120-47260 note |
Receiver Assy, Radio
2005-11 → 2009-03
ended
|
NHW20 G | ¥232,000 | |
| 86120-47060 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥92,400 | |
| 86120-47070 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥232,000 | |
| 86120-47080 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 G | ¥232,000 | |
| 86120-47130 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥92,400 | |
| 86120-47140 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 | ¥232,000 | |
| 86120-47150 note |
Receiver Assy, Radio
2003-08 → 2005-11
ended
|
NHW20 G | ¥232,000 | |
| 86120-47180 note |
Receiver Assy, Radio
2005-11 → 2009-03
ended
|
NHW20 G | ¥179,000 | |
| 86120-47180 note |
Receiver Assy, Radio
2005-11 → 2010-11
ended
|
NHW20 S | ¥179,000 | |
| 86120-47180 note |
Receiver Assy, Radio
2010-11 → —
|
NHW20 | ¥179,000 | |
| 86120-47190 note |
Receiver Assy, Radio
2005-11 → 2009-03
ended
|
NHW20 G | ¥340,000 | |
| 86120-47250 note |
Receiver Assy, Radio
2005-11 → —
|
NHW20 S | ¥92,300 | |
| 86120-47260 note |
Receiver Assy, Radio
2005-11 → 2009-03
ended
|
NHW20 G | ¥232,000 | |
| 86183D — Cover, Audio Amplifier | ||||
| 86183-47010 note |
Cover, Audio Amplifier
2003-08 → 2005-11
ended
|
NHW20 G | ¥6,000 | |
| 86183-47020 note |
Cover, Audio Amplifier
2005-11 → 2009-03
ended
|
NHW20 G | ¥5,100 | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-47040 |
Bracket, Radio, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥940 | |
| 86211-47040 |
Bracket, Radio, NO.1
2005-11 → —
|
NHW20 | ¥940 | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-47040 |
Bracket, Radio, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥940 | |
| 86212-47040 |
Bracket, Radio, NO.2
2005-11 → —
|
NHW20 | ¥940 | |
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-0W240 note |
Amplifier Assy, Stereo Component
2003-08 → 2005-11
ended
|
NHW20 G | ¥101,000 | |
| 86280-0W460 note |
Amplifier Assy, Stereo Component
2005-11 → 2009-03
ended
|
NHW20 G | ¥101,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
