Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

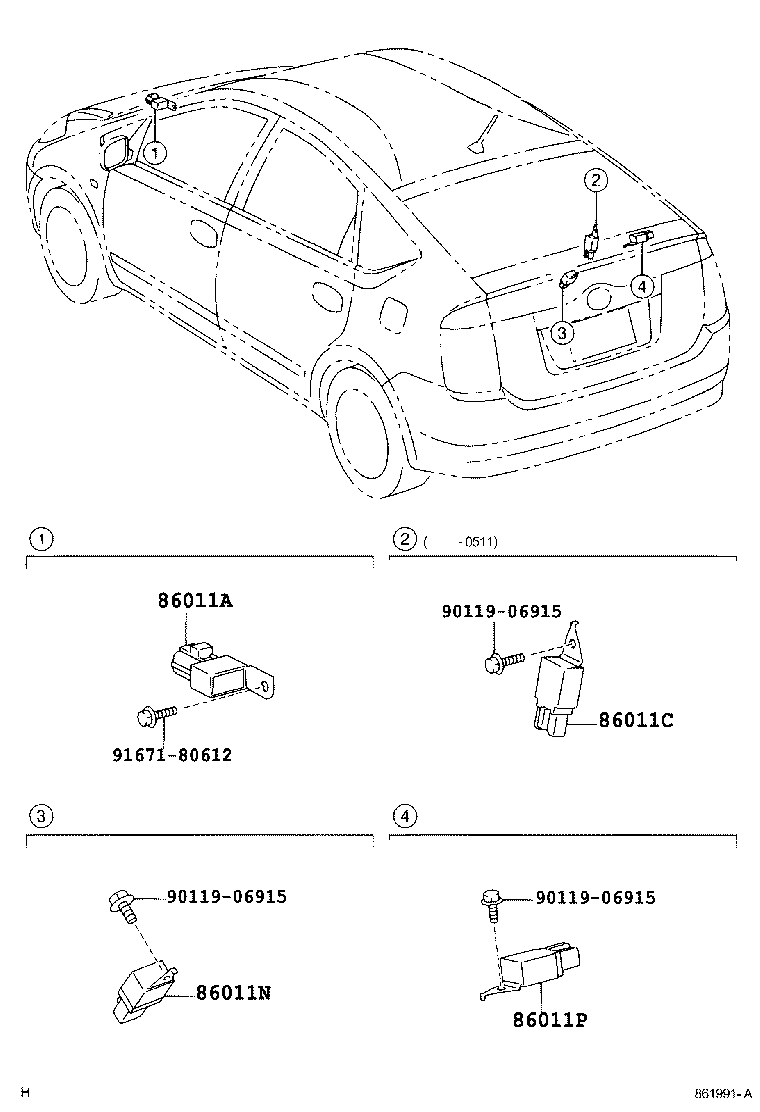

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04077 |
Condenser, Radio Setting
2003-08 → 2005-11
ended
|
NHW20 | ¥840 | |
| 90980-04077 |
Condenser, Radio Setting
2005-11 → —
|
NHW20 | ¥840 | |
| 86011C — Filter, Noise | ||||
| 90980-04159 |
Filter, Noise
2003-08 → 2005-11
ended
|
NHW20 | ¥760 | |
| 86011N — Filter, Noise | ||||
| 90980-04174 |
Filter, Noise
2003-08 → 2005-11
ended
|
NHW20 | ¥760 | |
| 90980-04174 |
Filter, Noise
2005-11 → —
|
NHW20 | ¥760 | |
| 86011P — Filter, Noise | ||||
| 90980-04174 |
Filter, Noise
2003-08 → 2005-11
ended
|
NHW20 | ¥760 | |
| 90980-04159 |
Filter, Noise
2005-11 → —
|
NHW20 | ¥760 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
