Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

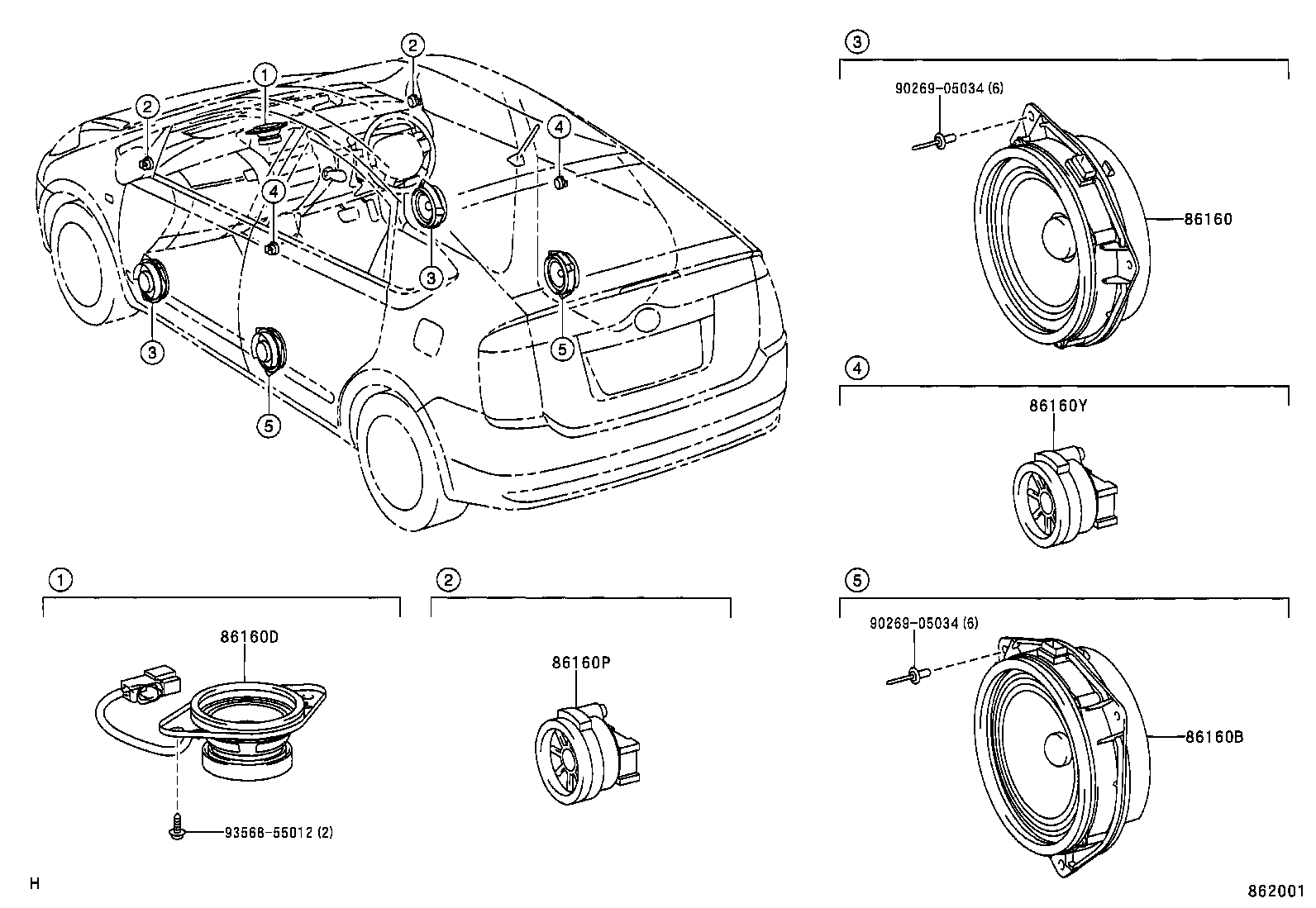

Exploded illustration 862001 9026905034 — not listed in this catalogue 86160 — SPEAKER ASSY, FRONT NO.1 (5 parts) 86160Y — SPEAKER ASSY, REAR NO.2 (2 parts) 9026905034 — not listed in this catalogue 86160D — SPEAKER ASSY, STEREO COMPONENT, FRONT (2 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (5 parts) 86160B — SPEAKER ASSY, REAR (5 parts) 9356855012 — not listed in this catalogue
862001 · 5 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
86160 — Speaker Assy, Front NO.1
86160-0W880 note Speaker Assy, Front NO.1
2003-08 → 2005-11 ended
NHW20 G ¥13,300
86160-2B560 Speaker Assy, Front NO.1
2003-08 → 2005-11 ended
NHW20 ¥9,400
86160-2B580 Speaker Assy, Front NO.1
2005-11 → 2011-06 ended
NHW20 ¥9,400
86160-52330 Speaker Assy, Front NO.1
2011-07 → —
NHW20 ¥10,100
86160-AC280 note Speaker Assy, Front NO.1
2005-11 → 2009-03 ended
NHW20 G ¥9,200
86160B — Speaker Assy, Rear
86160-0W620 note Speaker Assy, Rear
2003-08 → 2005-11 ended
NHW20 G ¥13,600
86160-2B560 Speaker Assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥9,400
86160-2B580 Speaker Assy, Rear
2005-11 → 2011-06 ended
NHW20 ¥9,400
86160-52330 Speaker Assy, Rear
2011-07 → —
NHW20 ¥10,100
86160-AC280 note Speaker Assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥9,200
86160D — Speaker Assy, Stereo Component, Front
86160-0W890 note Speaker Assy, Stereo Component, Front
2003-08 → 2005-11 ended
NHW20 G ¥10,400
86160-0WF80 note Speaker Assy, Stereo Component, Front
2005-11 → 2009-03 ended
NHW20 G ¥12,100
86160P — Speaker Assy, Front NO.2
86160-0WB40 note Speaker Assy, Front NO.2
2003-08 → 2005-11 ended
NHW20 G ¥11,700
86160-68010 Speaker Assy, Front NO.2
2003-08 → 2005-11 ended
NHW20 ¥6,500
86160-0WB40 note Speaker Assy, Front NO.2
2005-11 → 2009-03 ended
NHW20 G ¥11,700
86160-52340 Speaker Assy, Front NO.2
2011-10 → 2011-12 ended
NHW20 ¥5,200
86160-68010 Speaker Assy, Front NO.2
2005-11 → 2011-09 ended
NHW20 ¥6,500
86160Y — Speaker Assy, Rear NO.2
86160-0WB50 note Speaker Assy, Rear NO.2
2003-08 → 2005-11 ended
NHW20 G ¥11,500
86160-0WB50 note Speaker Assy, Rear NO.2
2005-11 → 2009-03 ended
NHW20 G ¥11,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
