Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

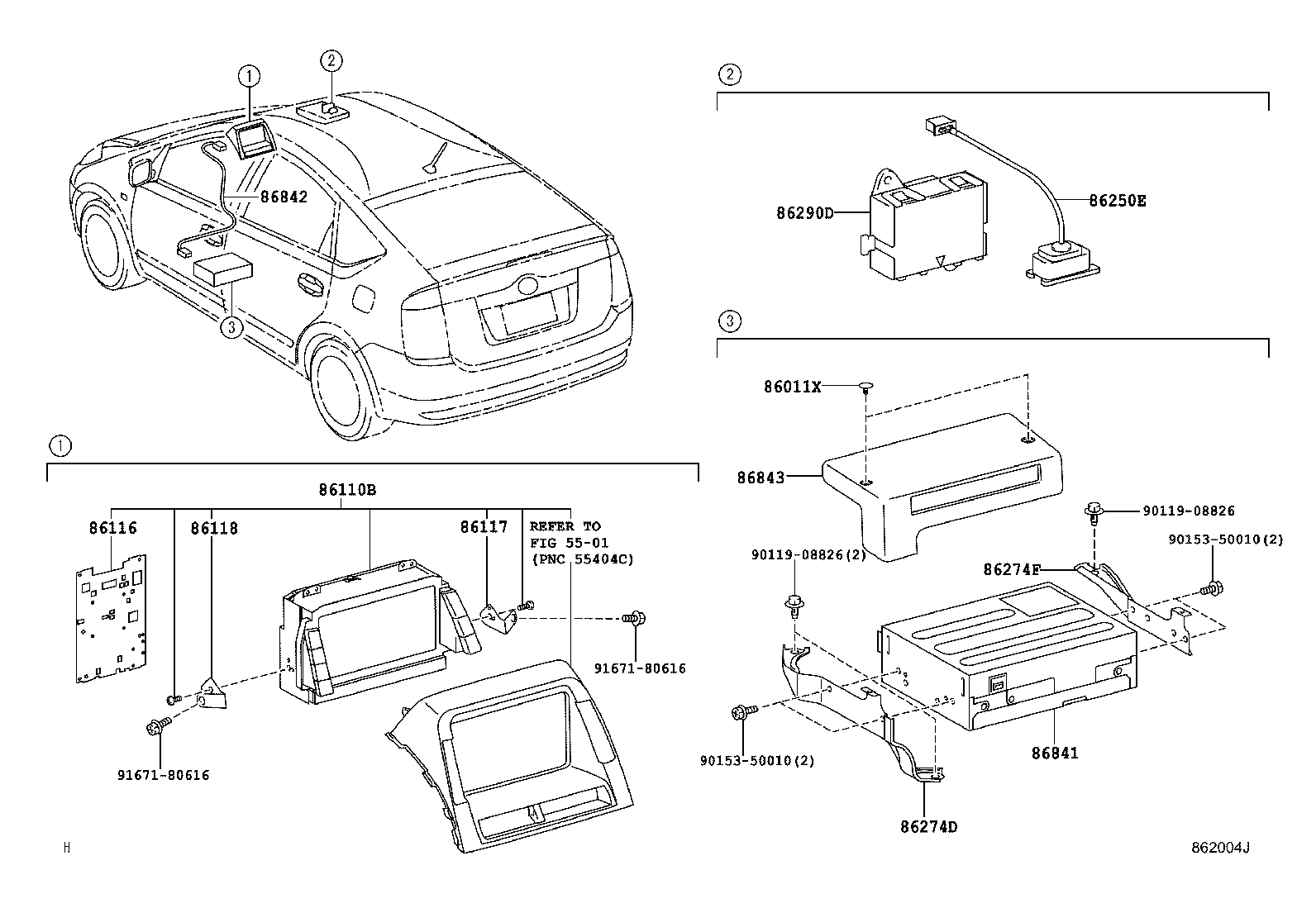

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011X — Clip, Navigation | ||||
| 90467-05112-C0 note |
Clip, Navigation
2003-08 → 2005-11
ended
|
NHW20 | ¥190 | |
| 90467-05112-C0 note |
Clip, Navigation
2005-11 → 2010-11
ended
|
NHW20 | ¥190 | |
| 90467-05112-C0 note |
Clip, Navigation
2010-11 → 2011-12
ended
|
NHW20 | ¥190 | |
| 86110B — Multi-display Assy | ||||
| 86110-47050 note |
Multi-display Assy
2003-08 → 2003-12
ended
|
NHW20 | ¥269,000 | |
| 86110-47051 note |
Multi-display Assy
2004-01 → 2004-02
ended
|
NHW20 | ¥269,000 | |
| 86110-47052 note |
Multi-display Assy
2004-03 → 2005-11
ended
|
NHW20 | ¥270,000 | |
| 86110-47060 |
Multi-display Assy
2003-08 → 2003-12
ended
|
NHW20 | ¥232,000 | |
| 86110-47061 |
Multi-display Assy
2004-01 → 2004-02
ended
|
NHW20 | ¥230,000 | |
| 86110-47062-C0 note |
Multi-display Assy
2004-03 → 2005-11
ended
|
NHW20 | ¥232,000 | |
| 86110-47062-C0 note |
Multi-display Assy
2005-11 → 2011-12
ended
|
NHW20 | ¥232,000 | |
| 86110-47200-C0 note |
Multi-display Assy
2005-11 → 2007-10
ended
|
NHW20 G | ¥394,000 | |
| 86110-47200-C0 note |
Multi-display Assy
2005-11 → 2007-10
ended
|
NHW20 G | ¥394,000 | |
| 86110-47200-C0 note |
Multi-display Assy
2005-11 → 2007-10
ended
|
NHW20 S | ¥394,000 | |
| 86110-47201-C0 note |
Multi-display Assy
2007-10 → 2009-03
ended
|
NHW20 G | ¥392,000 | |
| 86110-47201-C0 note |
Multi-display Assy
2007-10 → 2009-03
ended
|
NHW20 G | ¥392,000 | |
| 86110-47201-C0 note |
Multi-display Assy
2007-10 → 2009-05
ended
|
NHW20 S | ¥392,000 | |
| 86110-47270-C0 note |
Multi-display Assy
2009-06 → 2010-11
ended
|
NHW20 | ¥392,000 | |
| 86110-47270-C0 note |
Multi-display Assy
2010-11 → 2011-12
ended
|
NHW20 | ¥392,000 | |
| 86116 — Controller, Video | ||||
| 86116-47030 note |
Controller, Video
2003-08 → 2004-01
ended
|
NHW20 | ¥62,800 | |
| 86116-47031 note |
Controller, Video
2004-01 → 2004-03
ended
|
NHW20 | ¥62,700 | |
| 86116-47032 note |
Controller, Video
2004-03 → 2005-11
ended
|
NHW20 | ¥62,900 | |
| 86116-47040 |
Controller, Video
2003-08 → 2004-01
ended
|
NHW20 | ¥62,800 | |
| 86116-47041 |
Controller, Video
2004-01 → 2004-03
ended
|
NHW20 | ¥62,700 | |
| 86116-47042 |
Controller, Video
2004-03 → 2005-11
ended
|
NHW20 | ¥62,900 | |
| 86116-47042 |
Controller, Video
2005-11 → —
|
NHW20 | ¥62,900 | |
| 86116-48150 note |
Controller, Video
2005-11 → 2007-10
ended
|
NHW20 G | ¥195,000 | |
| 86116-48150 note |
Controller, Video
2005-11 → 2007-10
ended
|
NHW20 G | ¥195,000 | |
| 86116-48150 note |
Controller, Video
2005-11 → 2007-10
ended
|
NHW20 S | ¥195,000 | |
| 86116-48151 note |
Controller, Video
2007-10 → 2010-11
ended
|
NHW20 S | ¥194,000 | |
| 86116-48151 note |
Controller, Video
2010-11 → —
|
NHW20 | ¥194,000 | |
| 86116-48151 note |
Controller, Video
2007-10 → 2009-03
ended
|
NHW20 G | ¥194,000 | |
| 86116-48151 note |
Controller, Video
2007-10 → 2009-03
ended
|
NHW20 G | ¥194,000 | |
| 86117 — Bracket, Multi-display Controller, A | ||||
| 86117-47010 |
Bracket, Multi-display Controller, A
2003-08 → 2004-01
ended
|
NHW20 | ¥970 | |
| 86117-47010 |
Bracket, Multi-display Controller, A
2004-01 → 2004-03
ended
|
NHW20 | ¥970 | |
| 86117-47010 |
Bracket, Multi-display Controller, A
2004-03 → 2005-11
ended
|
NHW20 | ¥970 | |
| 86117-47010 |
Bracket, Multi-display Controller, A
2005-11 → —
|
NHW20 | ¥970 | |
| 86118 — Bracket, Multi-display Controler, B | ||||
| 86118-47010 |
Bracket, Multi-display Controler, B
2004-03 → 2005-11
ended
|
NHW20 | ¥970 | |
| 86118-47010 |
Bracket, Multi-display Controler, B
2004-01 → 2004-03
ended
|
NHW20 | ¥970 | |
| 86118-47010 |
Bracket, Multi-display Controler, B
2003-08 → 2004-01
ended
|
NHW20 | ¥970 | |
| 86118-47010 |
Bracket, Multi-display Controler, B
2005-11 → —
|
NHW20 | ¥970 | |
| 86250E — Microphone Assy, Amplifier | ||||
| 86250-47010 note |
Microphone Assy, Amplifier
2003-08 → 2005-11
ended
|
NHW20 | ¥5,400 | |
| 86250-47030 note |
Microphone Assy, Amplifier
2005-11 → 2010-11
ended
|
NHW20 | ¥5,400 | |
| 86250-47030 note |
Microphone Assy, Amplifier
2010-11 → 2011-12
ended
|
NHW20 | ¥5,400 | |
| 86274D — Bracket, Disc Player | ||||
| 86274-47050 note |
Bracket, Disc Player
2003-08 → 2005-11
ended
|
NHW20 | ¥1,010 | |
| 86274-47070 note |
Bracket, Disc Player
2005-11 → 2010-11
ended
|
NHW20 | ¥850 | |
| 86274-47070 note |
Bracket, Disc Player
2010-11 → —
|
NHW20 | ¥850 | |
| 86274F — Bracket, Disc Player, NO.2 | ||||
| 86274-47060 note |
Bracket, Disc Player, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥930 | |
| 86274-47080 note |
Bracket, Disc Player, NO.2
2010-11 → —
|
NHW20 | ¥930 | |
| 86274-47080 note |
Bracket, Disc Player, NO.2
2005-11 → 2010-11
ended
|
NHW20 | ¥930 | |
| 86290D — Amplifier Assy, Microphone | ||||
| 86290-47010 note |
Amplifier Assy, Microphone
2003-08 → 2005-11
ended
|
NHW20 | ¥4,880 | |
| 86290-47020 note |
Amplifier Assy, Microphone
2005-11 → 2010-11
ended
|
NHW20 | ¥4,890 | |
| 86290-47020 note |
Amplifier Assy, Microphone
2010-11 → 2011-12
ended
|
NHW20 | ¥4,890 | |
| 86841 — Computer, Navigation | ||||
| 86841-52020 note |
Computer, Navigation
2003-08 → 2005-11
ended
|
NHW20 | ¥309,000 | |
| 86840-47070 note |
Computer, Navigation
2005-11 → 2006-03
ended
|
NHW20 | ¥368,000 | |
| 86840-47071 note |
Computer, Navigation
2006-04 → 2006-08
ended
|
NHW20 | ¥368,000 | |
| 86840-47072 note |
Computer, Navigation
2006-09 → 2007-03
ended
|
NHW20 | ¥368,000 | |
| 86840-47073 note |
Computer, Navigation
2007-04 → 2007-06
ended
|
NHW20 | ¥368,000 | |
| 86840-47074 note |
Computer, Navigation
2007-07 → 2007-08
ended
|
NHW20 | ¥368,000 | |
| 86840-47075 note |
Computer, Navigation
2007-08 → 2008-03
ended
|
NHW20 | ¥367,000 | |
| 86840-47076 note |
Computer, Navigation
2008-04 → 2008-08
ended
|
NHW20 | ¥367,000 | |
| 86840-47077 note |
Computer, Navigation
2008-09 → 2009-05
ended
|
NHW20 | ¥367,000 | |
| 86840-47078 note |
Computer, Navigation
2009-06 → 2009-08
ended
|
NHW20 | ¥367,000 | |
| 86840-47079 note |
Computer, Navigation
2009-09 → 2010-03
ended
|
NHW20 | ¥367,000 | |
| 86840-47080 note |
Computer, Navigation
2010-04 → 2010-08
ended
|
NHW20 | ¥367,000 | |
| 86840-47081 note |
Computer, Navigation
2010-11 → 2011-03
ended
|
NHW20 | ¥367,000 | |
| 86840-47081 note |
Computer, Navigation
2010-09 → 2010-11
ended
|
NHW20 | ¥367,000 | |
| 86840-47082 note |
Computer, Navigation
2011-04 → 2011-08
ended
|
NHW20 | ¥367,000 | |
| 86840-47083 note |
Computer, Navigation
2011-09 → —
|
NHW20 | ¥367,000 | |
| 86842 — Wire, Navigation, NO.1 | ||||
| 86842-47010 note |
Wire, Navigation, NO.1
2005-11 → 2009-05
ended
|
NHW20 | ¥6,400 | |
| 86842-47030 note |
Wire, Navigation, NO.1
2009-06 → 2010-11
ended
|
NHW20 | ¥6,800 | |
| 86842-47030 note |
Wire, Navigation, NO.1
2010-11 → 2011-12
ended
|
NHW20 | ¥6,800 | |
| 86843 — Cover, Navigation Computer | ||||
| 86804-47010 note |
Cover, Navigation Computer
2003-08 → 2005-11
ended
|
NHW20 | ¥5,100 | |
| 86804-47020 note |
Cover, Navigation Computer
2005-11 → 2010-11
ended
|
NHW20 | ¥5,100 | |
| 86804-47020 note |
Cover, Navigation Computer
2010-11 → —
|
NHW20 | ¥5,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
