Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

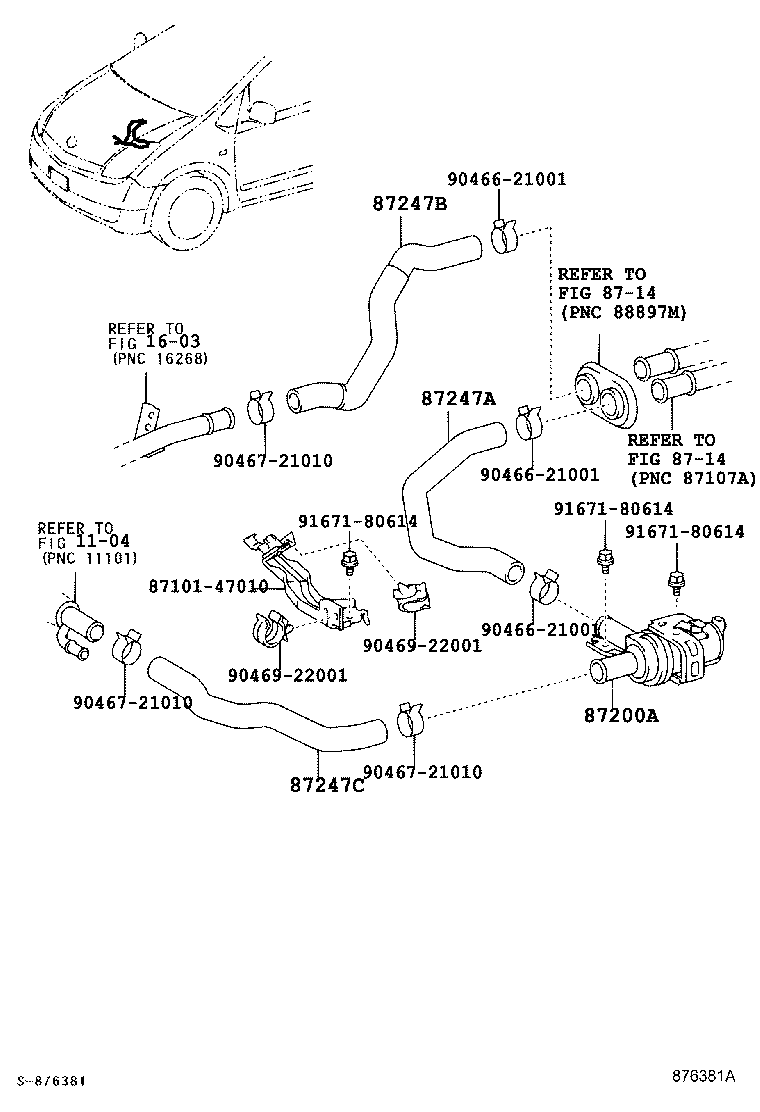

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87200A — Pump Assy, Water(FOR HEATER) | ||||
| 87200-47030 |
Pump Assy, Water(FOR HEATER)
2003-08 → 2005-11
ended
|
NHW20 | ¥38,900 | |
| 87200-47030 |
Pump Assy, Water(FOR HEATER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥38,900 | |
| 87200-47030 |
Pump Assy, Water(FOR HEATER)
2005-11 → —
|
NHW20 S | ¥38,900 | |
| 87247A — Hose, Heater Water, A | ||||
| 87245-47230 |
Hose, Heater Water, A
2003-08 → 2005-11
ended
|
NHW20 | ¥1,750 | |
| 87245-47230 |
Hose, Heater Water, A
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,750 | |
| 87245-47230 |
Hose, Heater Water, A
2005-11 → —
|
NHW20 S | ¥1,750 | |
| 87247B — Hose, Heater Water, B | ||||
| 87245-47240 |
Hose, Heater Water, B
2003-08 → 2005-11
ended
|
NHW20 | ¥1,870 | |
| 87245-47240 |
Hose, Heater Water, B
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,870 | |
| 87245-47240 |
Hose, Heater Water, B
2005-11 → —
|
NHW20 S | ¥1,870 | |
| 87247C — Hose, Heater Water, C | ||||
| 87245-47250 |
Hose, Heater Water, C
2003-08 → 2005-11
ended
|
NHW20 | ¥1,680 | |
| 87245-47250 |
Hose, Heater Water, C
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,680 | |
| 87245-47250 |
Hose, Heater Water, C
2005-11 → —
|
NHW20 S | ¥1,680 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
