Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

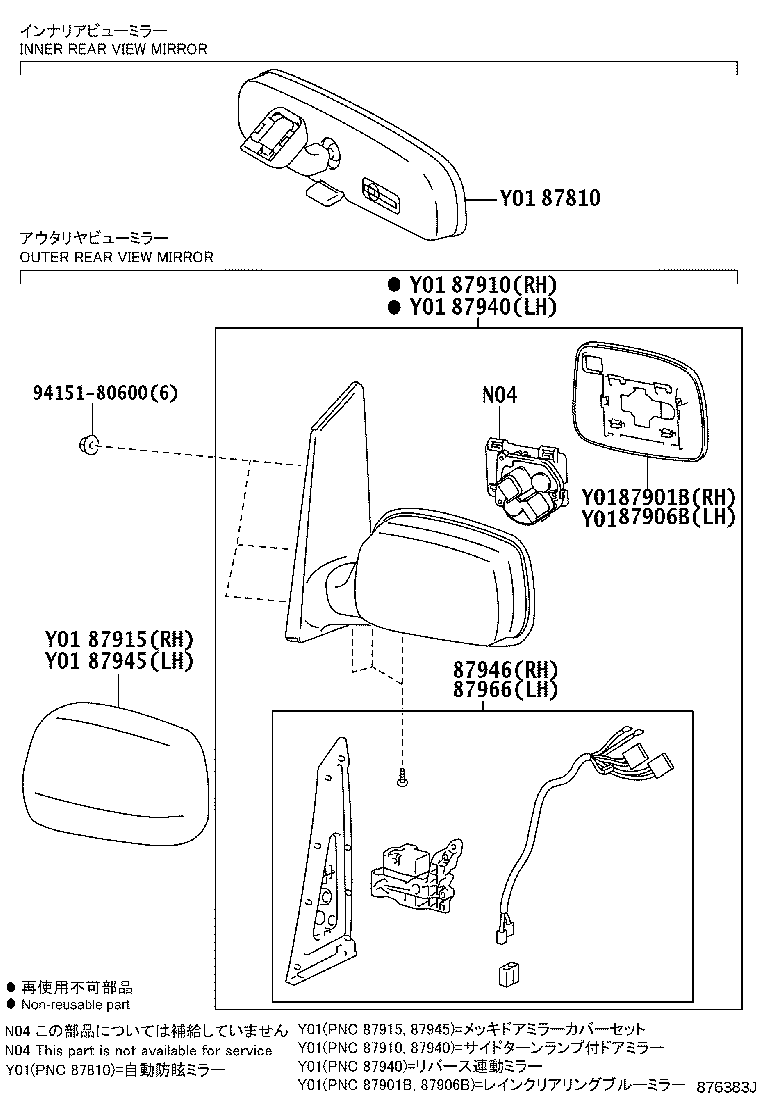

Exploded illustration 876383J 9415180600 — not listed in this catalogue 87810 — MIRROR ASSY, INNER REAR VIEW (3 parts) 87901B — MIRROR SUB-ASSY, OUTER REAR VIEW, RH (4 parts) 87906B — MIRROR SUB-ASSY, OUTER REAR VIEW, LH (4 parts) 87910 — MIRROR ASSY, OUTER REAR VIEW, RH (6 parts) 87915 — COVER, OUTER MIRROR, RH (18 parts) 87940 — MIRROR ASSY, OUTER REAR VIEW, LH (6 parts) 87945 — COVER, OUTER MIRROR, LH (18 parts) 87946 — RETRACTOR, OUTER MIRROR, RH (4 parts) 87966 — RETRACTOR, OUTER MIRROR, LH (4 parts)
876383J · 9 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
87810 — Mirror Assy, Inner Rear View
87810-52040 Mirror Assy, Inner Rear View
2003-08 → 2005-11 ended
NHW20 ¥10,100
87810-52040 Mirror Assy, Inner Rear View
2005-11 → 2006-12 ended
NHW20 ¥10,100
87810-52041 Mirror Assy, Inner Rear View
2007-01 → 2011-12 ended
NHW20 ¥6,200
87901B — Mirror Sub-assy, Outer Rear View, RH
87931-47080 note Mirror Sub-assy, Outer Rear View, RH
2003-08 → 2005-11 ended
NHW20 ¥3,300
87931-47090 note Mirror Sub-assy, Outer Rear View, RH
2003-08 → 2005-11 ended
NHW20 ¥6,600
87931-47080 note Mirror Sub-assy, Outer Rear View, RH
2005-11 → 2011-12 ended
NHW20 ¥3,300
87931-47090 note Mirror Sub-assy, Outer Rear View, RH
2005-11 → 2011-12 ended
NHW20 ¥6,600
87906B — Mirror Sub-assy, Outer Rear View, LH
87961-47080 note Mirror Sub-assy, Outer Rear View, LH
2003-08 → 2005-11 ended
NHW20 ¥3,290
87961-47090 note Mirror Sub-assy, Outer Rear View, LH
2003-08 → 2005-11 ended
NHW20 ¥6,600
87961-47080 note Mirror Sub-assy, Outer Rear View, LH
2005-11 → 2011-12 ended
NHW20 ¥3,290
87961-47090 note Mirror Sub-assy, Outer Rear View, LH
2005-11 → 2011-12 ended
NHW20 ¥6,600
87910 — Mirror Assy, Outer Rear View, RH
87910-47080 note Mirror Assy, Outer Rear View, RH
2003-08 → 2004-07 ended
NHW20 ¥34,800
87910-47081 note Mirror Assy, Outer Rear View, RH
2004-08 → 2005-11 ended
NHW20 ¥34,800
87910-47090 note Mirror Assy, Outer Rear View, RH
2003-08 → 2004-07 ended
NHW20 ¥39,400
87910-47091 note Mirror Assy, Outer Rear View, RH
2004-08 → 2005-11 ended
NHW20 ¥39,300
87910-47081 note Mirror Assy, Outer Rear View, RH
2005-11 → 2011-12 ended
NHW20 ¥34,800
87910-47091 note Mirror Assy, Outer Rear View, RH
2005-11 → 2011-12 ended
NHW20 ¥39,300
87915 — Cover, Outer Mirror, RH
87915-68010-A1 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87915-68010-A3 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,110
87915-68010-B3 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87915-68010-C1 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87915-68010-D2 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,160
87915-68010-E0 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87915-68010-G0 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,110
87915-68010-J2 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87915-68010-J3 note Cover, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87915-68010-A1 note Cover, Outer Mirror, RH
2005-11 → 2011-12 ended
NHW20 ¥3,150
87915-68010-A2 note Cover, Outer Mirror, RH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87915-68010-B7 note Cover, Outer Mirror, RH
2005-11 → 2011-12 ended
NHW20 ¥3,150
87915-68010-C1 note Cover, Outer Mirror, RH
2005-11 → 2011-12 ended
NHW20 ¥3,150
87915-68010-D7 note Cover, Outer Mirror, RH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87915-68010-E0 note Cover, Outer Mirror, RH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87915-68010-G3 note Cover, Outer Mirror, RH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87915-68010-J2 note Cover, Outer Mirror, RH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87915-68010-R4 note Cover, Outer Mirror, RH
2007-04 → 2009-03 ended
NHW20 S ¥3,150
87940 — Mirror Assy, Outer Rear View, LH
87940-47080 note Mirror Assy, Outer Rear View, LH
2003-08 → 2004-07 ended
NHW20 ¥34,800
87940-47081 note Mirror Assy, Outer Rear View, LH
2004-08 → 2005-11 ended
NHW20 ¥34,800
87940-47090 note Mirror Assy, Outer Rear View, LH
2003-08 → 2004-07 ended
NHW20 ¥39,400
87940-47091 note Mirror Assy, Outer Rear View, LH
2004-08 → 2005-11 ended
NHW20 ¥39,300
87940-47081 note Mirror Assy, Outer Rear View, LH
2005-11 → 2011-12 ended
NHW20 ¥34,800
87940-47091 note Mirror Assy, Outer Rear View, LH
2005-11 → 2011-12 ended
NHW20 ¥39,300
87945 — Cover, Outer Mirror, LH
87945-68010-A1 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87945-68010-A3 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,110
87945-68010-B3 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87945-68010-C1 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87945-68010-D2 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,160
87945-68010-E0 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87945-68010-G0 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,110
87945-68010-J2 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87945-68010-J3 note Cover, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥3,150
87945-68010-A1 note Cover, Outer Mirror, LH
2005-11 → 2011-12 ended
NHW20 ¥3,150
87945-68010-A2 note Cover, Outer Mirror, LH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87945-68010-B7 note Cover, Outer Mirror, LH
2005-11 → 2011-12 ended
NHW20 ¥3,150
87945-68010-C1 note Cover, Outer Mirror, LH
2005-11 → 2011-12 ended
NHW20 ¥3,150
87945-68010-D7 note Cover, Outer Mirror, LH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87945-68010-E0 note Cover, Outer Mirror, LH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87945-68010-G3 note Cover, Outer Mirror, LH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87945-68010-J2 note Cover, Outer Mirror, LH
2005-11 → 2009-03 ended
NHW20 ¥3,150
87945-68010-R4 note Cover, Outer Mirror, LH
2007-04 → 2009-03 ended
NHW20 S ¥3,150
87946 — Retractor, Outer Mirror, RH
87946-47080 Retractor, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥20,800
87946-47090 note Retractor, Outer Mirror, RH
2003-08 → 2005-11 ended
NHW20 ¥20,800
87946-47080 Retractor, Outer Mirror, RH
2005-11 → —
NHW20 ¥20,800
87946-47090 note Retractor, Outer Mirror, RH
2005-11 → —
NHW20 ¥20,800
87966 — Retractor, Outer Mirror, LH
87966-47080 Retractor, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥20,800
87966-47090 note Retractor, Outer Mirror, LH
2003-08 → 2005-11 ended
NHW20 ¥20,800
87966-47080 Retractor, Outer Mirror, LH
2005-11 → —
NHW20 ¥20,800
87966-47090 note Retractor, Outer Mirror, LH
2005-11 → —
NHW20 ¥20,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
