Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222130 · Japan

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

23 part groups · 4 illustrations

Illustrations

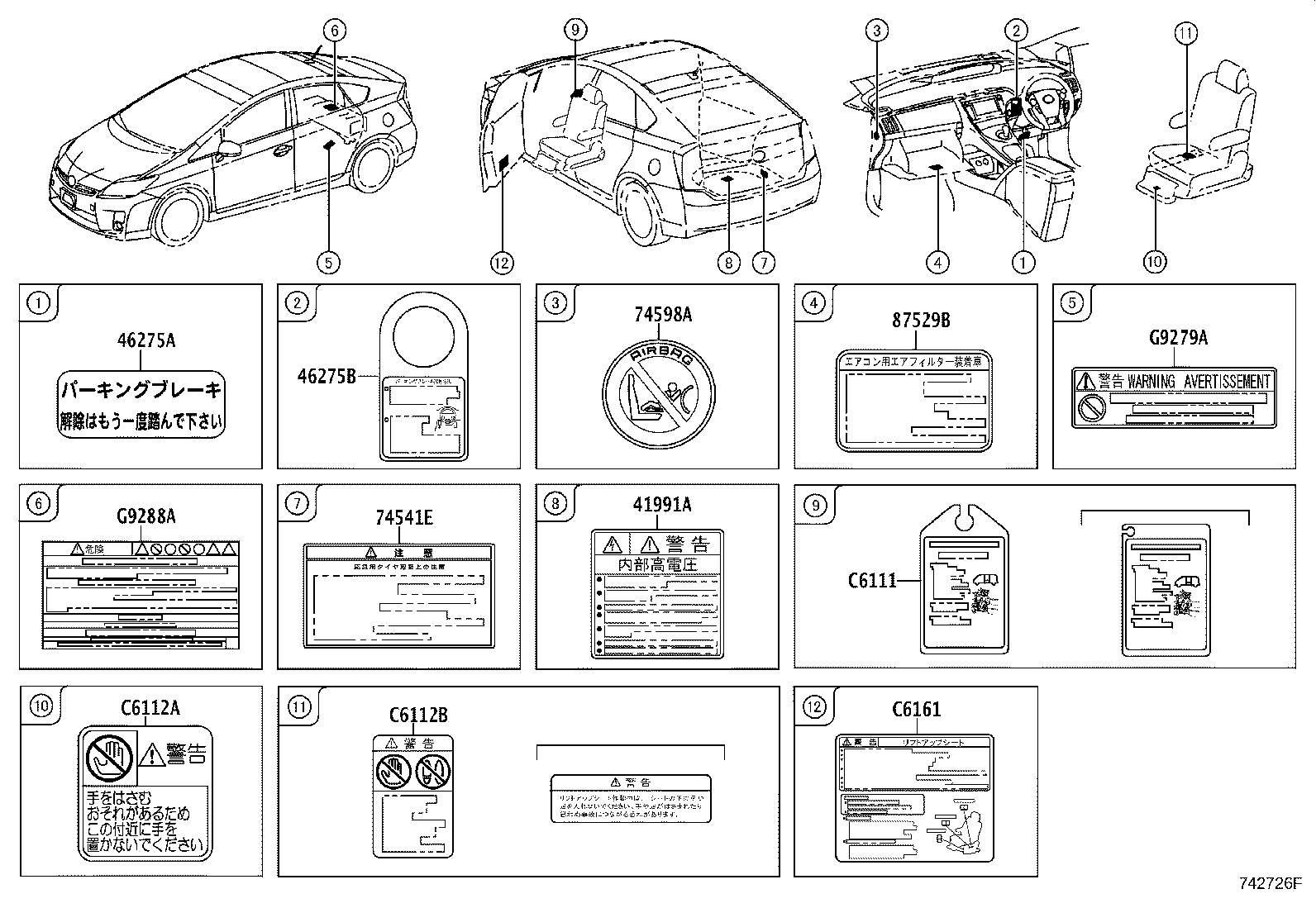

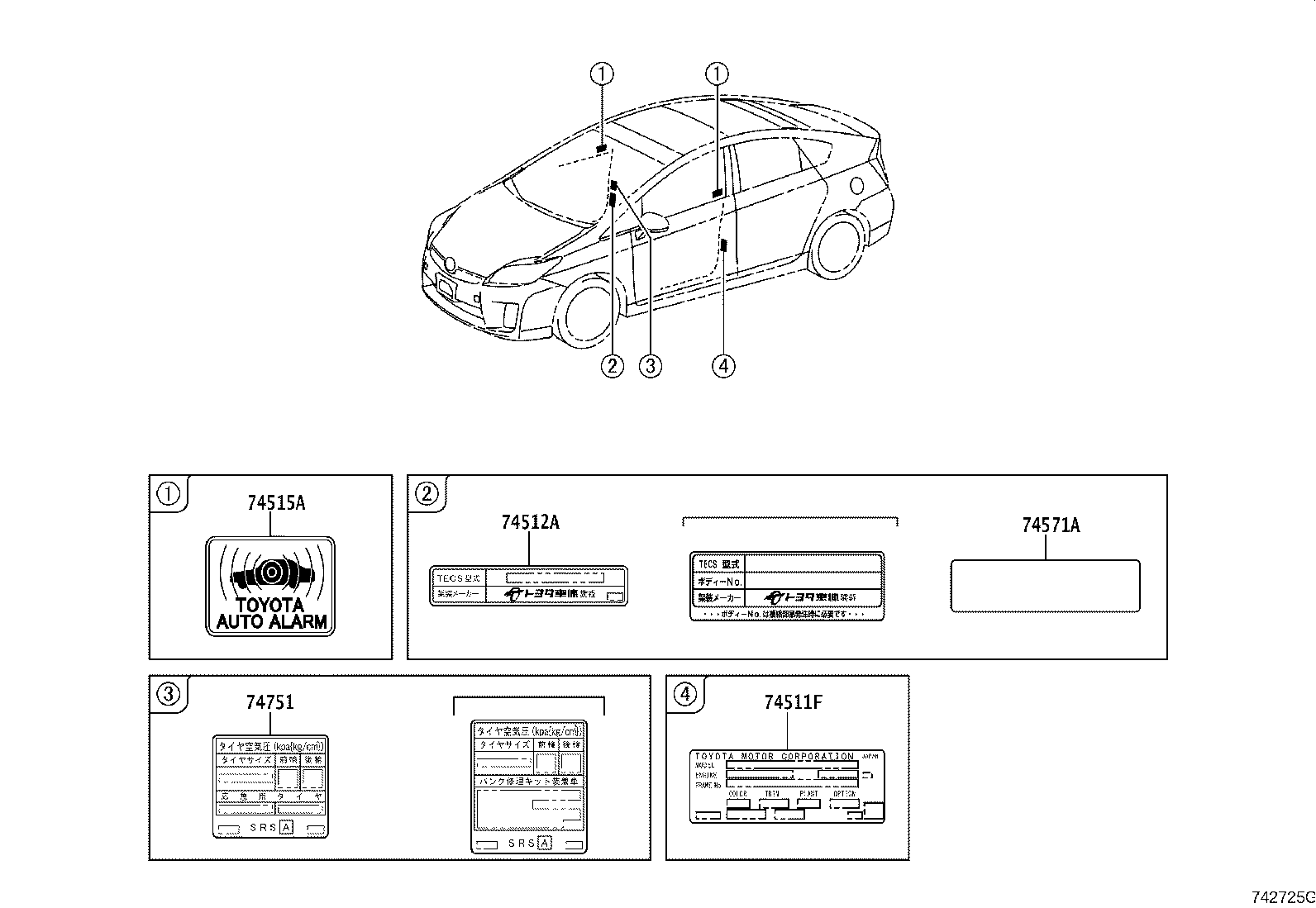

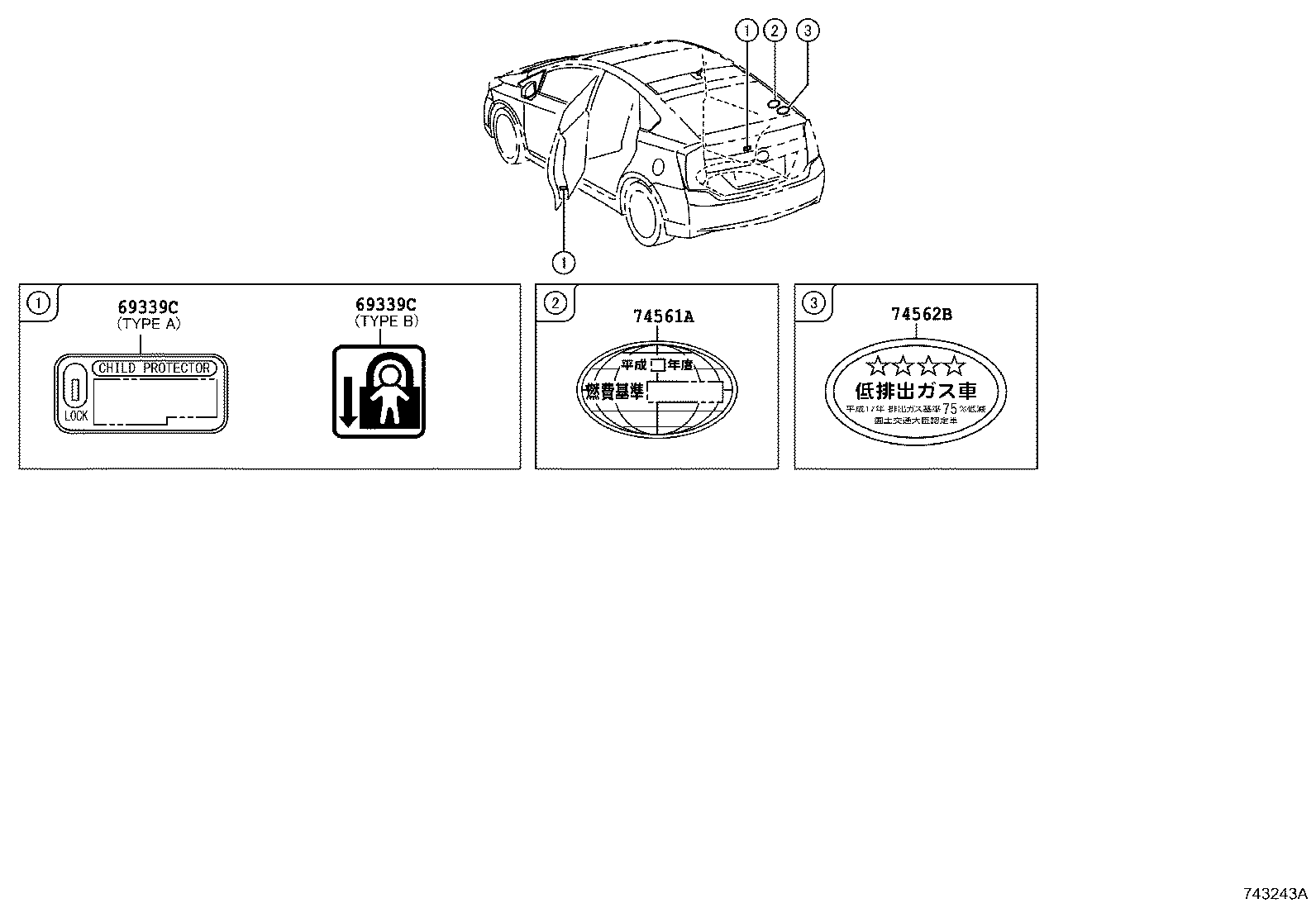

Figure 745482 745482 2009-04 → — Figure 742725G 742725G 2009-04 → — Figure 743243A 743243A 2009-04 → — Figure 742726F 742726F 2009-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41991A Plate, Caution
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74515A Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G9279A Label, Battery Caution,NO.4
G9288A Label, Battery Carging Notice
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
