Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222130 · Japan
Supported model
Data version 2016-05
Radio Receiver & Amplifier & Condenser
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

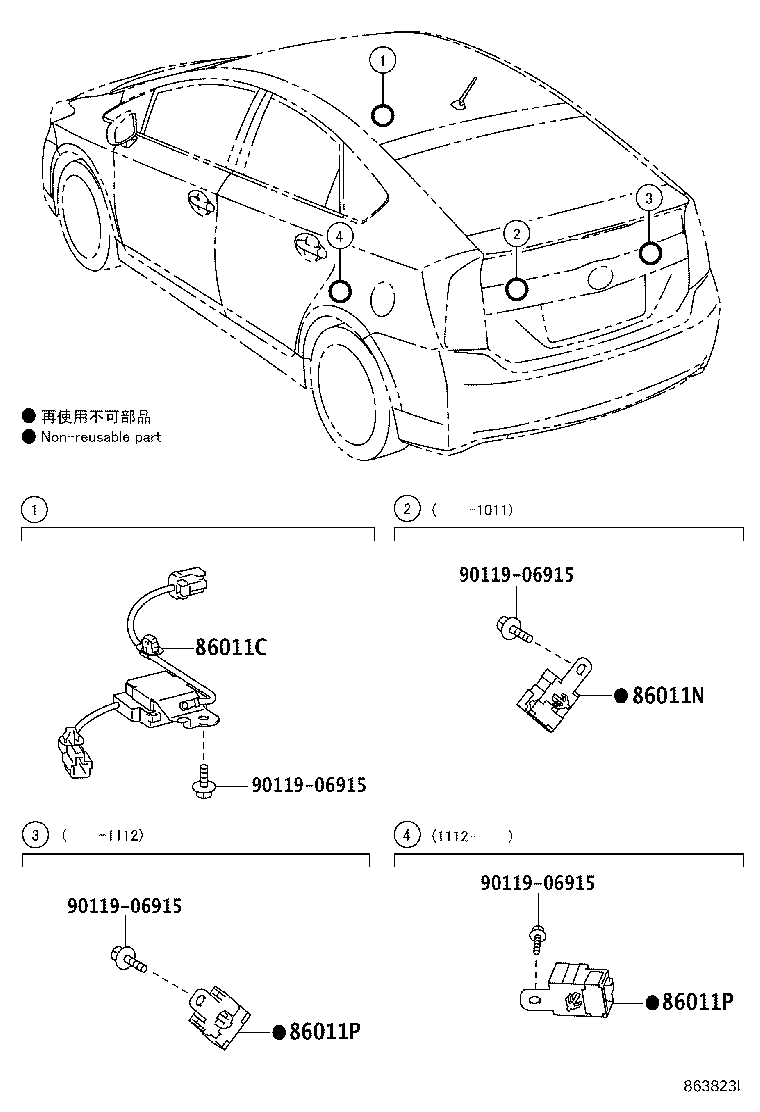

| 86011C | Filter, Noise |
| 86011N | Filter, Noise |
| 86011P | Filter, Noise |

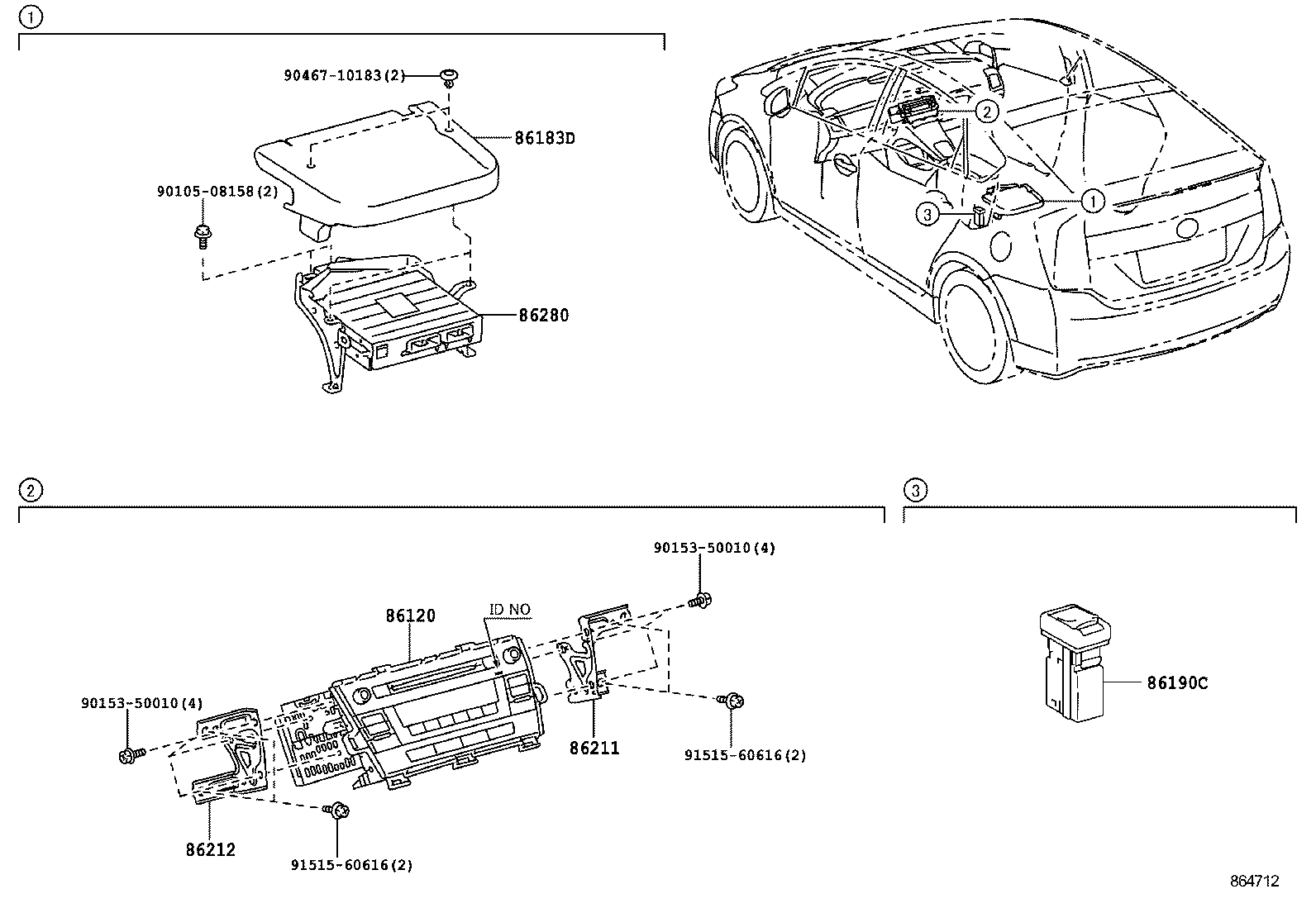

| 86120 | Receiver Assy, Radio |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
