Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

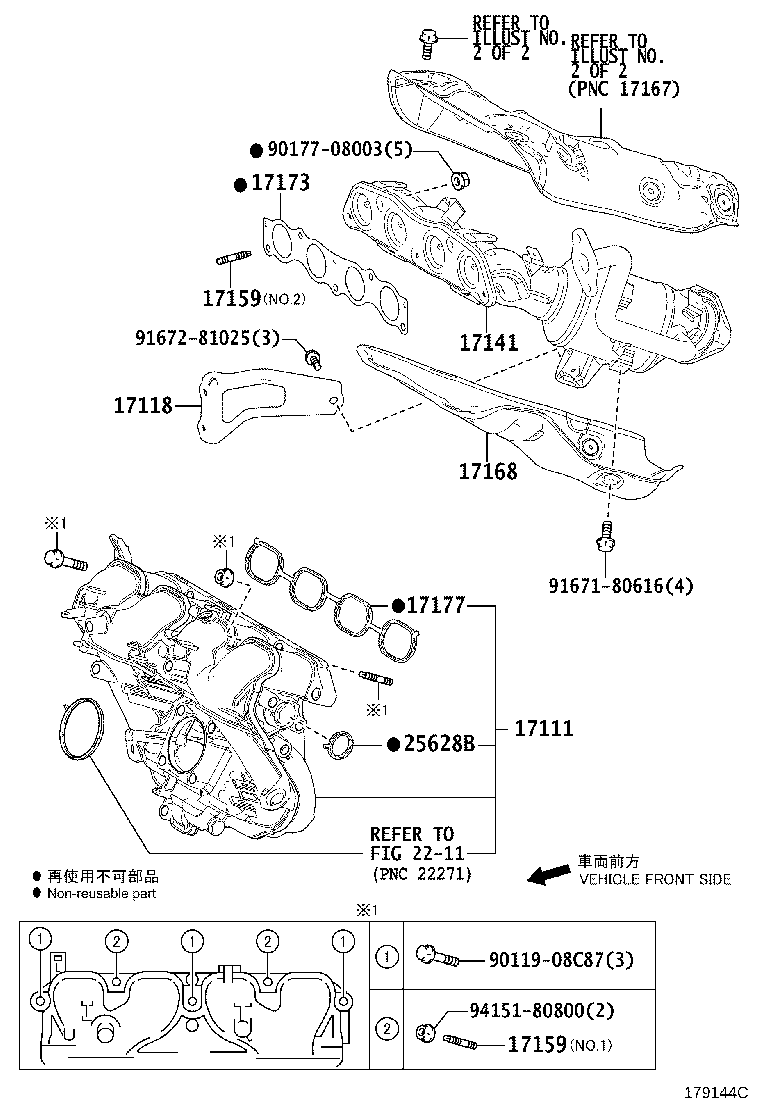

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17120-37110 |
Manifold, Intake
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥18,500 | |
| 17120-37110 |
Manifold, Intake
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥18,500 | |
| 17118 — Stay, Manifold | ||||
| 17118-37090 |
Stay, Manifold
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥1,780 | |
| 17118-37090 |
Stay, Manifold
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥1,780 | |
| 17141 — Manifold, Exhaust | ||||
| 17141-37220 |
Manifold, Exhaust
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥50,000 | |
| 17141-37220 |
Manifold, Exhaust
2018-12 → 2021-11
ended
|
2ZRFXE ZVW5# CBU | ¥50,000 | |
| 17141-37221 |
Manifold, Exhaust
2021-11 → —
|
2ZRFXE ZVW5# CBU | ¥49,900 | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥210 | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥80 | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥210 | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥80 | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-37120 |
Insulator, Exhaust Manifold Heat, NO.2
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥1,390 | |
| 17168-37120 |
Insulator, Exhaust Manifold Heat, NO.2
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥1,390 | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-37010 |
Gasket, Exhaust Manifold TO Head
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥980 | |
| 17173-37010 |
Gasket, Exhaust Manifold TO Head
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥980 | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2018-04 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥820 | |
| 17177-37050 |
Gasket, Intake Manifold TO Head, NO.1
2015-11 → 2018-03
ended
|
2ZRFXE ZVW5# CBU | ¥1,090 | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥820 | |
| 25628B — Gasket, Egr Inlet | ||||
| 25628-36020 |
Gasket, Egr Inlet
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥340 | |
| 25628-36020 |
Gasket, Egr Inlet
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
