Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

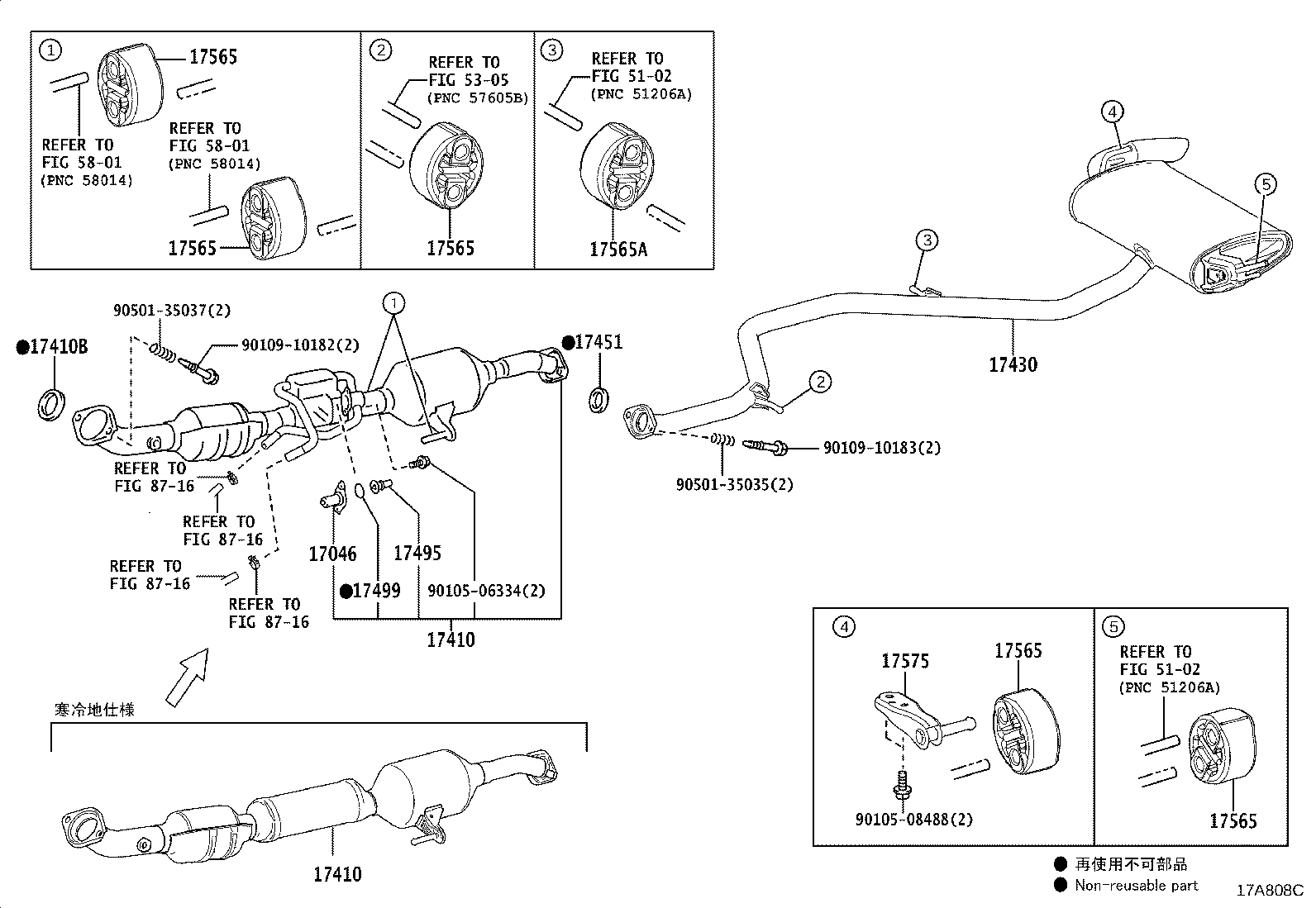

Exploded illustration 17A808C 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 17495 — ACTUATOR, EXHAUST PIPE GAS CONTROL (4 parts) 17499 — GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR (3 parts) 17046 — ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL (3 parts) 9010506334 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (2 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (12 parts) 17410B — GASKET, EXHAUST PIPE (2 parts) 9010910183 — not listed in this catalogue 9050135035 — not listed in this catalogue 9010910182 — not listed in this catalogue 9050135037 — not listed in this catalogue 9010508488 — not listed in this catalogue 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17575 — BRACKET, EXHAUST PIPE SUPPORT, NO.5 (2 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (2 parts) 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5102 — not listed in this catalogue 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 5102 — not listed in this catalogue 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 5305 — not listed in this catalogue
17A808C · 15 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17046 — Actuator Sub-assy, Exhaust Pipe Gas Control
17046-37100 Actuator Sub-assy, Exhaust Pipe Gas Control
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥7,600
17046-24010 Actuator Sub-assy, Exhaust Pipe Gas Control
2019-08 → 2021-06 ended
2ZRFXE ZVW5# CBU ¥5,700
17046-37100 Actuator Sub-assy, Exhaust Pipe Gas Control
2018-12 → 2019-08 ended
2ZRFXE ZVW5# CBU ¥7,600
17410 — Pipe Assy, Exhaust, Front
17410-37A20 Pipe Assy, Exhaust, Front
2015-11 → 2016-07 ended
2ZRFXE ZVW5# CBU ¥154,000
17410-37B60 Pipe Assy, Exhaust, Front
2016-08 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥128,000
17410-37B62 Pipe Assy, Exhaust, Front
2018-12 → 2019-08 ended
2ZRFXE ZVW5# CBU ¥128,000
17410-37B72 note Pipe Assy, Exhaust, Front
2020-07 → 2021-06 ended
2ZRFXE ZVW5# CBU ¥76,600
17410-37B72 note Pipe Assy, Exhaust, Front
2021-06 → —
2ZRFXE ZVW5# CBU ¥76,600
17410-37C70 Pipe Assy, Exhaust, Front
2019-08 → 2021-06 ended
2ZRFXE ZVW5# CBU ¥106,000
17410B — Gasket, Exhaust Pipe
17451-28040 Gasket, Exhaust Pipe
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥1,510
17451-28040 Gasket, Exhaust Pipe
2018-12 → —
2ZRFXE ZVW5# CBU ¥1,510
17430 — Pipe Assy, Exhaust, Tail
17430-37640 Pipe Assy, Exhaust, Tail
2015-11 → 2016-07 ended
2ZRFXE ZVW50,51 CBU ¥42,900
17430-37650 Pipe Assy, Exhaust, Tail
2015-11 → 2016-07 ended
2ZRFXE ZVW55 CBU ¥42,900
17430-37740 Pipe Assy, Exhaust, Tail
2016-08 → 2018-12 ended
2ZRFXE ZVW50,51 CBU ¥35,700
17430-37750 Pipe Assy, Exhaust, Tail
2016-08 → 2016-12 ended
2ZRFXE ZVW55 CBU ¥42,900
17430-37751 Pipe Assy, Exhaust, Tail
2017-01 → 2018-12 ended
2ZRFXE ZVW55 CBU ¥35,700
17430-37770 note Pipe Assy, Exhaust, Tail
2017-01 → 2018-12 ended
2ZRFXE ZVW50,51 CBU ¥35,700
17430-37530 note Pipe Assy, Exhaust, Tail
2018-12 → 2019-07 ended
2ZRFXE ZVW51 CBU ¥35,700
17430-37741 Pipe Assy, Exhaust, Tail
2018-12 → 2019-07 ended
2ZRFXE ZVW51 CBU ¥35,700
17430-37752 Pipe Assy, Exhaust, Tail
2018-12 → 2019-07 ended
2ZRFXE ZVW55 CBU ¥35,700
17430-37A80 Pipe Assy, Exhaust, Tail
2019-08 → —
2ZRFXE ZVW51 CBU ¥29,700
17430-37A90 note Pipe Assy, Exhaust, Tail
2019-08 → —
2ZRFXE ZVW51 CBU ¥29,700
17430-37B00 Pipe Assy, Exhaust, Tail
2019-08 → —
2ZRFXE ZVW55 CBU ¥29,700
17451 — Gasket, Exhaust Pipe
17451-23042 Gasket, Exhaust Pipe
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥790
17451-23042 Gasket, Exhaust Pipe
2018-12 → —
2ZRFXE ZVW5# CBU ¥790
17495 — Actuator, Exhaust Pipe Gas Control
17495-37010 Actuator, Exhaust Pipe Gas Control
2015-11 → 2018-04 ended
2ZRFXE ZVW5# CBU ¥2,490
17495-37020 Actuator, Exhaust Pipe Gas Control
2018-05 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥2,490
17495-24010 Actuator, Exhaust Pipe Gas Control
2019-08 → 2021-06 ended
2ZRFXE ZVW5# CBU ¥1,870
17495-37020 Actuator, Exhaust Pipe Gas Control
2018-12 → 2019-08 ended
2ZRFXE ZVW5# CBU ¥2,490
17499 — Gasket, Exhaust Pipe Gas Control Actuator
17499-37020 Gasket, Exhaust Pipe Gas Control Actuator
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥380
17499-24010 Gasket, Exhaust Pipe Gas Control Actuator
2019-08 → 2021-06 ended
2ZRFXE ZVW5# CBU ¥10
17499-37020 Gasket, Exhaust Pipe Gas Control Actuator
2018-12 → 2019-08 ended
2ZRFXE ZVW5# CBU ¥380
17565 — Support, Exhaust Pipe, NO.5
17565-22040 Support, Exhaust Pipe, NO.5
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥670
17565-22040 Support, Exhaust Pipe, NO.5
2018-12 → —
2ZRFXE ZVW5# CBU ¥670
17565A — Support, Exhaust Pipe, NO.4
17565-28010 Support, Exhaust Pipe, NO.4
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥670
17565-28010 Support, Exhaust Pipe, NO.4
2018-12 → —
2ZRFXE ZVW5# CBU ¥670
17575 — Bracket, Exhaust Pipe Support, NO.5
17575-37030 Bracket, Exhaust Pipe Support, NO.5
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥590
17575-37030 Bracket, Exhaust Pipe Support, NO.5
2018-12 → —
2ZRFXE ZVW5# CBU ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
