Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

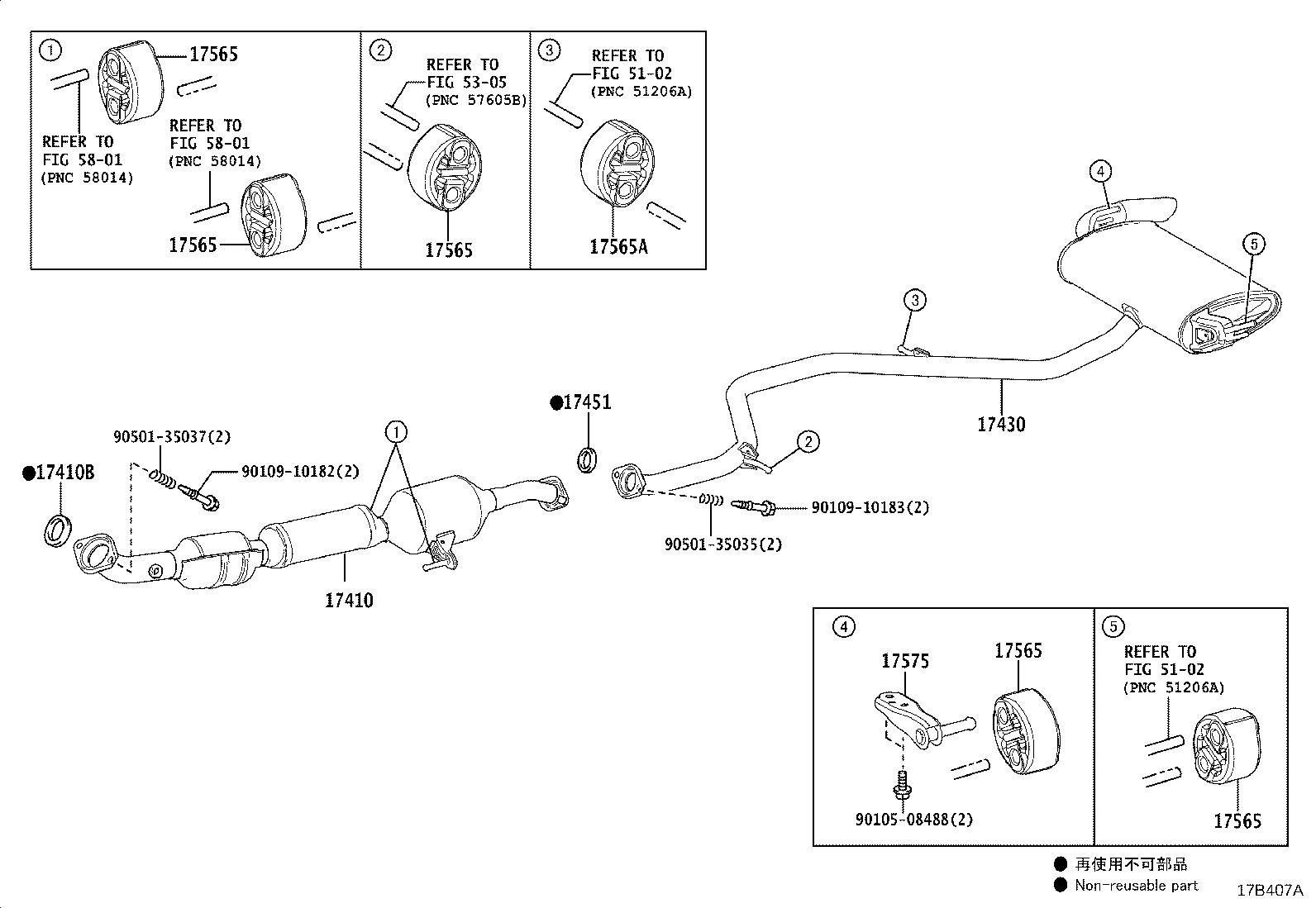

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-37A20 |
Pipe Assy, Exhaust, Front
2015-11 → 2016-07
ended
|
2ZRFXE ZVW5# CBU | ¥154,000 | |
| 17410-37B60 |
Pipe Assy, Exhaust, Front
2016-08 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥128,000 | |
| 17410-37B62 |
Pipe Assy, Exhaust, Front
2018-12 → 2019-08
ended
|
2ZRFXE ZVW5# CBU | ¥128,000 | |
| 17410-37B72 note |
Pipe Assy, Exhaust, Front
2020-07 → 2021-06
ended
|
2ZRFXE ZVW5# CBU | ¥76,600 | |
| 17410-37B72 note |
Pipe Assy, Exhaust, Front
2021-06 → —
|
2ZRFXE ZVW5# CBU | ¥76,600 | |
| 17410-37C70 |
Pipe Assy, Exhaust, Front
2019-08 → 2021-06
ended
|
2ZRFXE ZVW5# CBU | ¥106,000 | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-28040 |
Gasket, Exhaust Pipe
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥1,510 | |
| 17451-28040 |
Gasket, Exhaust Pipe
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥1,510 | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-37640 |
Pipe Assy, Exhaust, Tail
2015-11 → 2016-07
ended
|
2ZRFXE ZVW50,51 CBU | ¥42,900 | |
| 17430-37650 |
Pipe Assy, Exhaust, Tail
2015-11 → 2016-07
ended
|
2ZRFXE ZVW55 CBU | ¥42,900 | |
| 17430-37740 |
Pipe Assy, Exhaust, Tail
2016-08 → 2018-12
ended
|
2ZRFXE ZVW50,51 CBU | ¥35,700 | |
| 17430-37750 |
Pipe Assy, Exhaust, Tail
2016-08 → 2016-12
ended
|
2ZRFXE ZVW55 CBU | ¥42,900 | |
| 17430-37751 |
Pipe Assy, Exhaust, Tail
2017-01 → 2018-12
ended
|
2ZRFXE ZVW55 CBU | ¥35,700 | |
| 17430-37770 note |
Pipe Assy, Exhaust, Tail
2017-01 → 2018-12
ended
|
2ZRFXE ZVW50,51 CBU | ¥35,700 | |
| 17430-37530 note |
Pipe Assy, Exhaust, Tail
2018-12 → 2019-07
ended
|
2ZRFXE ZVW51 CBU | ¥35,700 | |
| 17430-37741 |
Pipe Assy, Exhaust, Tail
2018-12 → 2019-07
ended
|
2ZRFXE ZVW51 CBU | ¥35,700 | |
| 17430-37752 |
Pipe Assy, Exhaust, Tail
2018-12 → 2019-07
ended
|
2ZRFXE ZVW55 CBU | ¥35,700 | |
| 17430-37A80 |
Pipe Assy, Exhaust, Tail
2019-08 → —
|
2ZRFXE ZVW51 CBU | ¥29,700 | |
| 17430-37A90 note |
Pipe Assy, Exhaust, Tail
2019-08 → —
|
2ZRFXE ZVW51 CBU | ¥29,700 | |
| 17430-37B00 |
Pipe Assy, Exhaust, Tail
2019-08 → —
|
2ZRFXE ZVW55 CBU | ¥29,700 | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-23042 |
Gasket, Exhaust Pipe
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥790 | |
| 17451-23042 |
Gasket, Exhaust Pipe
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥790 | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-22040 |
Support, Exhaust Pipe, NO.5
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥670 | |
| 17565-22040 |
Support, Exhaust Pipe, NO.5
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥670 | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-28010 |
Support, Exhaust Pipe, NO.4
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥670 | |
| 17565-28010 |
Support, Exhaust Pipe, NO.4
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥670 | |
| 17575 — Bracket, Exhaust Pipe Support, NO.5 | ||||
| 17575-37030 |
Bracket, Exhaust Pipe Support, NO.5
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥590 | |
| 17575-37030 |
Bracket, Exhaust Pipe Support, NO.5
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥590 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
