Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

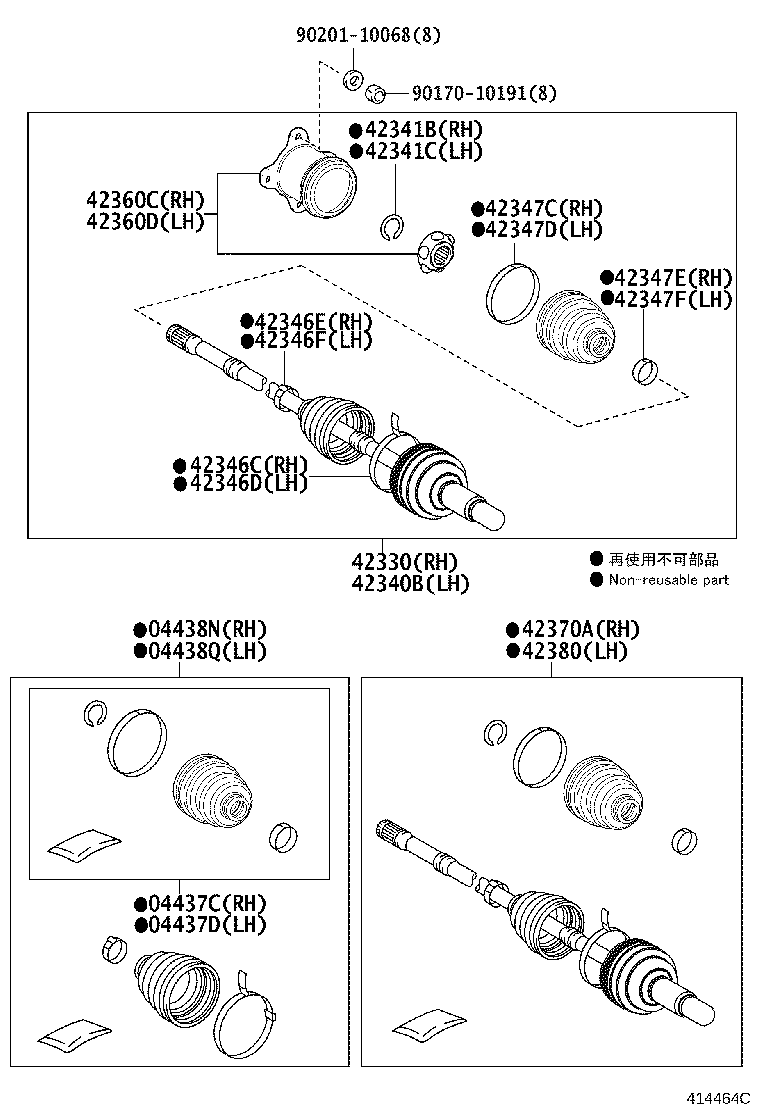

Exploded illustration 414464C 9020110068 — not listed in this catalogue 9017010191 — not listed in this catalogue 04438N — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH (4 parts) 04438Q — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH (4 parts) 42370A — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH (4 parts) 42380 — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH (4 parts) 42330 — SHAFT ASSY, REAR DRIVE, RH (2 parts) 42340B — SHAFT ASSY, REAR DRIVE, LH (2 parts) 42360C — JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH (2 parts) 42360D — JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH (2 parts) 42347C — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (2 parts) 42347D — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) (2 parts) 42346C — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (2 parts) 42346D — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (2 parts) 42346E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (2 parts) 42346F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (2 parts) 42347E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (2 parts) 42347F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH (2 parts) 42341B — RING, SNAP (FOR REAR DRIVE SHAFT RH) (2 parts) 42341C — RING, SNAP (FOR REAR DRIVE SHAFT LH) (2 parts) 04437D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04437C — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH (4 parts)
414464C · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
04437C — Boot Kit, Rear Drive Shaft Inboard Joint, RH
04439-12011 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2015-11 → 2017-11 ended
ZVW55 CBU ¥5,500
04439-12012 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2017-11 → 2018-12 ended
ZVW55 CBU ¥5,500
04439-12012 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2018-12 → 2020-05 ended
ZVW55 CBU ¥5,500
04439-12014 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2020-05 → —
ZVW55 CBU ¥4,150
04437D — Boot Kit, Rear Drive Shaft Inboard Joint, LH
04439-12011 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2015-11 → 2017-11 ended
ZVW55 CBU ¥5,500
04439-12012 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2017-11 → 2018-12 ended
ZVW55 CBU ¥5,500
04439-12012 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2018-12 → 2020-05 ended
ZVW55 CBU ¥5,500
04439-12014 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2020-05 → —
ZVW55 CBU ¥4,150
04438N — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04429-48060 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2015-11 → 2017-11 ended
ZVW55 CBU ¥9,000
04429-48061 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2017-11 → 2018-12 ended
ZVW55 CBU ¥9,000
04429-48061 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2018-12 → 2020-05 ended
ZVW55 CBU ¥9,000
04429-48062 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2020-05 → —
ZVW55 CBU ¥6,700
04438Q — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04429-48060 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2015-11 → 2017-11 ended
ZVW55 CBU ¥9,000
04429-48061 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2017-11 → 2018-12 ended
ZVW55 CBU ¥9,000
04429-48061 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2018-12 → 2020-05 ended
ZVW55 CBU ¥9,000
04429-48062 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2020-05 → —
ZVW55 CBU ¥6,700
42330 — Shaft Assy, Rear Drive, RH
42340-47010 Shaft Assy, Rear Drive, RH
2015-11 → 2018-12 ended
ZVW55 CBU ¥37,300
42340-47010 Shaft Assy, Rear Drive, RH
2018-12 → —
ZVW55 CBU ¥37,300
42340B — Shaft Assy, Rear Drive, LH
42340-47010 Shaft Assy, Rear Drive, LH
2015-11 → 2018-12 ended
ZVW55 CBU ¥37,300
42340-47010 Shaft Assy, Rear Drive, LH
2018-12 → —
ZVW55 CBU ¥37,300
42341B — Ring, Snap (FOR REAR DRIVE SHAFT RH)
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥40
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2018-12 → —
ZVW55 CBU ¥40
42341C — Ring, Snap (FOR REAR DRIVE SHAFT LH)
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥40
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2018-12 → —
ZVW55 CBU ¥40
42346C — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12280 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥280
42345-12280 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2018-12 → —
ZVW55 CBU ¥280
42346D — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12280 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥280
42345-12280 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2018-12 → —
ZVW55 CBU ¥280
42346E — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-52270 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥260
42345-52270 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2018-12 → —
ZVW55 CBU ¥260
42346F — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-52270 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥260
42345-52270 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2018-12 → —
ZVW55 CBU ¥260
42347C — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2018-12 → —
ZVW55 CBU ¥220
42347D — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2018-12 → —
ZVW55 CBU ¥220
42347E — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-11 → 2018-12 ended
ZVW55 CBU ¥160
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2018-12 → —
ZVW55 CBU ¥160
42347F — Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2015-11 → 2018-12 ended
ZVW55 CBU ¥160
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2018-12 → —
ZVW55 CBU ¥160
42360C — Joint Assy, Rear Drive Shaft Inboard, RH
42360-28010 Joint Assy, Rear Drive Shaft Inboard, RH
2015-11 → 2018-12 ended
ZVW55 CBU ¥6,700
42360-28010 Joint Assy, Rear Drive Shaft Inboard, RH
2018-12 → —
ZVW55 CBU ¥6,700
42360D — Joint Assy, Rear Drive Shaft Inboard, LH
42360-28010 Joint Assy, Rear Drive Shaft Inboard, LH
2015-11 → 2018-12 ended
ZVW55 CBU ¥6,700
42360-28010 Joint Assy, Rear Drive Shaft Inboard, LH
2018-12 → —
ZVW55 CBU ¥6,700
42370A — Shaft Assy, Rear Drive Outboard Joint, RH
42370-49345 Shaft Assy, Rear Drive Outboard Joint, RH
2015-11 → 2017-11 ended
ZVW55 CBU ¥43,100
42370-49346 Shaft Assy, Rear Drive Outboard Joint, RH
2017-11 → 2018-12 ended
ZVW55 CBU ¥43,100
42370-49346 Shaft Assy, Rear Drive Outboard Joint, RH
2018-12 → 2019-10 ended
ZVW55 CBU ¥43,100
42370-49347 Shaft Assy, Rear Drive Outboard Joint, RH
2019-10 → —
ZVW55 CBU ¥35,900
42380 — Shaft Assy, Rear Drive Outboard Joint, LH
42370-49345 Shaft Assy, Rear Drive Outboard Joint, LH
2015-11 → 2017-11 ended
ZVW55 CBU ¥43,100
42370-49346 Shaft Assy, Rear Drive Outboard Joint, LH
2017-11 → 2018-12 ended
ZVW55 CBU ¥43,100
42370-49346 Shaft Assy, Rear Drive Outboard Joint, LH
2018-12 → 2019-10 ended
ZVW55 CBU ¥43,100
42370-49347 Shaft Assy, Rear Drive Outboard Joint, LH
2019-10 → —
ZVW55 CBU ¥35,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
