Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

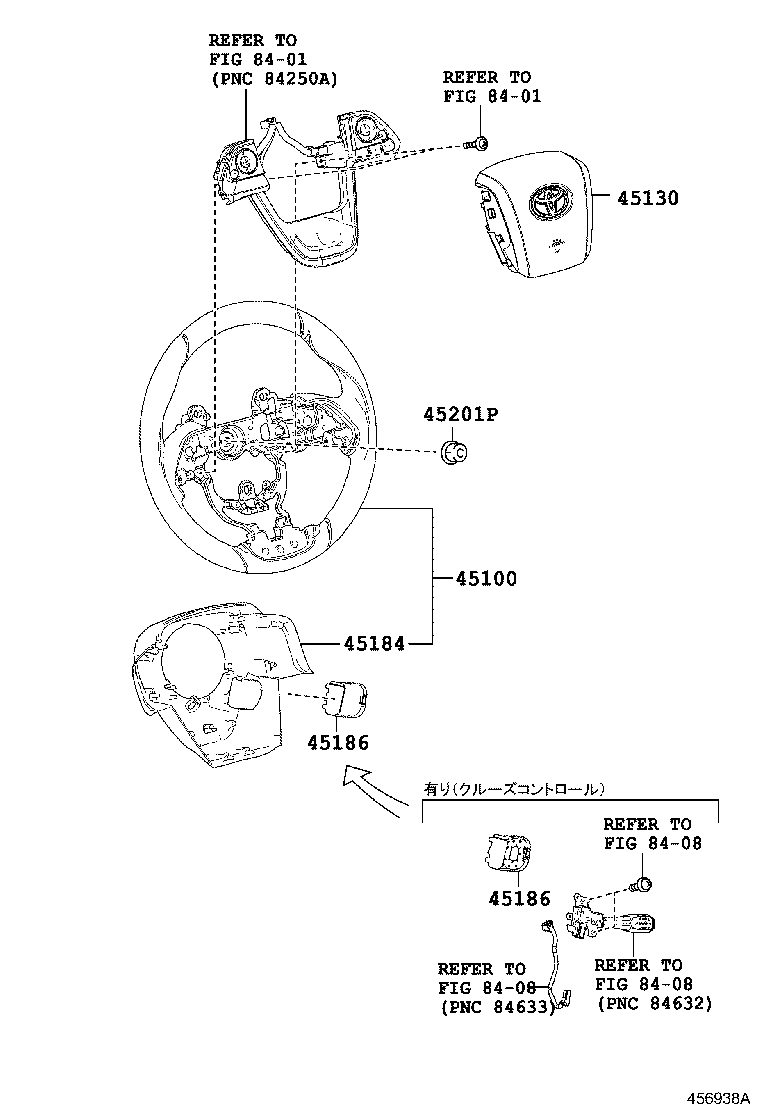

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-47230-C0 note |
Wheel Assy, Steering
2015-11 → 2018-12
ended
|
ZVW51 E | ¥19,400 | |
| 45100-47240-C0 note |
Wheel Assy, Steering
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥44,200 | |
| 45100-47250-C0 note |
Wheel Assy, Steering
2015-11 → 2017-01
ended
|
ZVW5# (A,S) CBU | ¥39,500 | |
| 45100-47251-C0 note |
Wheel Assy, Steering
2017-02 → 2018-10
ended
|
ZVW5# (A,S) CBU | ¥39,500 | |
| 45100-47252-C0 note |
Wheel Assy, Steering
2018-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥32,900 | |
| 45100-47230-C0 note |
Wheel Assy, Steering
2018-12 → —
|
ZVW51 E | ¥19,400 | |
| 45100-47240-C0 note |
Wheel Assy, Steering
2018-12 → —
|
ZVW5# PREM | ¥44,200 | |
| 45100-47252-C0 note |
Wheel Assy, Steering
2018-12 → 2022-11
ended
|
ZVW5# (A,S) CBU | ¥32,900 | |
| 45130 — Button Assy, Horn | ||||
| 45130-47231-C0 note |
Button Assy, Horn
2015-11 → 2018-12
ended
|
ZVW51 E | ¥53,500 | |
| 45130-47231-C0 note |
Button Assy, Horn
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥53,500 | |
| 45130-47231-C0 note |
Button Assy, Horn
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥53,500 | |
| 45130-47231-C0 note |
Button Assy, Horn
2018-12 → —
|
ZVW5# CBU | ¥53,500 | |
| 45184 — Cover, Steering Wheel Boss, Lower | ||||
| 45184-47040-C0 note |
Cover, Steering Wheel Boss, Lower
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,480 | |
| 45184-47040-C0 note |
Cover, Steering Wheel Boss, Lower
2015-11 → 2018-12
ended
|
ZVW5# (A,E,S) CBU | ¥1,480 | |
| 45184-47040-C0 note |
Cover, Steering Wheel Boss, Lower
2018-12 → 2022-11
ended
|
ZVW5# (A,S) CBU | ¥1,480 | |
| 45184-47040-C0 note |
Cover, Steering Wheel Boss, Lower
2018-12 → —
|
ZVW5# E,PREM | ¥1,480 | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-47040-C0 note |
Cover, Steering Wheel, Lower NO.2
2015-11 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥240 | |
| 45186-47050-C0 note |
Cover, Steering Wheel, Lower NO.2
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥210 | |
| 45186-47050-C0 note |
Cover, Steering Wheel, Lower NO.2
2015-11 → 2018-12
ended
|
ZVW51,55 A CBU | ¥210 | |
| 45186-47050-C0 note |
Cover, Steering Wheel, Lower NO.2
2015-11 → 2018-12
ended
|
ZVW51 E | ¥210 | |
| 45186-47050-C0 note |
Cover, Steering Wheel, Lower NO.2
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥210 | |
| 45186-47050-C0 note |
Cover, Steering Wheel, Lower NO.2
2018-12 → —
|
ZVW5# CBU | ¥210 | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥130 | |
| 90179-12071 |
Nut, Steering Wheel Set
2018-12 → —
|
ZVW5# CBU | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
