Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

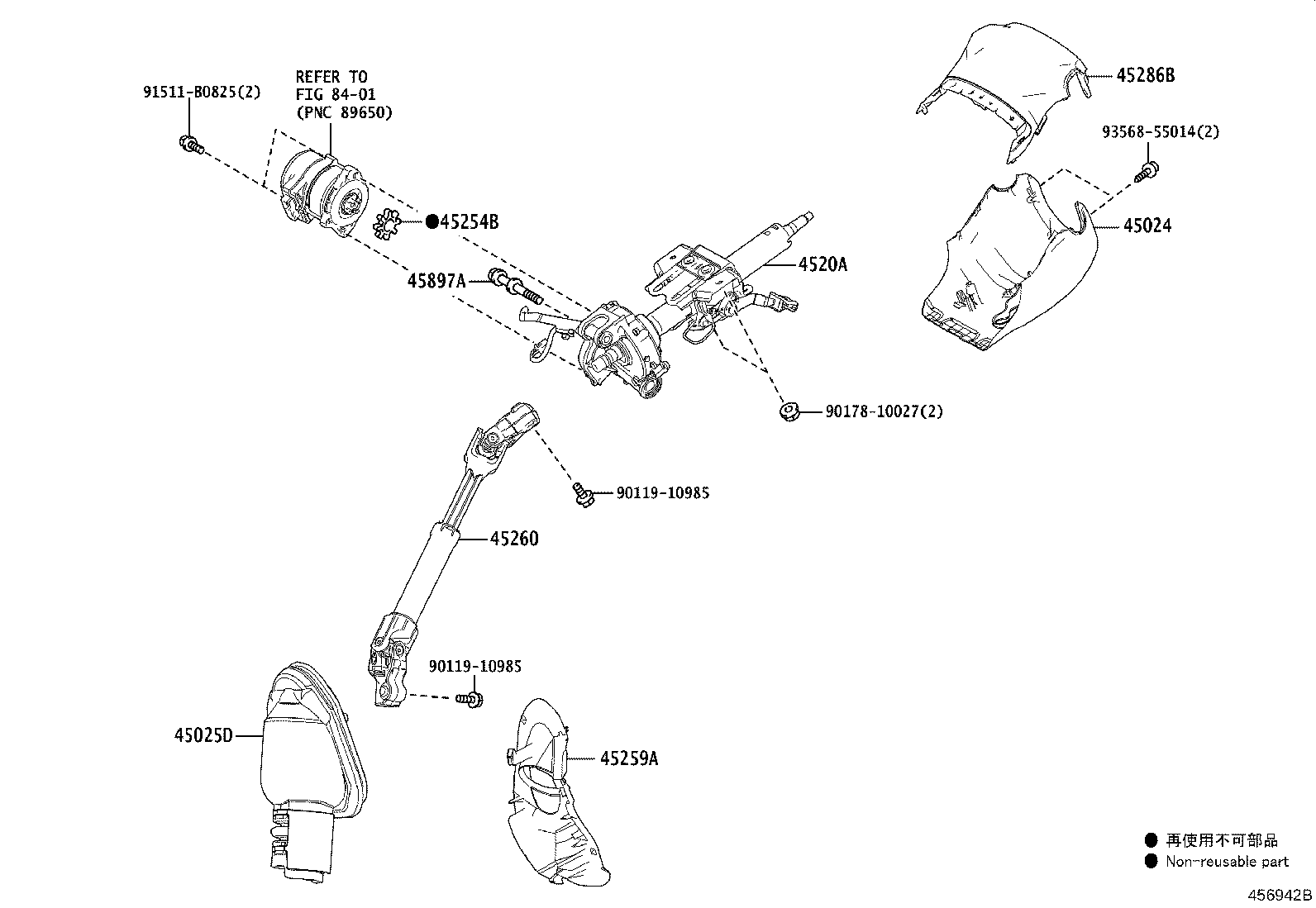

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45024 — Cover Sub-assy, Steering Column, Lower | ||||
| 45024-47010-C0 note |
Cover Sub-assy, Steering Column, Lower
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥3,290 | |
| 45024-47010-C0 note |
Cover Sub-assy, Steering Column, Lower
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥3,290 | |
| 45024-47010-C0 note |
Cover Sub-assy, Steering Column, Lower
2015-11 → 2018-12
ended
|
ZVW51 E | ¥3,290 | |
| 45024-47020-C0 note |
Cover Sub-assy, Steering Column, Lower
2018-12 → —
|
ZVW51 E | ¥2,740 | |
| 45024-47020-C0 note |
Cover Sub-assy, Steering Column, Lower
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥2,740 | |
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-47030 |
Cover Sub-assy, Steering Column Hole, NO.1
2015-11 → 2017-06
ended
|
ZVW5# CBU | ¥4,240 | |
| 45025-47050 |
Cover Sub-assy, Steering Column Hole, NO.1
2017-07 → 2018-12
ended
|
ZVW5# CBU | ¥3,200 | |
| 45025-47050 |
Cover Sub-assy, Steering Column Hole, NO.1
2018-12 → —
|
ZVW5# CBU | ¥3,200 | |
| 4520A — Column Sub-assy, Electric Power Steering | ||||
| 4520A-47050 |
Column Sub-assy, Electric Power Steering
2015-11 → 2018-07
ended
|
ZVW5# CBU | ¥64,100 | |
| 4520A-47051 |
Column Sub-assy, Electric Power Steering
2018-08 → 2018-12
ended
|
ZVW5# CBU | ¥53,400 | |
| 4520A-47051 |
Column Sub-assy, Electric Power Steering
2018-12 → —
|
ZVW5# CBU | ¥53,400 | |
| 45254B — Damper, Electric Power Steering Motor Shaft | ||||
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥220 | |
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2018-12 → —
|
ZVW5# CBU | ¥220 | |
| 45259A — Sheet, Column Hole Cover Silencer | ||||
| 45259-47040 |
Sheet, Column Hole Cover Silencer
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,860 | |
| 45259-47040 |
Sheet, Column Hole Cover Silencer
2018-12 → 2021-09
ended
|
ZVW5# CBU | ¥1,860 | |
| 45259-47041 |
Sheet, Column Hole Cover Silencer
2021-10 → —
|
ZVW5# CBU | ¥1,690 | |
| 45260 — Shaft Assy, Steering Intermediate, NO.2 | ||||
| 45260-47100 |
Shaft Assy, Steering Intermediate, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥12,900 | |
| 45260-47100 |
Shaft Assy, Steering Intermediate, NO.2
2018-12 → —
|
ZVW5# CBU | ¥12,900 | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45286-47050-C0 note |
Cover, Steering Column, Upr
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,490 | |
| 45286-47050-C0 note |
Cover, Steering Column, Upr
2015-11 → 2018-12
ended
|
ZVW5# (A,E,S) CBU | ¥1,490 | |
| 45286-47050-C0 note |
Cover, Steering Column, Upr
2018-12 → —
|
ZVW5# CBU | ¥1,490 | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥190 | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2018-12 → —
|
ZVW5# CBU | ¥190 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
