Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

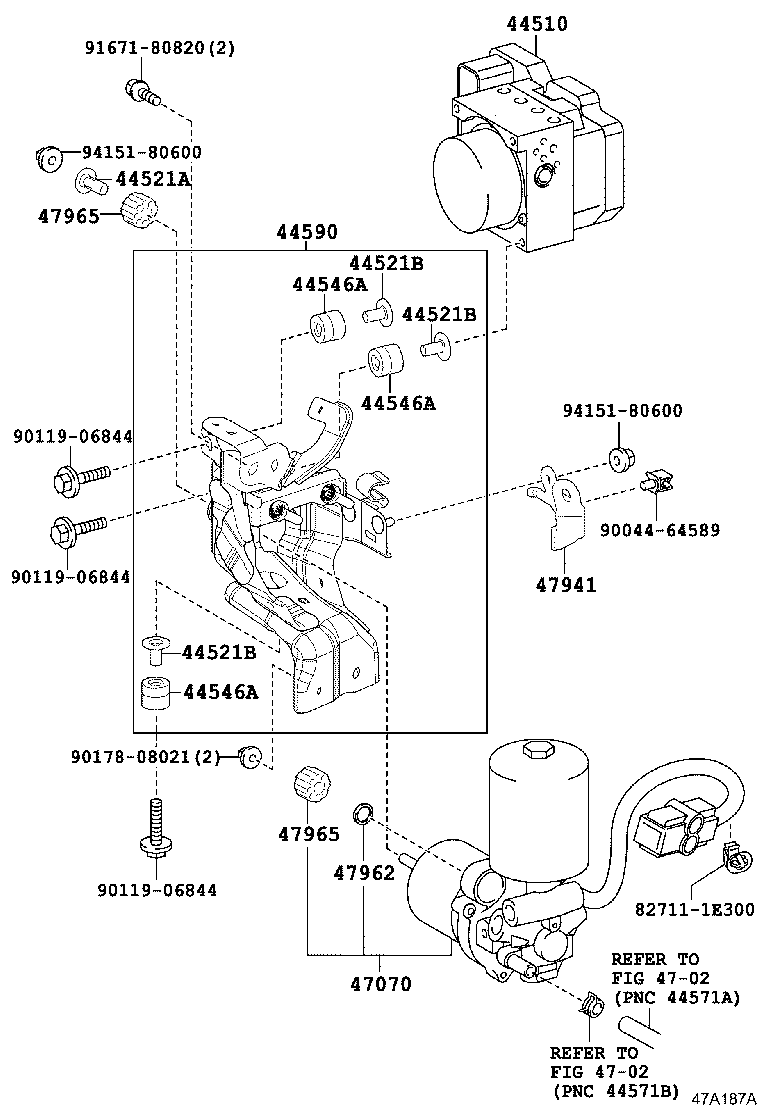

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-47060 |
Actuator Assy, Brake
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥96,500 | |
| 44050-47060 |
Actuator Assy, Brake
2018-12 → —
|
ZVW5# CBU | ¥96,500 | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-47010 |
Collar, Brake Actuator Case, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥100 | |
| 44521-47010 |
Collar, Brake Actuator Case, NO.1
2018-12 → —
|
ZVW5# CBU | ¥100 | |
| 44521B — Collar, Brake Actuator Case, NO.2 | ||||
| 44521-12050 |
Collar, Brake Actuator Case, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥90 | |
| 44521-12050 |
Collar, Brake Actuator Case, NO.2
2018-12 → —
|
ZVW5# CBU | ¥90 | |
| 44546A — Cushion, Brake Actuator Bolt | ||||
| 44546-12110 |
Cushion, Brake Actuator Bolt
2015-11 → 2016-07
ended
|
ZVW5# CBU | ¥130 | |
| 44546-12120 |
Cushion, Brake Actuator Bolt
2016-07 → 2018-12
ended
|
ZVW5# CBU | ¥130 | |
| 44546-12120 |
Cushion, Brake Actuator Bolt
2018-12 → —
|
ZVW5# CBU | ¥130 | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-47080 |
Bracket Assy, Brake Actuator
2015-11 → 2016-07
ended
|
ZVW5# CBU | ¥5,200 | |
| 44590-47082 |
Bracket Assy, Brake Actuator
2016-07 → 2018-12
ended
|
ZVW5# CBU | ¥3,270 | |
| 44590-47082 |
Bracket Assy, Brake Actuator
2018-12 → —
|
ZVW5# CBU | ¥3,270 | |
| 47070 — Pump Assy, Brake Booster | ||||
| 47070-47100 |
Pump Assy, Brake Booster
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥68,000 | |
| 47070-47100 |
Pump Assy, Brake Booster
2018-12 → —
|
ZVW5# CBU | ¥68,000 | |
| 47941 — Bracket, Brake Power Supply, NO.1 | ||||
| 47941-47020 |
Bracket, Brake Power Supply, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥280 | |
| 47941-47020 |
Bracket, Brake Power Supply, NO.1
2018-12 → —
|
ZVW5# CBU | ¥280 | |
| 47962 — Collar, Brake Booster Pump | ||||
| 47962-60090 |
Collar, Brake Booster Pump
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥50 | |
| 47962-60090 |
Collar, Brake Booster Pump
2018-12 → —
|
ZVW5# CBU | ¥50 | |
| 47965 — Bush, Brake Booster Pump | ||||
| 47965-30010 |
Bush, Brake Booster Pump
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥210 | |
| 47965-30010 |
Bush, Brake Booster Pump
2018-12 → —
|
ZVW5# CBU | ¥210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
