Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

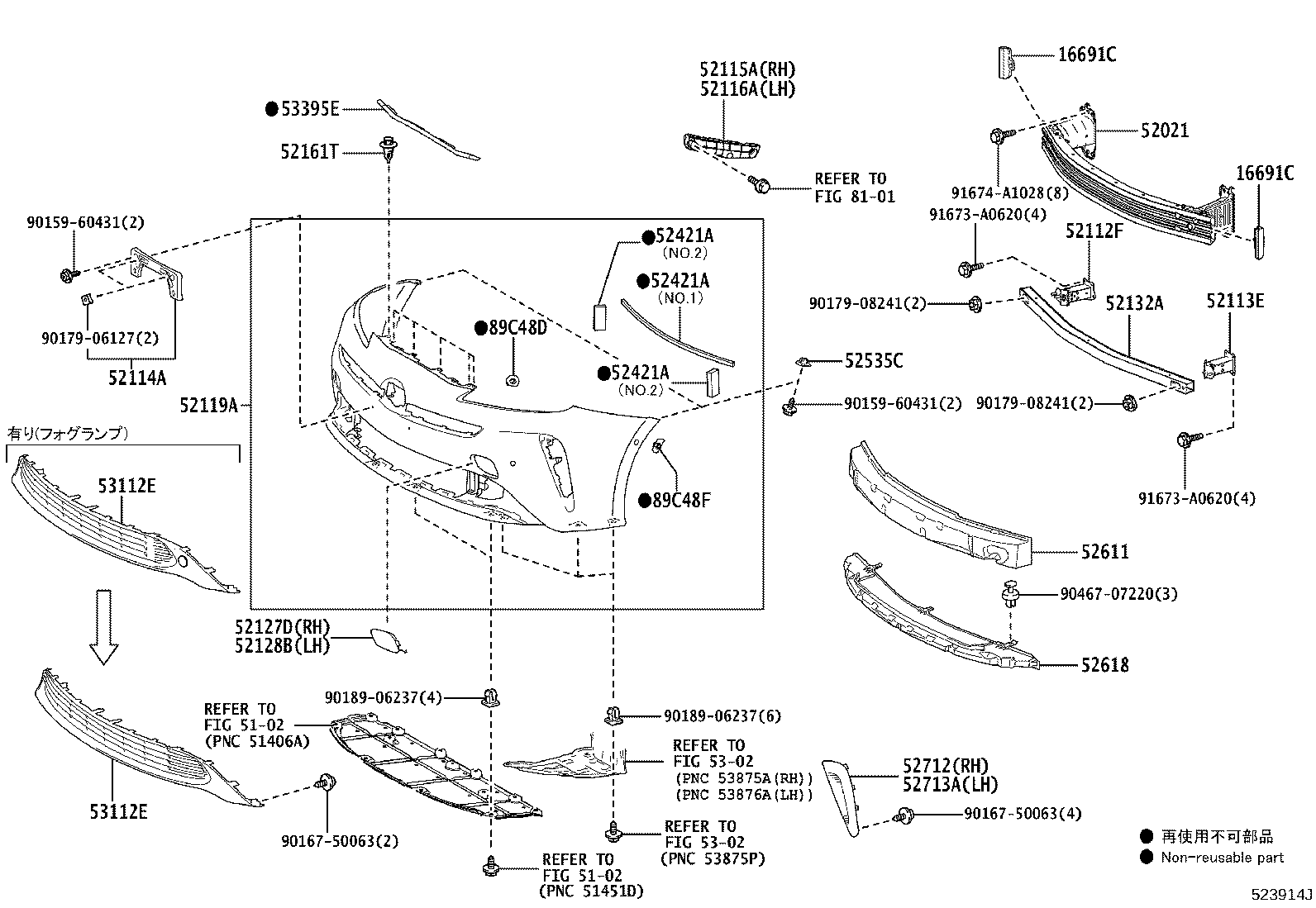

Exploded illustration 523914J 8101 — not listed in this catalogue 5102 — not listed in this catalogue 5302 — not listed in this catalogue 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (2 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (2 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (2 parts) 52113E — EXTENSION, FRONT BUMPER, LH (2 parts) 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (2 parts) 52112F — EXTENSION, FRONT BUMPER, RH (2 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (2 parts) 16691C — PLATE, RADIATOR SIDE AIR GUIDE, FRONT (3 parts) 16691C — PLATE, RADIATOR SIDE AIR GUIDE, FRONT (3 parts) 52712 — MOULDING, FRONT BUMPER SIDE, RH (15 parts) 52713A — MOULDING, FRONT BUMPER SIDE, LH (15 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (42 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (42 parts) 52161T — PIECE, FRONT BUMPER (2 parts) 52119A — COVER, FRONT BUMPER (245 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (16 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (16 parts) 53395E — SEAL, HOOD TO FRONT END PANEL (2 parts) 9015960431 — not listed in this catalogue 52535C — RETAINER, FRONT BUMPER SIDE (2 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (2 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (2 parts) 52421A — PAD, FRONT BUMPER (2 parts) 52421A — PAD, FRONT BUMPER (2 parts) 52421A — PAD, FRONT BUMPER (2 parts) 9015960431 — not listed in this catalogue 9018906237 — not listed in this catalogue 9018906237 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9017906127 — not listed in this catalogue 91674A1028 — not listed in this catalogue 91673A0620 — not listed in this catalogue 9017908241 — not listed in this catalogue 9017908241 — not listed in this catalogue 91673A0620 — not listed in this catalogue 9046707220 — not listed in this catalogue 5102 — not listed in this catalogue 5302 — not listed in this catalogue 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (68 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (104 parts)
523914J · 26 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
576 parts on this figure
Part number Description Fitment Price
16691C — Plate, Radiator Side Air Guide, Front
16691-37020 Plate, Radiator Side Air Guide, Front
2018-01 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥680
16691-37040 Plate, Radiator Side Air Guide, Front
2015-11 → 2017-12 ended
2ZRFXE ZVW5# CBU ¥910
16691-37020 Plate, Radiator Side Air Guide, Front
2018-12 → —
2ZRFXE ZVW5# CBU ¥680
52021 — Reinforcement Sub-assy, Front Bumper
52021-47110 Reinforcement Sub-assy, Front Bumper
2015-11 → 2018-12 ended
ZVW5# CBU ¥22,600
52021-47110 Reinforcement Sub-assy, Front Bumper
2018-12 → —
ZVW5# CBU ¥22,600
52112F — Extension, Front Bumper, RH
52102-47020 Extension, Front Bumper, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,970
52102-47020 Extension, Front Bumper, RH
2018-12 → —
ZVW5# CBU ¥2,970
52113E — Extension, Front Bumper, LH
52103-47010 Extension, Front Bumper, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,970
52103-47010 Extension, Front Bumper, LH
2018-12 → —
ZVW5# CBU ¥2,970
52114A — Bracket, Front Bumper Extension Mounting
52114-47170 Bracket, Front Bumper Extension Mounting
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,120
52114-47250 Bracket, Front Bumper Extension Mounting
2018-12 → —
ZVW5# CBU ¥1,740
52115A — Support, Front Bumper Side, RH
52115-47050 Support, Front Bumper Side, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,970
52115-47050 Support, Front Bumper Side, RH
2018-12 → —
ZVW5# CBU ¥1,970
52116A — Support, Front Bumper Side, LH
52116-47050 Support, Front Bumper Side, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,970
52116-47050 Support, Front Bumper Side, LH
2018-12 → —
ZVW5# CBU ¥1,970
52119A — Cover, Front Bumper
52119-47963-A0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 A CBU ¥70,400
52119-47963-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,400
52119-47963-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-A4 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥70,400
52119-47963-B0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-B0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-B1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-B1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-C0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-C0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-C0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-C0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-C0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-D0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 A CBU ¥70,400
52119-47963-D0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-D0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-D0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-D0 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥70,400
52119-47963-D0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-D0 note Cover, Front Bumper
2015-11 → 2017-11 ended
ZVW51,55 PREM ¥70,400
52119-47963-D1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥70,400
52119-47963-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-G0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-G0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-G0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-G0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-G0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-J0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47963-J0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-J0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-J0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47963-J0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,400
52119-47971-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 A CBU ¥70,400
52119-47971-A1 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,400
52119-47971-E0 note Cover, Front Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,400
52119-47B20-A2 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-A2 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-A3 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-A3 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-B2 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-B2 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-B3 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-B3 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-C1 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-C1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-D1 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-D1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-E1 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-E1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-G1 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-G1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-J1 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47B20-J1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47D40-A3 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47D40-A3 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47D40-E1 note Cover, Front Bumper
2015-11 → 2017-10 ended
ZVW5# (E,S) CBU ¥63,600
52119-47D40-E1 note Cover, Front Bumper
2017-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥63,600
52119-47982-A0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-B0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-B1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-C0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-D0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-G0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47982-J0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47983-A0 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-A0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-A0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-A0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-A0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-A0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-A0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥72,000
52119-47983-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-A1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-A1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-A1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥72,000
52119-47983-A2 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-A2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-A2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-A2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-B1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-C0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-C1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-C1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-C1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥60,000
52119-47983-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-D0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2020-07 → 2021-06 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-E0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-G0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-G0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥72,000
52119-47983-G0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-G0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-G0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47983-G0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥72,000
52119-47983-J0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-J0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-J0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-J0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-J0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47983-J0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47983-J0 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥60,000
52119-47984-A0 note Cover, Front Bumper
2018-12 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥77,300
52119-47984-A2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-A2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-A2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-A2 note Cover, Front Bumper
2020-07 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-B0 note Cover, Front Bumper
2018-12 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-B1 note Cover, Front Bumper
2018-12 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-B1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-B1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-B1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-C0 note Cover, Front Bumper
2018-12 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-C1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-C1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-C1 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-C2 note Cover, Front Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥64,400
52119-47984-D0 note Cover, Front Bumper
2018-12 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-E0 note Cover, Front Bumper
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47984-G0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥77,300
52119-47984-J0 note Cover, Front Bumper
2018-12 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47985-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥77,300
52119-47985-E0 note Cover, Front Bumper
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥64,400
52119-47986-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47986-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥66,600
52119-47987-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥72,000
52119-47987-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47987-A1 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47987-A1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥72,000
52119-47987-A1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47987-A1 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥72,000
52119-47987-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47987-E0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# (E,S) CBU ¥60,000
52119-47987-E0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47987-E0 note Cover, Front Bumper
2019-08 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47987-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47987-E0 note Cover, Front Bumper
2018-12 → 2020-07 ended
ZVW5# S CBU ¥60,000
52119-47987-E0 note Cover, Front Bumper
2020-07 → 2021-06 ended
ZVW5# (E,S) CBU ¥60,000
52119-47991-A0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-B0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-C0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-C2 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-C2 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-C2 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# S CBU ¥59,800
52119-47991-D0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47991-J0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (E,S) CBU ¥59,800
52119-47993-A0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-A1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-B0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-B1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-C0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-C1 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-C2 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-C2 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-C2 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# A CBU ¥64,100
52119-47993-D0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52119-47993-J0 note Cover, Front Bumper
2022-02 → 2022-11 ended
ZVW5# (A,PREM) CBU ¥64,100
52127D — Cover, Front Bumper Hole, RH
52127-47070-A0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52127-47070-A1 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥1,000
52127-47070-A1 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥1,000
52127-47070-B0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52127-47070-B1 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52127-47070-C0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52127-47070-D0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,000
52127-47070-D0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥1,000
52127-47070-E0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥1,000
52127-47070-E0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥1,000
52127-47070-G0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52127-47070-J0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥1,000
52127-47070-J0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥1,000
52127-47150-A1 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥1,000
52127-47150-A1 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥1,000
52127-47150-E0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥1,000
52127-47150-E0 note Cover, Front Bumper Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥1,000
52127-47160-A0 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# CBU ¥880
52127-47160-A1 note Cover, Front Bumper Hole, RH
2018-12 → 2020-07 ended
ZVW5# CBU ¥1,060
52127-47160-A2 note Cover, Front Bumper Hole, RH
2020-07 → —
ZVW5# E,PREM ¥880
52127-47160-A2 note Cover, Front Bumper Hole, RH
2020-07 → —
ZVW5# (A,S) CBU ¥880
52127-47160-B0 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# CBU ¥880
52127-47160-B1 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# (A,S) CBU ¥880
52127-47160-B1 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# E,PREM ¥880
52127-47160-C0 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# CBU ¥880
52127-47160-C1 note Cover, Front Bumper Hole, RH
2021-06 → —
ZVW5# (A,S) CBU ¥880
52127-47160-C2 note Cover, Front Bumper Hole, RH
2021-06 → —
ZVW5# CBU ¥880
52127-47160-D0 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# CBU ¥880
52127-47160-E0 note Cover, Front Bumper Hole, RH
2018-12 → 2021-06 ended
ZVW5# (E,S) CBU ¥880
52127-47160-E0 note Cover, Front Bumper Hole, RH
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥880
52127-47160-G0 note Cover, Front Bumper Hole, RH
2018-12 → 2020-07 ended
ZVW5# CBU ¥1,060
52127-47160-J0 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2018-12 → —
ZVW5# (E,S) CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2019-08 → —
ZVW5# A CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2019-08 → —
ZVW5# A CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2019-08 → —
ZVW5# A CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2021-06 → —
ZVW5# A CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2021-06 → —
ZVW5# A CBU ¥880
52127-47160-J0 note Cover, Front Bumper Hole, RH
2021-06 → —
ZVW5# A CBU ¥880
52127-47170-A1 note Cover, Front Bumper Hole, RH
2018-12 → 2020-07 ended
ZVW5# CBU ¥1,060
52127-47170-A2 note Cover, Front Bumper Hole, RH
2020-07 → —
ZVW5# CBU ¥890
52127-47170-E0 note Cover, Front Bumper Hole, RH
2018-12 → 2021-06 ended
ZVW5# CBU ¥880
52128B — Cover, Front Bumper Hole, LH
52128-47050-A0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52128-47050-A1 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥1,000
52128-47050-A1 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥1,000
52128-47050-B0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52128-47050-B1 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52128-47050-C0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52128-47050-D0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,000
52128-47050-D0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥1,000
52128-47050-E0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥1,000
52128-47050-E0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥1,000
52128-47050-G0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,000
52128-47050-J0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥1,000
52128-47050-J0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥1,000
52128-47110-A1 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥1,000
52128-47110-A1 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥1,000
52128-47110-E0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥1,000
52128-47110-E0 note Cover, Front Bumper Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥1,000
52128-47120-A0 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# CBU ¥880
52128-47120-A1 note Cover, Front Bumper Hole, LH
2018-12 → 2020-07 ended
ZVW5# CBU ¥1,060
52128-47120-A2 note Cover, Front Bumper Hole, LH
2020-07 → —
ZVW5# E,PREM ¥880
52128-47120-A2 note Cover, Front Bumper Hole, LH
2020-07 → —
ZVW5# (A,S) CBU ¥880
52128-47120-B0 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# CBU ¥880
52128-47120-B1 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# (A,S) CBU ¥880
52128-47120-B1 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# E,PREM ¥880
52128-47120-C0 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# CBU ¥880
52128-47120-C1 note Cover, Front Bumper Hole, LH
2021-06 → —
ZVW5# (A,S) CBU ¥880
52128-47120-C2 note Cover, Front Bumper Hole, LH
2021-06 → —
ZVW5# CBU ¥880
52128-47120-D0 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# CBU ¥880
52128-47120-E0 note Cover, Front Bumper Hole, LH
2018-12 → 2021-06 ended
ZVW5# (E,S) CBU ¥880
52128-47120-E0 note Cover, Front Bumper Hole, LH
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥880
52128-47120-G0 note Cover, Front Bumper Hole, LH
2018-12 → 2020-07 ended
ZVW5# CBU ¥1,060
52128-47120-J0 note Cover, Front Bumper Hole, LH
2019-08 → —
ZVW5# A CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2021-06 → —
ZVW5# A CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2021-06 → —
ZVW5# A CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2021-06 → —
ZVW5# A CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2019-08 → —
ZVW5# A CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2019-08 → —
ZVW5# A CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# (E,S) CBU ¥880
52128-47120-J0 note Cover, Front Bumper Hole, LH
2018-12 → —
ZVW5# (A,PREM) CBU ¥880
52128-47140-A1 note Cover, Front Bumper Hole, LH
2018-12 → 2020-07 ended
ZVW5# CBU ¥1,060
52128-47140-A2 note Cover, Front Bumper Hole, LH
2020-07 → —
ZVW5# CBU ¥890
52128-47140-E0 note Cover, Front Bumper Hole, LH
2018-12 → 2021-06 ended
ZVW5# CBU ¥880
52132A — Reinforcement, Front Bumper, NO.2
52132-47010 Reinforcement, Front Bumper, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥9,700
52132-47010 Reinforcement, Front Bumper, NO.2
2018-12 → —
ZVW5# CBU ¥9,700
52161T — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2015-11 → 2018-12 ended
ZVW5# CBU ¥120
52161-16010 Piece, Front Bumper
2018-12 → —
ZVW5# CBU ¥120
52421A — Pad, Front Bumper
52421-47030 note Pad, Front Bumper
2018-12 → —
ZVW5# CBU ¥1,020
52421-47040 note Pad, Front Bumper
2018-12 → —
ZVW5# CBU ¥900
52535C — Retainer, Front Bumper Side
52535-50060 Retainer, Front Bumper Side
2015-11 → 2018-12 ended
ZVW5# CBU ¥210
52535-50060 Retainer, Front Bumper Side
2018-12 → —
ZVW5# CBU ¥210
52611 — Absorber, Front Bumper Energy
52611-47140 Absorber, Front Bumper Energy
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,200
52611-47210 Absorber, Front Bumper Energy
2018-12 → —
ZVW5# CBU ¥5,100
52618 — Absorber, Front Bumper, Lower
52618-47090 Absorber, Front Bumper, Lower
2015-11 → 2018-12 ended
ZVW5# CBU ¥10,400
52618-47130 Absorber, Front Bumper, Lower
2018-12 → —
ZVW5# CBU ¥8,600
52712 — Moulding, Front Bumper Side, RH
52712-47040 Moulding, Front Bumper Side, RH
2018-12 → —
ZVW5# CBU ¥2,280
52712-47060 note Moulding, Front Bumper Side, RH
2019-08 → 2020-07 ended
ZVW5# S CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# S CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2019-08 → —
ZVW5# (A,PREM) CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2019-08 → —
ZVW5# S CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2019-08 → —
ZVW5# (A,PREM) CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2018-12 → —
ZVW5# S CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥5,800
52712-47060 note Moulding, Front Bumper Side, RH
2018-12 → 2020-07 ended
ZVW5# S CBU ¥5,800
52712-47080 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# S CBU ¥4,270
52712-47080 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# S CBU ¥4,270
52712-47080 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# A CBU ¥4,270
52712-47080 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# A CBU ¥4,270
52712-47080 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# S CBU ¥4,270
52712-47080 note Moulding, Front Bumper Side, RH
2021-06 → —
ZVW5# A CBU ¥4,270
52713A — Moulding, Front Bumper Side, LH
52713-47040 Moulding, Front Bumper Side, LH
2018-12 → —
ZVW5# CBU ¥2,280
52713-47060 note Moulding, Front Bumper Side, LH
2018-12 → 2020-07 ended
ZVW5# S CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2019-08 → 2020-07 ended
ZVW5# S CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2018-12 → —
ZVW5# (A,PREM) CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2018-12 → —
ZVW5# S CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2019-08 → —
ZVW5# (A,PREM) CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2019-08 → —
ZVW5# S CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2019-08 → —
ZVW5# (A,PREM) CBU ¥5,800
52713-47060 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# S CBU ¥5,800
52713-47080 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# A CBU ¥4,270
52713-47080 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# S CBU ¥4,270
52713-47080 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# S CBU ¥4,270
52713-47080 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# A CBU ¥4,270
52713-47080 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# A CBU ¥4,270
52713-47080 note Moulding, Front Bumper Side, LH
2021-06 → —
ZVW5# S CBU ¥4,270
53112E — Grille, Radiator, Lower NO.1
53112-47240 note Grille, Radiator, Lower NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,900
53112-47300 note Grille, Radiator, Lower NO.1
2018-12 → —
ZVW5# (E,S) CBU ¥6,600
53112-47310 note Grille, Radiator, Lower NO.1
2021-06 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2021-06 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2021-06 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2021-06 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2021-06 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2019-08 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2019-08 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2018-12 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2018-12 → —
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2018-12 → 2020-07 ended
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2018-12 → 2020-07 ended
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2019-08 → 2020-07 ended
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2019-08 → 2020-07 ended
ZVW5# S CBU ¥6,200
53112-47310 note Grille, Radiator, Lower NO.1
2018-12 → —
ZVW5# (A,PREM) CBU ¥6,200
53395E — Seal, Hood TO Front End Panel
53395-47040 Seal, Hood TO Front End Panel
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,330
53395-47060 Seal, Hood TO Front End Panel
2018-12 → —
ZVW5# CBU ¥1,830
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-47020-A0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47020-A0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47020-A1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47020-A1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47020-A1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-B0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-B0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-B1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-B1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-C0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-C0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-E0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-E0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-G0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-G0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-J0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-J0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-A0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47030-A0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47030-A1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47030-A1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47030-A1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-B0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-B0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-B1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-B1 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-C0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47030-C0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47030-D0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47030-D0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47030-D0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-E0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-E0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-G0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-G0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-J0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-J0 note Retainer, Ultrasonic Sensor, Front Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-12070-22 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥0
89348-12070-22 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU ¥0
89348-12070-22 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-12070-23 note Retainer, Ultrasonic Sensor, Front Corner
2021-06 → —
ZVW5# CBU —
89348-12070-26 note Retainer, Ultrasonic Sensor, Front Corner
2021-06 → —
ZVW5# (A,S) CBU —
89348-12070-A0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥0
89348-12070-A0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU ¥0
89348-12070-A0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-12070-A1 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-12070-A1 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12070-A4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# E,PREM —
89348-12070-A4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (A,S) CBU —
89348-12070-B0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12070-B0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12070-B0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW51 E —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# S CBU —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW51 E —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# A CBU —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# PREM —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# S CBU —
89348-12070-D4 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12070-D4 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12070-D4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12070-E3 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → 2021-06 ended
ZVW5# (E,S) CBU —
89348-12070-E3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2022-08 ended
ZVW5# (A,PREM) CBU —
89348-12070-E3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12070-G6 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-12070-G6 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12070-R0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12070-R0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12070-R0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12140-22 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12140-22 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12140-22 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12140-23 note Retainer, Ultrasonic Sensor, Front Corner
2021-06 → —
ZVW5# CBU —
89348-12140-26 note Retainer, Ultrasonic Sensor, Front Corner
2021-06 → —
ZVW5# (A,S) CBU —
89348-12140-A0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥0
89348-12140-A0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-12140-A0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU ¥0
89348-12140-A1 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12140-A1 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-12140-A4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (A,S) CBU —
89348-12140-A4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# E,PREM —
89348-12140-B0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12140-B0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12140-B0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# A CBU —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# PREM —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW51 E —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# S CBU —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW51 E —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# S CBU —
89348-12140-D4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12140-D4 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12140-D4 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12140-E3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2022-08 ended
ZVW5# (A,PREM) CBU —
89348-12140-E3 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → 2021-06 ended
ZVW5# (E,S) CBU —
89348-12140-E3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12140-G6 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-12140-G6 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89348-12140-R0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW5# (E,S) CBU —
89348-12140-R0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-12140-R0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU —
89C48F — Retainer, Ultrasonic Sensor, Front Side
89348-47040-A0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47040-A0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47040-A1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-A1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47040-A1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47040-B0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-B0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47040-B1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47040-B1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-C0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47040-C0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-D0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47040-D0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47040-D0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-E0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47040-E0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-G0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47040-G0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-J0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47040-J0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-A0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47050-A0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47050-A1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47050-A1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47050-A1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-B0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47050-B0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-B1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47050-B1 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-C0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47050-C0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-D0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47050-D0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47050-D0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-E0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-E0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47050-G0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47050-G0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47050-J0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47050-J0 note Retainer, Ultrasonic Sensor, Front Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47040-A0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-47040-A1 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47040-A4 note Retainer, Ultrasonic Sensor, Front Side
2020-07 → —
ZVW5# A CBU —
89348-47040-A4 note Retainer, Ultrasonic Sensor, Front Side
2020-07 → —
ZVW5# PREM —
89348-47040-B0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47040-B1 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# PREM —
89348-47040-B1 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# A CBU —
89348-47040-C0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47040-C1 note Retainer, Ultrasonic Sensor, Front Side
2021-06 → —
ZVW5# (A,PREM) CBU —
89348-47040-C6 note Retainer, Ultrasonic Sensor, Front Side
2021-06 → —
ZVW5# A CBU —
89348-47040-D7 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47040-E0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → 2022-08 ended
ZVW5# (A,PREM) CBU —
89348-47040-G0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47040-J6 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47050-A0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-47050-A1 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47050-A4 note Retainer, Ultrasonic Sensor, Front Side
2020-07 → —
ZVW5# PREM —
89348-47050-A4 note Retainer, Ultrasonic Sensor, Front Side
2020-07 → —
ZVW5# A CBU —
89348-47050-B0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47050-B1 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# PREM —
89348-47050-B1 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# A CBU —
89348-47050-C0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47050-C1 note Retainer, Ultrasonic Sensor, Front Side
2021-06 → —
ZVW5# (A,PREM) CBU —
89348-47050-C6 note Retainer, Ultrasonic Sensor, Front Side
2021-06 → —
ZVW5# A CBU —
89348-47050-D7 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47050-E0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → 2022-08 ended
ZVW5# (A,PREM) CBU —
89348-47050-G0 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47050-J6 note Retainer, Ultrasonic Sensor, Front Side
2018-12 → —
ZVW5# (A,PREM) CBU —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
