Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

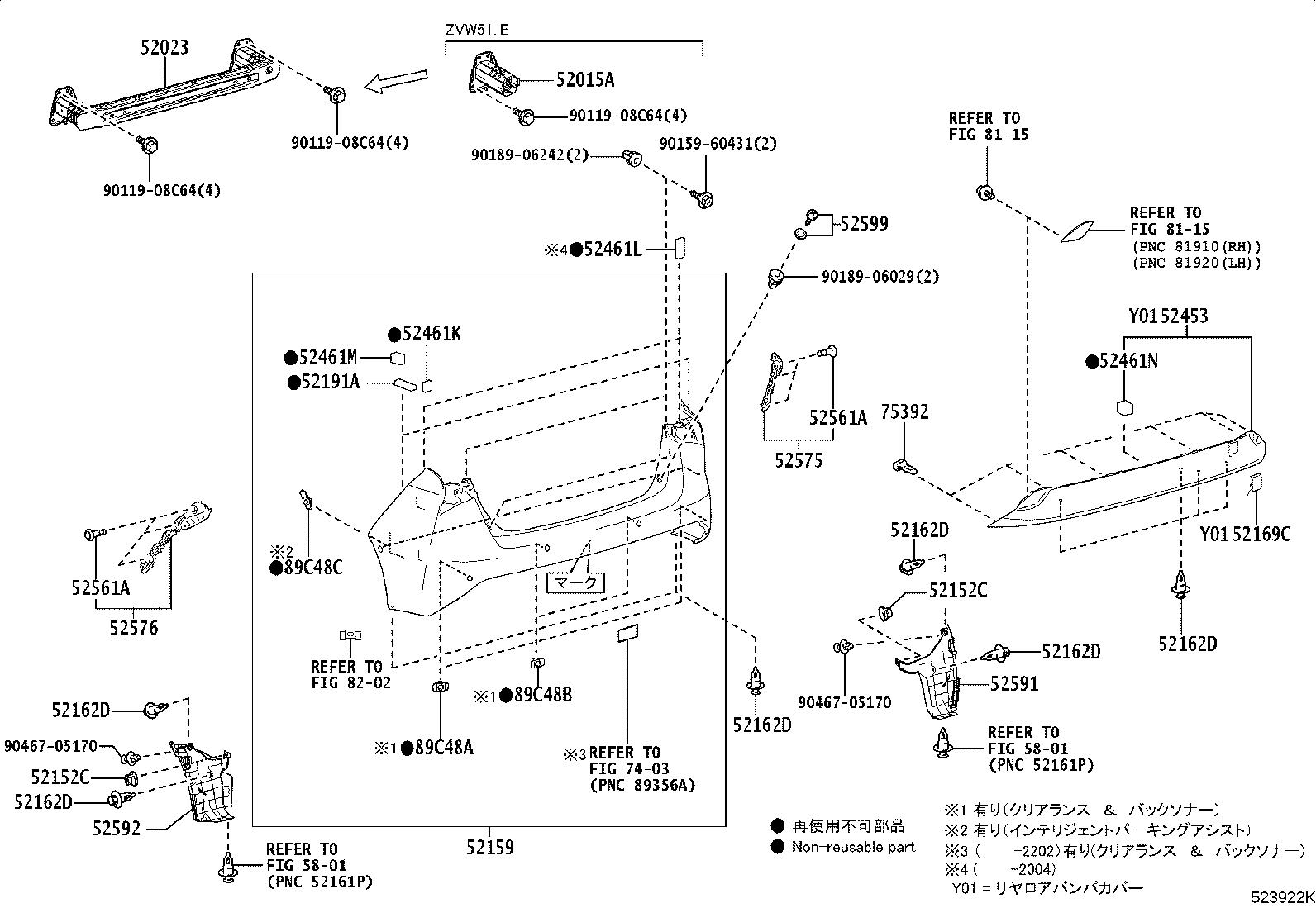

Exploded illustration 523922K 52015A — ARM SUB-ASSY, REAR BUMPER, RH (2 parts) 52561A — CLIP(FOR REAR BUMPER RETAINER) (2 parts) 52575 — RETAINER, REAR BUMPER SIDE, RH (2 parts) 52561A — CLIP(FOR REAR BUMPER RETAINER) (2 parts) 52576 — RETAINER, REAR BUMPER SIDE, LH (2 parts) 7403 — not listed in this catalogue 8202 — not listed in this catalogue 52599 — STOPPER, REAR BUMPER, UPPER (2 parts) 52461L — PAD, REAR BUMPER, NO.2 (2 parts) 9018906242 — not listed in this catalogue 9015960431 — not listed in this catalogue 9018906029 — not listed in this catalogue 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (2 parts) 9011908C64 — not listed in this catalogue 9011908C64 — not listed in this catalogue 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (2 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (2 parts) 9046705170 — not listed in this catalogue 9046705170 — not listed in this catalogue 52152C — CLIP, REAR BUMPER SIDE (2 parts) 52152C — CLIP, REAR BUMPER SIDE (2 parts) 5801 — not listed in this catalogue 5801 — not listed in this catalogue 8115 — not listed in this catalogue 9011908C64 — not listed in this catalogue 52461N — PAD, REAR BUMPER, NO.4 (1 parts) 75392 — RETAINER, OUTSIDE MOULDING (6 parts) 52453 — GUARD, REAR BUMPER, CENTER (8 parts) 52169C — COVER, REAR BUMPER, LOWER (4 parts) 8115 — not listed in this catalogue 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52191A — SEAL, REAR BUMPER ARM (2 parts) 52461K — PAD, REAR BUMPER, NO.1 (2 parts) 52461M — PAD, REAR BUMPER, NO.3 (2 parts) 89C48C — RETAINER, ULTRASONIC SENSOR, REAR SIDE (68 parts) 89C48A — RETAINER, ULTRASONIC SENSOR, REAR CORNER (43 parts) 89C48B — RETAINER, ULTRASONIC SENSOR, REAR CENTER (23 parts) 52159 — COVER, REAR BUMPER (188 parts)
523922K · 29 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
369 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-47140 Arm Sub-assy, Rear Bumper, RH
2015-11 → 2018-12 ended
ZVW51 E ¥4,650
52015-47140 Arm Sub-assy, Rear Bumper, RH
2018-12 → —
ZVW51 E ¥4,650
52023 — Reinforcement Sub-assy, Rear Bumper
52023-47030 Reinforcement Sub-assy, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥12,900
52023-47030 Reinforcement Sub-assy, Rear Bumper
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥12,900
52152C — Clip, Rear Bumper Side
90467-06206-C0 note Clip, Rear Bumper Side
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-06206-C0 note Clip, Rear Bumper Side
2018-12 → —
ZVW5# CBU ¥80
52159 — Cover, Rear Bumper
52159-47100-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47100-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-A0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-B0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-B1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-C0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-G0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47110-J0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥52,600
52159-47914-A0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-A0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 A CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,300
52159-47914-B0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-B1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-B1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-B1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-C0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-C0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-C0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-C0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-C0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-D0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-G0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-G0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-G0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-G0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-G0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-J0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47914-J0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-J0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-J0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47914-J0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 A CBU ¥70,300
52159-47922-A1 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥70,300
52159-47922-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47922-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47922-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥70,300
52159-47922-E0 note Cover, Rear Bumper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥70,300
52159-47923-A0 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-A1 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-B0 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-B1 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-C0 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-D1 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-E0 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-G0 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47923-J1 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47924-A0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-A0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-A1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-A1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-B0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-B0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-B1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-B1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-C0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-C0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-D1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-D1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-E0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-E0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-G0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-G0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47924-J1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47924-J1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47925-A0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-A1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-B0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-B1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-C0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-D1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-E0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-G0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47925-J1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47931-A1 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47931-E0 note Cover, Rear Bumper
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥57,900
52159-47932-A1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47932-A1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47932-E0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (E,S) CBU ¥69,200
52159-47932-E0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# S CBU ¥69,200
52159-47933-A1 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47933-E0 note Cover, Rear Bumper
2018-12 → 2020-04 ended
ZVW5# (A,PREM) CBU ¥75,000
52159-47935-A0 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-A0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-A0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-A1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥68,300
52159-47935-A1 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥68,300
52159-47935-A2 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-B0 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-B0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-B0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-B1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-B1 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-B1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-C0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-C0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-C0 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-C1 note Cover, Rear Bumper
2021-06 → 2022-02 ended
ZVW5# S CBU ¥56,900
52159-47935-C2 note Cover, Rear Bumper
2021-06 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-D1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-D1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-D1 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-E0 note Cover, Rear Bumper
2020-07 → 2021-06 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-E0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-E0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-G0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥68,300
52159-47935-G0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥68,300
52159-47935-J0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47935-J0 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥56,900
52159-47935-J0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47936-A1 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (E,S) CBU ¥68,300
52159-47936-A1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥68,300
52159-47936-E0 note Cover, Rear Bumper
2020-07 → 2021-06 ended
ZVW5# (E,S) CBU ¥56,900
52159-47936-E0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# S CBU ¥56,900
52159-47936-E0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (E,S) CBU ¥56,900
52159-47937-A0 note Cover, Rear Bumper
2020-04 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-A1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥74,900
52159-47937-A2 note Cover, Rear Bumper
2020-07 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-B0 note Cover, Rear Bumper
2020-04 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-B1 note Cover, Rear Bumper
2020-04 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-C0 note Cover, Rear Bumper
2020-04 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-C1 note Cover, Rear Bumper
2021-06 → 2022-02 ended
ZVW5# A CBU ¥62,400
52159-47937-C2 note Cover, Rear Bumper
2021-06 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-D1 note Cover, Rear Bumper
2020-04 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-E0 note Cover, Rear Bumper
2020-04 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47937-G0 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥74,900
52159-47937-J0 note Cover, Rear Bumper
2020-04 → 2022-02 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47938-A1 note Cover, Rear Bumper
2020-04 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥74,900
52159-47938-E0 note Cover, Rear Bumper
2020-04 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥62,400
52159-47943-A0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-A1 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-B0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-B1 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-C0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-C1 note Cover, Rear Bumper
2022-02 → —
ZVW5# S CBU ¥56,600
52159-47943-C2 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-D0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47943-J0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU ¥56,600
52159-47944-A0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (E,S) CBU —
52159-47945-A0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-A1 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-B0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-B1 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-C0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-C1 note Cover, Rear Bumper
2022-02 → —
ZVW5# A CBU ¥62,200
52159-47945-C2 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-D0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47945-J0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU ¥62,200
52159-47946-A0 note Cover, Rear Bumper
2022-02 → —
ZVW5# (A,PREM) CBU —
52162D — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2015-11 → 2018-12 ended
ZVW5# CBU ¥120
52161-16010 Piece, Rear Bumper
2018-12 → —
ZVW5# CBU ¥120
52169C — Cover, Rear Bumper, Lower
52169-47020 note Cover, Rear Bumper, Lower
2015-11 → 2018-12 ended
ZVW5# CBU ¥480
52169-47050 note Cover, Rear Bumper, Lower
2018-12 → 2020-07 ended
ZVW5# S CBU ¥660
52169-47050 note Cover, Rear Bumper, Lower
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥660
52169-47070 note Cover, Rear Bumper, Lower
2018-12 → —
ZVW5# CBU ¥550
52191A — Seal, Rear Bumper Arm
52191-47030 Seal, Rear Bumper Arm
2015-11 → 2018-12 ended
ZVW5# CBU ¥260
52191-47030 Seal, Rear Bumper Arm
2018-12 → —
ZVW5# CBU ¥260
52453 — Guard, Rear Bumper, Center
52453-47010 Guard, Rear Bumper, Center
2015-11 → 2018-12 ended
ZVW5# CBU ¥13,700
52453-47020 note Guard, Rear Bumper, Center
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥13,700
52453-47020 note Guard, Rear Bumper, Center
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥13,700
52453-47020 note Guard, Rear Bumper, Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥13,700
52453-47020 note Guard, Rear Bumper, Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥13,700
52453-47900 Guard, Rear Bumper, Center
2018-12 → —
ZVW5# CBU ¥11,600
52453-47901 note Guard, Rear Bumper, Center
2018-12 → 2020-07 ended
ZVW5# S CBU ¥13,900
52453-47901 note Guard, Rear Bumper, Center
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥13,900
52461K — Pad, Rear Bumper, NO.1
52462-47010 Pad, Rear Bumper, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥120
52462-47020 Pad, Rear Bumper, NO.1
2018-12 → —
ZVW5# CBU ¥140
52461L — Pad, Rear Bumper, NO.2
52462-47020 Pad, Rear Bumper, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥140
52462-47030 Pad, Rear Bumper, NO.2
2018-12 → 2020-04 ended
ZVW5# CBU ¥180
52461M — Pad, Rear Bumper, NO.3
52462-47030 Pad, Rear Bumper, NO.3
2015-11 → 2018-12 ended
ZVW5# CBU ¥180
52462-47130 Pad, Rear Bumper, NO.3
2018-12 → —
ZVW5# CBU ¥230
52461N — Pad, Rear Bumper, NO.4
52461-47070 Pad, Rear Bumper, NO.4
2018-12 → —
ZVW5# CBU ¥280
52561A — Clip(FOR REAR BUMPER RETAINER)
90467-09237 Clip(FOR REAR BUMPER RETAINER)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-09237 Clip(FOR REAR BUMPER RETAINER)
2018-12 → —
ZVW5# CBU ¥80
52575 — Retainer, Rear Bumper Side, RH
52575-47040 Retainer, Rear Bumper Side, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,810
52575-47060 Retainer, Rear Bumper Side, RH
2018-12 → —
ZVW5# CBU ¥3,590
52576 — Retainer, Rear Bumper Side, LH
52576-47040 Retainer, Rear Bumper Side, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,780
52576-47060 Retainer, Rear Bumper Side, LH
2018-12 → —
ZVW5# CBU ¥3,590
52591 — Seal, Rear Bumper Side, RH
52591-47050 Seal, Rear Bumper Side, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,660
52591-47070 Seal, Rear Bumper Side, RH
2018-12 → —
ZVW5# CBU ¥2,220
52592 — Seal, Rear Bumper Side, LH
52592-47040 Seal, Rear Bumper Side, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,660
52592-47070 Seal, Rear Bumper Side, LH
2018-12 → —
ZVW5# CBU ¥2,220
52599 — Stopper, Rear Bumper, Upper
52599-68030 Stopper, Rear Bumper, Upper
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
52599-68030 Stopper, Rear Bumper, Upper
2018-12 → —
ZVW5# CBU ¥130
75392 — Retainer, Outside Moulding
75392-35220 note Retainer, Outside Moulding
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥130
75392-35220 note Retainer, Outside Moulding
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥130
75392-35220 note Retainer, Outside Moulding
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥130
75392-35220 Retainer, Outside Moulding
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
75392-35220 note Retainer, Outside Moulding
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥130
75392-35220 Retainer, Outside Moulding
2018-12 → —
ZVW5# CBU ¥130
89C48A — Retainer, Ultrasonic Sensor, Rear Corner
89348-47020-A0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47020-A0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47020-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47020-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47020-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-B0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-B0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-B1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-B1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-E0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-E0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-G0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47020-G0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47020-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-A0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47030-A0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47030-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47030-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47030-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-B0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-B0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-B1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-B1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47030-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47030-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47030-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47030-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-E0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-E0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-G0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-G0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47030-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47030-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-58110 Retainer, Ultrasonic Sensor, Rear Corner
2020-07 → —
ZVW5# (E,S) CBU ¥0
89348-58110 note Retainer, Ultrasonic Sensor, Rear Corner
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥0
89348-58110 Retainer, Ultrasonic Sensor, Rear Corner
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89C48B — Retainer, Ultrasonic Sensor, Rear Center
89348-47060-A0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47060-A0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47060-A1 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47060-A1 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-A1 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47060-B0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47060-B0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-B1 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47060-B1 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-C0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47060-C0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-D0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47060-D0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-D0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47060-E0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47060-E0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-G0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47060-G0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47060-J0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47060-J0 note Retainer, Ultrasonic Sensor, Rear Center
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-58110 Retainer, Ultrasonic Sensor, Rear Center
2020-07 → —
ZVW5# (E,S) CBU ¥0
89348-58110 note Retainer, Ultrasonic Sensor, Rear Center
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥0
89348-58110 Retainer, Ultrasonic Sensor, Rear Center
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89C48C — Retainer, Ultrasonic Sensor, Rear Side
89348-47090-A0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47090-A0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47090-A1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47090-A1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47090-A1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-B0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47090-B0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-B1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47090-B1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-C0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47090-C0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-D0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47090-D0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47090-D0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-E0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47090-E0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-G0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47090-G0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-J0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47090-J0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-A0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥0
89348-47100-A0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥0
89348-47100-A1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47100-A1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47100-A1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-B0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47100-B0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-B1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47100-B1 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-C0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47100-C0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-D0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 PREM —
89348-47100-D0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 A CBU —
89348-47100-D0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-E0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47100-E0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-G0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47100-G0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47100-J0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
89348-47100-J0 note Retainer, Ultrasonic Sensor, Rear Side
2015-11 → 2018-12 ended
ZVW50,55 S CBU —
89348-47090-25 note Retainer, Ultrasonic Sensor, Rear Side
2021-06 → —
ZVW5# A CBU —
89348-47090-26 note Retainer, Ultrasonic Sensor, Rear Side
2021-06 → —
ZVW5# (A,PREM) CBU —
89348-47090-A0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-47090-A1 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47090-A3 note Retainer, Ultrasonic Sensor, Rear Side
2020-07 → —
ZVW5# A CBU —
89348-47090-A3 note Retainer, Ultrasonic Sensor, Rear Side
2020-07 → —
ZVW5# PREM —
89348-47090-B0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47090-B1 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# PREM —
89348-47090-B1 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# A CBU —
89348-47090-C0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47090-D4 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47090-E0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → 2022-08 ended
ZVW5# (A,PREM) CBU —
89348-47090-G0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47090-J3 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47100-25 note Retainer, Ultrasonic Sensor, Rear Side
2021-06 → —
ZVW5# A CBU —
89348-47100-26 note Retainer, Ultrasonic Sensor, Rear Side
2021-06 → —
ZVW5# (A,PREM) CBU —
89348-47100-A0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU ¥0
89348-47100-A1 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47100-A3 note Retainer, Ultrasonic Sensor, Rear Side
2020-07 → —
ZVW5# PREM —
89348-47100-A3 note Retainer, Ultrasonic Sensor, Rear Side
2020-07 → —
ZVW5# A CBU —
89348-47100-B0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47100-B1 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# PREM —
89348-47100-B1 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# A CBU —
89348-47100-C0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47100-D4 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
89348-47100-E0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → 2022-08 ended
ZVW5# (A,PREM) CBU —
89348-47100-G0 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU —
89348-47100-J3 note Retainer, Ultrasonic Sensor, Rear Side
2018-12 → —
ZVW5# (A,PREM) CBU —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
