Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

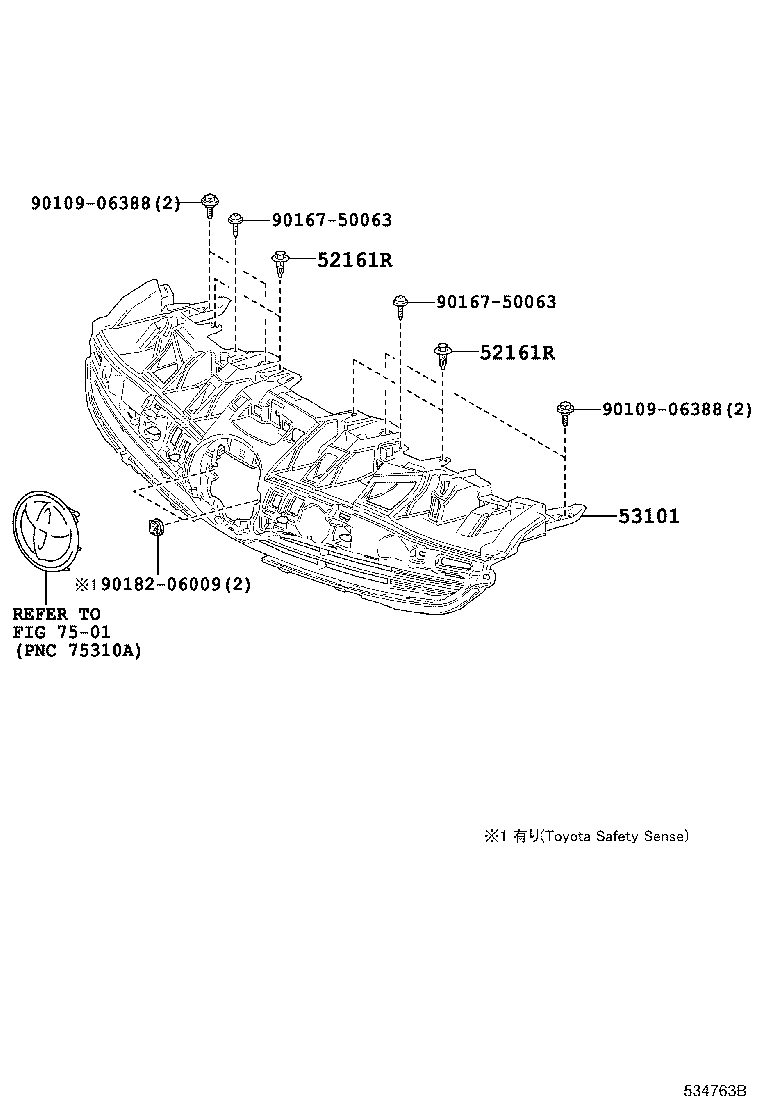

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52161R — Piece, Front Bumper | ||||
| 52161-16010 |
Piece, Front Bumper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥120 | |
| 53101 — Grille Sub-assy, Radiator | ||||
| 53101-47030 note |
Grille Sub-assy, Radiator
2015-11 → 2017-07
ended
|
ZVW51,55 (A,PREM) CBU | ¥15,200 | |
| 53101-47030 note |
Grille Sub-assy, Radiator
2015-11 → 2017-07
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47030 note |
Grille Sub-assy, Radiator
2015-11 → 2017-07
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47030 note |
Grille Sub-assy, Radiator
2015-11 → 2017-07
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47030 note |
Grille Sub-assy, Radiator
2015-11 → 2017-07
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47031 note |
Grille Sub-assy, Radiator
2017-08 → 2017-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥15,200 | |
| 53101-47031 note |
Grille Sub-assy, Radiator
2017-08 → 2017-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47031 note |
Grille Sub-assy, Radiator
2017-08 → 2017-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47031 note |
Grille Sub-assy, Radiator
2017-08 → 2017-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47031 note |
Grille Sub-assy, Radiator
2017-08 → 2017-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47032 note |
Grille Sub-assy, Radiator
2018-01 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥15,200 | |
| 53101-47032 note |
Grille Sub-assy, Radiator
2018-01 → 2018-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47032 note |
Grille Sub-assy, Radiator
2018-01 → 2018-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47032 note |
Grille Sub-assy, Radiator
2018-01 → 2018-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47032 note |
Grille Sub-assy, Radiator
2018-01 → 2018-12
ended
|
ZVW50,55 S CBU | ¥15,200 | |
| 53101-47080 note |
Grille Sub-assy, Radiator
2015-11 → 2017-07
ended
|
ZVW5# (E,S) CBU | ¥15,200 | |
| 53101-47081 note |
Grille Sub-assy, Radiator
2017-08 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥15,200 | |
| 53101-47100 |
Grille Sub-assy, Radiator
2018-12 → 2020-07
ended
|
ZVW5# (E,S) CBU | ¥11,700 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2018-12 → 2020-07
ended
|
ZVW5# S CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2018-12 → 2020-07
ended
|
ZVW5# S CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2018-12 → 2020-07
ended
|
ZVW5# (E,S) CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2019-08 → 2020-07
ended
|
ZVW5# S CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2019-08 → 2020-07
ended
|
ZVW5# S CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2019-08 → 2020-07
ended
|
ZVW5# (E,S) CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥12,400 | |
| 53101-47110 note |
Grille Sub-assy, Radiator
2020-07 → —
|
ZVW5# (E,S) CBU | ¥12,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
