Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

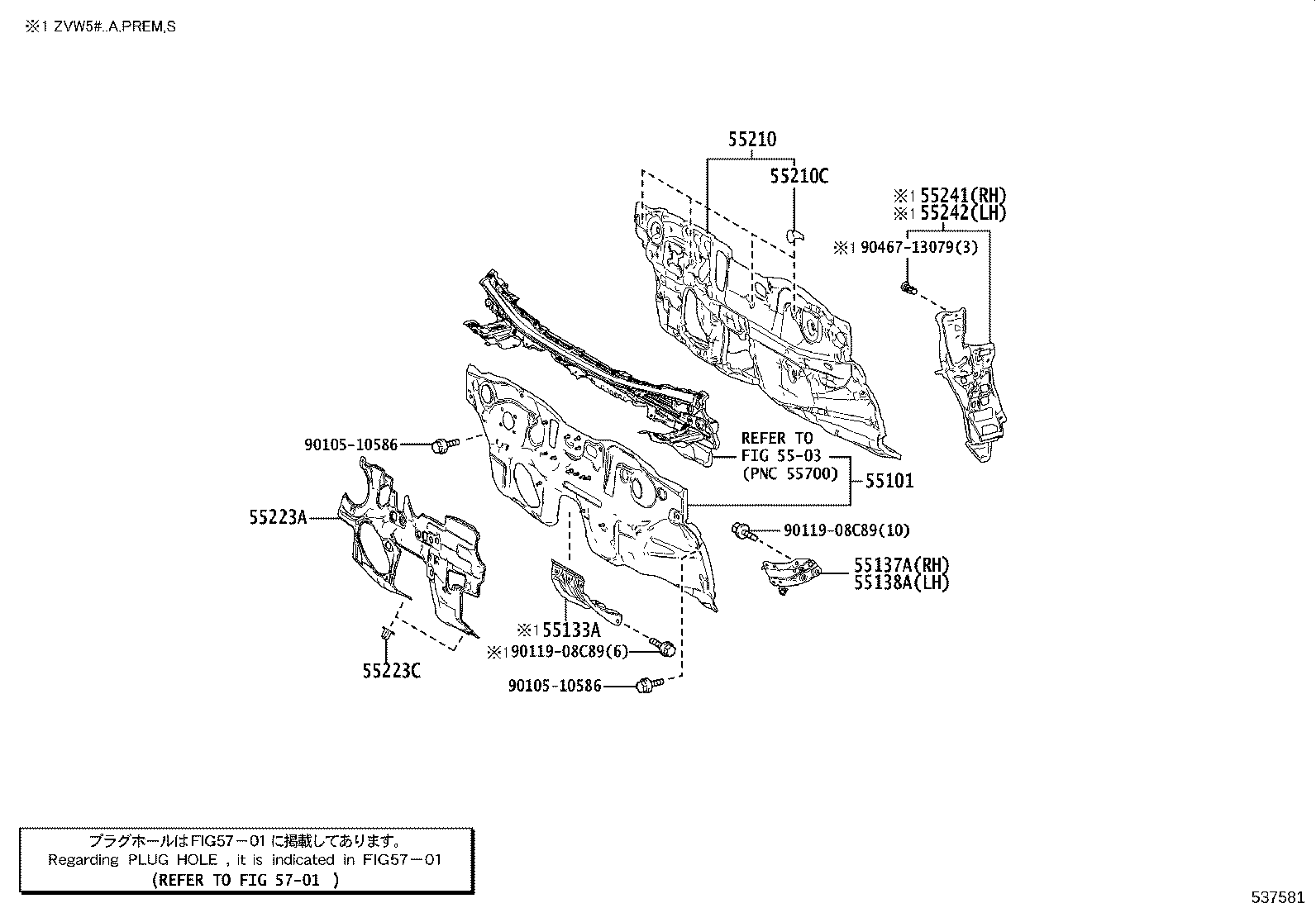

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-47901 |
Panel Sub-assy, Dash
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥44,600 | |
| 55101-47901 |
Panel Sub-assy, Dash
2018-12 → 2019-01
ended
|
ZVW5# CBU | ¥44,600 | |
| 55101-47904 |
Panel Sub-assy, Dash
2019-01 → —
|
ZVW5# CBU | ¥37,200 | |
| 55133A — Reinforcement, Dash TO Floor, RH | ||||
| 55133-47010 |
Reinforcement, Dash TO Floor, RH
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥2,190 | |
| 55133-47010 |
Reinforcement, Dash TO Floor, RH
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥2,190 | |
| 55137A — Brace, Dash TO Frame, RH | ||||
| 55137-47040 |
Brace, Dash TO Frame, RH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,320 | |
| 55137-47040 |
Brace, Dash TO Frame, RH
2018-12 → —
|
ZVW5# CBU | ¥1,320 | |
| 55138A — Brace, Dash TO Frame, LH | ||||
| 55138-47070 |
Brace, Dash TO Frame, LH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,320 | |
| 55138-47070 |
Brace, Dash TO Frame, LH
2018-12 → —
|
ZVW5# CBU | ¥1,320 | |
| 55210 — Insulator Assy, Dash Panel | ||||
| 55210-47210 |
Insulator Assy, Dash Panel
2015-11 → 2018-12
ended
|
ZVW51 E | ¥10,600 | |
| 55210-47250 |
Insulator Assy, Dash Panel
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥15,500 | |
| 55210-12730 |
Insulator Assy, Dash Panel
2018-12 → —
|
ZVW5# (E,S) CBU | ¥8,200 | |
| 55210-47290 |
Insulator Assy, Dash Panel
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥13,400 | |
| 55210C — Clip | ||||
| 90467-11122 |
Clip
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥100 | |
| 90467-11122 |
Clip
2018-12 → —
|
ZVW5# CBU | ¥100 | |
| 55223A — Insulator, Dash Panel, Outer | ||||
| 55223-47100 |
Insulator, Dash Panel, Outer
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,250 | |
| 55223-47100 |
Insulator, Dash Panel, Outer
2018-12 → —
|
ZVW5# CBU | ¥3,250 | |
| 55223C — Clip | ||||
| 90467-06197 |
Clip
2015-11 → 2017-07
ended
|
ZVW5# CBU | ¥120 | |
| 90467-06197 |
Clip
2017-08 → 2018-12
ended
|
ZVW5# CBU | ¥120 | |
| 90467-06197 |
Clip
2018-12 → —
|
ZVW5# CBU | ¥120 | |
| 55241 — Silencer, Front Panel Side, NO.1 RH | ||||
| 55241-47010 |
Silencer, Front Panel Side, NO.1 RH
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,110 | |
| 55241-47010 |
Silencer, Front Panel Side, NO.1 RH
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,110 | |
| 55242 — Silencer, Front Panel Side, NO.1 LH | ||||
| 55242-47010 |
Silencer, Front Panel Side, NO.1 LH
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,110 | |
| 55242-47010 |
Silencer, Front Panel Side, NO.1 LH
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,110 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
