Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

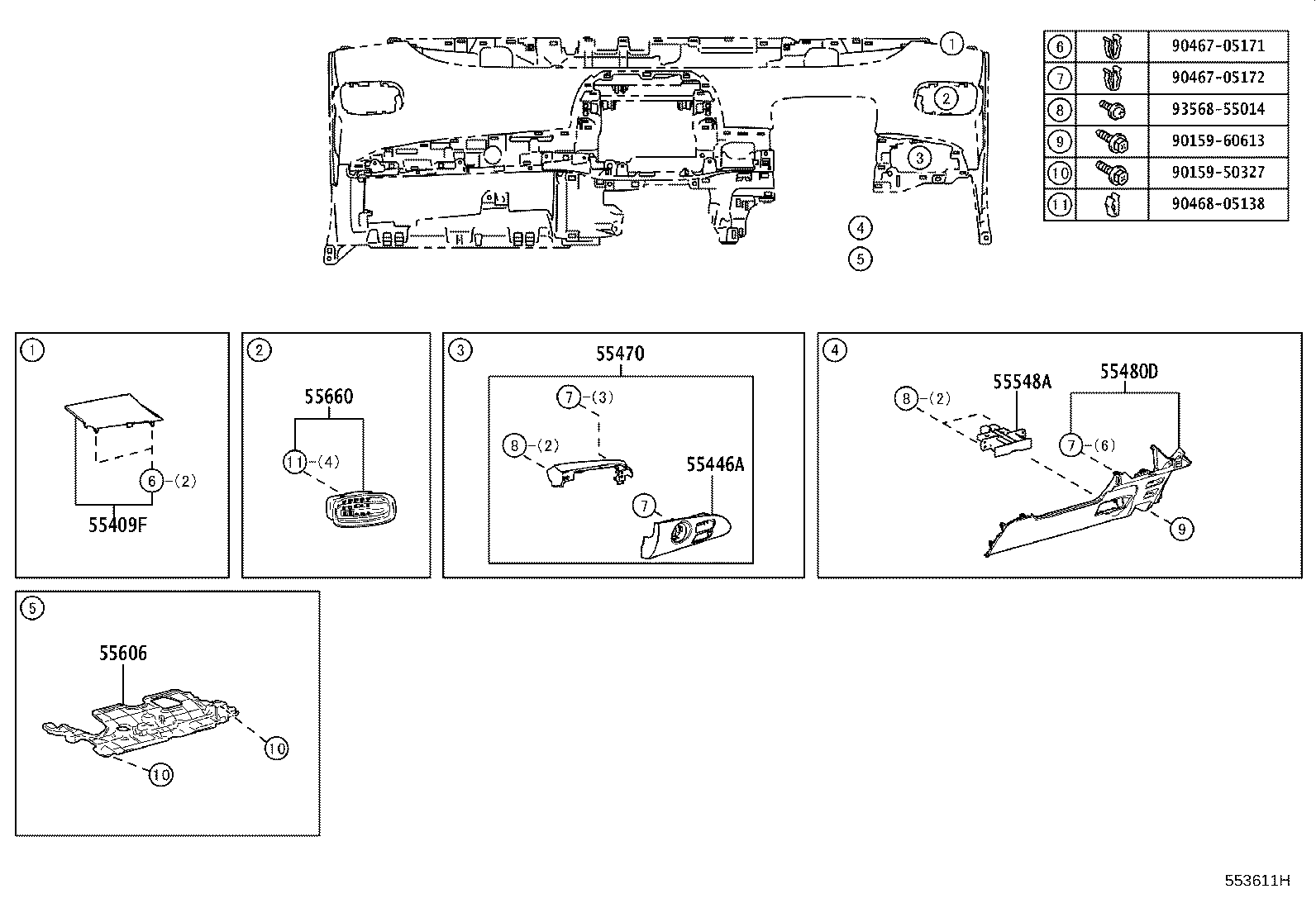

Exploded illustration 553611H 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (6 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (24 parts) 55446A — BASE, SWITCH HOLE, NO.1 (9 parts) 55470 — GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL (9 parts) 55480D — PANEL ASSY, INSTRUMENT PANEL FINISH, LWR (15 parts) 55548A — COVER, INSTRUMENT PANEL HOLE (10 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (2 parts) 9046705171 — not listed in this catalogue 9046705172 — not listed in this catalogue 9356855014 — not listed in this catalogue 9015960613 — not listed in this catalogue 9015950327 — not listed in this catalogue 9046805138 — not listed in this catalogue
553611H · 7 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55409-47010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥3,080
55409-47010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-11 → 2018-12 ended
ZVW51,55 A CBU ¥3,080
55473-47070-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥1,550
55473-47070-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,550
55409-47010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2018-12 → 2021-06 ended
ZVW5# PREM ¥3,080
55473-47070-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2018-12 → —
ZVW5# CBU ¥1,550
55446A — Base, Switch Hole, NO.1
55446-47170 Base, Switch Hole, NO.1
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥3,590
55446-47170 note Base, Switch Hole, NO.1
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥3,590
55446-47180 Base, Switch Hole, NO.1
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥3,590
55446-47200 note Base, Switch Hole, NO.1
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥3,590
55446-47200 note Base, Switch Hole, NO.1
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥3,590
55446-47170 Base, Switch Hole, NO.1
2018-12 → —
ZVW5# CBU ¥3,590
55446-47200 note Base, Switch Hole, NO.1
2018-12 → 2021-06 ended
ZVW5# A CBU ¥3,590
55446-47200 note Base, Switch Hole, NO.1
2018-12 → 2021-06 ended
ZVW5# PREM ¥3,590
55446-47230 note Base, Switch Hole, NO.1
2021-06 → —
ZVW5# (A,S) CBU ¥5,800
55470 — Garnish Assy, Instrument Cluster Finish Panel
55470-47030 Garnish Assy, Instrument Cluster Finish Panel
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥6,400
55470-47030 note Garnish Assy, Instrument Cluster Finish Panel
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥6,400
55470-47040 Garnish Assy, Instrument Cluster Finish Panel
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥6,400
55470-47060 note Garnish Assy, Instrument Cluster Finish Panel
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥7,000
55470-47060 note Garnish Assy, Instrument Cluster Finish Panel
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥7,000
55470-47030 Garnish Assy, Instrument Cluster Finish Panel
2018-12 → —
ZVW5# CBU ¥6,400
55470-47060 note Garnish Assy, Instrument Cluster Finish Panel
2018-12 → 2021-06 ended
ZVW5# A CBU ¥7,000
55470-47060 note Garnish Assy, Instrument Cluster Finish Panel
2018-12 → 2021-06 ended
ZVW5# PREM ¥7,000
55470-47090 note Garnish Assy, Instrument Cluster Finish Panel
2021-06 → —
ZVW5# (A,S) CBU ¥10,300
55480D — Panel Assy, Instrument Panel Finish, Lwr
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW51 PREM ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,800
55480-47130-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥5,800
55480-47130-C0 note Panel Assy, Instrument Panel Finish, Lwr
2015-11 → 2018-12 ended
ZVW51 PREM ¥5,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2020-07 → —
ZVW5# (A,E,S) CBU ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → —
ZVW5# PREM ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → 2020-07 ended
ZVW5# (A,S) CBU ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → 2020-07 ended
ZVW51 PREM ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → 2020-07 ended
ZVW5# (A,E,S) CBU ¥4,800
55480-47120-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → 2020-07 ended
ZVW5# (A,S) CBU ¥4,800
55480-47130-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → 2020-07 ended
ZVW5# (A,E,S) CBU ¥5,800
55480-47130-C0 note Panel Assy, Instrument Panel Finish, Lwr
2018-12 → 2020-07 ended
ZVW51 PREM ¥5,800
55548A — Cover, Instrument Panel Hole
55548-47060-C0 note Cover, Instrument Panel Hole
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2015-11 → 2018-12 ended
ZVW51 E ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2018-12 → —
ZVW5# A CBU ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2018-12 → —
ZVW5# PREM ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2018-12 → —
ZVW5# CBU ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2018-12 → 2020-06 ended
ZVW5# PREM ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2018-12 → 2020-06 ended
ZVW5# A CBU ¥1,050
55548-47060-C0 note Cover, Instrument Panel Hole
2018-12 → 2020-12 ended
ZVW5# (A,PREM,S) CBU ¥1,050
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-47080 Cover Sub-assy, Instrument Panel Under, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,610
55606-47080 Cover Sub-assy, Instrument Panel Under, NO.1
2018-12 → —
ZVW5# CBU ¥2,610
55660 — Register Assy, Instrument Panel, NO.2
55660-47150-C6 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,500
55660-47150-C6 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55660-47150-C6 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55660-47150-E0 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,400
55660-47150-E0 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,400
55660-47150-H0 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55660-47150-H0 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,500
55660-47150-H0 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55660-47150-J0 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55660-47150-J0 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,500
55660-47150-J0 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55660-47190-D0 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥6,400
55660-47190-D0 note Register Assy, Instrument Panel, NO.2
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥6,400
55660-47200-C0 note Register Assy, Instrument Panel, NO.2
2016-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,140
55660-47200-C0 note Register Assy, Instrument Panel, NO.2
2015-11 → 2018-12 ended
ZVW51 E ¥4,140
55660-47200-C0 note Register Assy, Instrument Panel, NO.2
2016-10 → 2016-11 ended
ZVW50,55 S CBU ¥4,140
55660-47200-C0 note Register Assy, Instrument Panel, NO.2
2015-11 → 2016-10 ended
ZVW50,55 S CBU ¥4,140
55660-47150-C6 note Register Assy, Instrument Panel, NO.2
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,500
55660-47150-H0 note Register Assy, Instrument Panel, NO.2
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,500
55660-47150-J0 note Register Assy, Instrument Panel, NO.2
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,500
55660-47150-J0 note Register Assy, Instrument Panel, NO.2
2018-12 → —
ZVW5# S CBU ¥4,500
55660-47200-C0 note Register Assy, Instrument Panel, NO.2
2018-12 → —
ZVW51 E ¥4,140
55660-47200-C0 note Register Assy, Instrument Panel, NO.2
2018-12 → —
ZVW5# S CBU ¥4,140
55660-47210 note Register Assy, Instrument Panel, NO.2
2021-06 → —
ZVW5# (A,S) CBU ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
