Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

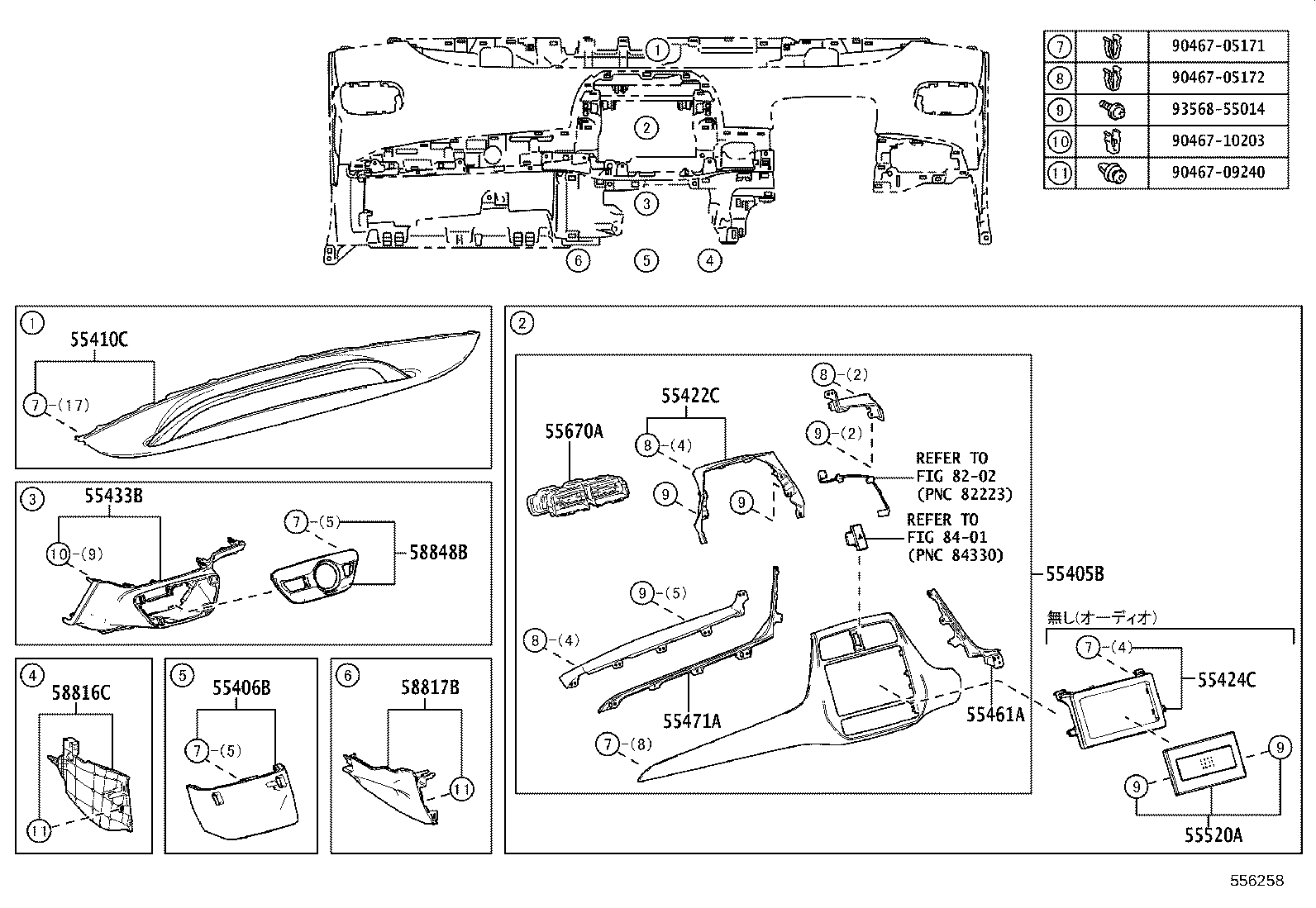

Exploded illustration 556258 9046705171 — not listed in this catalogue 9046705172 — not listed in this catalogue 9356855014 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046709240 — not listed in this catalogue 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (2 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (8 parts) 58848B — COVER, SHIFT LEVER HOLE (8 parts) 55406B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER (4 parts) 58816C — INSERT, CONSOLE BOX, FRONT NO.1 (3 parts) 58817B — INSERT, CONSOLE BOX, FRONT NO.2 (3 parts) 8202 — not listed in this catalogue 8401 — not listed in this catalogue 55422C — PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER (8 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (9 parts) 55424C — PANEL, RADIO TUNER FINISH (4 parts) 55520A — COVER ASSY, STEREO OPENING (5 parts) 55461A — ORNAMENT, INSTRUMENT PANEL (3 parts) 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (3 parts) 55471A — ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL (3 parts)
556258 · 13 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-47140-B0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-11 → 2018-12 ended
ZVW5# CBU ¥30,500
55405-47140-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-11 → 2018-12 ended
ZVW5# CBU ¥30,500
55405-47180 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥16,600
55405-47180 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥16,600
55405-47140-B0 note Panel Sub-assy, Instrument Cluster Finish, Center
2018-12 → —
ZVW5# CBU ¥30,500
55405-47140-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2018-12 → —
ZVW5# CBU ¥30,500
55405-47180 note Panel Sub-assy, Instrument Cluster Finish, Center
2018-12 → 2021-06 ended
ZVW5# A CBU ¥16,600
55405-47180 note Panel Sub-assy, Instrument Cluster Finish, Center
2018-12 → 2021-06 ended
ZVW5# PREM ¥16,600
55405-47190-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2021-06 → —
ZVW5# (A,S) CBU ¥44,800
55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406-47060-C0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥3,860
55406-47060-C0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥3,860
55406-47130-C0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥3,210
55406-47130-C0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2018-12 → —
ZVW5# CBU ¥3,210
55410C — Panel Assy, Instrument Cluster Finish
55410-47100 Panel Assy, Instrument Cluster Finish
2015-11 → 2018-12 ended
ZVW5# CBU ¥9,800
55410-47100 Panel Assy, Instrument Cluster Finish
2018-12 → —
ZVW5# CBU ¥9,800
55422C — Panel, Instrument Cluster Finish, Center Upper
55422-47030-B0 note Panel, Instrument Cluster Finish, Center Upper
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,680
55422-47030-C0 note Panel, Instrument Cluster Finish, Center Upper
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,680
55422-47060 note Panel, Instrument Cluster Finish, Center Upper
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥3,000
55422-47060 note Panel, Instrument Cluster Finish, Center Upper
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥3,000
55422-47030-B0 note Panel, Instrument Cluster Finish, Center Upper
2018-12 → —
ZVW5# CBU ¥2,680
55422-47030-C0 note Panel, Instrument Cluster Finish, Center Upper
2018-12 → —
ZVW5# CBU ¥2,680
55422-47060 note Panel, Instrument Cluster Finish, Center Upper
2018-12 → 2021-06 ended
ZVW5# A CBU ¥3,000
55422-47060 note Panel, Instrument Cluster Finish, Center Upper
2018-12 → 2021-06 ended
ZVW5# PREM ¥3,000
55424C — Panel, Radio Tuner Finish
55424-47030 note Panel, Radio Tuner Finish
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,000
55424-47030 note Panel, Radio Tuner Finish
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥2,000
55424-47030 note Panel, Radio Tuner Finish
2018-12 → —
ZVW51 E ¥2,000
55424-47030 note Panel, Radio Tuner Finish
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥2,000
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-47040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥5,400
55433-47060-C0 note Panel, Instrument Panel Finish, Lower NO.2
2017-11 → 2018-12 ended
ZVW51,55 A CBU ¥5,400
55433-47060-C0 note Panel, Instrument Panel Finish, Lower NO.2
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥5,400
55433-47060-C0 note Panel, Instrument Panel Finish, Lower NO.2
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥5,400
55433-47060-C0 note Panel, Instrument Panel Finish, Lower NO.2
2017-11 → 2018-12 ended
ZVW51,55 A CBU ¥5,400
55433-47040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-12 → —
ZVW5# CBU ¥5,400
55433-47060-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-12 → 2021-06 ended
ZVW5# A CBU ¥5,400
55433-47060-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-12 → 2021-06 ended
ZVW5# PREM ¥5,400
55461A — Ornament, Instrument Panel
55461-47140 Ornament, Instrument Panel
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,700
55461-47140 Ornament, Instrument Panel
2018-12 → —
ZVW5# CBU ¥2,700
55461-47180 note Ornament, Instrument Panel
2021-06 → —
ZVW5# (A,S) CBU ¥4,310
55471A — Ornament, Instrument Cluster Finish Panel
55471-47050 Ornament, Instrument Cluster Finish Panel
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,590
55471-47050 Ornament, Instrument Cluster Finish Panel
2018-12 → —
ZVW5# CBU ¥3,590
55471-47090 note Ornament, Instrument Cluster Finish Panel
2021-06 → —
ZVW5# (A,S) CBU ¥5,800
55520A — Cover Assy, Stereo Opening
55520-47030 note Cover Assy, Stereo Opening
2015-11 → 2017-06 ended
ZVW5# CBU ¥1,800
55520-47031 note Cover Assy, Stereo Opening
2017-06 → 2018-12 ended
ZVW5# CBU ¥1,800
55520-47031 note Cover Assy, Stereo Opening
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥1,800
55520-47031 note Cover Assy, Stereo Opening
2018-12 → —
ZVW51 E ¥1,800
55520-47031 note Cover Assy, Stereo Opening
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥1,800
55670A — Register Assy, Instrument Panel, Center
55670-47190 Register Assy, Instrument Panel, Center
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,700
55670-47190 Register Assy, Instrument Panel, Center
2018-12 → —
ZVW5# CBU ¥6,700
55670-47250 note Register Assy, Instrument Panel, Center
2021-06 → —
ZVW5# (A,S) CBU ¥8,000
58816C — Insert, Console Box, Front NO.1
58816-47060-C0 note Insert, Console Box, Front NO.1
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,410
58816-47060-C0 note Insert, Console Box, Front NO.1
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,410
58816-47060-C0 note Insert, Console Box, Front NO.1
2018-12 → —
ZVW5# CBU ¥2,410
58817B — Insert, Console Box, Front NO.2
58817-47060-C0 note Insert, Console Box, Front NO.2
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,290
58817-47060-C0 note Insert, Console Box, Front NO.2
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,290
58817-47060-C0 note Insert, Console Box, Front NO.2
2018-12 → —
ZVW5# CBU ¥2,290
58848B — Cover, Shift Lever Hole
58841-47050 Cover, Shift Lever Hole
2015-11 → 2017-11 ended
ZVW5# CBU ¥4,310
58841-47050-A0 note Cover, Shift Lever Hole
2017-11 → 2018-12 ended
ZVW51 E ¥4,310
58841-47050-A0 note Cover, Shift Lever Hole
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,310
58841-47050-A0 note Cover, Shift Lever Hole
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,310
58841-47050-C0 note Cover, Shift Lever Hole
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥3,590
58841-47050-C0 note Cover, Shift Lever Hole
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥3,590
58841-47050-C0 note Cover, Shift Lever Hole
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥3,590
58841-47050-C0 note Cover, Shift Lever Hole
2018-12 → —
ZVW5# CBU ¥3,590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
