Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

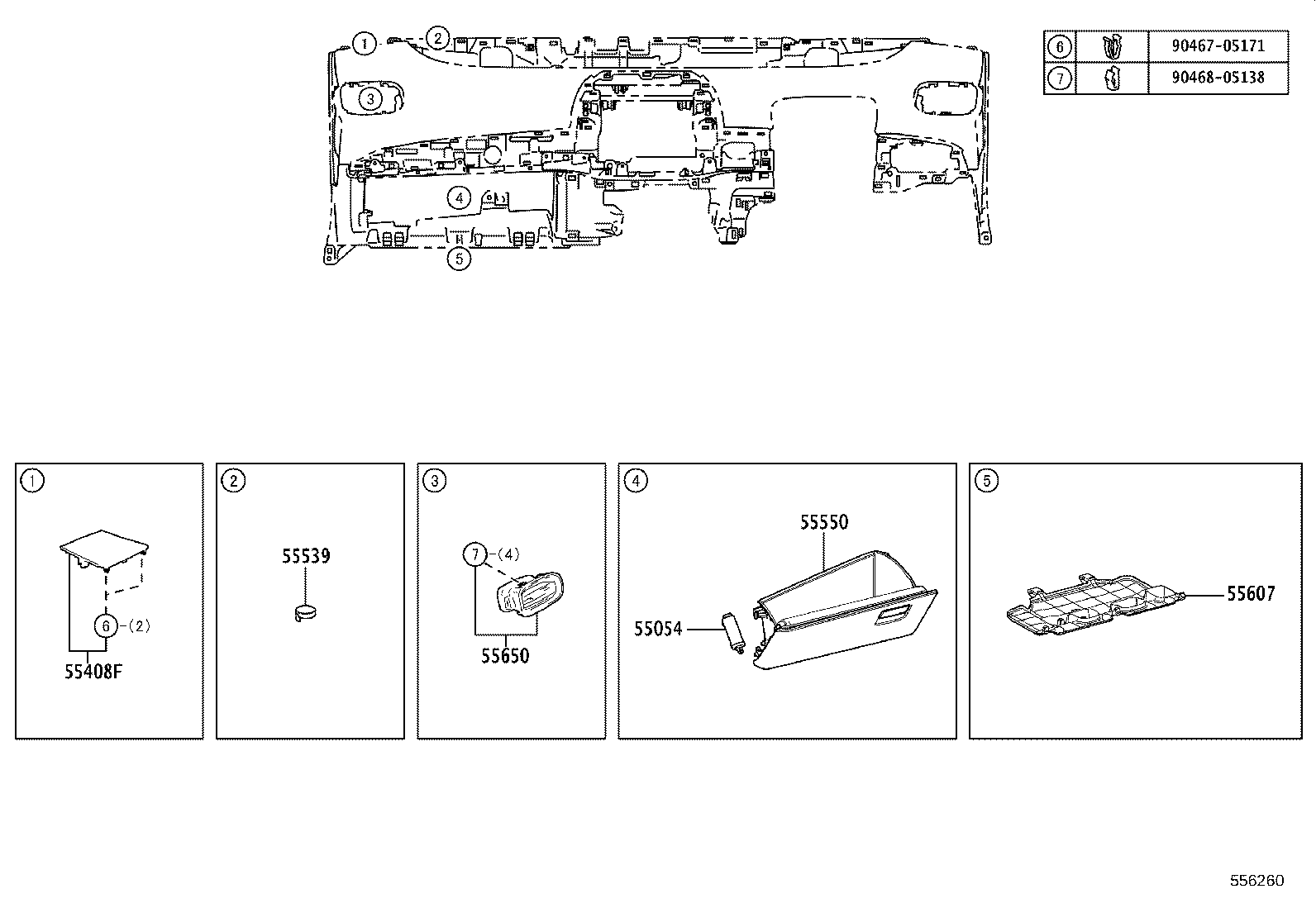

Exploded illustration 556260 9046705171 — not listed in this catalogue 9046805138 — not listed in this catalogue 55408F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 (6 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (24 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (3 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (2 parts) 55539 — COVER, SPARE SWITCH HOLE (10 parts)
556260 · 6 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
55054 — Stopper Sub-assy, Glove Compartment Door
55054-75020 Stopper Sub-assy, Glove Compartment Door
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,190
55054-75020 Stopper Sub-assy, Glove Compartment Door
2018-12 → —
ZVW5# CBU ¥1,190
55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1
55408-47020-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥3,080
55408-47020-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-11 → 2018-12 ended
ZVW51,55 A CBU ¥3,080
55472-47070-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥1,550
55472-47070-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,550
55408-47020-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2018-12 → 2021-06 ended
ZVW5# PREM ¥3,080
55472-47070-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2018-12 → —
ZVW5# CBU ¥1,550
55539 — Cover, Spare Switch Hole
55539-47010-C0 note Cover, Spare Switch Hole
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2015-11 → 2018-12 ended
ZVW51 E ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2018-12 → 2020-06 ended
ZVW5# A CBU ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2018-12 → 2020-06 ended
ZVW5# PREM ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2018-12 → 2020-12 ended
ZVW5# (A,PREM,S) CBU ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2018-12 → —
ZVW5# CBU ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2018-12 → —
ZVW5# PREM ¥240
55539-47010-C0 note Cover, Spare Switch Hole
2018-12 → —
ZVW5# A CBU ¥240
55550 — Door Assy, Glove Compartment
55550-47140-C0 note Door Assy, Glove Compartment
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥11,100
55550-47140-C0 note Door Assy, Glove Compartment
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥11,100
55550-47140-C0 note Door Assy, Glove Compartment
2018-12 → —
ZVW5# CBU ¥11,100
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-47080 Cover Sub-assy, Instrument Panel Under, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,250
55607-47080 Cover Sub-assy, Instrument Panel Under, NO.2
2018-12 → —
ZVW5# CBU ¥2,250
55650 — Register Assy, Instrument Panel, NO.1
55650-47190-C6 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55650-47190-C6 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55650-47190-C6 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,500
55650-47190-E0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,400
55650-47190-E0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,400
55650-47190-H0 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,500
55650-47190-H0 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55650-47190-H0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55650-47190-J0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55650-47190-J0 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,500
55650-47190-J0 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,500
55650-47250-D0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥6,400
55650-47250-D0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥6,400
55650-47260-C0 note Register Assy, Instrument Panel, NO.1
2015-11 → 2016-10 ended
ZVW50,55 S CBU ¥4,140
55650-47260-C0 note Register Assy, Instrument Panel, NO.1
2016-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,140
55650-47260-C0 note Register Assy, Instrument Panel, NO.1
2015-11 → 2018-12 ended
ZVW51 E ¥4,140
55650-47260-C0 note Register Assy, Instrument Panel, NO.1
2016-10 → 2016-11 ended
ZVW50,55 S CBU ¥4,140
55650-47190-C6 note Register Assy, Instrument Panel, NO.1
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,500
55650-47190-H0 note Register Assy, Instrument Panel, NO.1
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,500
55650-47190-J0 note Register Assy, Instrument Panel, NO.1
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,500
55650-47190-J0 note Register Assy, Instrument Panel, NO.1
2018-12 → —
ZVW5# S CBU ¥4,500
55650-47260-C0 note Register Assy, Instrument Panel, NO.1
2018-12 → —
ZVW51 E ¥4,140
55650-47260-C0 note Register Assy, Instrument Panel, NO.1
2018-12 → —
ZVW5# S CBU ¥4,140
55650-47270 note Register Assy, Instrument Panel, NO.1
2021-06 → —
ZVW5# (A,S) CBU ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
