Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

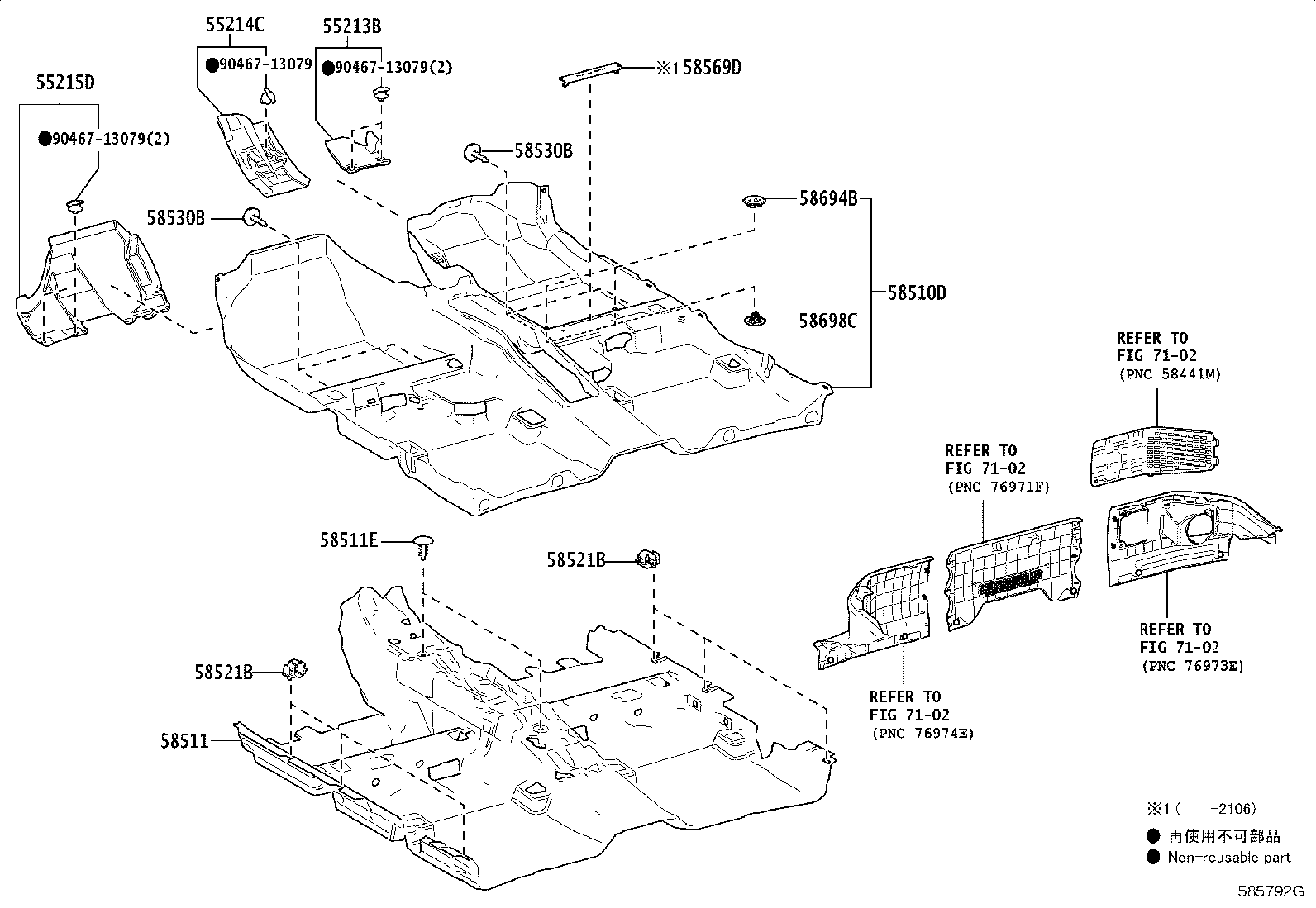

Exploded illustration 585792G 55213B — PAD, DASH PANEL INSULATOR, NO.1 (2 parts) 58569D — COVER, FRONT FLOOR CAUTION PLATE (7 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (6 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (6 parts) 58510D — CARPET ASSY, FLOOR, FRONT (8 parts) 58511 — MAT, FLOOR, FRONT (3 parts) 55215D — PAD, DASH PANEL INSULATOR, NO.3 (2 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (3 parts) 58694B — PLATE, MAT SET, UPPER (2 parts) 58698C — PLATE, MAT SET, LOWER (2 parts) 9046713079 — not listed in this catalogue 9046713079 — not listed in this catalogue 55214C — PAD, DASH PANEL INSULATOR, NO.2 (2 parts) 9046713079 — not listed in this catalogue 7102 — not listed in this catalogue 7102 — not listed in this catalogue 7102 — not listed in this catalogue 7102 — not listed in this catalogue
585792G · 13 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
55213B — Pad, Dash Panel Insulator, NO.1
55213-47150 Pad, Dash Panel Insulator, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥670
55213-47150 Pad, Dash Panel Insulator, NO.1
2018-12 → 2022-11 ended
ZVW5# CBU ¥670
55214C — Pad, Dash Panel Insulator, NO.2
55214-47070 Pad, Dash Panel Insulator, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,490
55214-47070 Pad, Dash Panel Insulator, NO.2
2018-12 → —
ZVW5# CBU ¥1,490
55215D — Pad, Dash Panel Insulator, NO.3
55215-47070 Pad, Dash Panel Insulator, NO.3
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,310
55215-47070 Pad, Dash Panel Insulator, NO.3
2018-12 → —
ZVW5# CBU ¥3,310
58510D — Carpet Assy, Floor, Front
58510-47530-C1 note Carpet Assy, Floor, Front
2015-11 → 2018-03 ended
ZVW51 E ¥30,300
58510-47530-C1 note Carpet Assy, Floor, Front
2015-11 → 2018-03 ended
ZVW5# (A,S) CBU ¥30,300
58510-47530-C1 note Carpet Assy, Floor, Front
2015-11 → 2018-03 ended
ZVW51,55 PREM ¥30,300
58510-47530-C2 note Carpet Assy, Floor, Front
2018-03 → 2018-12 ended
ZVW51,55 PREM ¥30,300
58510-47530-C2 note Carpet Assy, Floor, Front
2018-03 → 2018-12 ended
ZVW5# (A,S) CBU ¥30,300
58510-47530-C2 note Carpet Assy, Floor, Front
2018-03 → 2018-12 ended
ZVW51 E ¥30,300
58510-47260-C1 note Carpet Assy, Floor, Front
2018-12 → 2021-05 ended
ZVW5# CBU ¥25,200
58510-47261-C1 note Carpet Assy, Floor, Front
2021-05 → —
ZVW5# CBU ¥25,200
58511 — Mat, Floor, Front
58511-47010 Mat, Floor, Front
2015-11 → 2018-12 ended
ZVW5# CBU ¥10,000
58511-47010 Mat, Floor, Front
2018-12 → 2019-04 ended
ZVW5# CBU ¥10,000
58511-47011 Mat, Floor, Front
2019-05 → —
ZVW5# CBU ¥8,200
58511E — Clip(FOR FRONT FLOOR MAT)
90467-07042-C0 note Clip(FOR FRONT FLOOR MAT)
2015-11 → 2017-06 ended
ZVW5# CBU ¥70
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2017-06 → 2018-12 ended
ZVW5# CBU ¥60
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2018-12 → —
ZVW5# CBU ¥60
58521B — Hook, Floor Carpet
58521-47030 Hook, Floor Carpet
2015-11 → 2018-12 ended
ZVW5# CBU ¥300
58521-47030 Hook, Floor Carpet
2018-12 → —
ZVW5# CBU ¥300
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2016-10 → 2018-12 ended
ZVW51 E ¥90
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥90
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥90
90467-07049-C0 note Clip(FOR FRONT FLOOR CARPET)
2015-11 → 2016-10 ended
ZVW5# (A,PREM,S) CBU ¥100
90467-07049-C0 note Clip(FOR FRONT FLOOR CARPET)
2015-11 → 2016-10 ended
ZVW51 E ¥100
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2018-12 → —
ZVW5# CBU ¥90
58569D — Cover, Front Floor Caution Plate
58569-47020-C0 note Cover, Front Floor Caution Plate
2015-11 → 2017-12 ended
ZVW5# (A,S) CBU ¥970
58569-47020-C0 note Cover, Front Floor Caution Plate
2015-11 → 2017-12 ended
ZVW51,55 PREM ¥970
58569-47020-C0 note Cover, Front Floor Caution Plate
2015-11 → 2017-12 ended
ZVW51 E ¥970
58569-47020-C1 note Cover, Front Floor Caution Plate
2018-01 → 2018-12 ended
ZVW51 E ¥730
58569-47020-C1 note Cover, Front Floor Caution Plate
2018-01 → 2018-12 ended
ZVW5# (A,S) CBU ¥730
58569-47020-C1 note Cover, Front Floor Caution Plate
2018-01 → 2018-12 ended
ZVW51,55 PREM ¥730
58569-47020-C1 note Cover, Front Floor Caution Plate
2018-12 → 2021-05 ended
ZVW5# CBU ¥730
58694B — Plate, Mat Set, Upper
58694-78010 Plate, Mat Set, Upper
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
58694-78010 Plate, Mat Set, Upper
2018-12 → —
ZVW5# CBU ¥130
58698C — Plate, Mat Set, Lower
58698-78010 Plate, Mat Set, Lower
2015-11 → 2018-12 ended
ZVW5# CBU ¥230
58698-78010 Plate, Mat Set, Lower
2018-12 → —
ZVW5# CBU ¥230
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
