Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

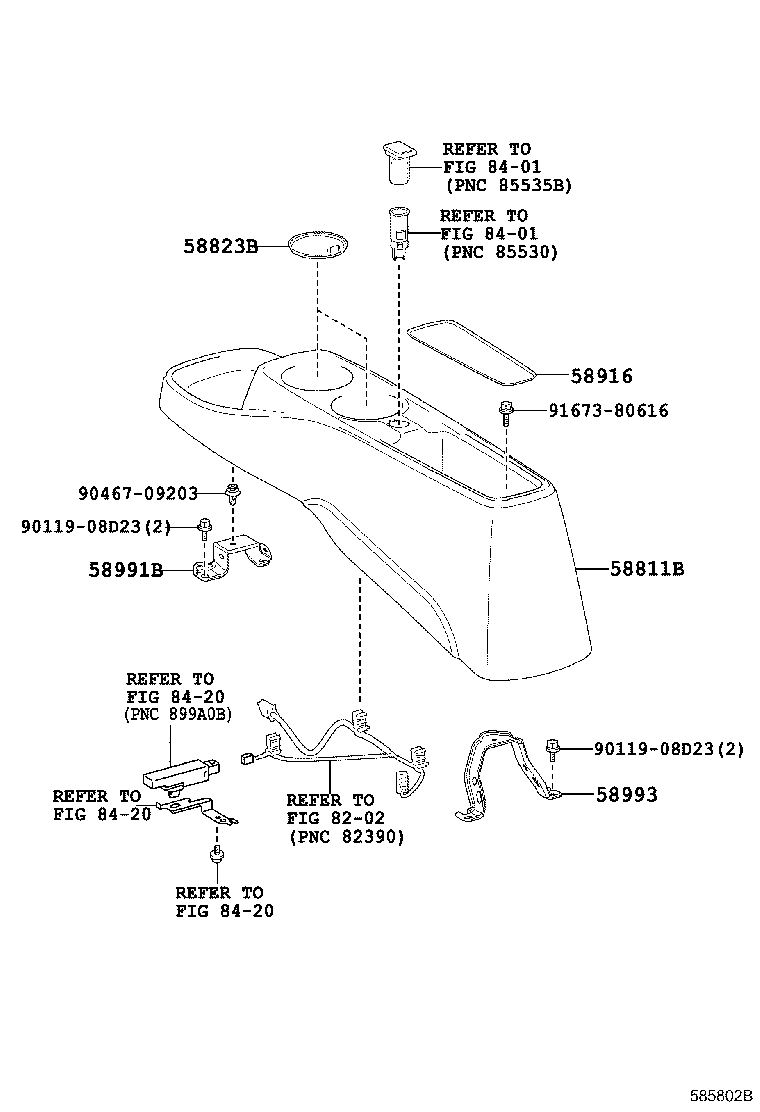

Exploded illustration 585802B 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8420 — not listed in this catalogue 8420 — not listed in this catalogue 8420 — not listed in this catalogue 58811B — BOX, CONSOLE (2 parts) 58823B — BOX, CONSOLE COMPARTMENT (3 parts) 58916 — MAT, BOX BOTTOM (4 parts) 58991B — BRACKET, CONSOLE BOX MOUNTING, FRONT (4 parts) 58993 — BRACKET, CONSOLE BOX MOUNTING, REAR (4 parts) 9011908D23 — not listed in this catalogue 9011908D23 — not listed in this catalogue 9046709203 — not listed in this catalogue 9167380616 — not listed in this catalogue
585802B · 5 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
58811B — Box, Console
58811-47020 Box, Console
2015-11 → 2018-12 ended
ZVW51 E ¥11,400
58811-47020 Box, Console
2018-12 → —
ZVW51 E ¥11,400
58823B — Box, Console Compartment
58823-47030 Box, Console Compartment
2015-11 → 2018-12 ended
ZVW51 E ¥500
58823-47030 Box, Console Compartment
2018-12 → —
ZVW51 E ¥500
58823-78010 Box, Console Compartment
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥300
58916 — Mat, Box Bottom
58916-47020 Mat, Box Bottom
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥270
58916-47030 Mat, Box Bottom
2015-11 → 2018-12 ended
ZVW51 E ¥780
58916-47020 Mat, Box Bottom
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥270
58916-47030 Mat, Box Bottom
2018-12 → —
ZVW51 E ¥780
58991B — Bracket, Console Box Mounting, Front
58991-47020 Bracket, Console Box Mounting, Front
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥990
58995-47030 Bracket, Console Box Mounting, Front
2015-11 → 2018-12 ended
ZVW51 E ¥710
58991-47020 Bracket, Console Box Mounting, Front
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥990
58995-47030 Bracket, Console Box Mounting, Front
2018-12 → —
ZVW51 E ¥710
58993 — Bracket, Console Box Mounting, Rear
58996-47030 Bracket, Console Box Mounting, Rear
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥1,580
58996-47040 Bracket, Console Box Mounting, Rear
2015-11 → 2018-12 ended
ZVW51 E ¥930
58996-47030 Bracket, Console Box Mounting, Rear
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥1,580
58996-47040 Bracket, Console Box Mounting, Rear
2018-12 → —
ZVW51 E ¥930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
