Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

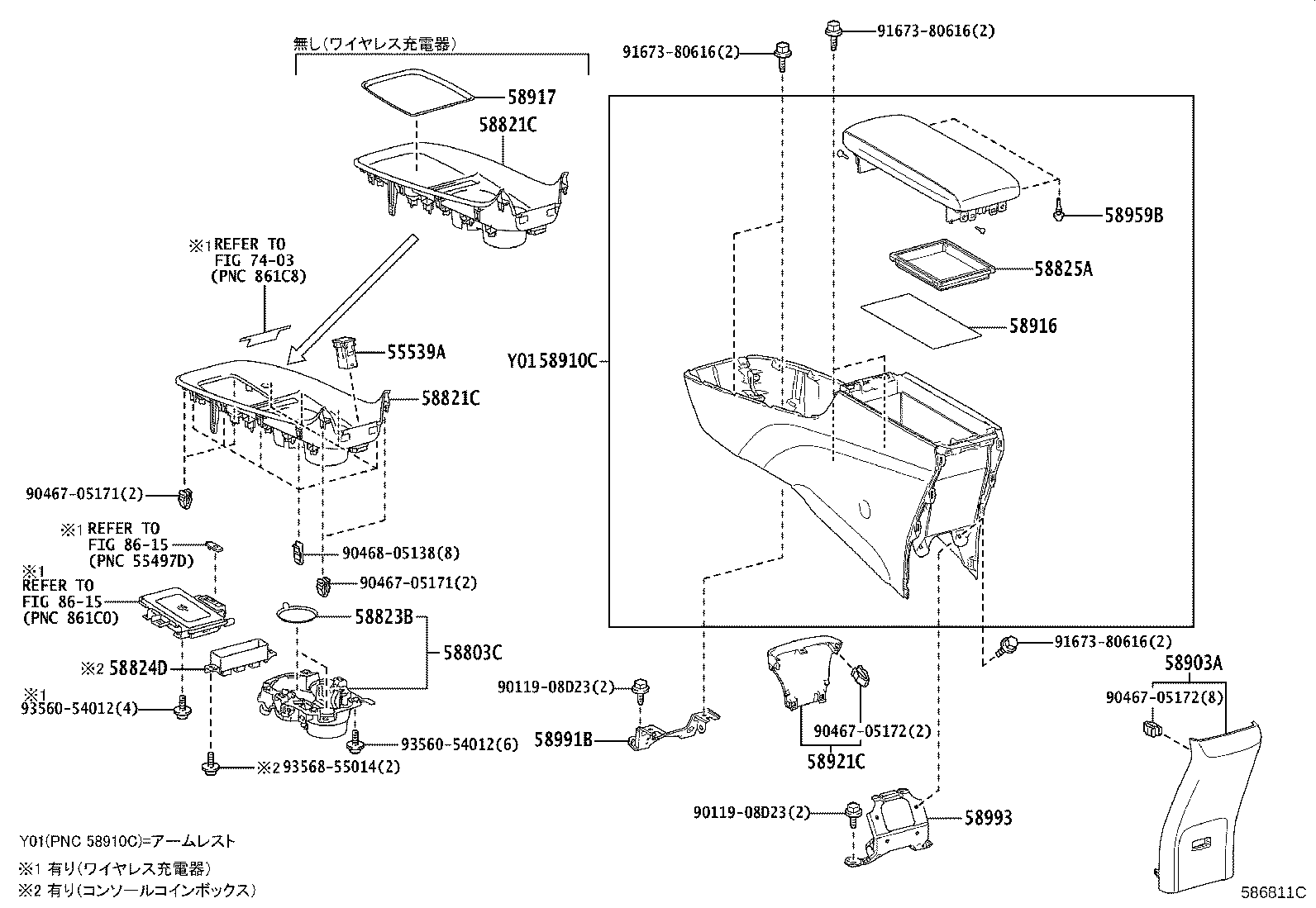

Exploded illustration 586811C 8615 — not listed in this catalogue 8615 — not listed in this catalogue 58823B — BOX, CONSOLE COMPARTMENT (3 parts) 58903A — PANEL SUB-ASSY, CONSOLE REAR END (9 parts) 9046705172 — not listed in this catalogue 58821C — PANEL, CONSOLE, UPPER (27 parts) 55539A — COVER, SPARE SWITCH HOLE (12 parts) 58917 — MAT, BOX BOTTOM, NO.2 (3 parts) 58821C — PANEL, CONSOLE, UPPER (27 parts) 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046805138 — not listed in this catalogue 7403 — not listed in this catalogue 58825A — POCKET, CONSOLE BOX (2 parts) 58910C — BOX ASSY, CONSOLE, REAR (6 parts) 58916 — MAT, BOX BOTTOM (4 parts) 58921C — PLATE, BOX, UPPER NO.1 (9 parts) 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (2 parts) 58991B — BRACKET, CONSOLE BOX MOUNTING, FRONT (4 parts) 58993 — BRACKET, CONSOLE BOX MOUNTING, REAR (4 parts) 9011908D23 — not listed in this catalogue 9356855014 — not listed in this catalogue 9011908D23 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9046705172 — not listed in this catalogue 58824D — BOX, CONSOLE COIN (1 parts) 58803C — BOX SUB-ASSY, CONSOLE CUP HOLDER (13 parts) 9356054012 — not listed in this catalogue 9356054012 — not listed in this catalogue
586811C · 15 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
55539A — Cover, Spare Switch Hole
55539-58070-C0 note Cover, Spare Switch Hole
2015-11 → 2018-06 ended
ZVW51,55 (A,PREM) CBU ¥410
55539-58070-C0 note Cover, Spare Switch Hole
2015-11 → 2018-06 ended
ZVW51,55 (A,PREM) CBU ¥410
55539-58070-C0 note Cover, Spare Switch Hole
2015-11 → 2018-05 ended
ZVW5# (A,PREM,S) CBU ¥410
55539-58070-C1 note Cover, Spare Switch Hole
2018-06 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥410
55539-58070-C1 note Cover, Spare Switch Hole
2018-06 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥410
55539-58070-C1 note Cover, Spare Switch Hole
2018-06 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥410
55524-12010-C0 note Cover, Spare Switch Hole
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥310
55524-12010-C0 note Cover, Spare Switch Hole
2018-12 → 2021-06 ended
ZVW5# A CBU ¥310
55524-12010-C0 note Cover, Spare Switch Hole
2018-12 → 2021-06 ended
ZVW5# PREM ¥310
55524-12010-C0 note Cover, Spare Switch Hole
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥310
55524-12010-C0 note Cover, Spare Switch Hole
2018-12 → 2020-06 ended
ZVW5# PREM ¥310
55524-12010-C0 note Cover, Spare Switch Hole
2018-12 → 2020-06 ended
ZVW5# A CBU ¥310
58803C — Box Sub-assy, Console Cup Holder
58803-47010 Box Sub-assy, Console Cup Holder
2015-11 → 2016-05 ended
ZVW51,55 (A,PREM) CBU ¥7,000
58803-47010 note Box Sub-assy, Console Cup Holder
2016-05 → 2016-06 ended
ZVW51,55 (A,PREM) CBU ¥7,000
58803-47011-A0 note Box Sub-assy, Console Cup Holder
2016-06 → 2016-10 ended
ZVW51,55 (A,PREM) CBU ¥5,800
58803-47011-A0 note Box Sub-assy, Console Cup Holder
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,800
58803-47011-A0 note Box Sub-assy, Console Cup Holder
2016-10 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥5,800
58803-47011-C0 note Box Sub-assy, Console Cup Holder
2016-10 → 2017-02 ended
ZVW51,55 A CBU ¥5,800
58803-47011-C0 note Box Sub-assy, Console Cup Holder
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,800
58803-47011-C0 note Box Sub-assy, Console Cup Holder
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥5,800
58803-47011-C0 note Box Sub-assy, Console Cup Holder
2016-10 → 2018-12 ended
ZVW51,55 A CBU ¥5,800
58803-47020 Box Sub-assy, Console Cup Holder
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,760
58803-47030-C0 note Box Sub-assy, Console Cup Holder
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥10,600
58803-47030-C0 note Box Sub-assy, Console Cup Holder
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥10,600
58803-47050 Box Sub-assy, Console Cup Holder
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥3,490
58821C — Panel, Console, Upper
58821-47040 note Panel, Console, Upper
2015-11 → 2016-06 ended
ZVW51,55 (A,PREM) CBU ¥14,400
58821-47041-A0 note Panel, Console, Upper
2016-06 → 2016-10 ended
ZVW51,55 (A,PREM) CBU ¥12,000
58821-47041-A0 note Panel, Console, Upper
2016-10 → 2017-02 ended
ZVW51,55 A CBU ¥12,000
58821-47041-A0 note Panel, Console, Upper
2016-10 → 2017-04 ended
ZVW51,55 PREM ¥12,000
58821-47041-A0 note Panel, Console, Upper
2017-02 → 2017-04 ended
ZVW51,55 A CBU ¥12,000
58821-47041-A0 note Panel, Console, Upper
2018-02 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥12,000
58821-47041-A0 note Panel, Console, Upper
2017-04 → 2018-02 ended
ZVW51,55 (A,PREM) CBU ¥12,000
58821-47041-C0 note Panel, Console, Upper
2018-02 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥12,000
58821-47041-C0 note Panel, Console, Upper
2016-10 → 2017-02 ended
ZVW51,55 A CBU ¥12,000
58821-47041-C0 note Panel, Console, Upper
2017-04 → 2018-02 ended
ZVW51,55 A CBU ¥12,000
58821-47041-C0 note Panel, Console, Upper
2017-04 → 2018-02 ended
ZVW51,55 PREM ¥12,000
58821-47050 Panel, Console, Upper
2015-11 → 2016-05 ended
ZVW51,55 (A,PREM) CBU ¥14,400
58821-47051-A0 note Panel, Console, Upper
2016-10 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥12,000
58821-47051-A0 note Panel, Console, Upper
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥12,000
58821-47051-A0 note Panel, Console, Upper
2016-06 → 2016-10 ended
ZVW51,55 (A,PREM) CBU ¥12,000
58821-47051-C0 note Panel, Console, Upper
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥12,000
58821-47051-C0 note Panel, Console, Upper
2016-10 → 2018-12 ended
ZVW51,55 A CBU ¥12,000
58821-47051-C0 note Panel, Console, Upper
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥12,000
58821-47070 Panel, Console, Upper
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥7,200
58821-47110-C0 note Panel, Console, Upper
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥17,400
58821-47120-C0 note Panel, Console, Upper
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥17,400
58821-47130-C0 note Panel, Console, Upper
2018-12 → 2021-06 ended
ZVW5# A CBU ¥9,000
58821-47130-C0 note Panel, Console, Upper
2018-12 → 2021-06 ended
ZVW5# A CBU ¥9,000
58821-47130-C0 note Panel, Console, Upper
2018-12 → —
ZVW5# PREM ¥9,000
58821-47140-C0 note Panel, Console, Upper
2018-12 → —
ZVW5# (A,PREM) CBU ¥9,000
58821-47140-C0 note Panel, Console, Upper
2021-06 → —
ZVW5# S CBU ¥9,000
58821-47150 Panel, Console, Upper
2018-12 → —
ZVW5# S CBU ¥5,400
58823B — Box, Console Compartment
58823-47030 Box, Console Compartment
2015-11 → 2018-12 ended
ZVW51 E ¥500
58823-47030 Box, Console Compartment
2018-12 → —
ZVW51 E ¥500
58823-78010 Box, Console Compartment
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥300
58824D — Box, Console Coin
58824-47010 Box, Console Coin
2018-12 → —
ZVW5# (A,S) CBU ¥930
58825A — Pocket, Console Box
58825-47060 Pocket, Console Box
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥1,880
58825-47060 Pocket, Console Box
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥1,880
58903A — Panel Sub-assy, Console Rear End
58903-47060-C0 note Panel Sub-assy, Console Rear End
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥3,210
58903-47060-C0 note Panel Sub-assy, Console Rear End
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥3,210
58903-47070-C0 note Panel Sub-assy, Console Rear End
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥3,210
58903-47070-C0 note Panel Sub-assy, Console Rear End
2015-11 → 2018-12 ended
ZVW51 PREM ¥3,210
58903-47060-C0 note Panel Sub-assy, Console Rear End
2018-12 → 2020-07 ended
ZVW5# (A,S) CBU ¥3,210
58903-47060-C0 note Panel Sub-assy, Console Rear End
2020-07 → —
ZVW5# (A,S) CBU ¥3,210
58903-47060-C0 note Panel Sub-assy, Console Rear End
2018-12 → —
ZVW5# PREM ¥3,210
58903-47070-C0 note Panel Sub-assy, Console Rear End
2018-12 → 2020-07 ended
ZVW51 PREM ¥3,210
58903-47070-C0 note Panel Sub-assy, Console Rear End
2018-12 → 2020-07 ended
ZVW5# (A,S) CBU ¥3,210
58910C — Box Assy, Console, Rear
58910-47030-C2 note Box Assy, Console, Rear
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥36,400
58910-47030-C2 note Box Assy, Console, Rear
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥36,400
58910-47040-C2 note Box Assy, Console, Rear
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥35,900
58910-47030-C2 note Box Assy, Console, Rear
2018-12 → —
ZVW5# PREM ¥36,400
58910-47030-C2 note Box Assy, Console, Rear
2018-12 → —
ZVW5# (A,S) CBU ¥36,400
58910-47040-C2 note Box Assy, Console, Rear
2018-12 → —
ZVW5# (A,S) CBU ¥35,900
58916 — Mat, Box Bottom
58916-47020 Mat, Box Bottom
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥270
58916-47030 Mat, Box Bottom
2015-11 → 2018-12 ended
ZVW51 E ¥780
58916-47020 Mat, Box Bottom
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥270
58916-47030 Mat, Box Bottom
2018-12 → —
ZVW51 E ¥780
58917 — Mat, Box Bottom, NO.2
58917-47030 Mat, Box Bottom, NO.2
2018-12 → 2020-03 ended
ZVW5# (A,PREM,S) CBU ¥1,460
58917-47031 Mat, Box Bottom, NO.2
2020-04 → 2021-01 ended
ZVW5# (A,PREM,S) CBU ¥1,460
58917-47050 Mat, Box Bottom, NO.2
2021-02 → —
ZVW5# (A,PREM,S) CBU ¥1,210
58921C — Plate, Box, Upper NO.1
58921-47020 Plate, Box, Upper NO.1
2015-11 → 2016-06 ended
ZVW51,55 (A,PREM) CBU ¥5,200
58921-47021-A0 note Plate, Box, Upper NO.1
2016-07 → 2016-10 ended
ZVW51,55 (A,PREM) CBU ¥4,310
58921-47021-A0 note Plate, Box, Upper NO.1
2016-10 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥4,310
58921-47021-A0 note Plate, Box, Upper NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,310
58921-47021-C0 note Plate, Box, Upper NO.1
2017-11 → 2018-12 ended
ZVW50,55 S CBU ¥4,310
58921-47021-C0 note Plate, Box, Upper NO.1
2016-10 → 2018-12 ended
ZVW51,55 A CBU ¥4,310
58921-47021-C0 note Plate, Box, Upper NO.1
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥4,310
58921-47030 Plate, Box, Upper NO.1
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥2,160
58921-47030 Plate, Box, Upper NO.1
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥2,160
58959B — Cushion, Console Compartment Door
90541-03078 Cushion, Console Compartment Door
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥120
90541-03078 Cushion, Console Compartment Door
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥120
58991B — Bracket, Console Box Mounting, Front
58991-47020 Bracket, Console Box Mounting, Front
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥990
58995-47030 Bracket, Console Box Mounting, Front
2015-11 → 2018-12 ended
ZVW51 E ¥710
58991-47020 Bracket, Console Box Mounting, Front
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥990
58995-47030 Bracket, Console Box Mounting, Front
2018-12 → —
ZVW51 E ¥710
58993 — Bracket, Console Box Mounting, Rear
58996-47030 Bracket, Console Box Mounting, Rear
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥1,580
58996-47040 Bracket, Console Box Mounting, Rear
2015-11 → 2018-12 ended
ZVW51 E ¥930
58996-47030 Bracket, Console Box Mounting, Rear
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥1,580
58996-47040 Bracket, Console Box Mounting, Rear
2018-12 → —
ZVW51 E ¥930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
