Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

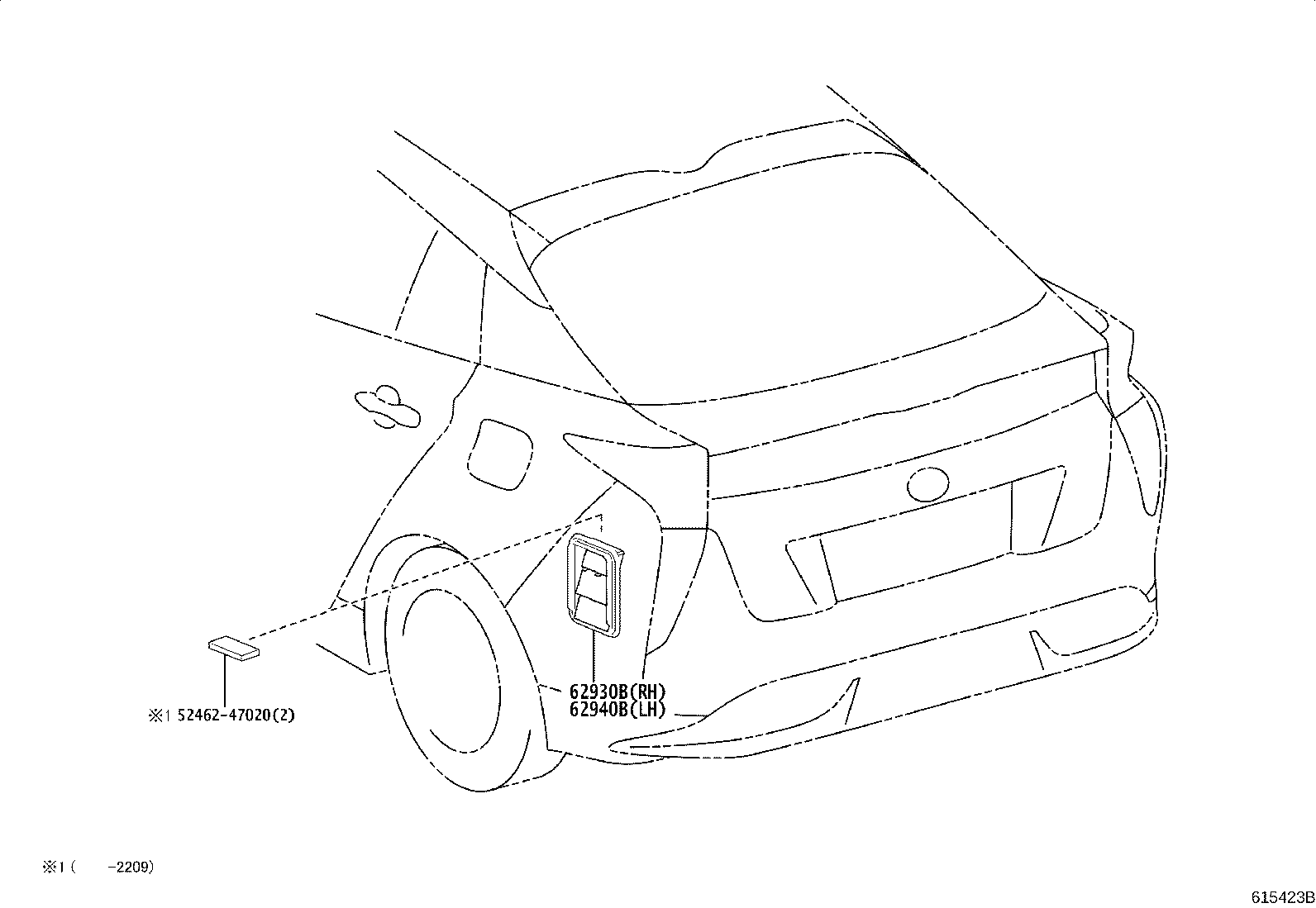

| 62930B — Duct Assy, Quarter Vent, RH | ||||
| 62940-47010 |
Duct Assy, Quarter Vent, RH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,220 | |
| 62940-12200 |
Duct Assy, Quarter Vent, RH
2022-09 → —
|
ZVW5# CBU | ¥2,250 | |
| 62940-47010 |
Duct Assy, Quarter Vent, RH
2018-12 → 2022-09
ended
|
ZVW5# CBU | ¥2,220 | |
| 62940B — Duct Assy, Quarter Vent, LH | ||||
| 62940-47010 |
Duct Assy, Quarter Vent, LH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,220 | |
| 62940-12200 |
Duct Assy, Quarter Vent, LH
2022-09 → —
|
ZVW5# CBU | ¥2,250 | |
| 62940-47010 |
Duct Assy, Quarter Vent, LH
2018-12 → 2022-09
ended
|
ZVW5# CBU | ¥2,220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
