Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

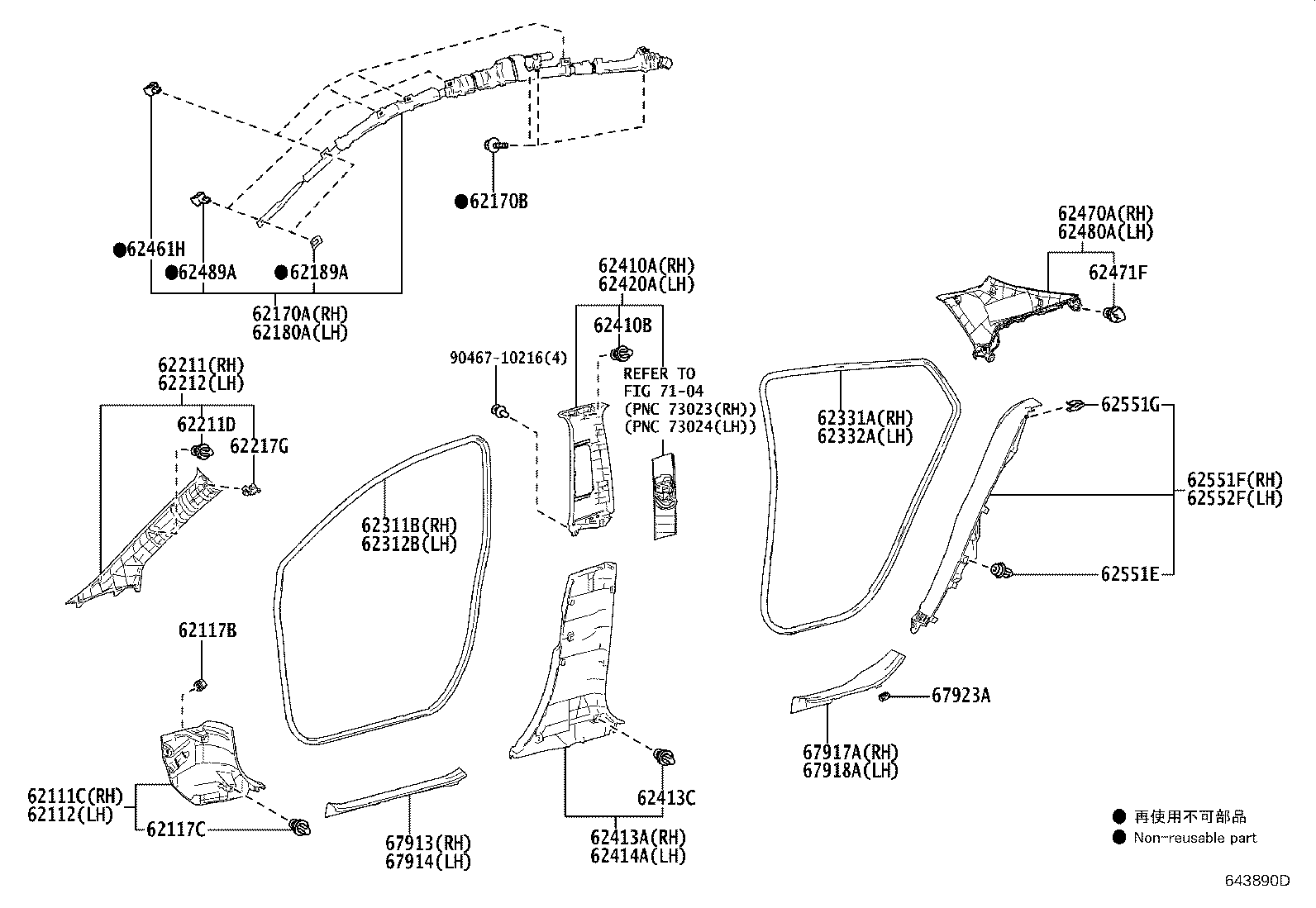

Exploded illustration 643890D 62117C — CLIP, NO.2(FOR COWL SIDE TRIM) (2 parts) 62117B — CLIP, NO.1(FOR COWL SIDE TRIM) (2 parts) 62170B — BOLT, W/WASHER (2 parts) 62189A — SPACER, CURTAIN SHIELD AIRBAG CLIP (2 parts) 62489A — CLIP, ROOF SIDE INNER GARNISH (2 parts) 62461H — CLIP (FOR ROOF SIDE INNER GARNISH) (2 parts) 62111C — BOARD, COWL SIDE TRIM, RH (4 parts) 62112 — BOARD, COWL SIDE TRIM, LH (4 parts) 62413C — CLIP (FOR CENTER LOWER GARNISH) (2 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (6 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (6 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (3 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (3 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (3 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (3 parts) 62551G — CLIP (2 parts) 62551F — GARNISH, REAR SEAT SIDE, RH (3 parts) 62552F — GARNISH, REAR SEAT SIDE, LH (3 parts) 9046710216 — not listed in this catalogue 7104 — not listed in this catalogue 62170A — AIRBAG ASSY, CURTAIN SHIELD, RH (3 parts) 62180A — AIRBAG ASSY, CURTAIN SHIELD, LH (3 parts) 62211 — GARNISH, FRONT PILLAR, RH (3 parts) 62212 — GARNISH, FRONT PILLAR, LH (3 parts) 62410A — GARNISH ASSY, CENTER PILLAR, RH (6 parts) 62420A — GARNISH ASSY, CENTER PILLER, LH (7 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (2 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (2 parts) 62331A — WEATHERSTRIP, REAR DOOR OPENING TRIM, RH (2 parts) 62332A — WEATHERSTRIP, REAR DOOR OPENING TRIM, LH (2 parts) 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (2 parts) 62217G — CLIP, FRONT PILLAR GARNISH (2 parts) 62410B — CLIP (2 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (2 parts) 67923A — CLAMP, DOOR SCUFF PLATE, NO.1 (2 parts) 62471F — CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) (3 parts) 62470A — GARNISH ASSY, ROOF SIDE, INNER RH (5 parts) 62480A — GARNISH ASSY, ROOF SIDE, INNER LH (5 parts)
643890D · 36 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
110 parts on this figure
Part number Description Fitment Price
62111C — Board, Cowl Side Trim, RH
62111-47150-C0 note Board, Cowl Side Trim, RH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥3,440
62111-47150-C0 note Board, Cowl Side Trim, RH
2015-11 → 2018-12 ended
ZVW51 E ¥3,440
62111-47150-C0 note Board, Cowl Side Trim, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥3,440
62111-47150-C0 note Board, Cowl Side Trim, RH
2018-12 → —
ZVW5# CBU ¥3,440
62112 — Board, Cowl Side Trim, LH
62112-47220-C0 note Board, Cowl Side Trim, LH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥3,240
62112-47220-C0 note Board, Cowl Side Trim, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥3,240
62112-47220-C0 note Board, Cowl Side Trim, LH
2015-11 → 2018-12 ended
ZVW51 E ¥3,240
62112-47220-C0 note Board, Cowl Side Trim, LH
2018-12 → —
ZVW5# CBU ¥3,240
62117B — Clip, NO.1(FOR COWL SIDE TRIM)
90467-06147 Clip, NO.1(FOR COWL SIDE TRIM)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-06147 Clip, NO.1(FOR COWL SIDE TRIM)
2018-12 → —
ZVW5# CBU ¥80
62117C — Clip, NO.2(FOR COWL SIDE TRIM)
90467-10167 Clip, NO.2(FOR COWL SIDE TRIM)
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
90467-10167 Clip, NO.2(FOR COWL SIDE TRIM)
2018-12 → —
ZVW5# CBU ¥90
62170A — Airbag Assy, Curtain Shield, RH
62170-47070 Airbag Assy, Curtain Shield, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥34,200
62170-47070 Airbag Assy, Curtain Shield, RH
2018-12 → 2022-08 ended
ZVW5# CBU ¥34,200
62170-47071 Airbag Assy, Curtain Shield, RH
2022-09 → —
ZVW5# CBU ¥34,200
62170B — Bolt, W/Washer
91673-80616 Bolt, W/Washer
2015-11 → 2018-12 ended
ZVW5# CBU ¥60
91673-80616 Bolt, W/Washer
2018-12 → —
ZVW5# CBU ¥60
62180A — Airbag Assy, Curtain Shield, LH
62180-47070 Airbag Assy, Curtain Shield, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥34,200
62180-47070 Airbag Assy, Curtain Shield, LH
2018-12 → 2022-08 ended
ZVW5# CBU ¥34,200
62180-47071 Airbag Assy, Curtain Shield, LH
2022-09 → —
ZVW5# CBU ¥34,200
62189A — Spacer, Curtain Shield Airbag Clip
62189-42010 Spacer, Curtain Shield Airbag Clip
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
62189-42010 Spacer, Curtain Shield Airbag Clip
2018-12 → —
ZVW5# CBU ¥80
62211 — Garnish, Front Pillar, RH
62210-47140-B0 note Garnish, Front Pillar, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥5,700
62210-47140-B0 note Garnish, Front Pillar, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥5,700
62210-47140-B0 note Garnish, Front Pillar, RH
2018-12 → —
ZVW5# CBU ¥5,700
62211D — Clip(FOR FRONT BODY PILLAR GARNISH)
90467-10161 Clip(FOR FRONT BODY PILLAR GARNISH)
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
90467-10161 Clip(FOR FRONT BODY PILLAR GARNISH)
2018-12 → —
ZVW5# CBU ¥90
62212 — Garnish, Front Pillar, LH
62220-47140-B0 note Garnish, Front Pillar, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥5,700
62220-47140-B0 note Garnish, Front Pillar, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥5,700
62220-47140-B0 note Garnish, Front Pillar, LH
2018-12 → —
ZVW5# CBU ¥5,700
62217G — Clip, Front Pillar Garnish
62217-78010 Clip, Front Pillar Garnish
2015-11 → 2018-12 ended
ZVW5# CBU ¥190
62217-78010 Clip, Front Pillar Garnish
2018-12 → —
ZVW5# CBU ¥190
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-47050 Weatherstrip, Front Door Opening Trim, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,400
62311-47050 Weatherstrip, Front Door Opening Trim, RH
2018-12 → —
ZVW5# CBU ¥6,400
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-47050 Weatherstrip, Front Door Opening Trim, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,400
62312-47050 Weatherstrip, Front Door Opening Trim, LH
2018-12 → —
ZVW5# CBU ¥6,400
62331A — Weatherstrip, Rear Door Opening Trim, RH
62331-47050 Weatherstrip, Rear Door Opening Trim, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥5,800
62331-47050 Weatherstrip, Rear Door Opening Trim, RH
2018-12 → —
ZVW5# CBU ¥5,800
62332A — Weatherstrip, Rear Door Opening Trim, LH
62332-47050 Weatherstrip, Rear Door Opening Trim, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥5,800
62332-47050 Weatherstrip, Rear Door Opening Trim, LH
2018-12 → —
ZVW5# CBU ¥5,800
62410A — Garnish Assy, Center Pillar, RH
62410-47100-C0 note Garnish Assy, Center Pillar, RH
2015-11 → 2017-05 ended
ZVW51,55 PREM ¥5,400
62410-47100-C0 note Garnish Assy, Center Pillar, RH
2015-11 → 2017-05 ended
ZVW5# (A,E,S) CBU ¥5,400
62410-47100-C1 note Garnish Assy, Center Pillar, RH
2017-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,510
62410-47100-C1 note Garnish Assy, Center Pillar, RH
2017-05 → 2018-12 ended
ZVW51,55 PREM ¥4,510
62410-47100-C1 note Garnish Assy, Center Pillar, RH
2017-05 → 2018-12 ended
ZVW51 E ¥4,510
62410-47100-C1 note Garnish Assy, Center Pillar, RH
2018-12 → —
ZVW5# CBU ¥4,510
62410B — Clip
90467-10167 Clip
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
90467-10167 Clip
2018-12 → —
ZVW5# CBU ¥90
62413A — Garnish, Center Pillar, Lower RH
62413-47070-C0 note Garnish, Center Pillar, Lower RH
2015-11 → 2018-12 ended
ZVW51 E ¥6,400
62413-47070-C0 note Garnish, Center Pillar, Lower RH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥6,400
62413-47070-C0 note Garnish, Center Pillar, Lower RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥6,400
62413-47070-C0 note Garnish, Center Pillar, Lower RH
2018-12 → 2020-07 ended
ZVW51 E ¥6,400
62413-47070-C0 note Garnish, Center Pillar, Lower RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥6,400
62413-47070-C0 note Garnish, Center Pillar, Lower RH
2020-07 → —
ZVW51 E ¥6,400
62413C — Clip (FOR CENTER LOWER GARNISH)
90467-10161 Clip (FOR CENTER LOWER GARNISH)
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
90467-10161 Clip (FOR CENTER LOWER GARNISH)
2018-12 → —
ZVW5# CBU ¥90
62414A — Garnish, Center Pillar, Lower LH
62414-47070-C0 note Garnish, Center Pillar, Lower LH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥6,400
62414-47070-C0 note Garnish, Center Pillar, Lower LH
2015-11 → 2018-12 ended
ZVW51 E ¥6,400
62414-47070-C0 note Garnish, Center Pillar, Lower LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥6,400
62414-47070-C0 note Garnish, Center Pillar, Lower LH
2018-12 → 2020-07 ended
ZVW51 E ¥6,400
62414-47070-C0 note Garnish, Center Pillar, Lower LH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥6,400
62414-47070-C0 note Garnish, Center Pillar, Lower LH
2020-07 → —
ZVW51 E ¥6,400
62420A — Garnish Assy, Center Piller, LH
62420-47100-C0 note Garnish Assy, Center Piller, LH
2015-11 → 2017-05 ended
ZVW51 E ¥5,400
62420-47100-C0 note Garnish Assy, Center Piller, LH
2015-11 → 2017-05 ended
ZVW5# (A,S) CBU ¥5,400
62420-47100-C0 note Garnish Assy, Center Piller, LH
2015-11 → 2017-05 ended
ZVW51,55 PREM ¥5,400
62420-47100-C1 note Garnish Assy, Center Piller, LH
2017-05 → 2018-12 ended
ZVW51 E ¥4,510
62420-47100-C1 note Garnish Assy, Center Piller, LH
2017-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,510
62420-47100-C1 note Garnish Assy, Center Piller, LH
2017-05 → 2018-12 ended
ZVW51,55 PREM ¥4,510
62420-47100-C1 note Garnish Assy, Center Piller, LH
2018-12 → —
ZVW5# CBU ¥4,510
62461H — Clip (FOR ROOF SIDE INNER GARNISH)
90467-18017 Clip (FOR ROOF SIDE INNER GARNISH)
2015-11 → 2018-12 ended
ZVW5# CBU ¥180
90467-18017 Clip (FOR ROOF SIDE INNER GARNISH)
2018-12 → —
ZVW5# CBU ¥180
62470A — Garnish Assy, Roof Side, Inner RH
62470-47120-C0 note Garnish Assy, Roof Side, Inner RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥4,180
62470-47120-C0 note Garnish Assy, Roof Side, Inner RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥4,180
62470-47120-C0 note Garnish Assy, Roof Side, Inner RH
2018-12 → 2019-08 ended
ZVW5# CBU ¥4,180
62470-47140-C0 note Garnish Assy, Roof Side, Inner RH
2019-08 → —
ZVW51 E ¥3,480
62470-47140-C0 note Garnish Assy, Roof Side, Inner RH
2019-08 → —
ZVW5# (A,PREM,S) CBU ¥3,480
62471F — Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-09240 Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-09240 Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2018-12 → 2019-08 ended
ZVW5# CBU ¥80
90467-09240 Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2019-08 → —
ZVW5# CBU ¥80
62480A — Garnish Assy, Roof Side, Inner LH
62480-47100-C0 note Garnish Assy, Roof Side, Inner LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥4,180
62480-47100-C0 note Garnish Assy, Roof Side, Inner LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥4,180
62480-47100-C0 note Garnish Assy, Roof Side, Inner LH
2018-12 → 2019-08 ended
ZVW5# CBU ¥4,180
62480-47130-C0 note Garnish Assy, Roof Side, Inner LH
2019-08 → —
ZVW5# (A,PREM,S) CBU ¥3,480
62480-47130-C0 note Garnish Assy, Roof Side, Inner LH
2019-08 → —
ZVW51 E ¥3,480
62489A — Clip, Roof Side Inner Garnish
62489-28010 Clip, Roof Side Inner Garnish
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
62489-28010 Clip, Roof Side Inner Garnish
2018-12 → —
ZVW5# CBU ¥360
62551E — Clip(FOR REAR SEAT SIDE GARNISH)
62217-13010 Clip(FOR REAR SEAT SIDE GARNISH)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
62217-13010 Clip(FOR REAR SEAT SIDE GARNISH)
2018-12 → —
ZVW5# CBU ¥80
62551F — Garnish, Rear Seat Side, RH
62551-47020-C0 note Garnish, Rear Seat Side, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥6,600
62551-47020-C0 note Garnish, Rear Seat Side, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥6,600
62551-47020-C0 note Garnish, Rear Seat Side, RH
2018-12 → —
ZVW5# CBU ¥6,600
62551G — Clip
90467-05172 Clip
2015-11 → 2018-12 ended
ZVW5# CBU ¥60
90467-05172 Clip
2018-12 → —
ZVW5# CBU ¥60
62552F — Garnish, Rear Seat Side, LH
62552-47050-C0 note Garnish, Rear Seat Side, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥6,600
62552-47050-C0 note Garnish, Rear Seat Side, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥6,600
62552-47050-C0 note Garnish, Rear Seat Side, LH
2018-12 → —
ZVW5# CBU ¥6,600
67913 — Plate, Front Door Scuff, RH
67913-47070-C0 note Plate, Front Door Scuff, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,100
67913-47070-C0 note Plate, Front Door Scuff, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,100
67913-47070-C0 note Plate, Front Door Scuff, RH
2018-12 → —
ZVW5# CBU ¥2,100
67914 — Plate, Front Door Scuff, LH
67914-47070-C0 note Plate, Front Door Scuff, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,100
67914-47070-C0 note Plate, Front Door Scuff, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,100
67914-47070-C0 note Plate, Front Door Scuff, LH
2018-12 → —
ZVW5# CBU ¥2,100
67917A — Plate, Rear Door Scuff, RH
67917-47070-C0 note Plate, Rear Door Scuff, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,100
67917-47070-C0 note Plate, Rear Door Scuff, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,100
67917-47070-C0 note Plate, Rear Door Scuff, RH
2018-12 → —
ZVW5# CBU ¥2,100
67918A — Plate, Rear Door Scuff, LH
67918-47070-C0 note Plate, Rear Door Scuff, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,100
67918-47070-C0 note Plate, Rear Door Scuff, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,100
67918-47070-C0 note Plate, Rear Door Scuff, LH
2018-12 → —
ZVW5# CBU ¥2,100
67923A — Clamp, Door Scuff Plate, NO.1
67923-20090 Clamp, Door Scuff Plate, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥110
67923-20090 Clamp, Door Scuff Plate, NO.1
2018-12 → —
ZVW5# CBU ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
