Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

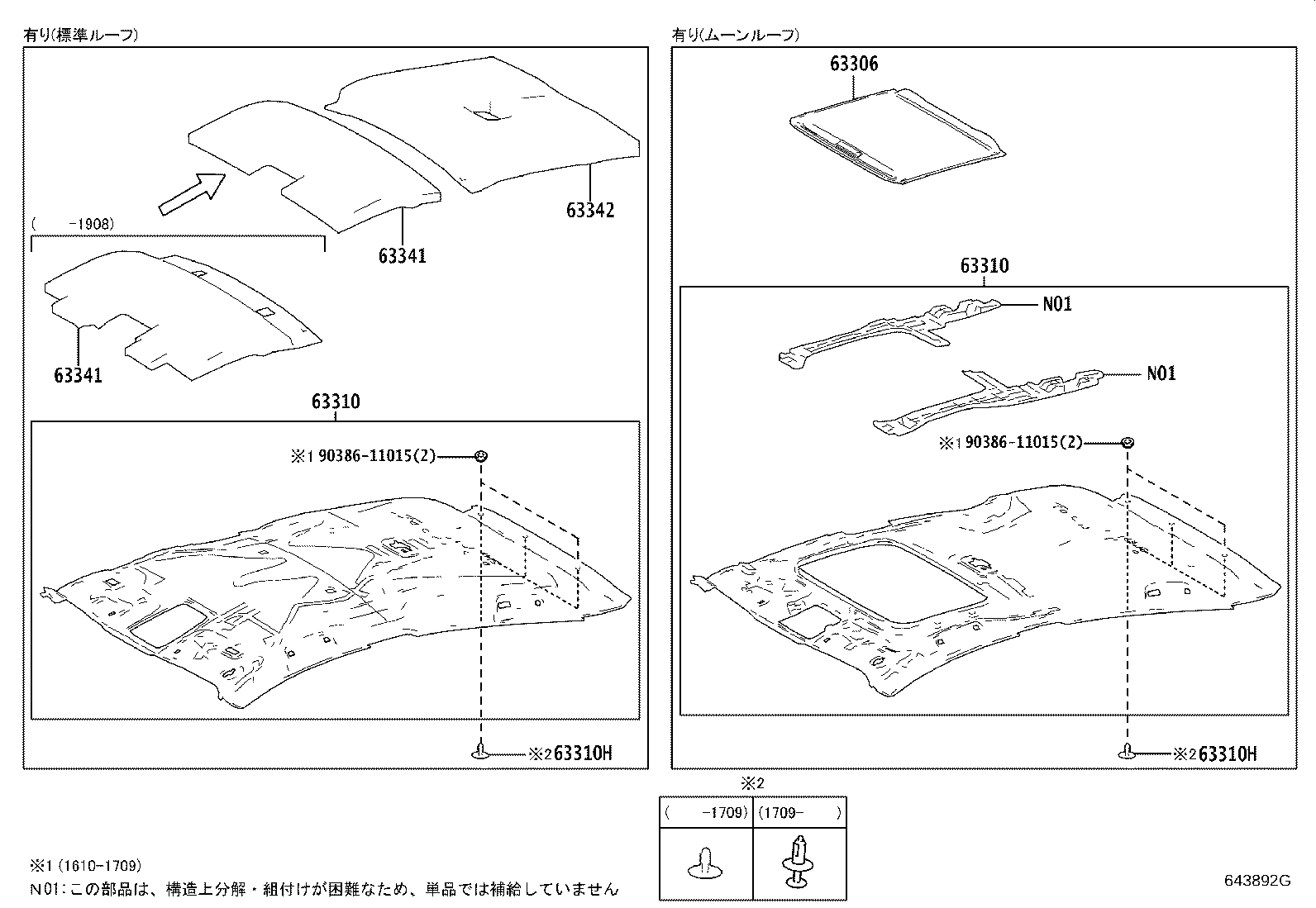

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63306 — Trim Sub-assy, Sunshade | ||||
| 63306-47070-B0 note |
Trim Sub-assy, Sunshade
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥12,800 | |
| 63306-47070-B0 note |
Trim Sub-assy, Sunshade
2018-12 → 2021-06
ended
|
ZVW5# (A,S) CBU | ¥12,800 | |
| 63306-47070-B0 note |
Trim Sub-assy, Sunshade
2018-12 → —
|
ZVW5# PREM | ¥12,800 | |
| 63310 — Headlining Assy, Roof | ||||
| 63310-47160-B0 note |
Headlining Assy, Roof
2015-11 → 2017-09
ended
|
ZVW51 E | ¥48,900 | |
| 63310-47160-B0 note |
Headlining Assy, Roof
2015-11 → 2017-09
ended
|
ZVW5# (A,S) CBU | ¥48,900 | |
| 63310-47160-B0 note |
Headlining Assy, Roof
2015-11 → 2017-09
ended
|
ZVW51,55 PREM | ¥48,900 | |
| 63310-47161-B0 note |
Headlining Assy, Roof
2017-09 → 2018-12
ended
|
ZVW51 E | ¥40,600 | |
| 63310-47161-B0 note |
Headlining Assy, Roof
2017-09 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥40,600 | |
| 63310-47161-B0 note |
Headlining Assy, Roof
2017-09 → 2018-12
ended
|
ZVW51,55 PREM | ¥40,600 | |
| 63310-47170-B0 note |
Headlining Assy, Roof
2015-11 → 2017-09
ended
|
ZVW5# (A,PREM,S) CBU | ¥57,700 | |
| 63310-47171-B0 note |
Headlining Assy, Roof
2017-09 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥48,100 | |
| 63310-47161-B0 note |
Headlining Assy, Roof
2018-12 → —
|
ZVW5# CBU | ¥40,600 | |
| 63310-47171-B0 note |
Headlining Assy, Roof
2018-12 → —
|
ZVW5# PREM | ¥48,100 | |
| 63310-47171-B0 note |
Headlining Assy, Roof
2018-12 → 2021-06
ended
|
ZVW5# (A,S) CBU | ¥48,100 | |
| 63310H — Clip(FOR ROOF HEADLINING) | ||||
| 90467-05164-P9 note |
Clip(FOR ROOF HEADLINING)
2015-11 → 2017-09
ended
|
ZVW51 E | ¥90 | |
| 90467-05164-P9 note |
Clip(FOR ROOF HEADLINING)
2015-11 → 2017-09
ended
|
ZVW5# (A,S) CBU | ¥90 | |
| 90467-05164-P9 note |
Clip(FOR ROOF HEADLINING)
2015-11 → 2017-09
ended
|
ZVW51,55 PREM | ¥90 | |
| 90467-05168-B2 note |
Clip(FOR ROOF HEADLINING)
2017-09 → 2018-12
ended
|
ZVW51 E | ¥80 | |
| 90467-05168-B2 note |
Clip(FOR ROOF HEADLINING)
2017-09 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥80 | |
| 90467-05168-B2 note |
Clip(FOR ROOF HEADLINING)
2017-09 → 2018-12
ended
|
ZVW51,55 PREM | ¥80 | |
| 90467-05168-B2 note |
Clip(FOR ROOF HEADLINING)
2018-12 → —
|
ZVW5# CBU | ¥80 | |
| 63341 — Pad, Roof Silencer, NO.1 | ||||
| 63341-47070 |
Pad, Roof Silencer, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,270 | |
| 63341-47070 |
Pad, Roof Silencer, NO.1
2018-12 → 2019-08
ended
|
ZVW5# CBU | ¥4,270 | |
| 63341-47090 |
Pad, Roof Silencer, NO.1
2019-08 → —
|
ZVW5# CBU | ¥2,780 | |
| 63342 — Pad, Roof Silencer, NO.2 | ||||
| 63342-47140 |
Pad, Roof Silencer, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,970 | |
| 63342-47140 |
Pad, Roof Silencer, NO.2
2018-12 → —
|
ZVW5# CBU | ¥3,970 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
