Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

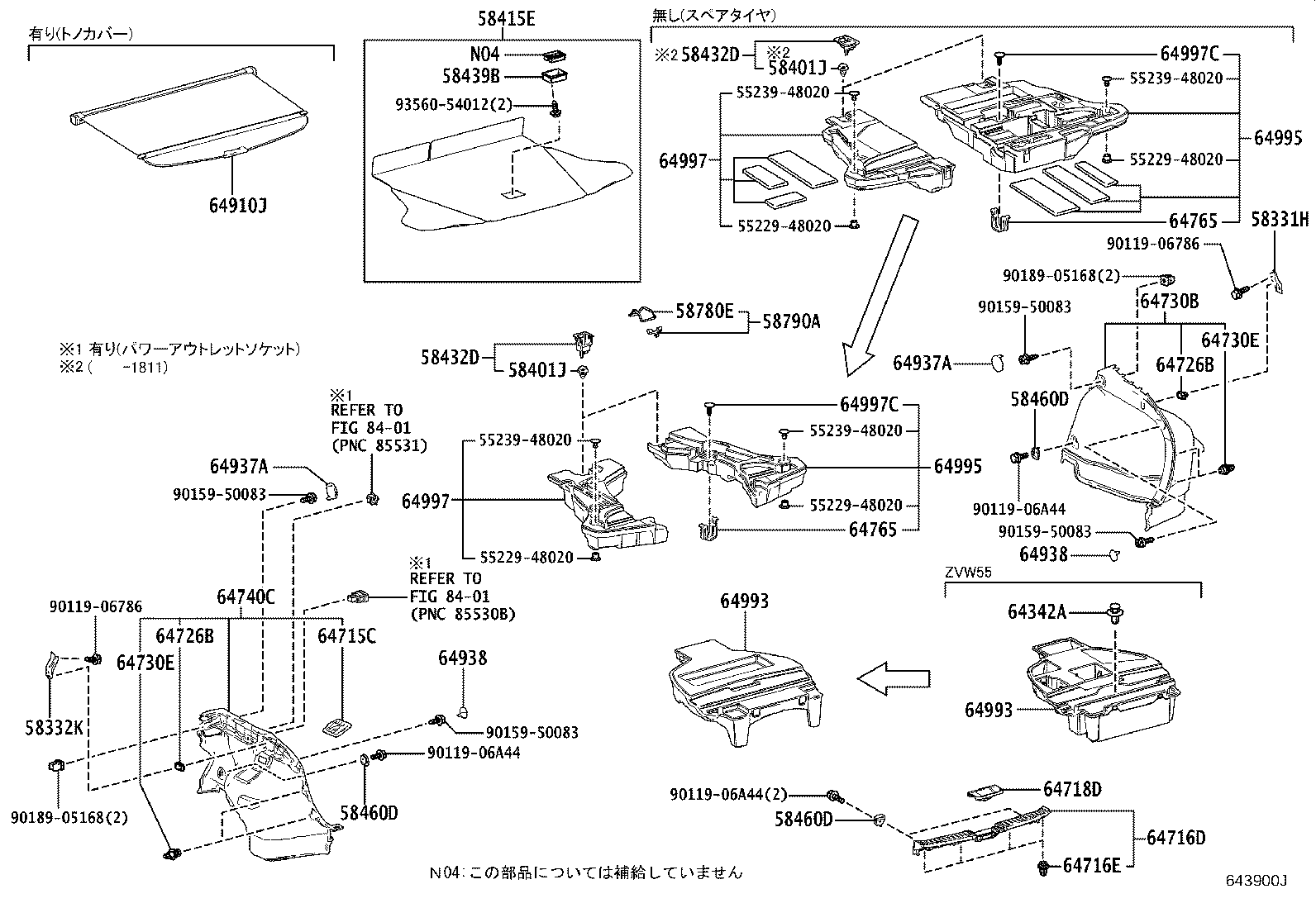

Exploded illustration 643900J 5523948020 — not listed in this catalogue 5523948020 — not listed in this catalogue 5522948020 — not listed in this catalogue 5522948020 — not listed in this catalogue 9356054012 — not listed in this catalogue 9015950083 — not listed in this catalogue 9018905168 — not listed in this catalogue 9015950083 — not listed in this catalogue 9018905168 — not listed in this catalogue 58415E — BOARD, REAR FLOOR, NO.1 (13 parts) 58439B — PROTECTOR, DECK BOARD, NO.1 (2 parts) 58780E — BAND ASSY, TOOL BOX (2 parts) 58790A — CARRIER ASSY, JACK (2 parts) 58401J — CLIP(FOR DECK BOAD) (10 parts) 58432D — RETAINER, DECK BOARD (7 parts) 58331H — BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1 (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58332K — BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2 (2 parts) 64716D — COVER, DECK TRIM, REAR (11 parts) 64716E — CLIP(FOR DECK TRIM REAR COVER) (3 parts) 64718D — COVER, DECK TRIM SERVICE HOLE (3 parts) 64993 — BOX, DECK FLOOR, REAR (5 parts) 64342A — CLIP (2 parts) 64997C — CLIP(FOR DECK FLOOR BOX) (3 parts) 64997 — BOX, DECK FLOOR, LH (14 parts) 5523948020 — not listed in this catalogue 5522948020 — not listed in this catalogue 64997 — BOX, DECK FLOOR, LH (14 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (23 parts) 64730E — CLIP(FOR DECK TRIM SIDE BOARD) (2 parts) 64730E — CLIP(FOR DECK TRIM SIDE BOARD) (2 parts) 64726B — CLIP, DECK REAR TRIM (2 parts) 64726B — CLIP, DECK REAR TRIM (2 parts) 64740C — PANEL ASSY, DECK TRIM SIDE, LH (50 parts) 64910J — COVER ASSY, TONNEAU (11 parts) 64937A — CAP, TONNEAU COVER HOLDER, NO.1 (9 parts) 64938 — HOOK, TONNEAU COVER, A (9 parts) 64937A — CAP, TONNEAU COVER HOLDER, NO.1 (9 parts) 64938 — HOOK, TONNEAU COVER, A (9 parts) 64715C — COVER, DECK SIDE TRIM, LH (8 parts) 64765 — BEZEL, JACK COVER, UPPER (2 parts) 64995 — BOX, DECK FLOOR, RH (8 parts) 5523948020 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906786 — not listed in this catalogue 5522948020 — not listed in this catalogue 64997C — CLIP(FOR DECK FLOOR BOX) (3 parts) 64765 — BEZEL, JACK COVER, UPPER (2 parts) 64995 — BOX, DECK FLOOR, RH (8 parts) 64993 — BOX, DECK FLOOR, REAR (5 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 58401J — CLIP(FOR DECK BOAD) (10 parts) 58432D — RETAINER, DECK BOARD (7 parts) 9015950083 — not listed in this catalogue 9015950083 — not listed in this catalogue
643900J · 39 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
207 parts on this figure
Part number Description Fitment Price
58331H — Bracket, Luggage Compartment Trim, NO.1
58337-47020 Bracket, Luggage Compartment Trim, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥500
58337-47020 Bracket, Luggage Compartment Trim, NO.1
2018-12 → —
ZVW5# CBU ¥500
58332K — Bracket, Luggage Compartment Trim, NO.2
58338-47010 Bracket, Luggage Compartment Trim, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥510
58338-47010 Bracket, Luggage Compartment Trim, NO.2
2018-12 → —
ZVW5# CBU ¥510
58401J — Clip(FOR DECK BOAD)
90467-10161 Clip(FOR DECK BOAD)
2015-11 → 2018-07 ended
ZVW50,51 CBU ¥90
90467-10188 note Clip(FOR DECK BOAD)
2015-11 → 2018-08 ended
ZVW50,51 (A,E,S) CBU ¥80
90467-10188 note Clip(FOR DECK BOAD)
2015-11 → 2018-08 ended
ZVW51 PREM ¥80
90467-10188 Clip(FOR DECK BOAD)
2018-08 → 2018-11 ended
ZVW50,51 CBU ¥80
90467-10188 Clip(FOR DECK BOAD)
2015-11 → 2018-12 ended
ZVW55 CBU ¥80
90467-10188 note Clip(FOR DECK BOAD)
2018-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥80
90467-10188 note Clip(FOR DECK BOAD)
2018-11 → 2018-12 ended
ZVW51 PREM ¥80
90467-10188 note Clip(FOR DECK BOAD)
2018-12 → 2021-06 ended
ZVW51 E ¥80
90467-10188 Clip(FOR DECK BOAD)
2018-12 → —
ZVW55 CBU ¥80
90467-10188 note Clip(FOR DECK BOAD)
2018-12 → —
ZVW51 (A,PREM,S) CBU ¥80
58415E — Board, Rear Floor, NO.1
58415-47090-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW51 PREM ¥13,100
58415-47090-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,100
58415-47090-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW51 E ¥13,100
58415-47100-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW55 PREM ¥13,000
58415-47100-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW55 (A,S) CBU ¥13,000
58415-47100-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW51 E ¥13,000
58415-47100-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW51 PREM ¥13,000
58415-47100-C2 note Board, Rear Floor, NO.1
2015-11 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,000
58415-47090-C2 note Board, Rear Floor, NO.1
2018-12 → —
ZVW51 CBU ¥13,100
58415-47100-C2 note Board, Rear Floor, NO.1
2018-12 → 2020-07 ended
ZVW51 CBU ¥13,000
58415-47100-C2 note Board, Rear Floor, NO.1
2018-12 → —
ZVW55 CBU ¥13,000
58415-47130-C0 note Board, Rear Floor, NO.1
2020-07 → 2021-06 ended
ZVW51 E ¥11,600
58415-47130-C0 note Board, Rear Floor, NO.1
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥11,600
58432D — Retainer, Deck Board
51962-47010 Retainer, Deck Board
2015-11 → 2018-11 ended
ZVW50,51 CBU ¥930
51962-47020 Retainer, Deck Board
2015-11 → 2018-12 ended
ZVW55 CBU ¥770
51962-47020 note Retainer, Deck Board
2015-11 → 2018-12 ended
ZVW51 PREM ¥770
51962-47020 note Retainer, Deck Board
2015-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥770
51962-47020 note Retainer, Deck Board
2018-12 → 2021-06 ended
ZVW51 E ¥770
51962-47020 Retainer, Deck Board
2018-12 → —
ZVW55 CBU ¥770
51962-47020 note Retainer, Deck Board
2018-12 → —
ZVW51 (A,PREM,S) CBU ¥770
58439B — Protector, Deck Board, NO.1
58477-28020 Protector, Deck Board, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥500
58477-28020 Protector, Deck Board, NO.1
2018-12 → —
ZVW5# CBU ¥500
58460D — Striker Assy, Luggage Hold Belt
58460-33020 Striker Assy, Luggage Hold Belt
2015-11 → 2018-12 ended
ZVW5# CBU ¥620
58460-33020 Striker Assy, Luggage Hold Belt
2018-12 → —
ZVW5# CBU ¥620
58780E — Band Assy, Tool Box
58781-52010 Band Assy, Tool Box
2015-11 → 2018-12 ended
ZVW5# CBU ¥370
58781-52010 Band Assy, Tool Box
2018-12 → —
ZVW5# CBU ¥370
58790A — Carrier Assy, Jack
58790-52020 Carrier Assy, Jack
2015-11 → 2018-12 ended
ZVW5# CBU ¥570
58790-52020 Carrier Assy, Jack
2018-12 → —
ZVW5# CBU ¥570
64342A — Clip
90467-07215 Clip
2015-11 → 2018-12 ended
ZVW55 CBU ¥80
90467-07215 Clip
2018-12 → —
ZVW55 CBU ¥80
64715C — Cover, Deck Side Trim, LH
64715-47060-C0 note Cover, Deck Side Trim, LH
2015-11 → 2017-12 ended
ZVW51 E ¥850
64715-47060-C0 note Cover, Deck Side Trim, LH
2015-11 → 2017-12 ended
ZVW5# (A,S) CBU ¥850
64715-47060-C0 note Cover, Deck Side Trim, LH
2015-11 → 2017-12 ended
ZVW51,55 PREM ¥850
64715-47060-C1 note Cover, Deck Side Trim, LH
2018-01 → 2018-12 ended
ZVW51 E ¥640
64715-47060-C1 note Cover, Deck Side Trim, LH
2018-01 → 2018-12 ended
ZVW5# (A,S) CBU ¥640
64715-47060-C1 note Cover, Deck Side Trim, LH
2018-01 → 2018-12 ended
ZVW51,55 PREM ¥640
64715-47060-C1 note Cover, Deck Side Trim, LH
2018-12 → 2020-11 ended
ZVW5# CBU ¥640
64718-33010 Cover, Deck Side Trim, LH
2020-11 → —
ZVW5# CBU ¥770
64716D — Cover, Deck Trim, Rear
64716-47110-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW51 PREM ¥4,670
64716-47110-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥4,670
64716-47120-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW55 (A,S) CBU ¥3,810
64716-47120-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥3,810
64716-47120-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW51 PREM ¥3,810
64716-47120-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW51 E ¥3,810
64716-47120-C0 note Cover, Deck Trim, Rear
2015-11 → 2018-12 ended
ZVW55 PREM ¥3,810
64716-47110-C0 note Cover, Deck Trim, Rear
2018-12 → —
ZVW51 CBU ¥4,670
64716-47120-C0 note Cover, Deck Trim, Rear
2018-12 → 2021-06 ended
ZVW51 E ¥3,810
64716-47120-C0 note Cover, Deck Trim, Rear
2018-12 → —
ZVW55 CBU ¥3,810
64716-47120-C0 note Cover, Deck Trim, Rear
2018-12 → —
ZVW51 (A,PREM,S) CBU ¥3,810
64716E — Clip(FOR DECK TRIM REAR COVER)
90467-10161 Clip(FOR DECK TRIM REAR COVER)
2018-01 → 2018-12 ended
ZVW5# CBU ¥90
90467-10167 Clip(FOR DECK TRIM REAR COVER)
2015-11 → 2017-12 ended
ZVW5# CBU ¥90
90467-10161 Clip(FOR DECK TRIM REAR COVER)
2018-12 → —
ZVW5# CBU ¥90
64718D — Cover, Deck Trim Service Hole
64718-47080-C0 note Cover, Deck Trim Service Hole
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,310
64718-47080-C0 note Cover, Deck Trim Service Hole
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥1,310
64718-47080-C0 note Cover, Deck Trim Service Hole
2018-12 → —
ZVW5# CBU ¥1,310
64726B — Clip, Deck Rear Trim
65487-47010 Clip, Deck Rear Trim
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
65487-47010 Clip, Deck Rear Trim
2018-12 → —
ZVW5# CBU ¥130
64730B — Panel Assy, Deck Trim Side, RH
64730-47090-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,900
64730-47090-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW51 E ¥13,900
64730-47090-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW51 PREM ¥13,900
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW55 PREM ¥13,900
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW55 (A,S) CBU ¥13,900
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW51 E ¥13,900
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,900
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2015-11 → 2018-12 ended
ZVW51 PREM ¥13,900
64730-47090-C2 note Panel Assy, Deck Trim Side, RH
2018-12 → 2019-08 ended
ZVW51 CBU ¥13,900
64730-47091-C2 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-11 ended
ZVW51 E ¥13,800
64730-47091-C2 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-11 ended
ZVW51 (A,PREM,S) CBU ¥13,800
64730-47190-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → —
ZVW51 (A,E,S) CBU ¥11,500
64730-47190-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → —
ZVW51 PREM ¥11,500
64730-47200-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → —
ZVW51 (A,S) CBU ¥11,500
64730-47200-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → 2021-06 ended
ZVW51 E ¥11,500
64730-47200-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → —
ZVW55 PREM ¥11,500
64730-47200-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → —
ZVW55 (A,S) CBU ¥11,500
64730-47200-C0 note Panel Assy, Deck Trim Side, RH
2020-11 → —
ZVW51 PREM ¥11,500
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2018-12 → 2019-08 ended
ZVW51 CBU ¥13,900
64730-47220-C2 note Panel Assy, Deck Trim Side, RH
2018-12 → 2019-08 ended
ZVW55 CBU ¥13,900
64730-47221-C2 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-11 ended
ZVW51 (A,PREM,S) CBU ¥13,800
64730-47221-C2 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-11 ended
ZVW51 E ¥13,800
64730-47221-C2 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-11 ended
ZVW55 CBU ¥13,800
64730E — Clip(FOR DECK TRIM SIDE BOARD)
90467-10161 Clip(FOR DECK TRIM SIDE BOARD)
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
90467-10161 Clip(FOR DECK TRIM SIDE BOARD)
2018-12 → —
ZVW5# CBU ¥90
64740C — Panel Assy, Deck Trim Side, LH
64740-47100-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW51 PREM ¥13,900
64740-47100-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW50,51 (A,S) CBU ¥13,900
64740-47100-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,900
64740-47100-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW51 PREM ¥13,900
64740-47150-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW51 E ¥13,900
64740-47150-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW50,51 (A,S) CBU ¥13,900
64740-47150-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW51 PREM ¥13,900
64740-47150-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,900
64740-47150-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW51 E ¥13,900
64740-47150-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW51 PREM ¥13,900
64740-47180-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW55 (A,S) CBU ¥13,900
64740-47180-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW55 PREM ¥13,900
64740-47180-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW55 PREM ¥13,900
64740-47180-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW55 (A,S) CBU ¥13,900
64740-47200-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW55 (A,S) CBU ¥13,900
64740-47200-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW50,51 (A,S) CBU ¥13,900
64740-47200-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW51 E ¥13,900
64740-47200-C2 note Panel Assy, Deck Trim Side, LH
2015-11 → 2018-02 ended
ZVW51 PREM ¥13,900
64740-47200-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW55 (A,S) CBU ¥13,900
64740-47200-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW51 E ¥13,900
64740-47200-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥13,900
64740-47200-C3 note Panel Assy, Deck Trim Side, LH
2018-03 → 2018-12 ended
ZVW51 PREM ¥13,900
64740-47100-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW51 PREM ¥13,900
64740-47100-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW51 (A,S) CBU ¥13,900
64740-47101-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-11 ended
ZVW51 PREM ¥13,800
64740-47101-C3 note Panel Assy, Deck Trim Side, LH
2020-07 → 2020-11 ended
ZVW51 E ¥13,800
64740-47101-C3 note Panel Assy, Deck Trim Side, LH
2020-07 → 2020-11 ended
ZVW51 (A,S) CBU ¥13,800
64740-47101-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW51 (A,S) CBU ¥13,800
64740-47150-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW51 (A,E,S) CBU ¥13,900
64740-47151-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW51 E ¥13,800
64740-47151-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW51 (A,S) CBU ¥13,800
64740-47180-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW55 (A,S) CBU ¥13,900
64740-47180-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW55 PREM ¥13,900
64740-47181-C3 note Panel Assy, Deck Trim Side, LH
2020-07 → 2020-11 ended
ZVW51 (A,PREM,S) CBU ¥13,800
64740-47181-C3 note Panel Assy, Deck Trim Side, LH
2020-07 → 2020-11 ended
ZVW55 (A,S) CBU ¥13,800
64740-47181-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-11 ended
ZVW55 PREM ¥13,800
64740-47181-C3 note Panel Assy, Deck Trim Side, LH
2020-07 → 2020-11 ended
ZVW51 E ¥13,800
64740-47181-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW55 (A,S) CBU ¥13,800
64740-47200-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW55 (A,S) CBU ¥13,900
64740-47200-C3 note Panel Assy, Deck Trim Side, LH
2018-12 → 2019-08 ended
ZVW51 CBU ¥13,900
64740-47201-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW51 E ¥13,800
64740-47201-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW55 (A,S) CBU ¥13,800
64740-47201-C3 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
ZVW51 (A,PREM,S) CBU ¥13,800
64740-47310-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → —
ZVW51 PREM ¥11,500
64740-47310-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → —
ZVW51 (A,E,S) CBU ¥11,500
64740-47340-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → —
ZVW55 PREM ¥11,500
64740-47340-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → —
ZVW51 (A,S) CBU ¥11,500
64740-47340-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → —
ZVW51 PREM ¥11,500
64740-47340-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → —
ZVW55 (A,S) CBU ¥11,500
64740-47340-C0 note Panel Assy, Deck Trim Side, LH
2020-11 → 2021-06 ended
ZVW51 E ¥11,500
64765 — Bezel, Jack Cover, Upper
64766-47020 Bezel, Jack Cover, Upper
2015-11 → 2018-12 ended
ZVW5# CBU ¥880
64766-47020 Bezel, Jack Cover, Upper
2018-12 → —
ZVW5# CBU ¥880
64910J — Cover Assy, Tonneau
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2018-12 → 2020-07 ended
ZVW5# (A,PREM,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2020-07 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥26,400
64910-47060-C0 note Cover Assy, Tonneau
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥26,400
64937A — Cap, Tonneau Cover Holder, NO.1
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW51 E ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥220
64937-47020-C0 note Cap, Tonneau Cover Holder, NO.1
2018-12 → —
ZVW5# CBU ¥220
64938 — Hook, Tonneau Cover, A
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2015-11 → 2018-12 ended
ZVW51 E ¥120
64938-47060-C0 note Hook, Tonneau Cover, A
2018-12 → —
ZVW5# CBU ¥120
64993 — Box, Deck Floor, Rear
64993-47090 note Box, Deck Floor, Rear
2015-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥12,500
64993-47090 note Box, Deck Floor, Rear
2015-11 → 2018-12 ended
ZVW51 PREM ¥12,500
64993-47100 Box, Deck Floor, Rear
2015-11 → 2018-12 ended
ZVW55 CBU ¥18,100
64993-47090 note Box, Deck Floor, Rear
2018-12 → 2020-07 ended
ZVW51 CBU ¥12,500
64993-47100 Box, Deck Floor, Rear
2018-12 → —
ZVW55 CBU ¥18,100
64995 — Box, Deck Floor, RH
64995-47030 Box, Deck Floor, RH
2015-11 → 2018-12 ended
ZVW50,51 CBU ¥12,500
64995-47040 note Box, Deck Floor, RH
2015-11 → 2018-12 ended
ZVW51 PREM ¥6,700
64995-47040 Box, Deck Floor, RH
2015-11 → 2018-12 ended
ZVW55 CBU ¥6,700
64995-47040 note Box, Deck Floor, RH
2015-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥6,700
64995-47030 Box, Deck Floor, RH
2018-12 → —
ZVW51 CBU ¥12,500
64995-47040 note Box, Deck Floor, RH
2018-12 → 2021-06 ended
ZVW51 E ¥6,700
64995-47040 Box, Deck Floor, RH
2018-12 → —
ZVW55 CBU ¥6,700
64995-47040 note Box, Deck Floor, RH
2018-12 → —
ZVW51 (A,PREM,S) CBU ¥6,700
64997 — Box, Deck Floor, LH
64997-47040 Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥8,800
64997-47040 note Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW51 PREM ¥8,800
64997-47050 Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW55 CBU ¥7,600
64997-47050 note Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW50,51 (A,E,S) CBU ¥7,600
64997-47050 note Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW51 PREM ¥7,600
64997-47070 Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW51 PREM ¥12,500
64997-47070 note Box, Deck Floor, LH
2015-11 → 2018-12 ended
ZVW50,51 (A,S) CBU ¥12,500
64997-47040 Box, Deck Floor, LH
2018-12 → 2020-07 ended
ZVW51 (A,E,S) CBU ¥8,800
64997-47050 note Box, Deck Floor, LH
2018-12 → 2021-06 ended
ZVW51 E ¥7,600
64997-47050 Box, Deck Floor, LH
2018-12 → —
ZVW55 CBU ¥7,600
64997-47050 note Box, Deck Floor, LH
2018-12 → —
ZVW51 (A,PREM,S) CBU ¥7,600
64997-47070 note Box, Deck Floor, LH
2018-12 → 2020-07 ended
ZVW51 (A,S) CBU ¥12,500
64997-47070 Box, Deck Floor, LH
2018-12 → —
ZVW51 PREM ¥12,500
64997-47070 Box, Deck Floor, LH
2020-07 → —
ZVW51 (A,E,S) CBU ¥12,500
64997C — Clip(FOR DECK FLOOR BOX)
90467-07049-23 note Clip(FOR DECK FLOOR BOX)
2016-10 → 2018-12 ended
ZVW5# CBU ¥90
90467-07049-C0 note Clip(FOR DECK FLOOR BOX)
2015-11 → 2016-09 ended
ZVW5# CBU ¥100
90467-07049-23 note Clip(FOR DECK FLOOR BOX)
2018-12 → —
ZVW5# CBU ¥90
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
