Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

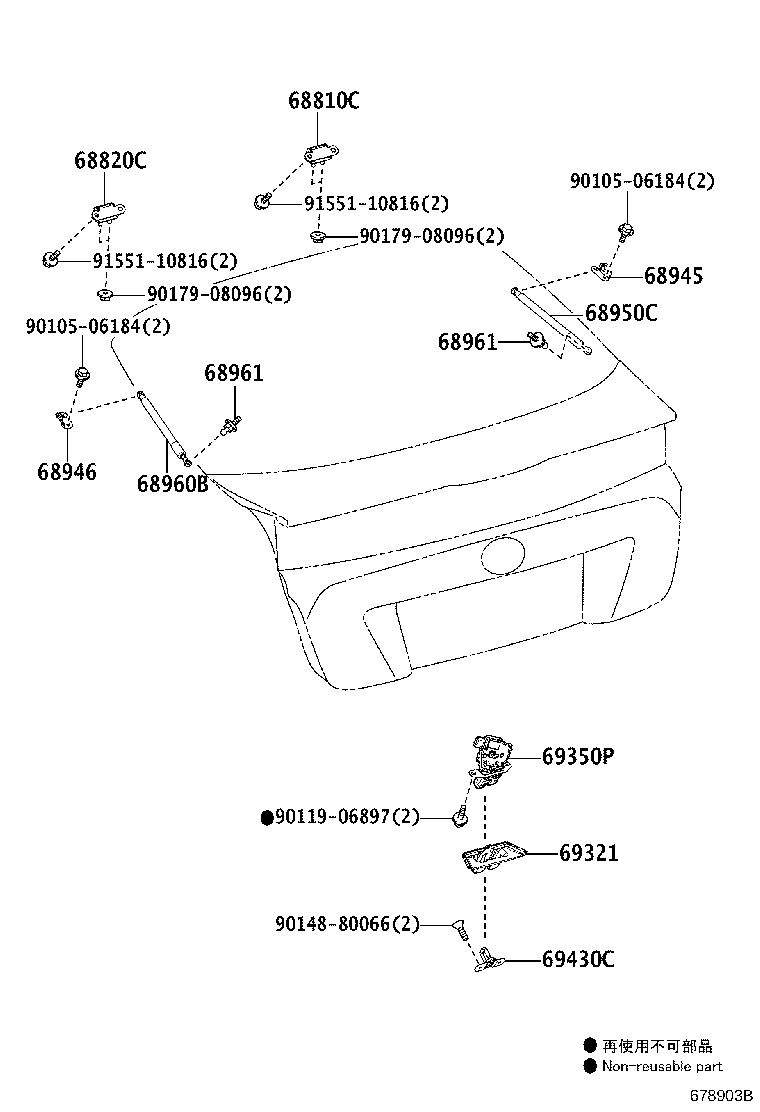

Exploded illustration 678903B 68810C — HINGE ASSY, BACK DOOR, RH (9 parts) 68820C — HINGE ASSY, BACK DOOR, LH (9 parts) 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (2 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (2 parts) 68950C — STAY ASSY, BACK DOOR, RH (6 parts) 68960B — STAY ASSY, BACK DOOR, LH (6 parts) 68961 — BOLT, BACK DOOR STAY (2 parts) 68961 — BOLT, BACK DOOR STAY (2 parts) 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (2 parts) 69321 — COVER, BACK DOOR LOCK (2 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (2 parts) 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9011906897 — not listed in this catalogue 9014880066 — not listed in this catalogue 9017908096 — not listed in this catalogue 9017908096 — not listed in this catalogue 9155110816 — not listed in this catalogue 9155110816 — not listed in this catalogue
678903B · 11 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
68810C — Hinge Assy, Back Door, RH
68810-47060 note Hinge Assy, Back Door, RH
2015-11 → 2016-05 ended
ZVW5# CBU ¥2,180
68810-47061 note Hinge Assy, Back Door, RH
2016-06 → 2018-12 ended
ZVW5# CBU ¥1,500
68810-47070 note Hinge Assy, Back Door, RH
2015-11 → 2016-05 ended
ZVW5# CBU ¥2,180
68810-47071 note Hinge Assy, Back Door, RH
2016-06 → 2018-12 ended
ZVW5# CBU ¥1,500
68810-47080 note Hinge Assy, Back Door, RH
2015-11 → 2016-05 ended
ZVW5# CBU ¥2,180
68810-47081 note Hinge Assy, Back Door, RH
2016-06 → 2018-12 ended
ZVW5# CBU ¥1,500
68810-47061 note Hinge Assy, Back Door, RH
2018-12 → —
ZVW5# CBU ¥1,500
68810-47071 note Hinge Assy, Back Door, RH
2018-12 → —
ZVW5# CBU ¥1,500
68810-47081 note Hinge Assy, Back Door, RH
2018-12 → —
ZVW5# CBU ¥1,500
68820C — Hinge Assy, Back Door, LH
68810-47060 note Hinge Assy, Back Door, LH
2015-11 → 2016-05 ended
ZVW5# CBU ¥2,180
68810-47061 note Hinge Assy, Back Door, LH
2016-06 → 2018-12 ended
ZVW5# CBU ¥1,500
68810-47070 note Hinge Assy, Back Door, LH
2015-11 → 2016-05 ended
ZVW5# CBU ¥2,180
68810-47071 note Hinge Assy, Back Door, LH
2016-06 → 2018-12 ended
ZVW5# CBU ¥1,500
68810-47080 note Hinge Assy, Back Door, LH
2015-11 → 2016-05 ended
ZVW5# CBU ¥2,180
68810-47081 note Hinge Assy, Back Door, LH
2016-06 → 2018-12 ended
ZVW5# CBU ¥1,500
68810-47061 note Hinge Assy, Back Door, LH
2018-12 → —
ZVW5# CBU ¥1,500
68810-47071 note Hinge Assy, Back Door, LH
2018-12 → —
ZVW5# CBU ¥1,500
68810-47081 note Hinge Assy, Back Door, LH
2018-12 → —
ZVW5# CBU ¥1,500
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-52110 Bracket, Back Door Damper Stay, Upper RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥340
68945-52110 Bracket, Back Door Damper Stay, Upper RH
2018-12 → —
ZVW5# CBU ¥340
68946 — Bracket, Back Door Damper Stay, Upper LH
68945-52110 Bracket, Back Door Damper Stay, Upper LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥340
68945-52110 Bracket, Back Door Damper Stay, Upper LH
2018-12 → —
ZVW5# CBU ¥340
68950C — Stay Assy, Back Door, RH
68950-0W850 Stay Assy, Back Door, RH
2015-11 → 2017-07 ended
ZVW5# (A,PREM,S) CBU ¥7,600
68950-0W851 Stay Assy, Back Door, RH
2017-08 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥7,600
68950-0W870 Stay Assy, Back Door, RH
2015-11 → 2017-07 ended
ZVW51 E ¥7,600
68950-0W871 Stay Assy, Back Door, RH
2017-08 → 2018-12 ended
ZVW51 E ¥7,600
68950-0WA70 Stay Assy, Back Door, RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥6,300
68950-0WF50 Stay Assy, Back Door, RH
2018-12 → —
ZVW51 E ¥6,300
68960B — Stay Assy, Back Door, LH
68960-0W850 Stay Assy, Back Door, LH
2015-11 → 2017-07 ended
ZVW5# (A,PREM,S) CBU ¥7,600
68960-0W851 Stay Assy, Back Door, LH
2017-08 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥7,600
68960-0W870 Stay Assy, Back Door, LH
2015-11 → 2017-07 ended
ZVW51 E ¥7,600
68960-0W871 Stay Assy, Back Door, LH
2017-08 → 2018-12 ended
ZVW51 E ¥7,600
68960-0WA70 Stay Assy, Back Door, LH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥6,300
68960-0WF50 Stay Assy, Back Door, LH
2018-12 → —
ZVW51 E ¥6,300
68961 — Bolt, Back Door Stay
68961-47010 Bolt, Back Door Stay
2015-11 → 2018-12 ended
ZVW5# CBU ¥310
68961-47010 Bolt, Back Door Stay
2018-12 → —
ZVW5# CBU ¥310
69321 — Cover, Back Door Lock
69321-47010 Cover, Back Door Lock
2015-11 → 2018-12 ended
ZVW5# CBU ¥710
69321-47010 Cover, Back Door Lock
2018-12 → —
ZVW5# CBU ¥710
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-47050 Lock Assy, Back Door, W/Courtesy Lamp Switch
2015-11 → 2018-12 ended
ZVW5# CBU ¥9,800
69350-47050 Lock Assy, Back Door, W/Courtesy Lamp Switch
2018-12 → —
ZVW5# CBU ¥9,800
69430C — Striker Assy, Back Door Lock
69430-52050 Striker Assy, Back Door Lock
2015-11 → 2018-12 ended
ZVW5# CBU ¥700
69430-52050 Striker Assy, Back Door Lock
2018-12 → —
ZVW5# CBU ¥700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
