Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

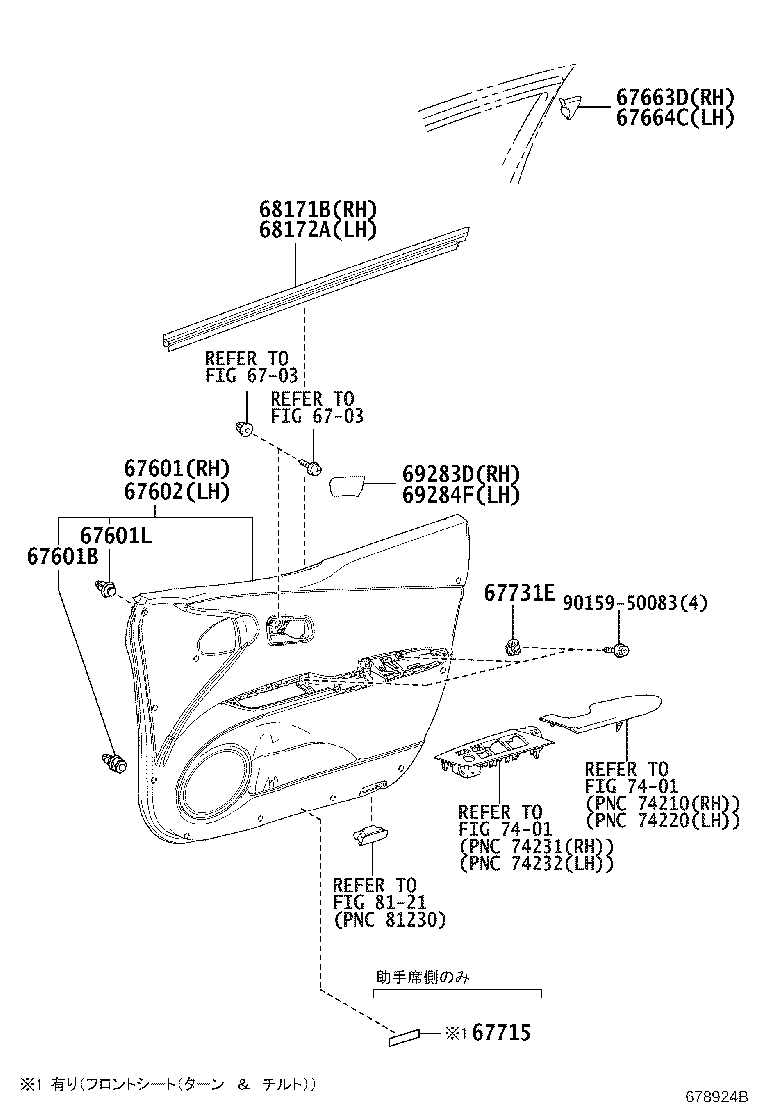

Exploded illustration 678924B 8121 — not listed in this catalogue 7401 — not listed in this catalogue 7401 — not listed in this catalogue 6703 — not listed in this catalogue 6703 — not listed in this catalogue 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (19 parts) 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (2 parts) 67601L — CLIP(FOR FRONT DOOR TRIM BOARD) (2 parts) 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (19 parts) 67663D — GARNISH, DOOR FRAME, RH (2 parts) 67664C — GARNISH, DOOR FRAME, LH (2 parts) 67731E — SPACER, SIDE TRIM, NO.1 (2 parts) 68171B — WEATHERSTRIP, FRONT DOOR GLASS, INNER RH (2 parts) 68172A — WEATHERSTRIP, FRONT DOOR GLASS, INNER LH (2 parts) 69283D — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (5 parts) 69284F — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (5 parts) 9015950083 — not listed in this catalogue 67715 — PAD, DOOR TRIM, NO.1 (2 parts)
678924B · 12 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
67601 — Board Sub-assy, Front Door Trim, RH
67610-47750-C0 note Board Sub-assy, Front Door Trim, RH
2015-11 → 2017-11 ended
ZVW5# (E,S) CBU ¥30,400
67610-47750-C1 note Board Sub-assy, Front Door Trim, RH
2015-11 → 2017-11 ended
ZVW5# (E,S) CBU ¥30,400
67610-47750-C2 note Board Sub-assy, Front Door Trim, RH
2017-11 → 2018-10 ended
ZVW50,55 S CBU ¥30,400
67610-47750-C3 note Board Sub-assy, Front Door Trim, RH
2017-11 → 2018-10 ended
ZVW5# (E,S) CBU ¥30,400
67610-47752-C2 note Board Sub-assy, Front Door Trim, RH
2018-11 → 2018-12 ended
ZVW50,55 S CBU ¥25,300
67610-47752-C3 note Board Sub-assy, Front Door Trim, RH
2018-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥25,300
67610-47760-C0 note Board Sub-assy, Front Door Trim, RH
2015-11 → 2017-11 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67610-47760-C1 note Board Sub-assy, Front Door Trim, RH
2015-11 → 2017-11 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67610-47760-C3 note Board Sub-assy, Front Door Trim, RH
2017-11 → 2018-08 ended
ZVW51,55 PREM ¥33,400
67610-47760-C4 note Board Sub-assy, Front Door Trim, RH
2017-11 → 2018-10 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67610-47760-C5 note Board Sub-assy, Front Door Trim, RH
2017-11 → 2018-10 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67610-47762-C4 note Board Sub-assy, Front Door Trim, RH
2018-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥27,800
67610-47762-C5 note Board Sub-assy, Front Door Trim, RH
2018-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥27,800
67610-47752-C2 note Board Sub-assy, Front Door Trim, RH
2018-12 → 2021-06 ended
ZVW5# S CBU ¥25,300
67610-47752-C3 note Board Sub-assy, Front Door Trim, RH
2018-12 → 2021-06 ended
ZVW5# S CBU ¥25,300
67610-47752-C3 note Board Sub-assy, Front Door Trim, RH
2018-12 → —
ZVW51 E ¥25,300
67610-47762-C4 note Board Sub-assy, Front Door Trim, RH
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥27,800
67610-47762-C5 note Board Sub-assy, Front Door Trim, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥27,800
67610-47762-C5 note Board Sub-assy, Front Door Trim, RH
2021-06 → —
ZVW5# S CBU ¥27,800
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-09206 Clip(FOR FRONT DOOR TRIM BOARD)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-09206 Clip(FOR FRONT DOOR TRIM BOARD)
2018-12 → —
ZVW5# CBU ¥80
67601L — Clip(FOR FRONT DOOR TRIM BOARD)
90467-09233 Clip(FOR FRONT DOOR TRIM BOARD)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-09233 Clip(FOR FRONT DOOR TRIM BOARD)
2018-12 → —
ZVW5# CBU ¥80
67602 — Board Sub-assy, Front Door Trim, LH
67620-47770-C0 note Board Sub-assy, Front Door Trim, LH
2015-11 → 2017-11 ended
ZVW5# (E,S) CBU ¥30,400
67620-47770-C1 note Board Sub-assy, Front Door Trim, LH
2015-11 → 2017-11 ended
ZVW5# (E,S) CBU ¥30,400
67620-47770-C2 note Board Sub-assy, Front Door Trim, LH
2017-11 → 2018-10 ended
ZVW50,55 S CBU ¥30,400
67620-47770-C3 note Board Sub-assy, Front Door Trim, LH
2017-11 → 2018-10 ended
ZVW5# (E,S) CBU ¥30,400
67620-47772-C2 note Board Sub-assy, Front Door Trim, LH
2018-11 → 2018-12 ended
ZVW50,55 S CBU ¥25,300
67620-47772-C3 note Board Sub-assy, Front Door Trim, LH
2018-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥25,300
67620-47780-C0 note Board Sub-assy, Front Door Trim, LH
2015-11 → 2017-11 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67620-47780-C1 note Board Sub-assy, Front Door Trim, LH
2015-11 → 2017-11 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67620-47780-C3 note Board Sub-assy, Front Door Trim, LH
2017-11 → 2018-08 ended
ZVW51,55 PREM ¥33,400
67620-47780-C4 note Board Sub-assy, Front Door Trim, LH
2017-11 → 2018-10 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67620-47780-C5 note Board Sub-assy, Front Door Trim, LH
2017-11 → 2018-10 ended
ZVW51,55 (A,PREM) CBU ¥33,400
67620-47782-C4 note Board Sub-assy, Front Door Trim, LH
2018-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥27,800
67620-47782-C5 note Board Sub-assy, Front Door Trim, LH
2018-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥27,800
67620-47772-C2 note Board Sub-assy, Front Door Trim, LH
2018-12 → 2021-06 ended
ZVW5# S CBU ¥25,300
67620-47772-C3 note Board Sub-assy, Front Door Trim, LH
2018-12 → 2021-06 ended
ZVW5# S CBU ¥25,300
67620-47772-C3 note Board Sub-assy, Front Door Trim, LH
2018-12 → —
ZVW51 E ¥25,300
67620-47782-C4 note Board Sub-assy, Front Door Trim, LH
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥27,800
67620-47782-C5 note Board Sub-assy, Front Door Trim, LH
2018-12 → —
ZVW5# (A,PREM) CBU ¥27,800
67620-47782-C5 note Board Sub-assy, Front Door Trim, LH
2021-06 → —
ZVW5# S CBU ¥27,800
67663D — Garnish, Door Frame, RH
67663-47010 Garnish, Door Frame, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
67663-47010 Garnish, Door Frame, RH
2018-12 → —
ZVW5# CBU ¥360
67664C — Garnish, Door Frame, LH
67664-47010 Garnish, Door Frame, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
67664-47010 Garnish, Door Frame, LH
2018-12 → —
ZVW5# CBU ¥360
67715 — Pad, Door Trim, NO.1
67715-D1010 note Pad, Door Trim, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥730
67715-D1010 note Pad, Door Trim, NO.1
2018-12 → —
ZVW5# CBU ¥730
67731E — Spacer, Side Trim, NO.1
67731-53010 Spacer, Side Trim, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
67731-53010 Spacer, Side Trim, NO.1
2018-12 → —
ZVW5# CBU ¥100
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-47070 Weatherstrip, Front Door Glass, Inner RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥4,380
68171-47071 Weatherstrip, Front Door Glass, Inner RH
2018-12 → —
ZVW5# CBU ¥3,640
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-47070 Weatherstrip, Front Door Glass, Inner LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥4,380
68172-47071 Weatherstrip, Front Door Glass, Inner LH
2018-12 → —
ZVW5# CBU ¥3,640
69283D — Plug, Front Door Inside Handle Bezel, RH
69283-47020-B0 note Plug, Front Door Inside Handle Bezel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
69283-47020-C0 note Plug, Front Door Inside Handle Bezel, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥360
69283-47020-C0 note Plug, Front Door Inside Handle Bezel, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥360
69283-47020-B0 note Plug, Front Door Inside Handle Bezel, RH
2018-12 → —
ZVW5# CBU ¥360
69283-47020-C0 note Plug, Front Door Inside Handle Bezel, RH
2018-12 → —
ZVW5# CBU ¥360
69284F — Plug, Front Door Inside Handle Bezel, LH
69284-47020-B0 note Plug, Front Door Inside Handle Bezel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
69284-47020-C0 note Plug, Front Door Inside Handle Bezel, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥360
69284-47020-C0 note Plug, Front Door Inside Handle Bezel, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥360
69284-47020-B0 note Plug, Front Door Inside Handle Bezel, LH
2018-12 → —
ZVW5# CBU ¥360
69284-47020-C0 note Plug, Front Door Inside Handle Bezel, LH
2018-12 → —
ZVW5# CBU ¥360
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
