Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

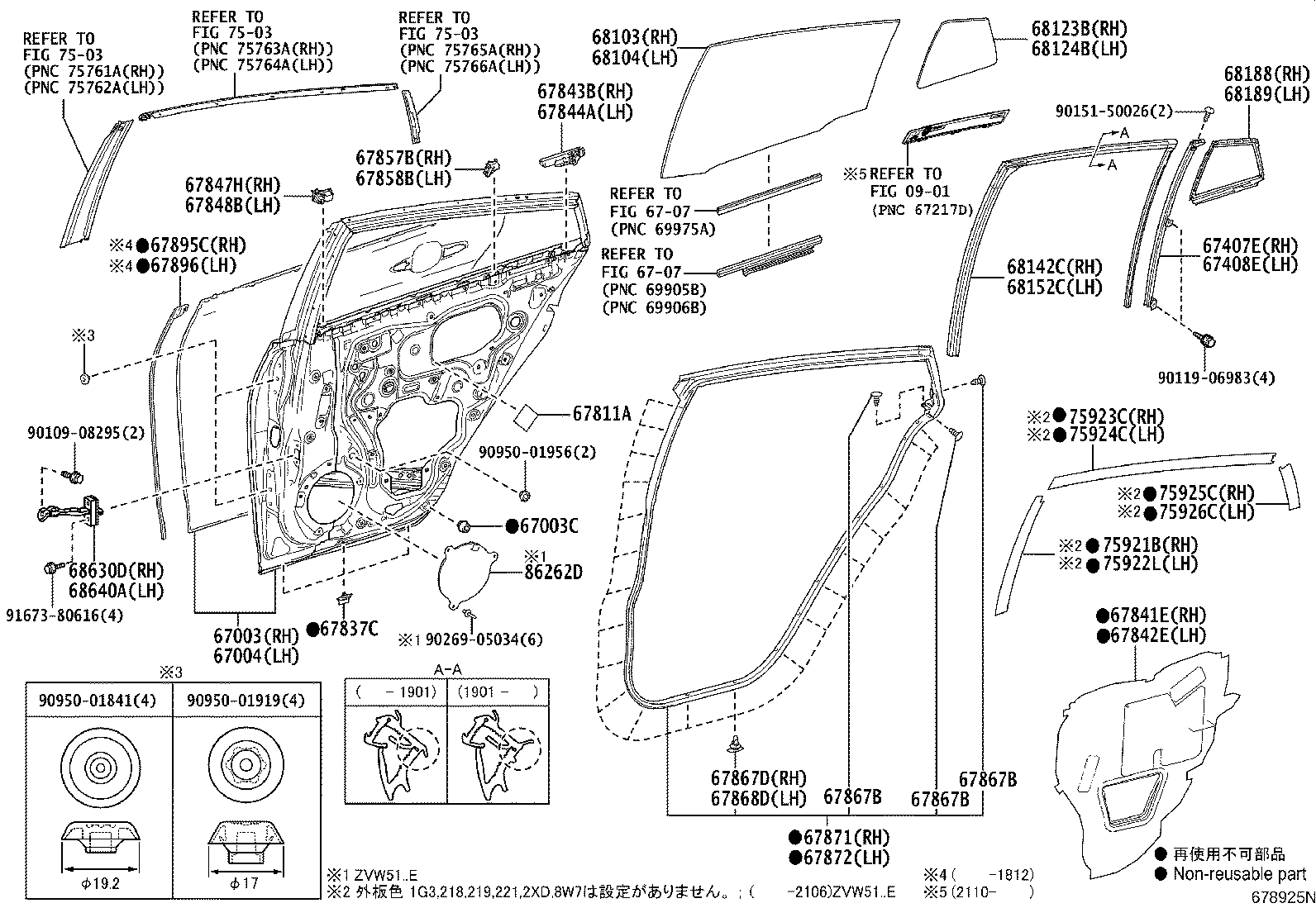

Exploded illustration 678925N 6707 — not listed in this catalogue 6707 — not listed in this catalogue 0901 — not listed in this catalogue 67003 — PANEL SUB-ASSY, REAR DOOR, RH (3 parts) 67003C — CUSHION, REAR DOOR PANEL (2 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (3 parts) 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (2 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (2 parts) 67811A — PAD, REAR DOOR SILENCER (3 parts) 67837C — SEAL, REAR DOOR DUST PROOF (3 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (5 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (5 parts) 67843B — COVER, REAR DOOR SERVICE HOLE, NO.2 RH (2 parts) 67844A — COVER, REAR DOOR SERVICE HOLE, NO.2 LH (2 parts) 67847H — SEAL, REAR DOOR VENT, RH NO.2 (2 parts) 67848B — SEAL, REAR DOOR VENT, LH NO.2 (2 parts) 67857B — PROTECTOR, REAR DOOR PANEL, RH (2 parts) 67858B — PROTECTOR, REAR DOOR PANEL, LH (2 parts) 67867B — CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) (2 parts) 67867B — CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) (2 parts) 67867B — CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) (2 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (2 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (3 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (3 parts) 67895C — WEATHERSTRIP, REAR DOOR, NO.3 RH (1 parts) 67896 — WEATHERSTRIP, REAR DOOR, NO.3 LH (1 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (2 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (2 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (2 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (2 parts) 68142C — RUN, REAR DOOR GLASS, RH (4 parts) 68152C — RUN, REAR DOOR GLASS, LH (4 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (2 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (2 parts) 68630D — CHECK ASSY, REAR DOOR, RH (2 parts) 68640A — CHECK ASSY, REAR DOOR, LH (2 parts) 75921B — TAPE, BLACK OUT, NO.1 RH (3 parts) 75922L — TAPE, BLACK OUT, NO.1 LH (3 parts) 75925C — TAPE, BLACK OUT, NO.3 RH (3 parts) 75923C — TAPE, BLACK OUT, NO.2 RH (3 parts) 75924C — TAPE, BLACK OUT, NO.2 LH (3 parts) 75926C — TAPE, BLACK OUT, NO.3 LH (3 parts) 86262D — COVER, REAR DOOR SPEAKER (2 parts) 9010908295 — not listed in this catalogue 9011906983 — not listed in this catalogue 9015150026 — not listed in this catalogue 9026905034 — not listed in this catalogue 9095001956 — not listed in this catalogue 9167380616 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 9095001841 — not listed in this catalogue 9095001919 — not listed in this catalogue
678925N · 41 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
98 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-47210 Panel Sub-assy, Rear Door, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥56,500
67003-47210 note Panel Sub-assy, Rear Door, RH
2018-12 → 2019-01 ended
ZVW5# CBU ¥56,500
67003-47211 note Panel Sub-assy, Rear Door, RH
2019-01 → —
ZVW5# CBU ¥47,100
67003C — Cushion, Rear Door Panel
90541-09124 Cushion, Rear Door Panel
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
90541-09124 Cushion, Rear Door Panel
2018-12 → —
ZVW5# CBU ¥100
67004 — Panel Sub-assy, Rear Door, LH
67004-47210 Panel Sub-assy, Rear Door, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥56,500
67004-47210 note Panel Sub-assy, Rear Door, LH
2018-12 → 2019-01 ended
ZVW5# CBU ¥56,500
67004-47211 note Panel Sub-assy, Rear Door, LH
2019-01 → —
ZVW5# CBU ¥47,100
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-47050 Bar Sub-assy, Rear Door Window Division, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,200
67407-47050 Bar Sub-assy, Rear Door Window Division, RH
2018-12 → —
ZVW5# CBU ¥2,200
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-47050 Bar Sub-assy, Rear Door Window Division, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,200
67408-47050 Bar Sub-assy, Rear Door Window Division, LH
2018-12 → —
ZVW5# CBU ¥2,200
67811A — Pad, Rear Door Silencer
67811-33040 Pad, Rear Door Silencer
2015-11 → 2018-12 ended
ZVW5# CBU ¥550
67811-12180 Pad, Rear Door Silencer
2020-05 → —
ZVW5# CBU ¥460
67811-33040 Pad, Rear Door Silencer
2018-12 → 2020-04 ended
ZVW5# CBU ¥550
67837C — Seal, Rear Door Dust Proof
67837-47060 Seal, Rear Door Dust Proof
2017-05 → 2018-12 ended
ZVW5# CBU ¥80
67837-48050 Seal, Rear Door Dust Proof
2015-11 → 2017-04 ended
ZVW5# CBU ¥80
67837-47060 Seal, Rear Door Dust Proof
2018-12 → —
ZVW5# CBU ¥80
67841E — Cover, Rear Door Service Hole, RH
67841-47100 Cover, Rear Door Service Hole, RH
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥630
67841-47130 Cover, Rear Door Service Hole, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥1,030
67841-47100 Cover, Rear Door Service Hole, RH
2018-12 → —
ZVW5# (E,S) CBU ¥630
67841-47100 Cover, Rear Door Service Hole, RH
2019-08 → —
ZVW5# (A,PREM) CBU ¥630
67841-47130 Cover, Rear Door Service Hole, RH
2018-12 → 2019-08 ended
ZVW5# (A,PREM) CBU ¥1,030
67842E — Cover, Rear Door Service Hole, LH
67842-47110 Cover, Rear Door Service Hole, LH
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥630
67842-47120 Cover, Rear Door Service Hole, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥1,030
67842-47110 Cover, Rear Door Service Hole, LH
2019-08 → —
ZVW5# (A,PREM) CBU ¥630
67842-47110 Cover, Rear Door Service Hole, LH
2018-12 → —
ZVW5# (E,S) CBU ¥630
67842-47120 Cover, Rear Door Service Hole, LH
2018-12 → 2019-08 ended
ZVW5# (A,PREM) CBU ¥1,030
67843B — Cover, Rear Door Service Hole, NO.2 RH
67843-47010 Cover, Rear Door Service Hole, NO.2 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥580
67843-47010 Cover, Rear Door Service Hole, NO.2 RH
2018-12 → —
ZVW5# CBU ¥580
67844A — Cover, Rear Door Service Hole, NO.2 LH
67844-47010 Cover, Rear Door Service Hole, NO.2 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥580
67844-47010 Cover, Rear Door Service Hole, NO.2 LH
2018-12 → —
ZVW5# CBU ¥580
67847H — Seal, Rear Door Vent, RH NO.2
67847-47030 Seal, Rear Door Vent, RH NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥450
67847-47030 Seal, Rear Door Vent, RH NO.2
2018-12 → —
ZVW5# CBU ¥450
67848B — Seal, Rear Door Vent, LH NO.2
67848-47020 Seal, Rear Door Vent, LH NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥450
67848-47020 Seal, Rear Door Vent, LH NO.2
2018-12 → —
ZVW5# CBU ¥450
67857B — Protector, Rear Door Panel, RH
67857-47040 Protector, Rear Door Panel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥220
67857-47040 Protector, Rear Door Panel, RH
2018-12 → —
ZVW5# CBU ¥220
67858B — Protector, Rear Door Panel, LH
67858-47030 Protector, Rear Door Panel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥220
67858-47030 Protector, Rear Door Panel, LH
2018-12 → —
ZVW5# CBU ¥220
67867B — Clip, Door Weatherstrip(FOR REAR DOOR)
67868-30030 Clip, Door Weatherstrip(FOR REAR DOOR)
2015-11 → 2018-12 ended
ZVW5# CBU ¥190
67868-30030 Clip, Door Weatherstrip(FOR REAR DOOR)
2018-12 → —
ZVW5# CBU ¥190
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
2018-12 → —
ZVW5# CBU ¥100
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
2018-12 → —
ZVW5# CBU ¥100
67871 — Weatherstrip, Rear Door, RH
67871-47050 Weatherstrip, Rear Door, RH
2015-11 → 2017-02 ended
ZVW5# CBU ¥6,100
67871-47051 Weatherstrip, Rear Door, RH
2017-03 → 2018-12 ended
ZVW5# CBU ¥5,100
67871-47051 Weatherstrip, Rear Door, RH
2018-12 → —
ZVW5# CBU ¥5,100
67872 — Weatherstrip, Rear Door, LH
67872-47050 Weatherstrip, Rear Door, LH
2015-11 → 2017-02 ended
ZVW5# CBU ¥6,100
67872-47051 Weatherstrip, Rear Door, LH
2017-03 → 2018-12 ended
ZVW5# CBU ¥5,100
67872-47051 Weatherstrip, Rear Door, LH
2018-12 → —
ZVW5# CBU ¥5,100
67895C — Weatherstrip, Rear Door, NO.3 RH
67895-47010 Weatherstrip, Rear Door, NO.3 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,150
67896 — Weatherstrip, Rear Door, NO.3 LH
67896-47010 Weatherstrip, Rear Door, NO.3 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,150
68103 — Glass Sub-assy, Rear Door, RH
68113-47140 Glass Sub-assy, Rear Door, RH
2015-11 → 2018-12 ended
ZVW5# CBU —
68113-47160 Glass Sub-assy, Rear Door, RH
2018-12 → —
ZVW5# CBU —
68104 — Glass Sub-assy, Rear Door, LH
68114-47140 Glass Sub-assy, Rear Door, LH
2015-11 → 2018-12 ended
ZVW5# CBU —
68114-47160 Glass Sub-assy, Rear Door, LH
2018-12 → —
ZVW5# CBU —
68123B — Glass, Rear Door Quarter Window, RH
68123-47040 Glass, Rear Door Quarter Window, RH
2015-11 → 2018-12 ended
ZVW5# CBU —
68123-47060 Glass, Rear Door Quarter Window, RH
2018-12 → —
ZVW5# CBU —
68124B — Glass, Rear Door Quarter Window, LH
68124-47040 Glass, Rear Door Quarter Window, LH
2015-11 → 2018-12 ended
ZVW5# CBU —
68124-47060 Glass, Rear Door Quarter Window, LH
2018-12 → —
ZVW5# CBU —
68142C — Run, Rear Door Glass, RH
68142-47050 Run, Rear Door Glass, RH
2015-11 → 2016-02 ended
ZVW5# ¥3,410
68142-47051 Run, Rear Door Glass, RH
2016-03 → 2018-12 ended
ZVW5# CBU ¥2,830
68142-47051 note Run, Rear Door Glass, RH
2018-12 → 2019-01 ended
ZVW5# CBU ¥2,830
68142-47052 note Run, Rear Door Glass, RH
2019-01 → —
ZVW5# CBU ¥2,360
68152C — Run, Rear Door Glass, LH
68152-47050 Run, Rear Door Glass, LH
2015-11 → 2016-02 ended
ZVW5# ¥3,410
68152-47051 Run, Rear Door Glass, LH
2016-03 → 2018-12 ended
ZVW5# CBU ¥2,830
68152-47051 note Run, Rear Door Glass, LH
2018-12 → 2019-01 ended
ZVW5# CBU ¥2,830
68152-47052 note Run, Rear Door Glass, LH
2019-01 → —
ZVW5# CBU ¥2,360
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-47030 Weatherstrip, Rear Door Quarter Window, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,390
68188-47030 Weatherstrip, Rear Door Quarter Window, RH
2018-12 → —
ZVW5# CBU ¥1,390
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-47030 Weatherstrip, Rear Door Quarter Window, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,390
68189-47030 Weatherstrip, Rear Door Quarter Window, LH
2018-12 → —
ZVW5# CBU ¥1,390
68630D — Check Assy, Rear Door, RH
68630-47050 Check Assy, Rear Door, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,560
68630-47050 Check Assy, Rear Door, RH
2018-12 → —
ZVW5# CBU ¥2,560
68640A — Check Assy, Rear Door, LH
68630-47050 Check Assy, Rear Door, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,560
68630-47050 Check Assy, Rear Door, LH
2018-12 → —
ZVW5# CBU ¥2,560
75921B — Tape, Black Out, NO.1 RH
75977-47080 note Tape, Black Out, NO.1 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥630
75977-47080 note Tape, Black Out, NO.1 RH
2018-12 → 2021-06 ended
ZVW51 E ¥630
75977-47080 note Tape, Black Out, NO.1 RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥630
75922L — Tape, Black Out, NO.1 LH
75978-47080 note Tape, Black Out, NO.1 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥630
75978-47080 note Tape, Black Out, NO.1 LH
2018-12 → 2021-06 ended
ZVW51 E ¥630
75978-47080 note Tape, Black Out, NO.1 LH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥630
75923C — Tape, Black Out, NO.2 RH
75987-47060 note Tape, Black Out, NO.2 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥990
75987-47060 note Tape, Black Out, NO.2 RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥990
75987-47060 note Tape, Black Out, NO.2 RH
2018-12 → 2021-06 ended
ZVW51 E ¥990
75924C — Tape, Black Out, NO.2 LH
75988-47060 note Tape, Black Out, NO.2 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥990
75988-47060 note Tape, Black Out, NO.2 LH
2018-12 → 2021-06 ended
ZVW51 E ¥990
75988-47060 note Tape, Black Out, NO.2 LH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥990
75925C — Tape, Black Out, NO.3 RH
75979-47070 note Tape, Black Out, NO.3 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥440
75979-47070 note Tape, Black Out, NO.3 RH
2018-12 → 2021-06 ended
ZVW51 E ¥440
75979-47070 note Tape, Black Out, NO.3 RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥440
75926C — Tape, Black Out, NO.3 LH
75989-47070 note Tape, Black Out, NO.3 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥440
75989-47070 note Tape, Black Out, NO.3 LH
2018-12 → 2021-06 ended
ZVW51 E ¥440
75989-47070 note Tape, Black Out, NO.3 LH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥440
86262D — Cover, Rear Door Speaker
86262-47010 Cover, Rear Door Speaker
2015-11 → 2018-12 ended
ZVW51 E ¥1,670
86262-47010 Cover, Rear Door Speaker
2018-12 → —
ZVW51 E ¥1,670
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
