Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

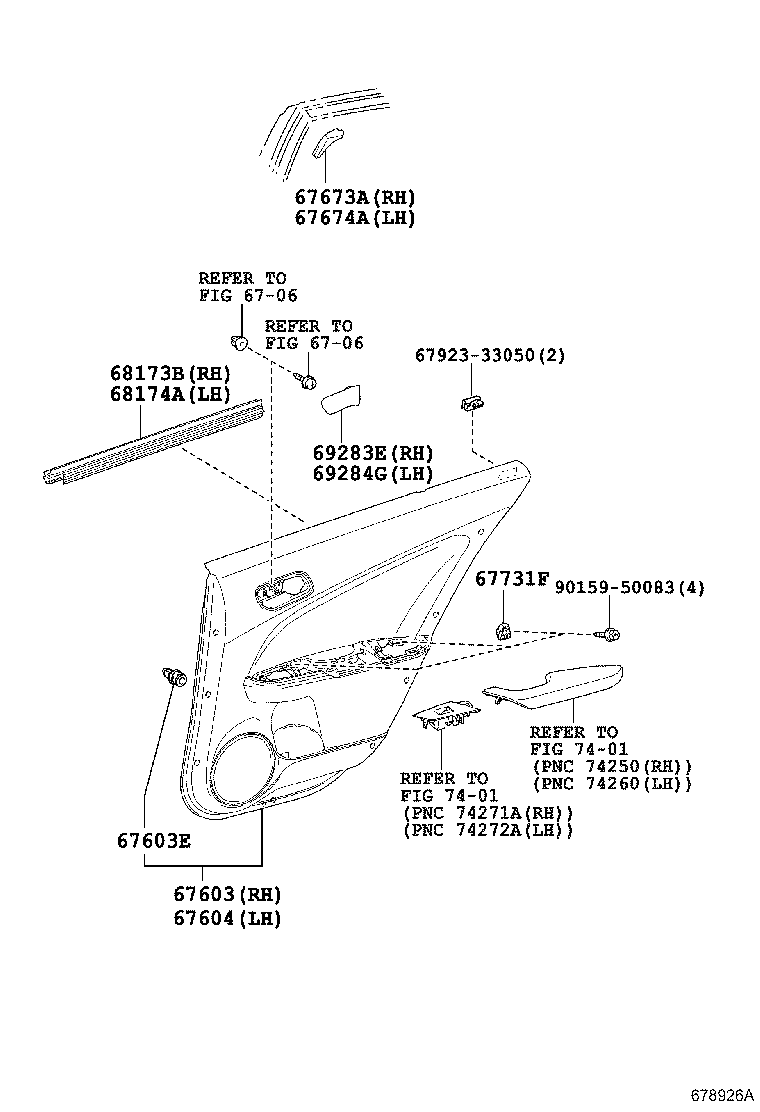

Exploded illustration 678926A 6706 — not listed in this catalogue 6706 — not listed in this catalogue 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (16 parts) 67603E — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (16 parts) 67673A — GARNISH, REAR DOOR FRAME, RH (2 parts) 67674A — GARNISH, REAR DOOR FRAME, LH (2 parts) 67731F — SPACER, SIDE TRIM, NO.1 (2 parts) 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (3 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (3 parts) 69283E — PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH (3 parts) 69284G — PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH (3 parts) 6792333050 — not listed in this catalogue 9015950083 — not listed in this catalogue 7401 — not listed in this catalogue 7401 — not listed in this catalogue
678926A · 10 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-47500-C0 note Board Sub-assy, Rear Door Trim, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥23,600
67630-47500-C1 note Board Sub-assy, Rear Door Trim, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥23,600
67630-47500-C2 note Board Sub-assy, Rear Door Trim, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥23,600
67630-47C00-C0 note Board Sub-assy, Rear Door Trim, RH
2015-11 → 2018-12 ended
ZVW51 E ¥22,500
67630-47C00-C0 note Board Sub-assy, Rear Door Trim, RH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥22,500
67630-47C00-C1 note Board Sub-assy, Rear Door Trim, RH
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥22,500
67630-47500-C0 note Board Sub-assy, Rear Door Trim, RH
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥23,600
67630-47500-C1 note Board Sub-assy, Rear Door Trim, RH
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥23,600
67630-47510-C0 note Board Sub-assy, Rear Door Trim, RH
2020-07 → 2021-06 ended
ZVW5# S CBU ¥17,800
67630-47510-C1 note Board Sub-assy, Rear Door Trim, RH
2020-07 → 2021-06 ended
ZVW5# S CBU ¥17,800
67630-47510-C1 note Board Sub-assy, Rear Door Trim, RH
2020-07 → —
ZVW51 E ¥17,800
67630-47570-C0 note Board Sub-assy, Rear Door Trim, RH
2020-07 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥18,700
67630-47570-C1 note Board Sub-assy, Rear Door Trim, RH
2020-07 → —
ZVW5# (A,PREM) CBU ¥18,700
67630-47570-C1 note Board Sub-assy, Rear Door Trim, RH
2021-06 → —
ZVW5# S CBU ¥18,700
67630-47C00-C0 note Board Sub-assy, Rear Door Trim, RH
2018-12 → 2020-07 ended
ZVW5# S CBU ¥22,500
67630-47C00-C1 note Board Sub-assy, Rear Door Trim, RH
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥22,500
67603E — Clip(FOR REAR DOOR TRIM BOARD)
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2018-12 → —
ZVW5# CBU ¥80
67604 — Board Sub-assy, Rear Door Trim, LH
67640-47500-C0 note Board Sub-assy, Rear Door Trim, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥23,600
67640-47500-C1 note Board Sub-assy, Rear Door Trim, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥23,600
67640-47500-C2 note Board Sub-assy, Rear Door Trim, LH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥23,600
67640-47B00-C0 note Board Sub-assy, Rear Door Trim, LH
2015-11 → 2018-12 ended
ZVW51 E ¥22,500
67640-47B00-C0 note Board Sub-assy, Rear Door Trim, LH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥22,500
67640-47B00-C1 note Board Sub-assy, Rear Door Trim, LH
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥22,500
67640-47500-C0 note Board Sub-assy, Rear Door Trim, LH
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥23,600
67640-47500-C1 note Board Sub-assy, Rear Door Trim, LH
2018-12 → 2020-07 ended
ZVW5# (A,PREM) CBU ¥23,600
67640-47560-C0 note Board Sub-assy, Rear Door Trim, LH
2020-07 → 2021-06 ended
ZVW5# S CBU ¥17,800
67640-47560-C1 note Board Sub-assy, Rear Door Trim, LH
2020-07 → 2021-06 ended
ZVW5# S CBU ¥17,800
67640-47560-C1 note Board Sub-assy, Rear Door Trim, LH
2020-07 → —
ZVW51 E ¥17,800
67640-47570-C0 note Board Sub-assy, Rear Door Trim, LH
2020-07 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥18,700
67640-47570-C1 note Board Sub-assy, Rear Door Trim, LH
2021-06 → —
ZVW5# S CBU ¥18,700
67640-47570-C1 note Board Sub-assy, Rear Door Trim, LH
2020-07 → —
ZVW5# (A,PREM) CBU ¥18,700
67640-47B00-C0 note Board Sub-assy, Rear Door Trim, LH
2018-12 → 2020-07 ended
ZVW5# S CBU ¥22,500
67640-47B00-C1 note Board Sub-assy, Rear Door Trim, LH
2018-12 → 2020-07 ended
ZVW5# (E,S) CBU ¥22,500
67673A — Garnish, Rear Door Frame, RH
67673-47030 Garnish, Rear Door Frame, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
67673-47030 Garnish, Rear Door Frame, RH
2018-12 → —
ZVW5# CBU ¥360
67674A — Garnish, Rear Door Frame, LH
67674-47020 Garnish, Rear Door Frame, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥360
67674-47020 Garnish, Rear Door Frame, LH
2018-12 → —
ZVW5# CBU ¥360
67731F — Spacer, Side Trim, NO.1
67731-53010 Spacer, Side Trim, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
67731-53010 Spacer, Side Trim, NO.1
2018-12 → —
ZVW5# CBU ¥100
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-47060 Weatherstrip, Rear Door Glass, Inner RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,280
68173-47060 Weatherstrip, Rear Door Glass, Inner RH
2018-12 → 2019-01 ended
ZVW5# CBU ¥3,280
68173-47061 Weatherstrip, Rear Door Glass, Inner RH
2019-01 → —
ZVW5# CBU ¥2,730
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-47060 Weatherstrip, Rear Door Glass, Inner LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,280
68174-47060 Weatherstrip, Rear Door Glass, Inner LH
2018-12 → 2019-01 ended
ZVW5# CBU ¥3,280
68174-47061 Weatherstrip, Rear Door Glass, Inner LH
2019-01 → —
ZVW5# CBU ¥2,730
69283E — Plug, Rear Door Inside Handle Bezel, RH
69283-47020-C0 note Plug, Rear Door Inside Handle Bezel, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥360
69283-47020-C0 note Plug, Rear Door Inside Handle Bezel, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥360
69283-47020-C0 note Plug, Rear Door Inside Handle Bezel, RH
2018-12 → —
ZVW5# CBU ¥360
69284G — Plug, Rear Door Inside Handle Bezel, LH
69284-47020-C0 note Plug, Rear Door Inside Handle Bezel, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥360
69284-47020-C0 note Plug, Rear Door Inside Handle Bezel, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥360
69284-47020-C0 note Plug, Rear Door Inside Handle Bezel, LH
2018-12 → —
ZVW5# CBU ¥360
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
