Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

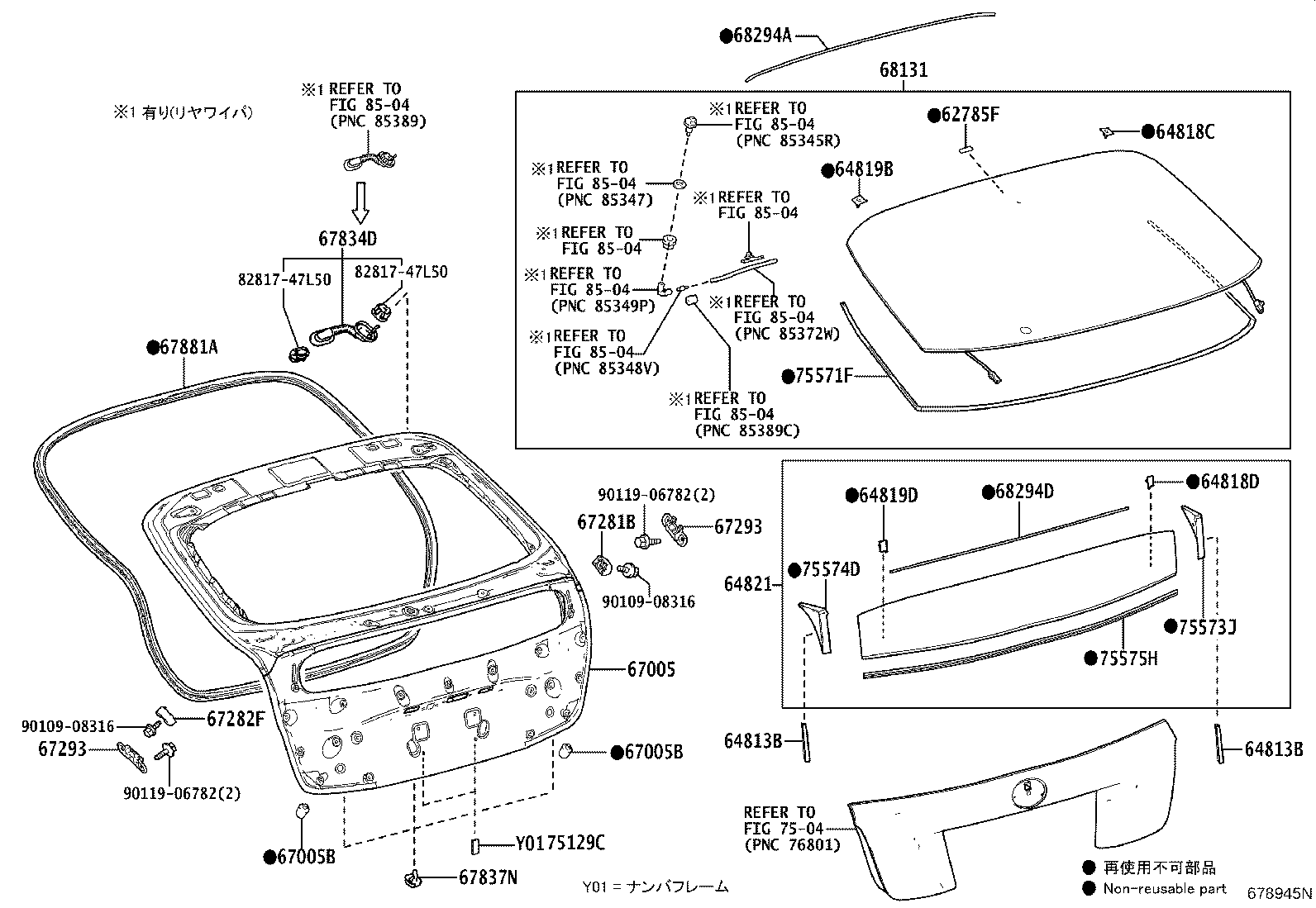

Exploded illustration 678945N 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 62785F — SPACER, BACK DOOR GLASS (2 parts) 64818C — SPACER, BACK WINDOW GLASS, NO.1 (2 parts) 64818D — SPACER, BACK WINDOW GLASS, NO.3 (2 parts) 64819B — SPACER, BACK WINDOW GLASS, NO.2 (2 parts) 64819D — SPACER, BACK WINDOW GLASS, NO.4 (2 parts) 64821 — GLASS, BACK WINDOW FIX (3 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (14 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67837N — SEAL, BACK DOOR DUST PROOF (2 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67281B — STOPPER, BACK DOOR, LOWER (2 parts) 67282F — STOPPER, BACK DOOR, LWR LH (2 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (3 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (3 parts) 67881A — WEATHERSTRIP, BACK DOOR (3 parts) 68131 — GLASS, BACK DOOR (14 parts) 68294A — DAM, BACK DOOR GLASS ADHESIVE (2 parts) 68294D — DAM, BACK DOOR GLASS ADHESIVE, NO.2 (2 parts) 75129C — CUSHION, REAR LICENCE PLATE (2 parts) 75571F — MOULDIMG, BACK DOOR WINDOW (3 parts) 75573J — MOULDING, BACK WINDOW, OUTSIDE RH NO.2 (2 parts) 75574D — MOULDING, BACK WINDOW, OUTSIDE LH NO.2 (2 parts) 75575H — MOULDING, BACK WINDOW, LOWER NO.2 (3 parts) 64813B — DAM, BACK WINDOW GLASS ADHESIVE (1 parts) 64813B — DAM, BACK WINDOW GLASS ADHESIVE (1 parts) 9010908316 — not listed in this catalogue 9010908316 — not listed in this catalogue 9011906782 — not listed in this catalogue 9011906782 — not listed in this catalogue 7504 — not listed in this catalogue 67834D — GROMMET, BACK DOOR SERVICE HOLE COVER (2 parts) 8281747L50 — not listed in this catalogue 8281747L50 — not listed in this catalogue
678945N · 26 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
62785F — Spacer, Back Door Glass
62785-47010 Spacer, Back Door Glass
2015-11 → 2018-12 ended
ZVW5# CBU ¥190
62785-47010 Spacer, Back Door Glass
2018-12 → —
ZVW5# CBU ¥190
64813B — Dam, Back Window Glass Adhesive
62267-47010 Dam, Back Window Glass Adhesive
2015-11 → 2018-12 ended
ZVW5# CBU ¥250
64818C — Spacer, Back Window Glass, NO.1
64818-47080 Spacer, Back Window Glass, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
64818-47080 Spacer, Back Window Glass, NO.1
2018-12 → —
ZVW5# CBU ¥200
64818D — Spacer, Back Window Glass, NO.3
64818-47100 Spacer, Back Window Glass, NO.3
2015-11 → 2018-12 ended
ZVW5# CBU ¥190
64818-47100 Spacer, Back Window Glass, NO.3
2018-12 → —
ZVW5# CBU ¥190
64819B — Spacer, Back Window Glass, NO.2
64819-47080 Spacer, Back Window Glass, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
64819-47080 Spacer, Back Window Glass, NO.2
2018-12 → —
ZVW5# CBU ¥200
64819D — Spacer, Back Window Glass, NO.4
64819-47100 Spacer, Back Window Glass, NO.4
2015-11 → 2018-12 ended
ZVW5# CBU ¥190
64819-47100 Spacer, Back Window Glass, NO.4
2018-12 → —
ZVW5# CBU ¥190
64821 — Glass, Back Window Fix
64801-47030 Glass, Back Window Fix
2015-11 → 2016-08 ended
ZVW5# CBU —
64801-47031 Glass, Back Window Fix
2016-09 → 2018-12 ended
ZVW5# CBU —
64801-47031 Glass, Back Window Fix
2018-12 → —
ZVW5# CBU —
67005 — Panel Sub-assy, Back Door
67005-47430 Panel Sub-assy, Back Door
2015-11 → 2017-10 ended
ZVW5# CBU ¥80,400
67005-47431 Panel Sub-assy, Back Door
2017-11 → 2018-12 ended
ZVW5# CBU ¥80,400
67005-47440 note Panel Sub-assy, Back Door
2015-11 → 2017-10 ended
ZVW5# (A,PREM,S) CBU ¥80,400
67005-47441 note Panel Sub-assy, Back Door
2017-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥80,400
67005-47441 note Panel Sub-assy, Back Door
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥80,400
67005-47530 Panel Sub-assy, Back Door
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥66,900
67005-47530 note Panel Sub-assy, Back Door
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥66,900
67005-47530 Panel Sub-assy, Back Door
2018-12 → —
ZVW51 E ¥66,900
67005-47540 note Panel Sub-assy, Back Door
2018-12 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥66,900
67005-47540 Panel Sub-assy, Back Door
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥66,900
67005-47540 note Panel Sub-assy, Back Door
2018-12 → —
ZVW51 E ¥66,900
67005-47540 note Panel Sub-assy, Back Door
2019-08 → 2021-06 ended
ZVW5# (A,PREM) CBU ¥66,900
67005-47540 note Panel Sub-assy, Back Door
2019-08 → 2021-06 ended
ZVW5# CBU ¥66,900
67005-47540 note Panel Sub-assy, Back Door
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥66,900
67005B — Cushion(FOR BACK DOOR PANEL)
69478-47010 Cushion(FOR BACK DOOR PANEL)
2015-11 → 2018-12 ended
ZVW5# CBU ¥230
69478-47010 Cushion(FOR BACK DOOR PANEL)
2018-12 → —
ZVW5# CBU ¥230
67281B — Stopper, Back Door, Lower
67281-47020 Stopper, Back Door, Lower
2015-11 → 2018-12 ended
ZVW5# CBU ¥870
67281-47020 Stopper, Back Door, Lower
2018-12 → —
ZVW5# CBU ¥870
67282F — Stopper, Back Door, Lwr LH
67281-47020 Stopper, Back Door, Lwr LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥870
67281-47020 Stopper, Back Door, Lwr LH
2018-12 → —
ZVW5# CBU ¥870
67293 — Cushion, Back Door Lower Stopper
67293-47030 Cushion, Back Door Lower Stopper
2015-11 → 2017-07 ended
ZVW5# CBU ¥810
67293-47031 Cushion, Back Door Lower Stopper
2017-08 → 2018-12 ended
ZVW5# CBU ¥670
67293-47031 Cushion, Back Door Lower Stopper
2018-12 → —
ZVW5# CBU ¥670
67834D — Grommet, Back Door Service Hole Cover
86101-47K20 Grommet, Back Door Service Hole Cover
2015-11 → 2018-12 ended
ZVW51 E ¥2,920
86101-47K20 Grommet, Back Door Service Hole Cover
2018-12 → —
ZVW51 E ¥2,920
67837N — Seal, Back Door Dust Proof
67837-47050 Seal, Back Door Dust Proof
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
67837-47050 Seal, Back Door Dust Proof
2018-12 → —
ZVW5# CBU ¥90
67881A — Weatherstrip, Back Door
67881-47050 Weatherstrip, Back Door
2015-11 → 2018-07 ended
ZVW5# CBU ¥10,600
67881-47051 Weatherstrip, Back Door
2018-08 → 2018-12 ended
ZVW5# CBU ¥8,800
67881-47051 Weatherstrip, Back Door
2018-12 → —
ZVW5# CBU ¥8,800
68131 — Glass, Back Door
68105-47260 Glass, Back Door
2015-11 → 2018-12 ended
ZVW51 E —
68105-47270 Glass, Back Door
2015-11 → 2016-05 ended
ZVW5# (A,PREM,S) CBU —
68105-47271 note Glass, Back Door
2016-05 → 2018-06 ended
ZVW5# (A,PREM,S) CBU —
68105-47272 note Glass, Back Door
2018-06 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
68105-47340 note Glass, Back Door
2017-11 → 2018-06 ended
ZVW51,55 (A,PREM) CBU —
68105-47340 note Glass, Back Door
2017-11 → 2018-06 ended
ZVW51,55 (A,PREM) CBU —
68105-47341 note Glass, Back Door
2018-06 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
68105-47341 note Glass, Back Door
2018-06 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
68105-47380 Glass, Back Door
2018-12 → —
ZVW51 E —
68105-47391 note Glass, Back Door
2021-06 → —
ZVW5# (A,PREM,S) CBU —
68105-47391 Glass, Back Door
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU —
68105-47401 note Glass, Back Door
2018-12 → 2021-06 ended
ZVW5# A CBU —
68105-47401 Glass, Back Door
2021-06 → —
ZVW5# (A,PREM,S) CBU —
68105-47401 note Glass, Back Door
2018-12 → 2021-06 ended
ZVW5# PREM —
68294A — Dam, Back Door Glass Adhesive
56117-50140 Dam, Back Door Glass Adhesive
2015-11 → 2018-12 ended
ZVW5# CBU ¥870
56117-50140 Dam, Back Door Glass Adhesive
2018-12 → —
ZVW5# CBU ¥870
68294D — Dam, Back Door Glass Adhesive, NO.2
56117-50140 Dam, Back Door Glass Adhesive, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥870
56117-50140 Dam, Back Door Glass Adhesive, NO.2
2018-12 → —
ZVW5# CBU ¥870
75129C — Cushion, Rear Licence Plate
75129-13020 Cushion, Rear Licence Plate
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
75129-13020 Cushion, Rear Licence Plate
2018-12 → —
ZVW5# CBU ¥80
75571F — Mouldimg, Back Door Window
75571-47010 Mouldimg, Back Door Window
2015-11 → 2018-05 ended
ZVW5# CBU ¥930
75571-47011 Mouldimg, Back Door Window
2018-06 → 2018-12 ended
ZVW5# CBU ¥770
75571-47011 Mouldimg, Back Door Window
2018-12 → —
ZVW5# CBU ¥770
75573J — Moulding, Back Window, Outside RH NO.2
75573-47110 Moulding, Back Window, Outside RH NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥890
75573-47110 Moulding, Back Window, Outside RH NO.2
2018-12 → —
ZVW5# CBU ¥890
75574D — Moulding, Back Window, Outside LH NO.2
75574-47040 Moulding, Back Window, Outside LH NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥890
75574-47040 Moulding, Back Window, Outside LH NO.2
2018-12 → —
ZVW5# CBU ¥890
75575H — Moulding, Back Window, Lower NO.2
75575-47050 Moulding, Back Window, Lower NO.2
2015-11 → 2016-08 ended
ZVW5# CBU ¥750
75575-47051 Moulding, Back Window, Lower NO.2
2016-09 → 2018-12 ended
ZVW5# CBU ¥510
75575-47051 Moulding, Back Window, Lower NO.2
2018-12 → —
ZVW5# CBU ¥510
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
